START HERE

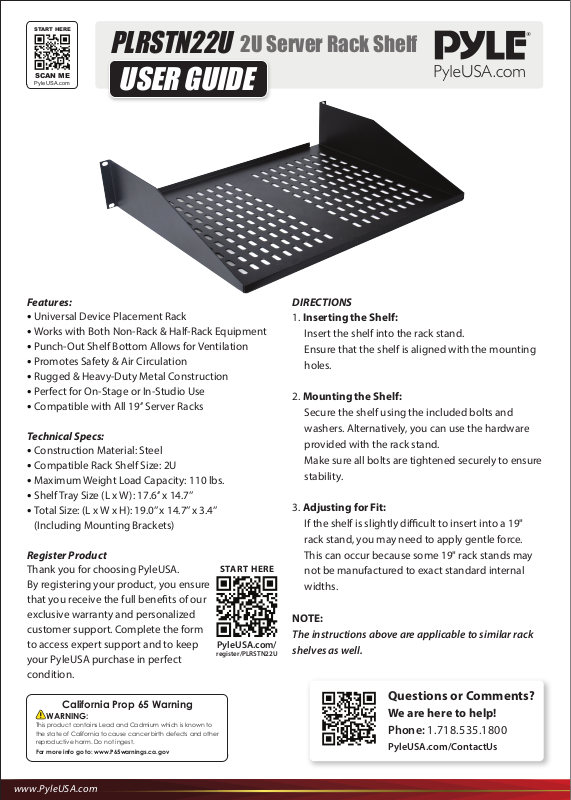

2U Server Rack Shelf
SCAN ME
PyleUSA.com
Features:
PLRSTN22U
USER GUIDE
• Universal Device Placement Rack
• Works with Both Non-Rack & Half-Rack Equipment
• Punch-Out Shelf Bottom Allows for Ventilation
• Promotes Safety & Air Circulation
• Rugged & Heavy-Duty Metal Construction
• Perfect for On-Stage or In-Studio Use
• Compatible with All 19’’ Server Racks
DIRECTIONS
1. Inserting the Shelf:
Insert the shelf into the rack stand.
Ensure that the shelf is aligned with the mounting
holes.
2. Mounting the Shelf:
Secure the shelf using the included bolts and
Technical Specs:
• Construction Material: Steel
• Compatible Rack Shelf Size: 2U
• Maximum Weight Load Capacity: 110 lbs.
• Shelf Tray Size (L x W): 17.6’’ x 14.7’’
• Total Size: (L x W x H): 19.0’’ x 14.7’’ x 3.4’’
(Including Mounting Brackets)
Register Product
Thank you for choosing PyleUSA.
By registering your product, you ensure
that you receive the full benets of our
exclusive warranty and personalized
customer support. Complete the form
to access expert support and to keep
your PyleUSA purchase in perfect
condition.
California Prop 65 Warning
WARNING:
This product contains Lead and Cadmium which is known to
the state of California to cause cancer birth defects and other
reproductive harm. Do not ingest.
For more info go to: www.P65warnings.ca.gov
register/PLRSTN22U
START HERE
PyleUSA.com/
washers. Alternatively, you can use the hardware
provided with the rack stand.
Make sure all bolts are tightened securely to ensure
stability.
3. Adjusting for Fit:
If the shelf is slightly dicult to insert into a 19"
rack stand, you may need to apply gentle force.
This can occur because some 19" rack stands may
not be manufactured to exact standard internal
widths.
NOTE:
The instructions above are applicable to similar rack
shelves as well.
Questions or Comments?
We are here to help!
Phone: 1.718.535.1800
PyleUSA.com/ContactUs
www.PyleUSA.com
