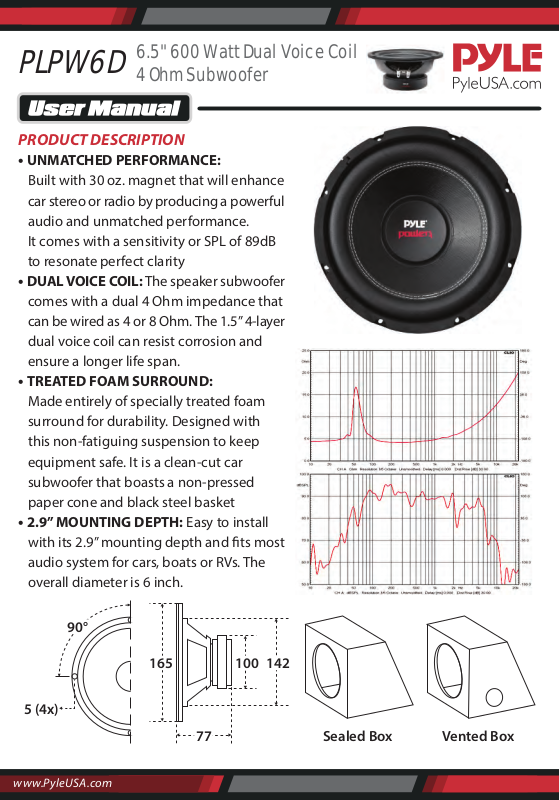

Pyle PLPW6D User manual
6.5'' 600 Watt Dual Voice Coil
PLPW6D
PRODUCT DESCRIPTION
• UNMATCHED PERFORMANCE:
Built with 30 oz. magnet that will enhance
car stereo or radio by producing a powerful
audio and unmatched performance.
It comes with a sensitivity or SPL of 89dB
to resonate perfect clarity
• DUAL VOICE COIL: The speaker subwoofer
comes with a dual 4 Ohm impedance that
can be wired as 4 or 8 Ohm. The 1.5” 4-layer
dual voice coil can resist corrosion and
ensure a longer life span.
• TREATED FOAM SURROUND:
Made entirely of specially treated foam
surround for durability. Designed with
this non-fatiguing suspension to keep
equipment safe. It is a clean-cut car
subwoofer that boasts a non-pressed
paper cone and black steel basket
• 2.9” MOUNTING DEPTH: Easy to install
with its 2.9” mounting depth and ts most
audio system for cars, boats or RVs. The
overall diameter is 6 inch.
4 Ohm Subwoofer
90°
5 (4x)
www.PyleUSA.com
165 100 142
77 Sealed Box Vented Box
Suggested Enclosure Parameters
Vent volume, cu.ft.
Sealed Vented
Small Large Small Large
0.53 NA 0.53 NA
Vent length, inches
Vent diameter, inches
Enclosure Frequency, Hz
Fb Tuning Frequency of Vented Enclosure, Hz
F3 Systems 3dB Down point (Sealed), Hz
- - 7.5 -
- - 2.4 -
74 - - -
NA - 50 -
53 - - -
GENERAL SPECIFICATIONS
• Nominal Diameter: 6 inch
• Rated Lmpedance: 4 ohms + 4 ohms
• Operating Bandwidth: 70-6k hz (-3dB)
• Power Handling Capacity: 100 Watts
• Sensitivitv (1W/M): 89 dB (+-3dB)
• Voice Coil Diameter: 1. 0 inch
THIELE-SMALL PARAMETERS
• Resonance Frequency Fs: 52.2 HZ
• DC Resistance Re: 3.4 ohm + 3.4 ohm
• Mechanical Q Factor Qms: 3.6253
• Electrical Q Factor Qts: 0.4336
• Total Q Factor Qts: 0.3873
• Equivalent Cas air load Vas: 15.38 L
• Surface Area of Cone Sd: 0.0131 m2
• Eciency Bandwidth Product EBP 120
• Voice Coil Over Hang X-max 4mm
PHYSICAL INFOMATION
• Basket: Black Plastic
• Magnet Type: 20 oz
• Cone Material: Non-press Cone
• Surround: Foam
• Dust Cap: PP
• Damper: Cloth
