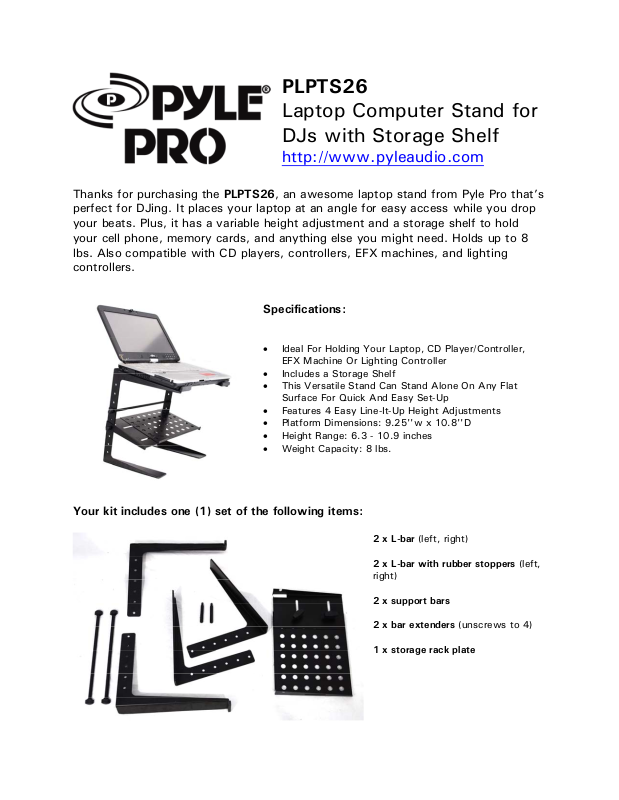

PLPTS26
Laptop Computer Stand for
DJs with Storage Shelf
http://www.pyleaudio.com
Thanks for purchasing the PLPTS26, an awesome laptop stand from Pyle Pro that’s
perfect for DJing. It places your laptop at an angle for easy access while you drop
your beats. Plus, it has a variable height adjustment and a storage shelf to hold
your cell phone, memory cards, and anything else you might need. Holds up to 8
lbs. Also compatible with CD players, controllers, EFX machines, and lighting
controllers.
Specifications:
Ideal For Holding Your Laptop, CD Player/Controller,
EFX Machine Or Lighting Controller
Includes a Storage Shelf
This Versatile Stand Can Stand Alone On Any Flat
Surface For Quick And Easy Set-Up
Features 4 Easy Line-It-Up Height Adjustments
Platform Dimensions: 9.25''w x 10.8''D
Height Range: 6.3 - 10.9 inches
Weight Capacity: 8 lbs.
Your kit includes one (1) set of the following items:
2 x L-bar (left, right)
2 x L-bar with rubber stoppers (left,
right)
2 x support bars
2 x bar extenders (unscrews to 4)
1 x storage rack plate
Page 2
1. Start by removing the end screws from the
two support bars. Additionally, loosen up the
screws on the storage rack plate so that the
plate can expand freely.
3. Next, you will be connecting two of the Lbars and the Use one with rubber stoppers
and one without. Make sure that the two Lbars are for the same side. The base and the
rubberized part of each respective L-bar
should be facing the same direction. Layer the
pieces as follows: bottom L-bar (without
stopper), top L-bar (with stopper), storage
tray. Insert a screw through the outsidefacing part and screw on the support bar on
the inside.
2. Separate the support bar extenders by
unscrewing them. Then, screw on an
extender to each end of both bars.
Page 3
3. Repeat the L-bar, storage plate, and
support bar steps for the other side.
4. Connect the other support bar between the
two L-bar supports.
Once everything is connected, you can
tighten the screws on the storage plate.
5. Your stand is now complete!
