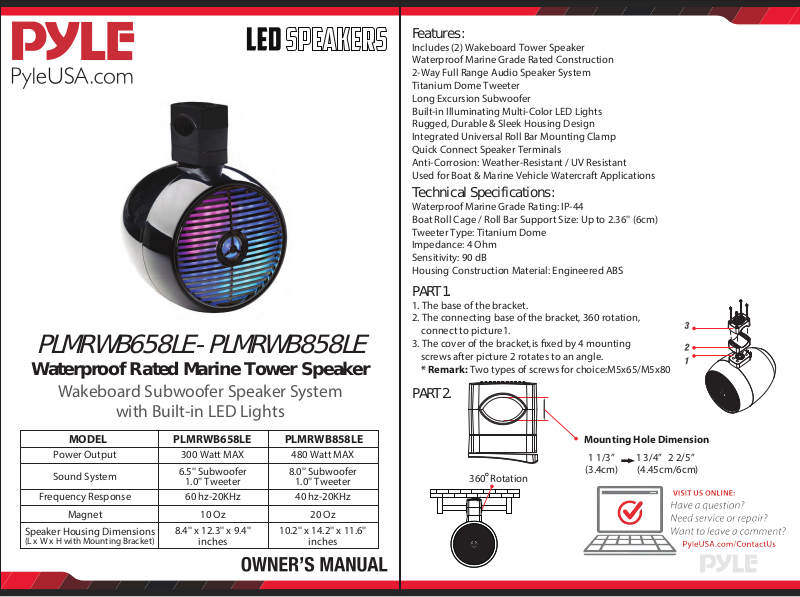

PLMRWB658LE - PLMRWB858LE
Waterproof Rated Marine Tower Speaker
Features:
Includes (2) Wakeboard Tower Speaker
Waterproof Marine Grade Rated Construction
2-Way Full Range Audio Speaker System
Titanium Dome Tweeter
Long Excursion Subwoofer
Built-in Illuminating Multi-Color LED Lights
Rugged, Durable & Sleek Housing Design
Integrated Universal Roll Bar Mounting Clamp
Quick Connect Speaker Terminals
Anti-Corrosion: Weather-Resistant / UV Resistant
Used for Boat & Marine Vehicle Watercraft Applications
Technical Specifications:
Waterproof Marine Grade Rating: IP-44
Boat Roll Cage / Roll Bar Support Size: Up to 2.36'' (6cm)
Tweeter Type: Titanium Dome
Impedance: 4 Ohm
Sensitivity: 90 dB
Housing Construction Material: Engineered ABS
PART 1.
1. The base of the bracket.
2. The connecting base of the bracket, 360 rotation,
connect to picture1.
3. The cover of the bracket,is xed by 4 mounting
screws after picture 2 rotates to an angle.
* Remark: Two types of screws for choice:M5x65/M5x80
Wakeboard Subwoofer Speaker System
with Built-in LED Lights
MODEL PLMRWB658LE PLMRWB858LE
Power Output 300 Watt MAX 480 Watt MAX
Sound System
Frequency Response 60 hz-20KHz 40 hz-20KHz
Magnet 10 Oz 20 Oz
Speaker Housing Dimensions
(L x W x H with Mounting Bracket)
6.5'' Subwoofer
1.0'' Tweeter
8.4'' x 12.3'' x 9.4''
inches
8.0'' Subwoofer
1.0'' Tweeter
10.2'' x 14.2'' x 11.6''
inches
PART 2.
360 Rotation
Mounting Hole Dimension
1 1/3”
(3.4cm) (4.45cm/6cm)
1 3/4” 2 2/5”
