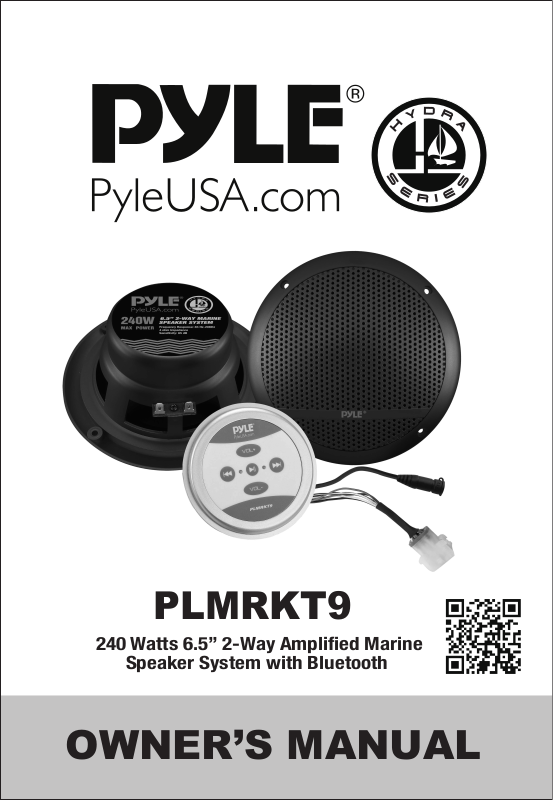

Pyle PLMRKT9 User guide

PLMRKT9

240 Watts 6.5” 2-Way Amplified Marine

Speaker System with Bluetooth

OWNER’S MANUAL

PLMRKT9

240 Watts 6.5” 2-Way Amplified Marine Speaker System
with Bluetooth

Features

System Features:

· Universal Mountable Speaker & Amplied Universal Bluetooth Receiver

· Perfect for Custom Mobile/Vehicle/ Marine Applications

· Marine Grade Style & Water Resistant Design

· Includes All Necessary Cables & Wires for Installation

· Bluetooth Wireless Music Streaming Ability

· Aux (3.5mm) Input Connector Jack

· Connect & Stream Audio from External Devices

· Simple Digital Touch Button Controls

· LED Connection Indicator Lights

Bluetooth Wireless Connectivity:

· Simple Connection & Device Pairing

· Built-in Bluetooth for Wireless Audio Streaming

· Works with All of Today’s Latest Devices

· (Smartphone, Tablet, Laptop, Computer etc.)

· Bluetooth Network Name: ‘PYLE PLMRKT9’

· Wireless Range: 30'+ Feet

What’s in the Box:

· (2) 6.5’’ Marine Speakers

· Wired Bluetooth Controller with Built-in Amplier

Amplied Universal Bluetooth Remote Specs:

· 2-Ch. Amplier Design

· RMS Power: 2 x 60 Watt at 4 Ohm

· MAX Power: 2 x 120 Watt at 4 Ohm

· Waterproof Housing Construction

· Marine Grade Rating: IPX5

· Built-in Electronic Crossover Network

· T.H.D: <1%

· S/N Ratio: >95dB

· Channel Separation: >65dB

· Frequency Response: 20Hz- 25kHz

· Fuse : 5A

· Power: DC 12V

Marine Speakers Specs:

· (2) 6.5'' Reinforced Polypropylene Cones

· Full Range Stereo Sound Reproduction

· 2-Way Speaker Design

· Weather-Resistant Grill Design

· Marine Grade Rating: IPX5

· 0.5'' PEI Dome Tweeters

· Suspension Cloth Surround

· 120 Watts RMS / 240 Watts Peak

· Frequency Response: 83-20KHz

· Impedance: 4 Ohms

· Total Speaker Dimensions (L x W x H): 7.09’’ x 7.09’’ x 3.46’’

· Speaker Cut-Out Diameter: 5.2’’, Cut-Out Depth: 2.4’’

· Sold as: 1 Pair

· Weight: 3.09 lbs.

Power and Speaker Wiring

AUX Input

Universal Bluetooth
Remote Controller

wire color

Red
Black
White
White/Black
Purple

Purple/Black

Description

Battery (+), 12dc
Battery (-), Ground
Output L (+)
Output L (-)
Output R (+)

Output R (-)

BLACK

-

BATTERY

Fuse: 5A

RED

+

WHITE

+

-

WHITE/BLACK

Purple

+

-

Purple/BLACK

Volume Up

Previous Song

Play / Pause
Press Hold = On/Off

Next Song

Volume Down

Playing Music:

1. Press to start or pause the music

2. Press for next track

3. Press for previous track

4. Press VOL+ for volume up

5. Press VOL- for volume down

Bluetooth Pairing and Connection:

1. Connect Bluetooth controller box to your device

2. Press and Hold for three seconds until power indicator lights (red)

3. The system will automatically go into pairing mode The power indicator will turn red
for about 7 seconds and then alternating red and blue (Bluetooth blue Power red) Please
be sure that Bluetooth is turned on your device Select “PYLE PLMRKT9 ”
connect Bluetooth controller(if the Bluetooth controller is connected the light will turn
blue and not ash)

4. When the device is out of Bluetooth range, Bluetooth will be disconnected automatically

and automatically reconnect when detected in range again.(If not please just repeat
steps1 and 2)

When Bluetooth is disconnected or the 3.5mm AUX Input is plugged in, the power

5.

indicator will glw red.

on your device to

Bluetooth Installation

Seamless Flush Mount

Size:

100mm

78.8mm

37.9mm

(Out Diameter)
(Cutout Diameter)
(Depth)
