Pyle PLMRBTSQ1 User guide

PLMRBTSQ1

Wireless BT Audio Controller

Waterproof-Rated Marine Receiver

Remote Control for Car, Truck, Boat, 4x4,

PowerSport Vehicles

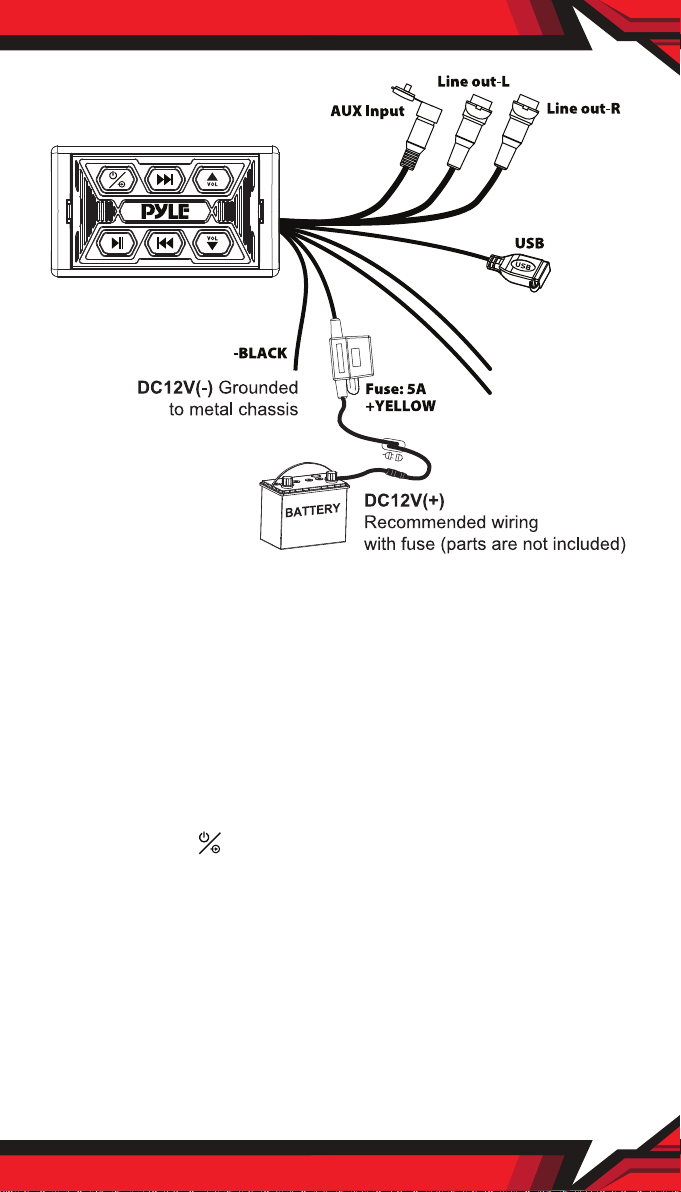

WIRE DIAGRAM

Remote OUT

(BLUE)

ACC Remote IN

(RED)

Wire Color
Yellow
Black
White
Red
Red
Blue

Description

Battery (+), 12dc
Battery (-), Ground
Line out- L
Line out- R
ACC
REMOTE

WIRELESS BT PAIRING AND CONNECTION

Power:

1. Press and hold to power ON/OFF.

Wireless BT Streaming Connection:
a. Ensure BT ability is activated, then search for the PLMRBTSQ1

from your BT-enabled device. The light will turn blue and blinks
while waiting for BT connection.
b. The PLMRBTSQ1 BT Network Name will appear as "PyleUSA"
(No password is required for connecting).
c. When the BT is connected, the light will turn blue and stops
blinking.

www.PyleUSA.com

2

AUX-IN/USB

Short press to switch BT mode to Aux-in mode I USB mode.

Auto Reconnection
a. When the device is out of BT range, BT will be disconnected

automatically, the light turns blue while blinking.
b. BT will automatically reconnect when detected in range again
in 10 minutes.
c. Disconnected BT after 10 minutes, you need to process BT
connection steps (above) to reconnect BT again.
d. If the other device occupied the BT during this period (10mins),
you need to process BT connection steps (above).

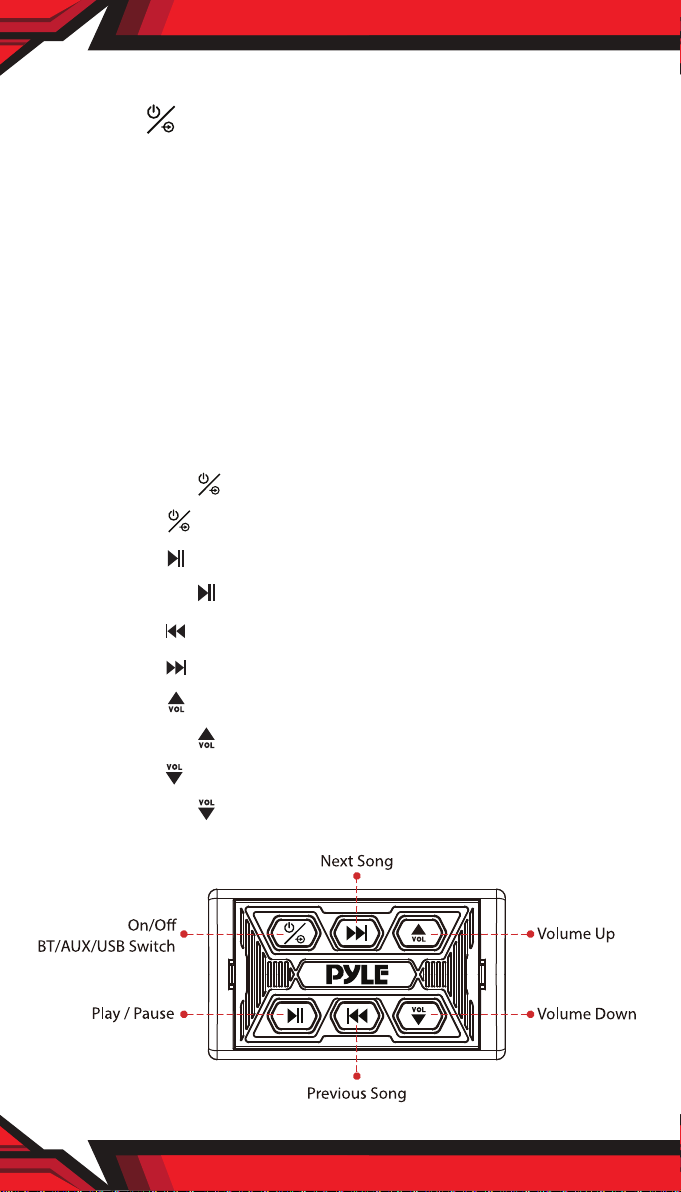

PLAYING MUSIC

1. Press and hold for 3 seconds to Power ON/OFF.

Short press to switch in BT/AUX IN/USB mode

2. Short press to play/pause

Press and hold for LED o/on

3. Short press for previous song

4. Short press for next song

5. Short press to increase volume by one scale

Press and hold to continuously increase volume

6. Short press to decrease volume by one scale

Press and hold to continuously decrease volume

www.PyleUSA.com

3

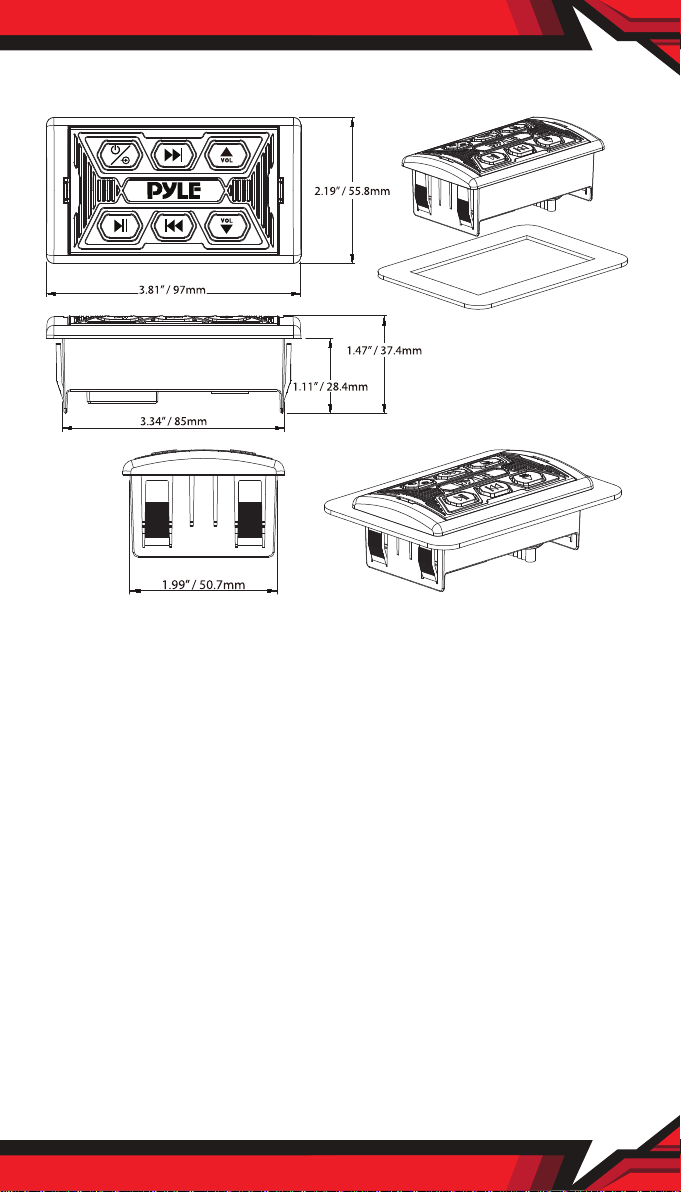

INSTALLATION (SEAMLESS FLUSH MOUNT)

Size:

• 97mm/3.81" (Overall Lenght)

• 37.4mm/1.47" (Overall Height)

• 55.8mm/2.20" (Overall Depth)

• 50.7 x 85mm/1.99"x3.34" (Mounting Hole Size)

Wireless BT Music Streaming:

• Simple & Hassle-Free Pairing

• Instant Wireless Audio-Streaming Receiver

• Works with All of Today's Latest Devices

• Smartphones, Tablets, Laptops, Computers, etc.

• Wireless BT Version: 5.0

• Wireless BT Network Name: 'PyleUSA'

• Wireless Range: Up to 30+ ft

What's in the Box:

• (1) Wireless BT Control Unit

• (1) 3.5 mm Auto Connection Cable

www.PyleUSA.com

4

Features:

• Universal Mount BT Control Unit

• Built-in Wireless BT Audio Receiver

• Marine Grade Construction

• Water-Resistant, Weatherproof Design

• Connect & Stream Audio from Additional External Devices

• Aux (3.5mm) Input

• Full-Range Stereo Sound Reproduction

• Integrated Power Wiring Harness

• Pre-Amp RCA Out to Any OEM/Factory-Made Mono-Block/

Full-Range Amplier

• USB Input to Play Your Favorite Music Files

• Universal Vehicle Mounting

• Can be In-Console Flush Mounted

• Anti-Thump On/Off Option

• Soft Turn On/Off Option

• Overload & Power Protection Circuitry

• Great For Cars, Trucks, ATV’s, UTV’s, 4x4’s, Boats, Marine Water
crafts, & PowerSport Vehicles

Technical Specs:

• Marine Grade Waterproof Rating: IPX6

• Fuse: 5A

• RCA Line Out (Pre-Amp): 1 Pair (Left & Right) 2.5Volts

• Aux Line Input: Plug 3.5mm

• Remote Out: 15mA

• USB Player: 4FT Extension Cord

• Cut-Out Diameter: 1.99” x 3.34” -inches

• Mounting Depth: 1.47” -inches

• Power: DC 12V-14.4V

• Total Unit Dimensions (Lx W x H): 3.81” x 2.20” x 1.97” -inches

(Flush Mount)
