CONTENTS
Installation...........................................3
Wiring Connection..............................5
Operation.............................................6
Location of keys....................................6
Turn on/off the unit................................7
Sound adjustment.................................7
Beep on/off ...........................................7
EQ.........................................................7
Loundness............................................7
Loc on/off..............................................7
Stereo/Mono .........................................7
Display time..........................................7
Set the time...........................................7
Area......................................................7
Low Battery display...............................7
Auxiliary input .......................................7
Liquid crystal display.............................8
Reset function.......................................8
Radio operation ....................................8
Switching to radio mode........................8
Selecting the band................................8
Selecting station....................................8
Manually station storing ......................8
Preset stations selecting.......................8
Automatic memory storing....................8
Weather Band.......................................8
USB play operation...............................9
Selecting tracks in single step...........9
Pausing playing.................................9
Selecting songs by BAND button......9
BT operation.........................................9

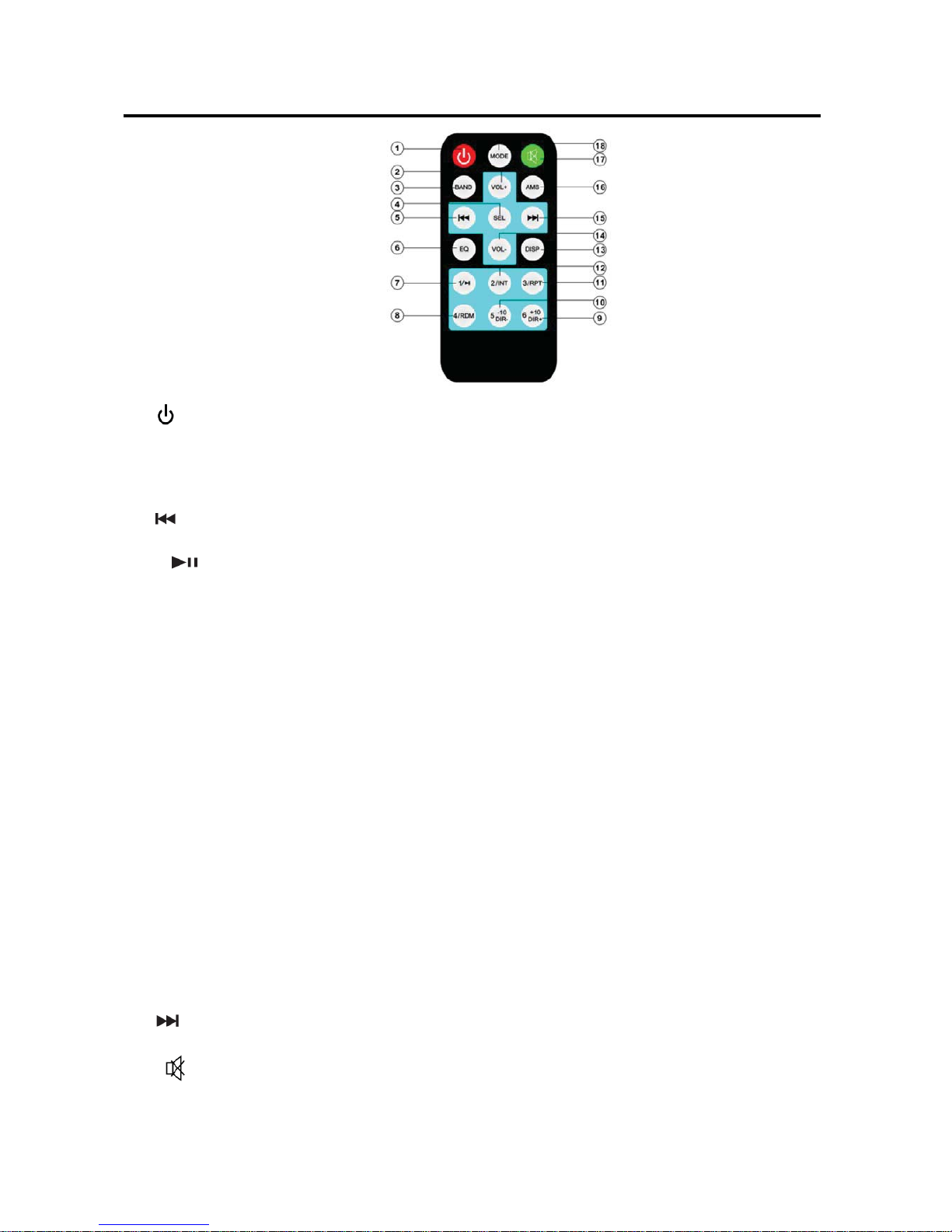

Remote control ...................................10

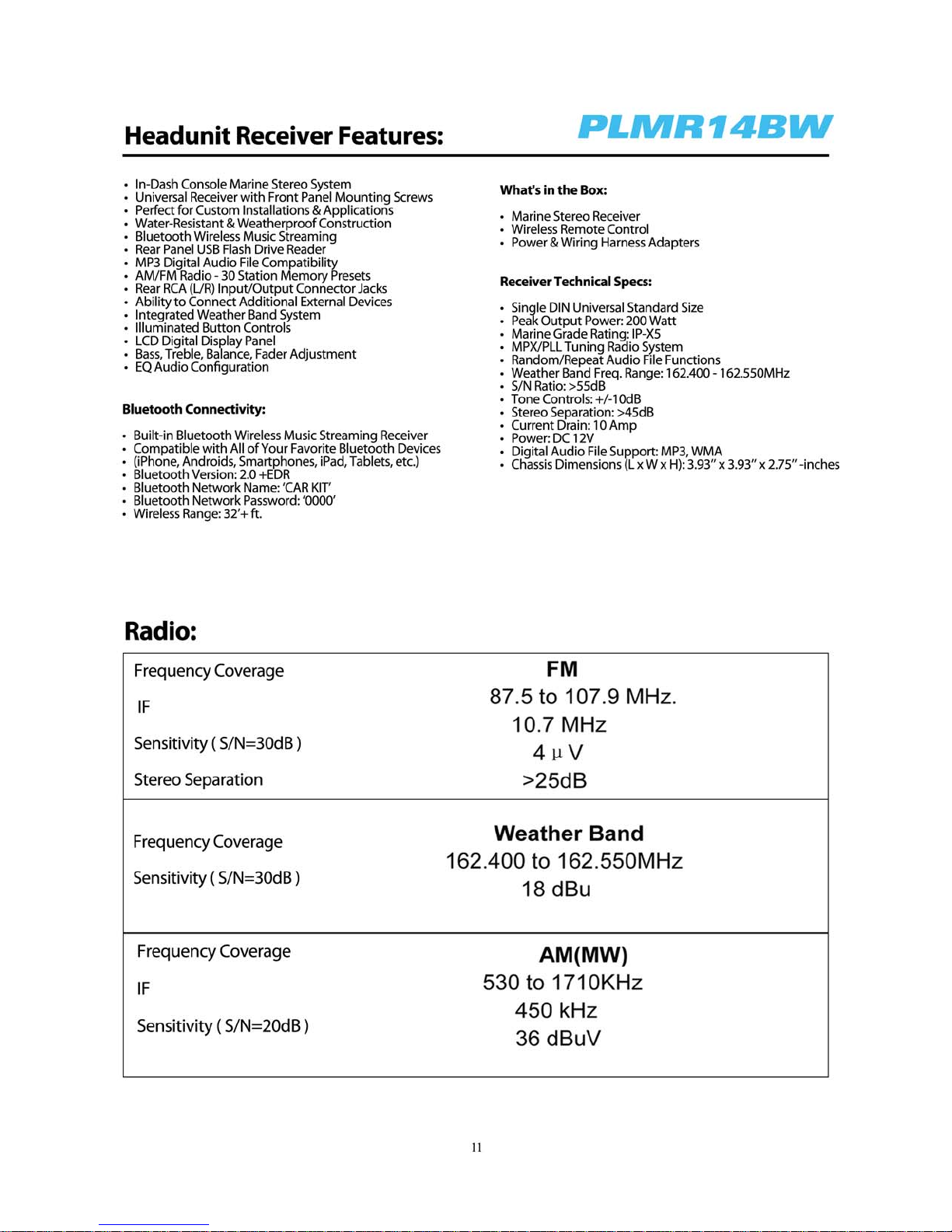

Specification .......................................11
Trouble shooting.................................12
2
Page 3

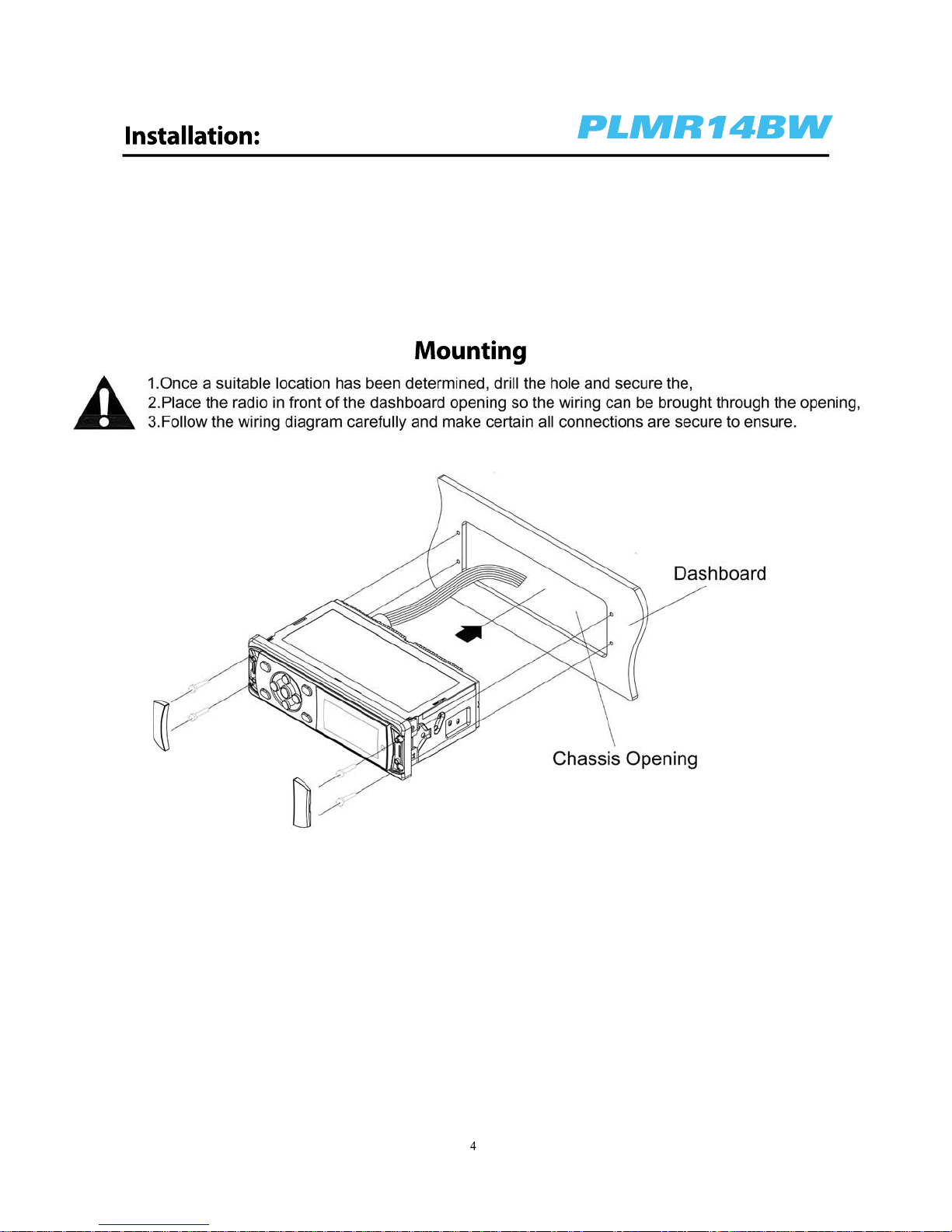

INSTALLATION
Notes:
y Choose the mounting location where
the unit will not interfere with the
normal driving function of the driver.
y Before finally installing the unit, connect
the wiring temporarily and make sure it
is all connected up properly and the
unit and the system work properly.
y Use only the parts included with the
unit to ensure proper installation. The
use of unauthorized parts can cause
malfunctions.
y Consult with your nearest dealer if
installation requires the d rilling of holes
or other modifications of the vehicle.
y Install the unit where it does not get in
the driver’s way and cannot injure the
passenger if there is a sudden stop, li ke
an emergency stop.

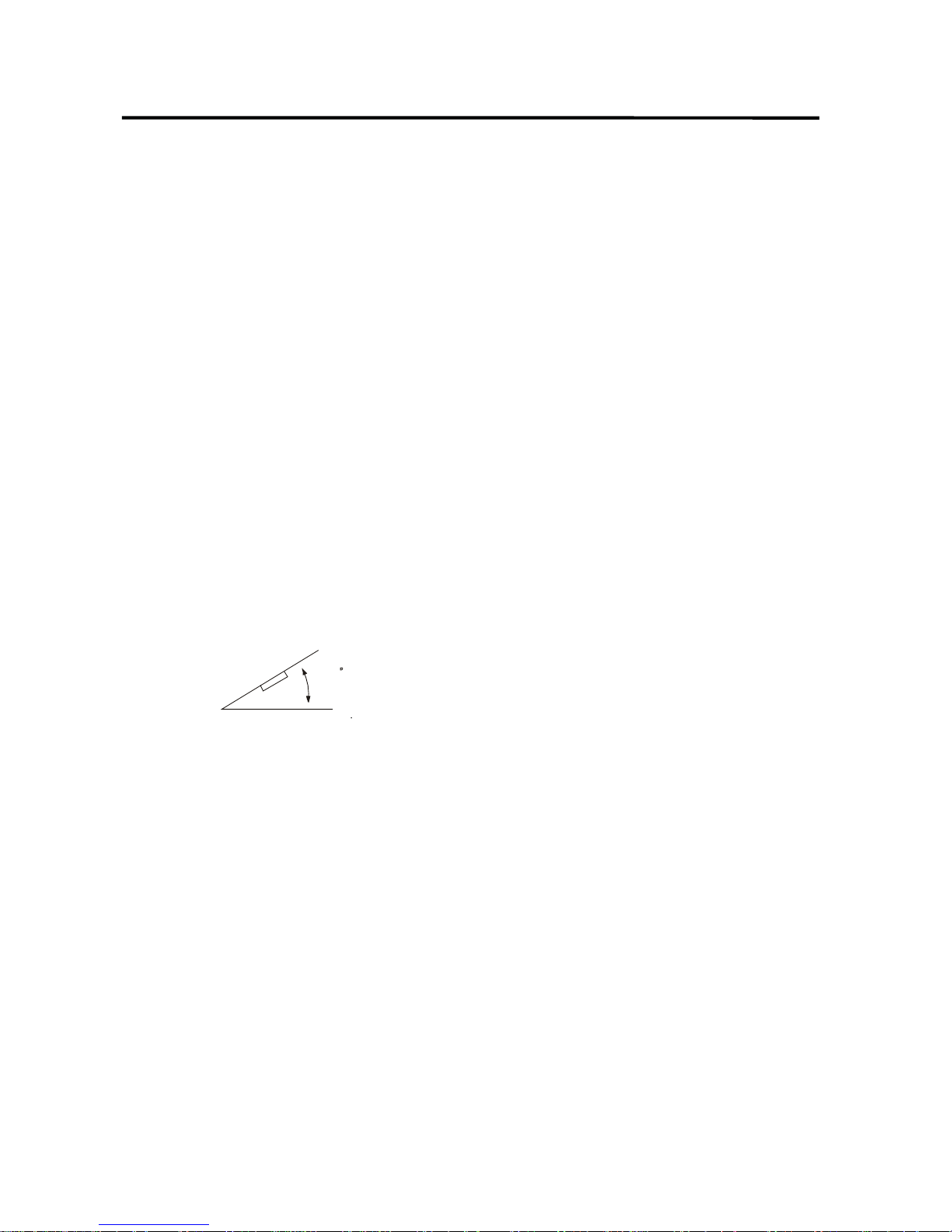

y If installation angel exceeds 30°from
horizontal, the unit might not give its
optimum performance.
30
y Avoid installing the unit where it would
be subject to hig h temperature, s uch as
from direct sunlight, or from hot air,
from the heater, or where it would be
subject to dust, dirt or excessive
vibration.
3
Page 4
Page 5

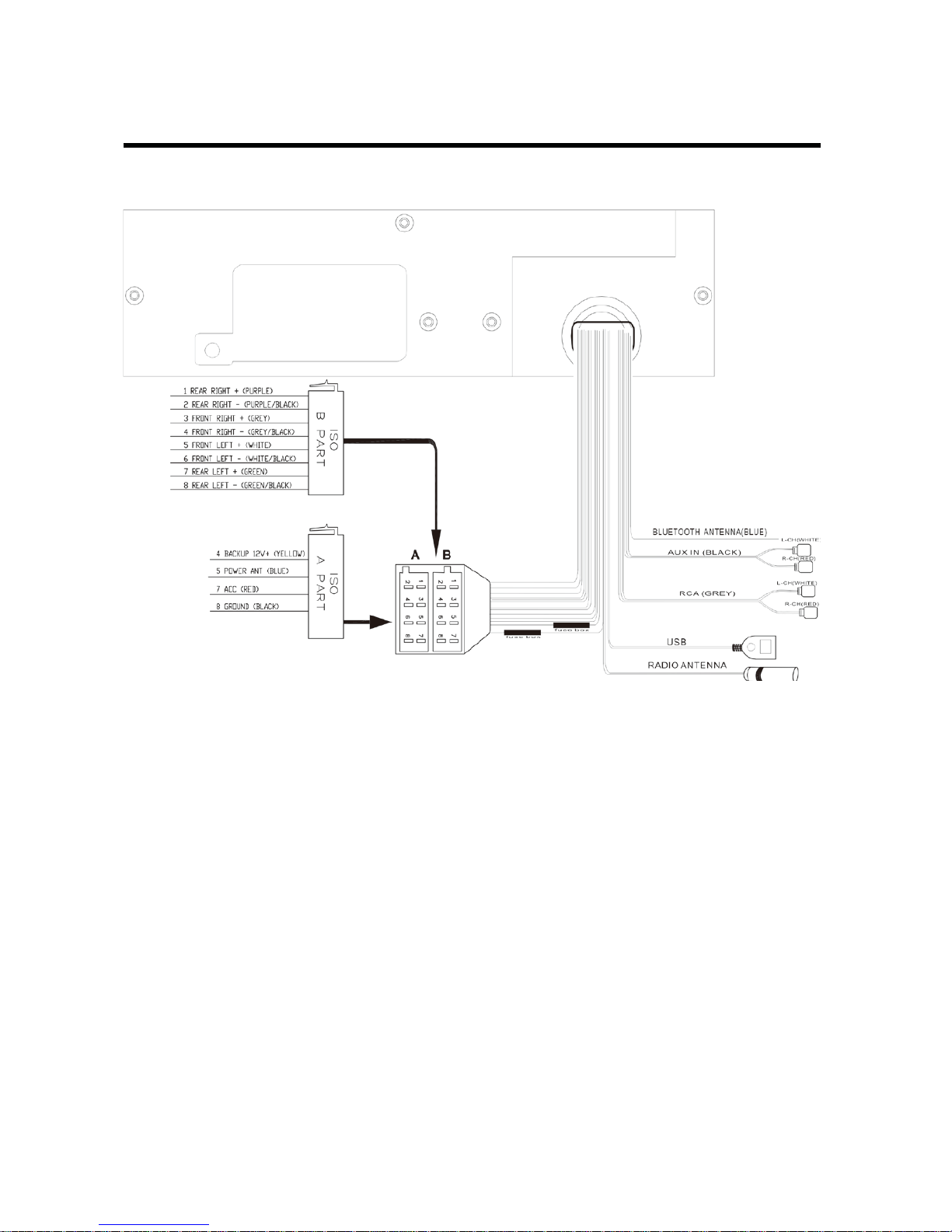

WIRING CONNECTION
ISO CONNECTION
5
Page 6
OPERATION

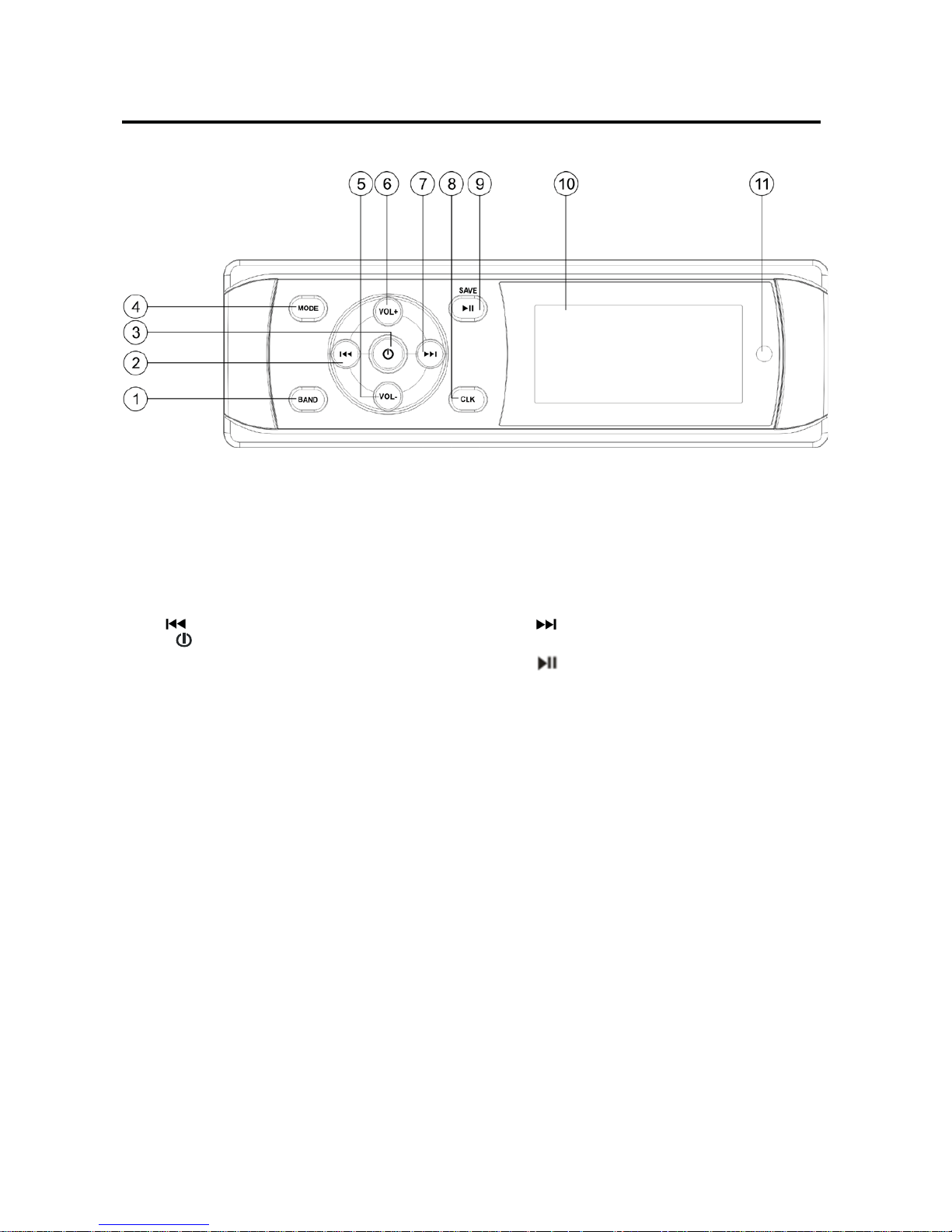

LOCATION OF KEYS
1. BAND button
2.
Seek down button
3.
Power/SEL button
4. MODE button/BT
5. VOL -
6. VOL +
7.
Seek up button
8. CLK button
9.
Play/pause button/SAVE
10. LCD
11. IR SENSOR
6
Page 7
OPERATION
TURN ON/OFF THE UNIT
Press
button (3) to turn on the unit.
When the unit is on. Press and hold it for 2
seconds to turn off the unit.
SOUND ADJUSTMENT
Press
button (3) shortly to select the
desired adjustment mode. Th e adjustment
mode will be changed in the following
order:
BAS-TRE-BAL-FAD-BEEP-EQ-LOUD-ARE
A-LOC-STEREO- VOL
BAS: bass
TRE: treble
BAL: balance
FAD: fader
EQ: equalization
LOUD: loudness
LOC: local
VOL: volume
In each item press VOL+/- button(6/5), it is
possible to adjust the desired sound quality
or setting.
reduce the receiving sensitivity when you
search station. That means you ca n recei ve
the station that sound is good. It w ill ignores
the station that sound is not good. In LOC
OFF mode it will increase the receiving
sensitivity when you search the station.
That means you can receive more stations.
STEREO/MONO
In this item press VOL+/- button to choose
STEREO or MONO mode. In STEREO
mode you can receive FM stereo signal. In
MONO mode the stereo station will be
switched to monochrome. Sometimes
when the signal is not good. If you change
it to MONO mode. The noise will be
reduced.
DISPLAY
TIME
Press CLK button (8) to show the time.
After 5 seconds it will return to show the
information.
BEEP on/off
The device is equipped with 2 beep tone
modes.
- Beep on mode:
The confirmation beep
sound is heard wh e n e v er a button is
pressed.
- Beep off mode:
The confirmation beep is
switched off whenever a key is pressed.
EQ ( Equalisation)
Press it shortly to select the preset EQ
mode as below:
FLAT—POP—ROCK—CLASS—EQ OFF
LOUDNESS
In LOUD item you can turn on/off loudness
function by press VOL+/- button.
LOC on/off
In this item press VOL+/- button to turn on/off
lo c a l funct i o n . I n LOC O N mode the unit will
SET THE
CLOCK
Press and hold CLK button for 2 seconds.
The “HH” will flash. Using the knob
(2)
(7) to change the hour. After that press
CLK button the “MM” will flash. Press the
knob
(2) (7) to change the minute.
After that press CLK button to confirm. If
you don’t press CLK button to confirm. It
will writing here for your confirm.
AREA
In the AREA item of the SEL menu. There
are EUR/USA for your selecting. Press
VOL+/- to choose EUR or USA region.
LOW BATTERY DISPLAY
When the bat tery of the car is lowe r below
9V around. It will show “LOW BAT”.
AUXILIARY INPUT
The unit can be connected a portable audio
7
Page 8
OPERATION
player through the AUX IN interface. And
press MODE button to switch AUX IN
mode when inserted an audio source to the
unit.
MEMORY FUNCTION
When B+ wire and Acc wire is off. It can
memory the radio’s preset stations.
LIQUID CRYSTAL DISPLAY
Exhibit current frequency and activated
functions on the display.
RESET FUNCTION
Press MODE button switch to AUX mode
then press and hold
button for 6
seconds around to active the RESET
function. The RESET function is to be
activated for the following reasons:
- Initial installation of the unit when all
wiring is completed.
- All the function buttons do not operate.
- Error symbol on the display.
RADIO OPERATION
y SWITCHING TO RADIO MODE
Press MODE button (4) to select radio
mode, the radio mode appears on the
display together with the memory band
and frequency.
y SELECTING THE BAND
At radio mode, press BAND button (1)
shortly to select the desired band.
The reception band will change in the
following order:
ĺ)0ĺ)0ĺ)0ĺWBĺAM(MW)1ĺAM(MW)2
y SELECTING STATION
Press
shortly to activate automatic seek
function. It will search up/down a station
automatically. Press for 2 seconds until
button (7) or button (2)
“MANUAL” appears on the display, the
manual tuning mode is selected. In this
mode you can turn up/down a step
frequency one by one till searched a
station. If both buttons have not been
pressed for several seconds, they will
return to seek tuning mode and “AUTO”
appears on the display.
y MANUALLY STATION STORING
To receive a station, Press and hold the
button (9) for 2 seconds. It will
show “SAVE CH1”. If you want to store
the station to CH2. Shortl y press it again
it will show “SAVE CH2”. In this moment
press and hold the
button (9) for 2
seconds. The current station is stored
into the CH2.
y PRESET STATIONS SELECTING
Press the
button shortly to select
the preset station (CH1~6).
y AUTOMATIC MEMORY STORING
Press BAND button (1) for 2 seconds,
the radio searches from the 87.5MHz
frequency and checks the signal
strength until one cycle search is
finished. And then some stations are
stored into the corresponding preset
number button. In the first cycle it will
in LOCAL mode to receive the
stronger station. If it is less than 18
pcs station it will searching stations in
nd
2
cycle in DX (distance) mode.
WEATHER BAND:
1 button(20): 162.550MHz
2 button(21): 162.400MHz
3 button(22): 162.475MHz
4 button(23): 162.425MHz
5 button(24): 162.450MHz
6 button(25): 162.500MHz
The next station is 162.525 MHz.
Press / button to change these
stations.
8
Page 9
OPERATION
˖
USB PLAY OPERATION
On the back side of the unit, there is a USB
interface . You can connect an USB driver
through this interface . When you connect
an USB driver through the interface, the
unit will search the MP3 /WMA files in the
USB driver and start to play a utoma ticall y. If
in other mode, you can also press MODE
button to select USB mode.
It supports the MP3/WMA file in the device.
SELECTING SONGS IN SINGLE STEP
Press
move to the following song or the previous
song. File number shows on display.
Press and hold
(2) for 2 seconds to fast forward or fast
reverse. Song playing starts from when you
release the button.
PAUSING PLAYING
Press
it again to resume playing.
button (7) or button (2) to
button (7) or button
button to pause playing. Press
BLUETOOTH OPERA T ION
y PRE-PAIR FOR BLUETOOTH
y PAIRING
OPERATION
(i) When use Bluetooth, please
make sure the mobile phone
supports Bluetooth function.
(ii) For the different kind of mobile
phone, Bluetooth emissive power has
some difference. To get the best
conversation quality, it is commended
that the distance between the mobile
phone and the unit is within 3m. And
please don’t put any metal object or
any obstacle between the path of the
mobile phone and the unit.
1) On the mobile phone, select the
Bluetooth set up. (Please refer to
the instruction manual of your
mobile phone on how to operate
Bluetooth.)
SELECTING SONGS BY BAND BUTTON
In USB mode. Press BAND button (1) to
active the file search mode. It will show
“NUM *** ”. In this moment press VOL+ or
VOL- knob to select the song number’s 1’st
number. 3 seconds later to select the 2’nd
number ...(Such as when you want to select
the 32’th song. In “NUM *** ” you press
VOL+ 3 times. It shows “NUM 3** ”And 3
seconds later the 2
nd
“*” flash. You can
press VOL+ 2 times. It shows “NUM 32* ” .
Then press
button (9) to confirm. It will
start to play the 32’th song. But if you don’t
press
button (9) to confirm. It will not
play the song you selected.
CAUTION˖
When there ar e important files in the USB
Device, do not connect it to the main unit to
play, because any wrong operation may
cause files loss. And our company
assumes no responsibility for this.
2) “CAR K IT” shou ld appear in the list
on your mobile phone, please select
“CAR KIT” and then input password
“0000” if necessary.
When successful paired the BT mark
will be displayed on LCD.
y Bluetooth audio (A2DP function)
Press MODE key (4) it will show “BT”
on the display. Then turn on the music
player of the mobile phone and playing
a song. The sound will come out from
the speaker of the unit. Press
to pause/play the song. Press
button (7) or button (2) to select
next/previous song.
9
key
Page 10
REMOTE CONTROL HANDSET
FUNCTION KEY & CONTROL
1.
Power ON/OFF Button.
2. VOL+ Volume up button.
3. BAND band selection.
4. SEL SEL menu/ENTER.
5.
SEEK- / TURN- or SKIP- / FAST reverse (MP3/WMA)
6. EQ Press it to select desired audio equalization.
7. 1/
In RADIO mode: Shortly press for listen to M1 station. Press and
hold for store current station to button 1.
In MP3/WMA mode: Press to pause/resume playing.
8. 4/RDM In RADIO mode: Shortly press for listen to M4 station. Press and
hold for store current station to button 4.
In MP3/WMA mode: turn on/off random function.
9. 6/+10/DIR+: In RADIO mode: Shortly press for listen to M6 station. Press and
hold for store current station to button 6.
In MP3/WMA mode: Press it to next folder.
10. 5/-10/DIR-: In RADIO mode: Shortly press for listen to M5 station. Press and
hold for store current station to button 5.
In MP3/WMA mode: Press it back to previous folder.
11. 3/RPT In RADIO mode: Shortly press for listen to M3 station. Press and
hold for store current station to button 3.
In MP3/WMA mode: Repeat function on/off.
12. 2/INT In RADIO mode: Shortly press for listen to M2 station. Press and
hold for store current station to button 2.
In MP3/WMA mode: Intro function on/off.
13. DISP Press DISP to show the time.
14. VOL- Volume down button.
15.
SEEK+/ TURN+ or SKIP+/FAST toward (MP3/WMA).
16. AMS Preset Scan/Auto Store.
17. Mute function.
18. MODE Press to change the source.
10
Page 11
Page 12
TROUBLE SHOOTING
Before going through the checklist, check wiring connection. If any of the problems persist
after checklist has been made, consult your nearest service dealer.
Symptom Cause Solution
No power.
The car ignition switch is
not on.
The fuse is blown. Replace the fuse.
No sound.
Volume is in minimum Adjust volume to a desired level.
Wiring is not properly
connected.
The operation
keys do not
work.
The radio does
not Work. The
radio station
The built-in microcomputer
is not operating properly
due to noise.
The antenna cable is not
connected.
The signals are too weak. Select a station manually.
automatic
selection does
not work.
If the power supply is
connected to the car accessory
circuits, but the engine is not
moving, switch the ignition key
to “ACC”.
Check wiring connection.
Press the reset button.
Insert the antenna cable firmly.
12
Page 13
Loading...
