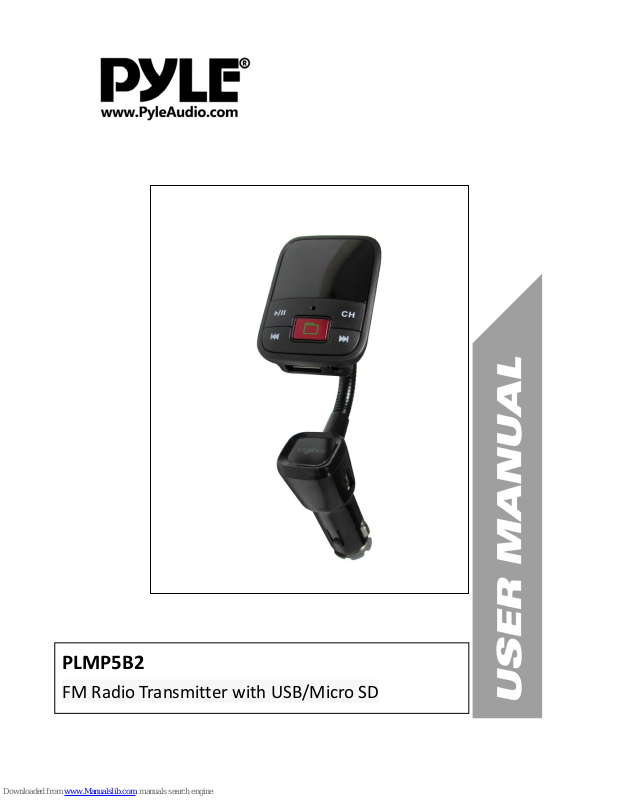

Page 1
PLMP5B2
FM Radio Transmitter with USB/Micro SD
Page 2
PLMP5B2 Operation Manual
FM Radio Transmitter with USB/Micro SD Card & AUX Input
KEY FEATURES:
• Built-In 206 Channel FM Modulator (87.5-108MHZ )
• USB Flash and Micro SD Card Reader
• Quickly Plug-in and Play Your MP3/WMA Files
• AUX Input (3.5mm Jack) for Connecting Additional Devices
• Selectable EQ Settings: Natural, Rock, Pop, Classic, Jazz
• Four Loop modes: Repeat All, Repeat One, Random and Folder
• Wireless Full Function Remote Control
• Flexible Metallic Hose Can bend and Be Adapted
• Large LCD Screen Display with Large Button Controls
• Power Supply: Draws power from car lighter (12-24V DC power)
• USB Charging Port for iPod/iPhone/iPad/Android/SmartPhone etc.
• Output: DC 5V, 2.1 A
USING THE FM TRANSMITTER:
1. Plug the FM transmitter into your vehicle’s cigarette lighter or power port.
2. Tune your radio t o an unused FM frequency, then match the same frequency on this unit's
display.
3. Insert a USB flash drive or Micro SD card containing MP3 files into USB port or memory card slot
of this unit accordingly. It will play and transmit the MP3 files automatically.
4. Line-in function: Use the provided audio cable to connect an MP3/MP4 players or another
external device to the AUX input of this unit. When using this function, please stop playbac k of
USB or memory card, and all functions will be controlled by the external device.
USING USB CHARGING FUNCTION :
When this unit powered from car lighter soc ket, connect the USB Charger port to your mobile phone w ith
a special USB cable (not included) . This unit will serve as mobile phone charger.
Page 3
QUICK GUIDE:
Operation Guide FM transmitter Remote Controller
1.How to play and stop
the music
Insert USB/MICRO SD/SD card to play music
Press “
” Button to stop and play music
Press ”
” Button to stop
and play music
2.How to adjust the
Volume
Long Press “
” button :Increase the Volu me；
Long press “
” Button :Decrease the Volu me
Press “VOL+”” Increase
the Volume；Press
“VOL-”” reduce the
Volume；
3.How to change the
frequency
Press “
CH” and then press” ” increase the
frequency
Press “
CH” and then pre ss” ” decrease the
frequency
Press “CH+” button:
Increase 0.1MHZ
Press “CH-” button:
reduce 0.1MHZ
4.How to choose music
Short Press “
”Button: Play the next song;
Short Press “
” Button: Play the prev ious
song;
Press “
”Button: Play
the next song; Press
“
” Button: Play the
previous song;
5.How to set EQ Does Not Support
Press “EQ” button to
switch your desired EQ
6.How to change loop
mode
Long press “ ” button, four loop modes
optional: folder, single, random, all
Does Not Support
7.How to switch folder Press the folder button in the middle of the unit
Press “folder+” or “folder
-”
SPECIFICATIONS:
Frequency: 87.5-108.0 MHZ
Frequency S tability: ±10ppmI (0℃-+45℃)
Supply V oltage : 12-24V
USB Charger output: 5V/2.1A
Music Format: MP3 Format
Interface type: USB1.0 5PIN
USB (Maximum support): 32GB
Micro SD (Maximum support): 32GB
Transmit Distance: >10M
MP3 S/N RATIO: 60-70dbm
MP3 BIT RATE: 32KPB-320KPBS
SNR:≥80dB
Weight:72g
