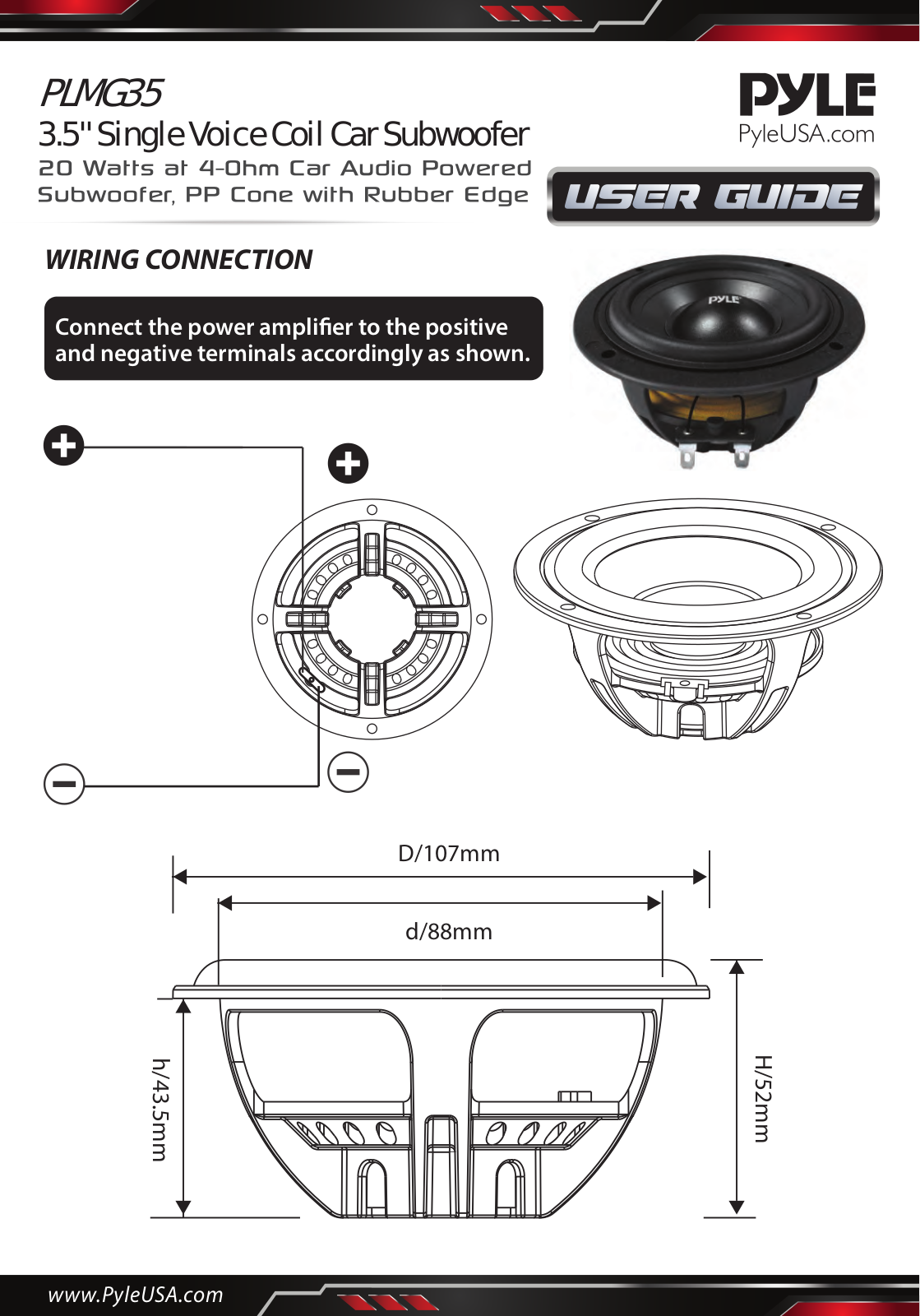

Pyle PLMG35 User guide

PLMG35

3.5'' Single Voice Coil Car Subwoofer

WIRING CONNECTION

Connect the power amplier to the positive
and negative terminals accordingly as shown.

h/43.5mm

www.PyleUSA.com

D/107mm

d/88mm

H/52mm

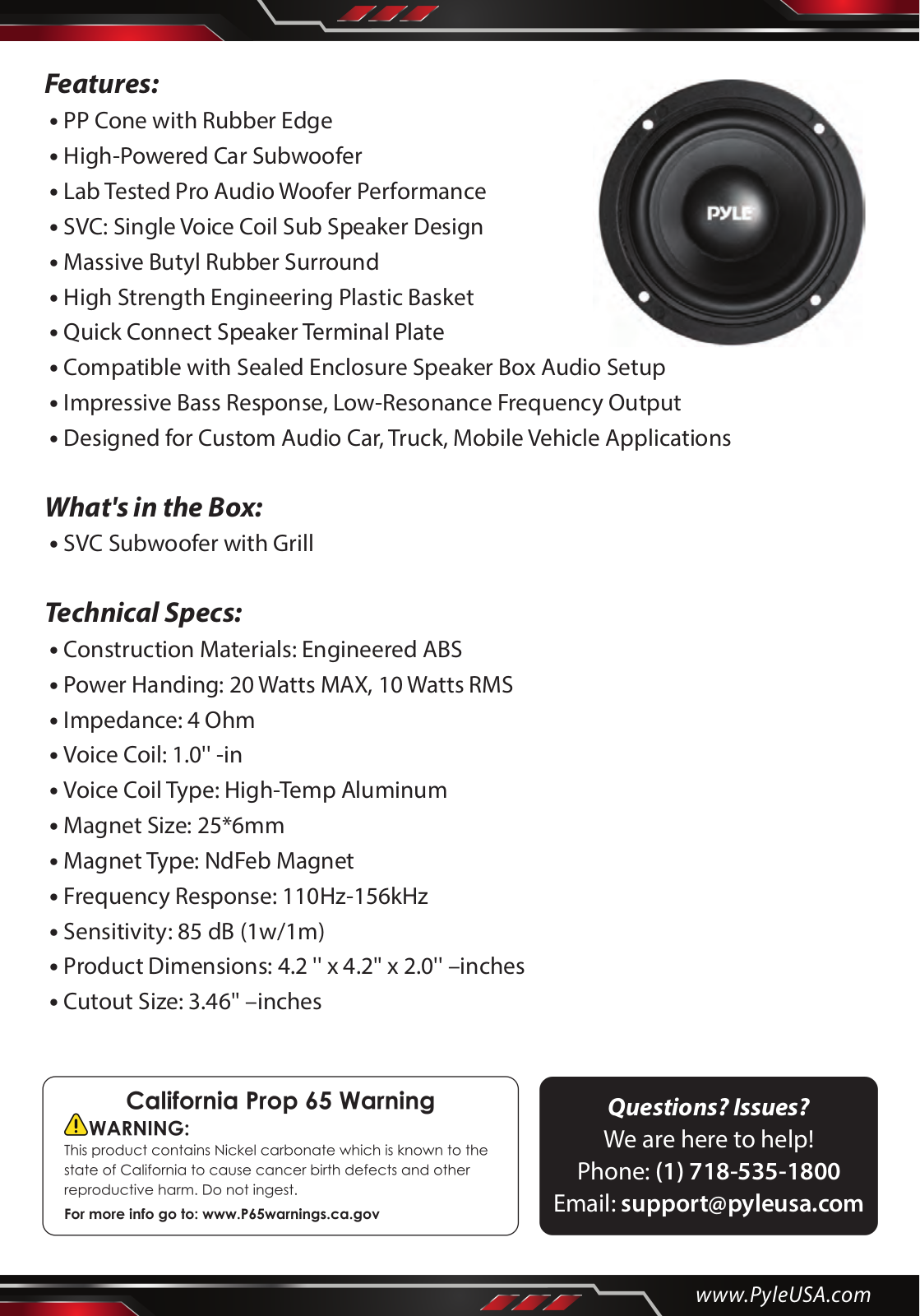

Features:

• PP Cone with Rubber Edge

• High-Powered Car Subwoofer

• Lab Tested Pro Audio Woofer Performance

• SVC: Single Voice Coil Sub Speaker Design

• Massive Butyl Rubber Surround

• High Strength Engineering Plastic Basket

• Quick Connect Speaker Terminal Plate

• Compatible with Sealed Enclosure Speaker Box Audio Setup

• Impressive Bass Response, Low-Resonance Frequency Output

• Designed for Custom Audio Car, Truck, Mobile Vehicle Applications

What's in the Box:

• SVC Subwoofer with Grill

Technical Specs:

• Construction Materials: Engineered ABS

• Power Handing: 20 Watts MAX, 10 Watts RMS

• Impedance: 4 Ohm

• Voice Coil: 1.0'' -in

• Voice Coil Type: High-Temp Aluminum

• Magnet Size: 25*6mm

• Magnet Type: NdFeb Magnet

• Frequency Response: 110Hz-156kHz

• Sensitivity: 85 dB (1w/1m)

• Product Dimensions: 4.2 '' x 4.2'' x 2.0'' –inches

• Cutout Size: 3.46'' –inches

Questions? Issues?

We are here to help!

Phone: [phone]

Email: [e-mail]

www.PyleUSA.com
