Pyle PLMD-1 Owners manual

FM MODULATOR WIRELESS

2CHUSER'SGUIDE

CH USER'S GUIDE

MODEL NUMBER: PLMD1

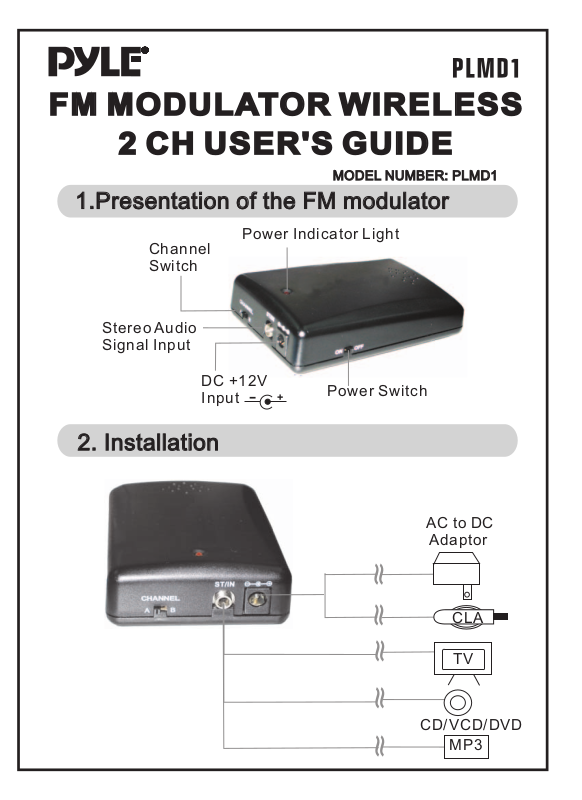

1.Presentation of the FM modulator

Power Indicator Light

Channel Switch

Stereo Audio Signal Input

DC +12V Input

Power Switch

2. Installation

AC to DC

Adaptor

CLA

CD/VCD/DVD

MP3

FM MODULATOR WIRELESS

CH USER'S GUIDE

2 CH USER'S GUIDE

MODEL NUMBER: PLMD1

3. Using the FM modulator

Connect the power supply plug to the FM modulator DC+12V

input, see the picture (NOTE! The center is positive power source).

Connect the stereo audio plug to the FM modulator stereo audio

signal input, see the picture.

Turning the power switch to "ON" position, and the power

indicator will show red light.

Select the channel switch, CH A is FM88.7MHz, CH B is FM89.1

MHz. (You can either select no interference or select superior receiving band)

Turning the FM radio's tuner to the same as channel selected of

FM modulator, then can receive audio signal.

4. Troubleshooting Power indicator light not indicate

Make sure that the power switch is turned to "ON" position. Make sure that the power supply plug is connected to the FM

modulator DC jack.

Make sure you are providing the power supply with the correct

voltage.

No audio signal

Make sure that the power indicator is normal working, if not,

see the "power indicator light not indicate"

Make sure that the stereo audio plug is connected to the FM

modulator audio phone jack.

Change the stereo audio wire.

FCC ID: QTQOOMRU201

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. CAUTION: Changes or modifications not expressly approved

by the party responsible for compliance could void the use's authority to operate the equipment.
