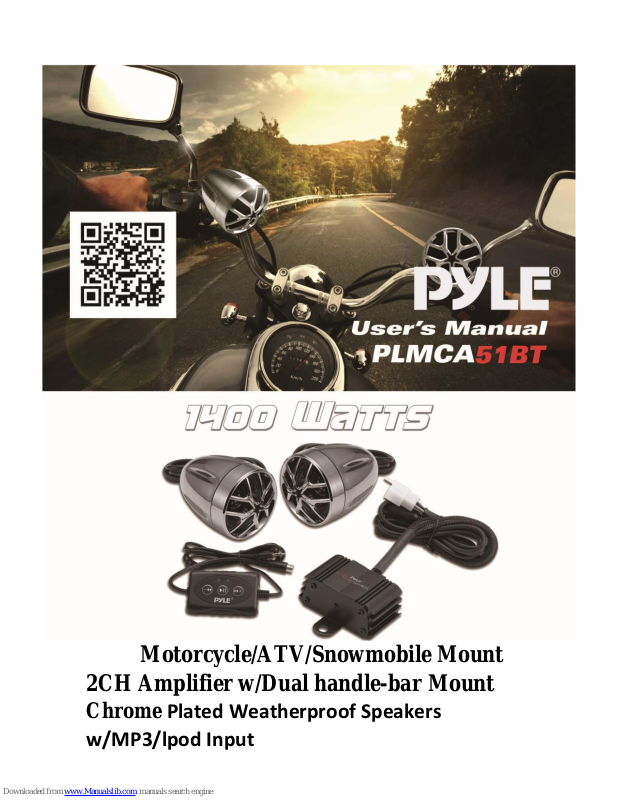

Pyle PLMCA51BT User Manual

Motorcycle/ATV/Snowmobile Mount

2CH Amplifier w/Dual handle-bar Mount

Chrome Plated Weatherproof Speakers

w/MP3/lpod Input

CYCLE SERIES

Congratulations on your purchase of this Cycle Series premier
amplified speaker system. Like all products, this motorcycle system
has been thoroughly tested to ensure consistent, reliable
performance under some rigorous conditions. Our systems were
designed to with stand water, moisture, heat and direct sun
exposure. We pride ourselves in customer satisfaction. If you
should have any questions regarding the installation and/or
operation of your pyw Cycle Series motorcycle speaker system,

which is not covered in this manual, please contact your Dealer or

Technical Support

PLMCA51BT

1 400 Watts Motorcycle/ATV/Snowmobile Mount
2CH Amplifier w/Dual handle-bar Mount Chrome
Plated Weatherproof Speakers w/MP3/lpod Input

• 700 Watts x 2 Channels Micro Amplifier with wire harness

• 3" Dual Chrome Plated Plastic Cabinet Speaker with Supreme high

temperature Voice Coil

• Pair of Chrome Handlebar Clamps

• Chrome Stainless Universal handlebar audio mount

• 12 Volt T-TAP Plug for direct connection on American made Motorcycles

• Easy Chrome Stainless Mounting Brackets and Accessories

included Environment resistance and water proof Bluetooth and

in-line volume control console with 3.5mm Stereo Input Jack, Easy
Connection to the Output of Other Audio Devices Like i-Phone, i­Pad , i-Pod , Cell Phone and MP3 etc

• Bluetooth 3.0 technology

Bluetooth auto connected while power on
Bluetooth auto disconnected while Aux-in (3.5mm connector)
Bluetooth console Dimension : 3.1 5" L x x 0.83"(H)
Easy and quick installed handle-bar mount bracket is included

• Speaker Dimensions : 4.49"L x 3.27"VV x 3.27"H

• Amplifier Dimensions : 2"Lx 3.25"W x 1.25"H

• Sold as : Kit

Accessories

Upon un-packing your new Pyle Cycle Series audio system, Please check to ensure
you have all the included parts

(1) Pair of 700 Watt stereo chrome speaker enclosures with
speaker wires

(3) "P" shape clamp Handlebar

2pcs for Speaker Enclosure / 1 pc for Bluetooth

control box

#3

(3) "Z" shape bracket Handlebar,

2pcs for Speaker Enclosure / 1 pc for Bluetooth

control box

(1) Micro stereo 2CH Amplifier

(700 Watts x 2 Max output power )

#5

(1) Amplifier 12 Volt (-) Ground Blue Spade Terminal

(1) Amplifier 12 Volt (+) Blue Male Terminal
Connector

(1) Universal 12 Volt Wire Harness Connection
(1) 1 2 Volt Direct Plug, for Compatible Motorcycles

#9

(1) Bluetooth Controller
(6) Black Wire Tie Lockable Straps

(4) Screws for Speaker

oo

(3) Screws, Washer and Nut
2pcs for Amplifier / 1 pc for Bluetooth control box

2

Bluetooth Installation

1. Install"P" shaped clamp
(item#2) or "Z" shaped bracket (
item#3) threaded on to the
Bluetooth controller hook.(packed
with Bluetooth controller). Use the
provided bolt (item#12) to fix on the
handlebar, it can be adjusted the

tightness by provided EVA & rubber
pad.

2. Slide the Bluetooth controller
into the hook.

3. Press down the Bluetooth
controller hook and then slide out
the Bluetooth controller box at the
same time to remove the Bluetooth
controller.

4

Previous

Song

Press and

Hold

Volume Down

Song

Prus and Held

Play/Paxze Volume Up

Press Hold On/Off

Bluetooth Pairing and Connection:

1 . Connect Bluetooth controller box to your device

2. Press and Hold for three seconds until power indicator
lights (red)

3. The system will automatically go into pairing mode

The power indicator will turn red for about 7 seconds and then
alternating red and blue (Bluetooth blue Power red)
Please be sure that Bluetooth is turned on your device Select Pyle

Audio on your device to connect Bluetooth controller (if the
Bluetooth controller is connected the light will turn blue and not flash)

4. When the device is out of Bluetooth range, Bluetooth will be
disconnected automatically and automatically reconnect when
detected in range again. (If not please just repeat steps 1 and 2) 5. When

Bluetooth is disconnected or the 3.5mm AUX Input is plugged in, the
power indicator will glow red.

Playing Music:

1 . Press to start or pause the music

2. Press >>+ shortly for next track, Press and hold for Volume up

3. Press shortly for previous track, Press and hold for Volume down

5
