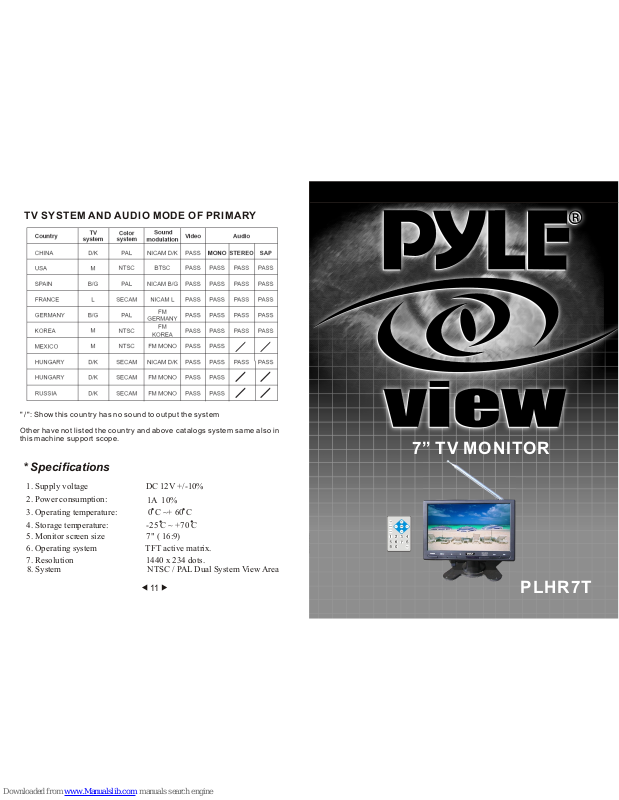

Page 1
PLHR7T
7” TV MONITOR
* Specifications
1. Supply voltage DC 12V +/-10%
5. Monitor screen size 7" ( 16:9)
6. Operating system TFT active matrix.
7. Resolution 1440 x 234 dots.
8. System NTSC / PAL Dual System View Area
2. Power consumption:
3. Operating temperature: 0 C ~+ 60 C
4. Storage temperature: -25 C ~ +70 C
1A 10%
" /": Show th is countr y has no soun d to output t he system
Other hav e not liste d the count ry and abov e catalog s system sa me also in
this mach ine suppo rt scope.
TV SYSTEM AND AUDIO MODE OF PRIMARY
11
Page 2
4.AUTO SEARCH
When the i nd ic at or i s on the AU TO SEARCH, pre ss
ENTER on the u ni t/ re mote to display this picture and
auto ful l sc an c ha nn els by pressing ENTER.
5.SEAR CH
When the i nd ic at or i s on the SEARCH, press ENTER on
the unit /r em ot e to d isplay this picture and auto scan
channe ls b y pr es si ng ENTER.
6.FINE TUN E
When the i nd ic at or i s on the FINE TU NE , pr ess ENTER
on the uni t/ re mo te t o display this picture and fine tune by
“ / OR V+/V-” bu tton.
7.PROGRA M
When the i nd ic at or i s on the PROGRAM, press ENTER
on the uni t/ re mo te t o display and select the item you
want to chan ge b y “ / OR V +/V-” butt on.
8.SKIP
When the i nd ic at or i s on the SKIP, pre ss E NT ER on the
unit/r em ot e to d is play and select the item you want to
change b y “ / OR V +/ V-” b utton. Press “enter” button
to selec t “O N / OF F’ .
.
9.FREQ:S ho w th e TV chann el ’s Frequency.
When you fee l th at t he re are some repeated TV program
or image a nd a ud io f ou nded not good .You need t o sk ip
some pro gr am a nd q ui ck to select.
Remark : Sk ip f un ct ion is available only going on
choosi ng t he p ro gr am in sequence by using the program
select io n of C H- /C H+
10
1. Table of C ont ents- --- ----- --- ----- --- --- ----- --- ----- --- ----- --- ------- 1
2. Warnin g --- -------- --- ----- --- ----- --- ----- --- -------- --- ----- --- ----- -- 1
4.Con nec tio n Diagr am
13.TV SYSTEM AND AU DIO M ODE OF PR IMA RY
3. Pack age - -------- --- ----- --- ----- --- -------- --- ----- --- ----- --- ----- --- - 2
----- --- -------- --- ----- --- ----- --- ----- --- --- ----- 2
5.Rem ote C ont rol --- --- ----- --- --- --- --- -------- --- ----- --- ----- --- ----- -3
6.App end ix------ --- ----- - --- ----- --- ----- --- --- ----- --- ----- --- ----- --- -- 4
7.Usi ng th e Remote Con tro l---- --- ----- --- -- ------- --- ----- --- ----- --- --4
8.Mon ito r Section- --- ----- --- ----- --- -------- - --- ----- --- ----- --- ----- --- 5
9. OSD Me nus i n A/V So urc e ----- --- ----- --- -------- --- ----- --- ----- --- -6
TV SE CTION
10. OSD M enu s in TV Sour ce -- ----- --- ----- --- -------- --- ----- --- ----- --- 7
11. OPER ATION S------- --- ----- --- ----- --- ----- --- -------- --- ----- --- ----- 8
12.DI SPL AY----- --- ----- --- ----- --- -------- --- ----- --- ----- --- ----- --- -9~ 10
----- --- -------- --11
14.Sp eci fic ation s-- ----- --- ----- --- -------- --- ----- --- ----- --- ----- --- ----- 11
Table of Contents
WARNING
Thi s unit is n ot inte nded fo r insta llati on in the f ront Dr iver / Pa sseng er Compa rtmen t
whe re it may b e seen by t he Driv er. Inst allat ion of th is unit i n any por tion of t he vehi cle
whi ch coul d impai r or dist ract th e Drive r is impr ope r and d ange rous an d
ass umes No l i ab il i ty
wha t
so
eve r for fai lure to f ollow t he prop er inst allat ion of
thi s produ ct.
To red uce t he ris k of elec tric sh ock, pl ease do n ot expo se this u nit to ra in, moi sture o r
ope n the uni t. Dang erous h igh vol tages a re pres ent ins ide the u nit.
Our wa rran ty coul d be void ed i f you mak e chang es or mod ifica tions n ot expr essly
app roved b y
1
Page 3
A
N
T
.
O
U
T
AV
DC +12 V
+12V
AC AD APTER
Earph on e
(Opti on )
DVD Pla ye r
(Opti on )
Antenna
(Opti on )
YEL LOW
VID EO
WHI TE
AUD IO
Connection Diagram
Package
This LCD m on it or c om es with all the items below. Check to
make sur e yo ur u ni t co mplete. Contact your dealer immed ia te ly
if anythin g is m is si ng.
* 7" TV Monitor
* AC Adapter
* A/V cable
* Antenna jack
* Stand X 1
* Operation manual
X 1
X 1
X 1
X 1
2
DISPLAY
1.MAIN MEN U
Press MENU o n th e un it /remote to display this picture
and adju st t he i te m by “ / O R V+ /V-” but to n.
2.ANT SOUR CE
<ANT SOUR CE>
AIR
CABLE
When the i nd ic at or i s on the AN T SOURCE, pres s EN TE R
on the uni t/ re mo te t o display this picture and select AIR or
CABLE by “ / O R V+/V-” b ut ton. When AN T SOURCE is on
AIR, this wi ll a ffect the fr eq ue nc y li st in the AUTO
SEARCH .
3.TV SYSTE M
<TV SETUP>
ANT SOUR CE
TV SYSTEM
AUTO SEARCH
SEARCH
FINE TUNE
PROGRA M
SKIP
FREQ
<TV SYSTE M>
NTSC
FM RADIO
SECAM-D K
PAL-I
PAL-BG
When the i nd ic at or i s on the TV SY ST EM , pr ess ENTER
on the uni t/ re mo te t o display this picture and select
NTSC, FM RAD IO , SE CA M-DK, PAL -I a nd PAL-BG by “ /
OR V+/V-” bu tton.
9
Page 4
OPERATIONS
when use TV system i n diffe rent coun tries, yo u must firs t set the
system, t hen set the s ignal as an tenna or th e coaxial o f the CATV,
AUTO SE ARCH. Whe n it is OK, pre ss MENU to re turn or aut o return by
tuner to TV pictur e, then you m ay enjoy th e TV prog ram.
SETUP 1 AN T SOURCE
Firstly p ress MENU t o enter Mai n Menu. Mov e cursor to “ ANT
SOURCE” b y “ / OR V+/V-” bu tton, and t hen press E NTER to
enter the M enu.
The items ( AIR/CAB LE) can be ch anged by “ / OR V +/V-” butt on.
The updat ed parame ter will be s et up when it ems chang ed. And the
result be s hown imme diately.
Press MEN U back to Mai n Menu. Pre ss MENU aga in, you can c ancel
Main Menu , or Main Men u will be can celed aut omatica lly 30 seco nds
later.
SETUP 2 TV System
First pre ss MENU to en ter Main Me nu. Move cu rsor to “TV S YSTEM”
by “ / OR V+/ V-” b utton a nd t hen pre ss E NTER to e nt er the Me nu .
The items ( NTSC/FM R ADIO/SE CAM-DK/ PAL-I/ PAL-BG ) can be
changed b y “ / OR V+/V-” bu tton. The update d paramet er will be
set up when i tems chan ged. And the r esult be sh own immed iately.
Press MEN U back to Mai n Menu. Pre ss MENU aga in, you can c ancel
Main Menu , or Main Men u will be can celed aut omatica lly 30 seco nds
later.
SETUP 3 AU TO SEAR CH
Press MEN U to enter th e Main Menu ; and move th e cursor to “ AUTO
SEARCH” b y “ / OR V+/V-” bu tton, and p ress ENTE R; then you c an
enter Sub -Menu and p ress ENTE R accordi ng to the cue . During th e
Channel S can, the Sc hedule wi ll displa yed in the OS D. If press E nter,
the Chann el Scan wil l be stoppe d. On the rig ht angle de monstra ted
finally s eeks the ch annel,4 s econds la ter, it will g o back to the TV
mode, and t he progra m will stay f rom the fir st channe l in the guid e
program s earchin g. Press ME NU again, y ou can canc el Main Men u, or
Main Menu w ill be canc eled auto matical ly 30 secon ds later.
SETUP 4
After ret urns to the t elevisi on pictur e then to dep end on the co mmon
televis ion opera ting mode , enjoys th e various c ountrie s brillia nt
televis ion progr am.
8
1
2
3
4
5
6
7
8
9 0
POWER
MUTE
SOURCE
ENTER
MENU
CH+
CH-
V - V+
1. POWER: Po we r fo r ON o r OFF
2. SOURC E: S wi tc h in put source button (TV, AV input)
3. ENTER: Co nf ir m th e selection.
4. CH+/C H- : Adj us t ch annel up / down(For TV only).
5. MENU: A. Whe n so ur ce i nput is TV. Press “MENU”
button to ente r TV OSD Menu.
B.When sourc e in pu t is AV. Pre ss “MENU”
button to ente r mo ni to r OSD Menu.
6. V+/V-: A. Whe n th e OS D me nu function is turned off,
press the " V+/V- " b ut to ns d irectly from the
remote contr ol t o ad ju st volume.
B. Make item sel ec ti on i n OSD menus to increase
or decrease pa ra me te rsas well
7.0-9: Ch oo se n um ber key
8.MUTE:P re ss t he k ey to close the sound,press it
again to res um e th e so un d.
.
1
2
3
4
5
6
7
8
Remote Control
3
Page 5
+- 30 Degree
Appendix
Changing the New Battery in Remote Control
1. Push the battery case button to wards the right.
(As shown # 1 in below
figure)
2. Pull the battery case away from the remote control.(As shown # 2
in below figure) Change a new battery.
Cassett e Button
1
2
Battery
Using the Remote Control
1.Poin t th e re mo te c ontrol towards the IR sensor in front of
the moni to r ho us in g.
2.Oper at io n an gl e: IR remote control will work about 30
degree i n ea ch d ir ec tion from the IR sensor of the monitor
housin g.
4
* TV SECTION
<TV SETUP>
ANT SOUR CE
TV SYSTEM
AUTO SEARCH
SEARCH
FINE TUNE
PROGRA M
SKIP
FREQ
<ANT SOUR CE>
AIR
CABLE
<TV SYSTE M>
NTSC
FM RADIO
SECAM-D K
PAL-I
PAL-BG
VOLUME
* Quick Adjustment OSD Menus
1. By pressing "MENU" button, you may open the MAIN MENU, using " " or " "
buttons to pick out OSD functions.
2. In order to select desire options, it is necessary to press "MENU" again to
enter each mode, than using " "/ " " to increase or decrease parameters as well.
3. Press " " or " " b utton direc tly to adju st s peaker vo lume.
4. Pres s th e " EXIT" m ode to stor e your sele cted para meter a nd
leave t he OSD Menu s.
50
* OSD Menus in TV Source
7
Page 6
4
3
1
2
1.POWER:
2.
3. / :
4.
5.
Power for ON or OFF
MENU: A. When source input is TV. Press “MENU”
button to enter TV OSD Menu.
B.When source input is AV. Press “MENU”
button to enter monitor OSD Menu.
A. When the OSD menu function is turned off,
press the " V+/V- " buttons directly from the
remote control to adjust volume.
B. Make item selection in OSD menus to increase
or decrease parametersas well
SOURCE/ENTER:
A. Switch input source button (TV, AV input)
B. Confirm the OSD selection.
CH+/CH-: Adjust channel up / down(For TV only).
5
Monitor Selection
5
* OSD Menus in A/V Source
VOLUME
* Quick Adjustment OSD Menus
1. By pressing "MENU" button, you may open the MAIN MENU, using " " or " "
buttons to pick out OSD functions.
2. In order to select desire options, it is necessary to press "MENU" again to
enter each mode, than using " "/ " " to increase or decrease parameters as well.
3. Press " " or " " b utton direc tly to adju st s peaker vo lume.
4. Pres s th e " EXIT" m ode to stor e your sele cted para meter a nd
leave t he OSD Menu s.
< MAIN ME NU >
CONTRAS T
BRIGHTN ES S
COLOR
SHARPNE SS
VIDEO SOU RC E
AUDIO
RESET
RETURN
50
6
