PYLE PLHR7SP User Manual

7"WideLCDMonitor

With4MountingOptions

POWER

MENUINVERT

PLHR7SP

www.pyleaduio.com

INSTRUCTION MANUAL

Table of Contents

About the liquid crystal display (LCD) panel

Precautions

Control & Layout for monitor / wireless remote

Accessories

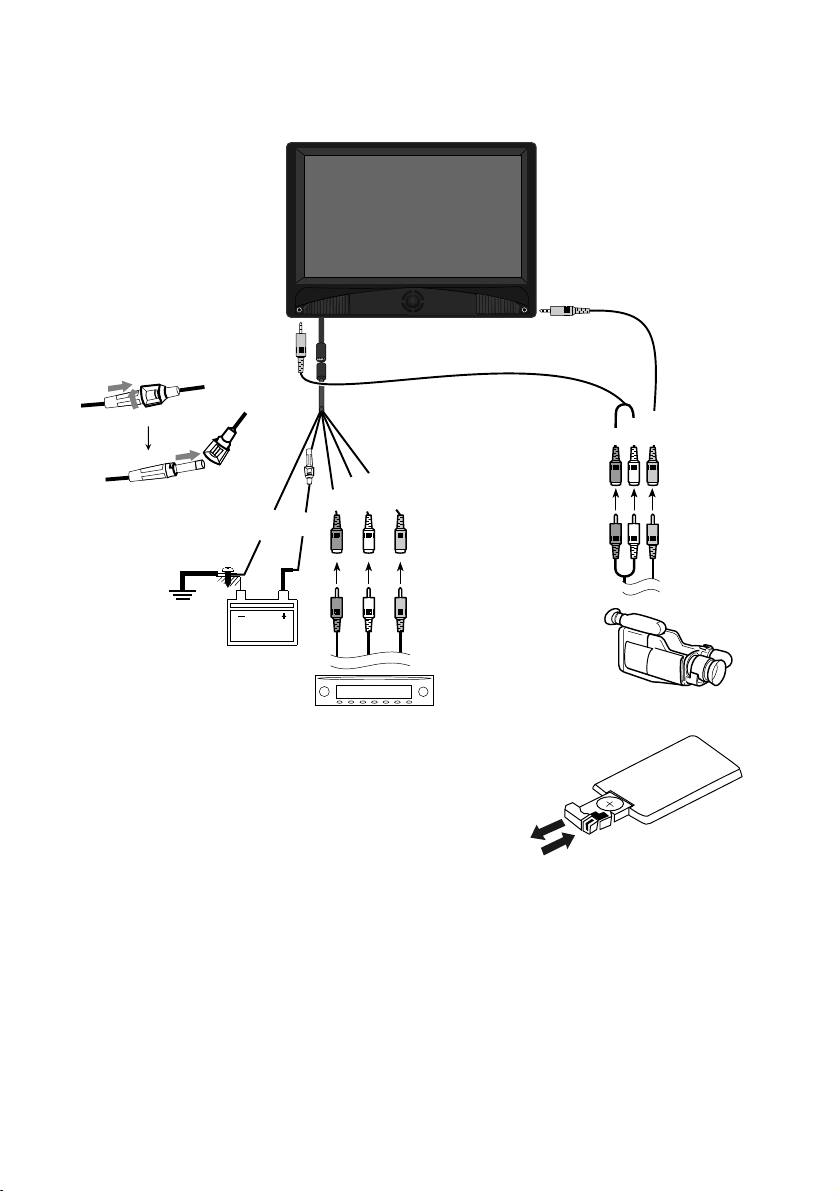

Connection diagram

Replacing the remote control battery

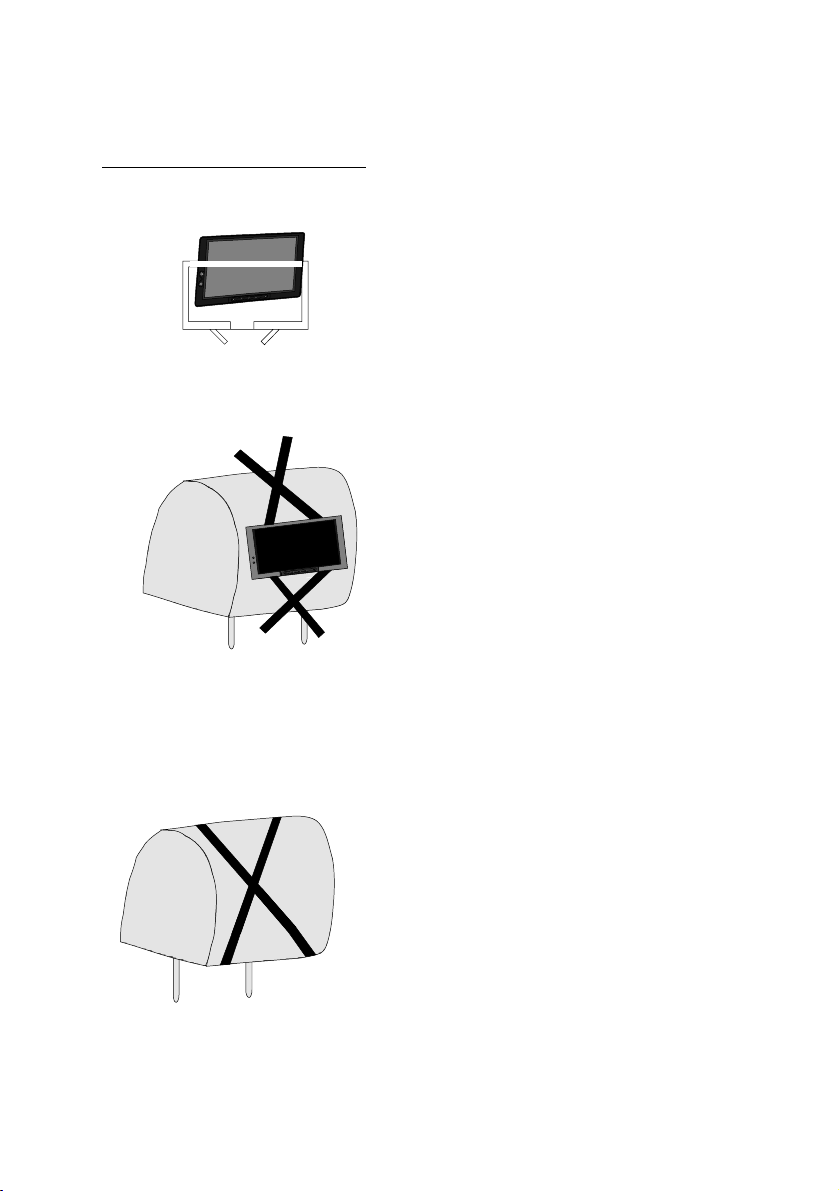

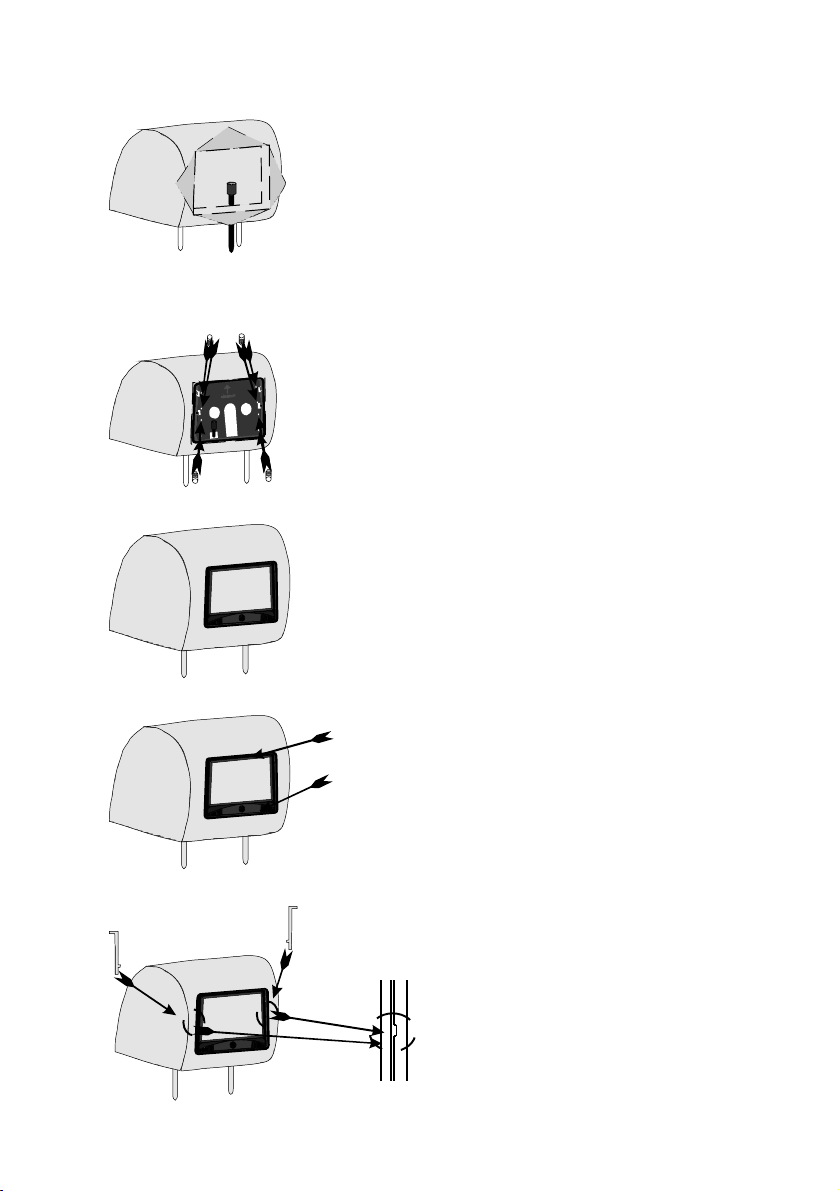

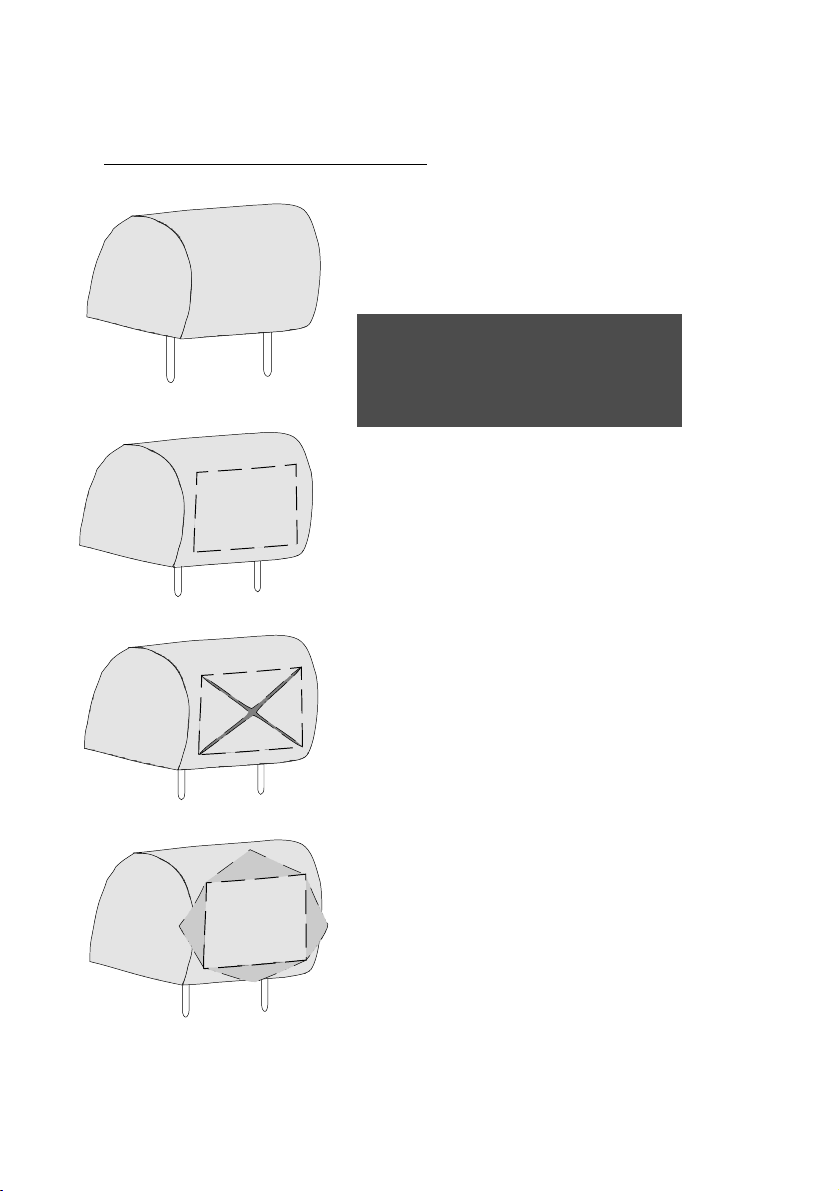

Installing headrest with shroud

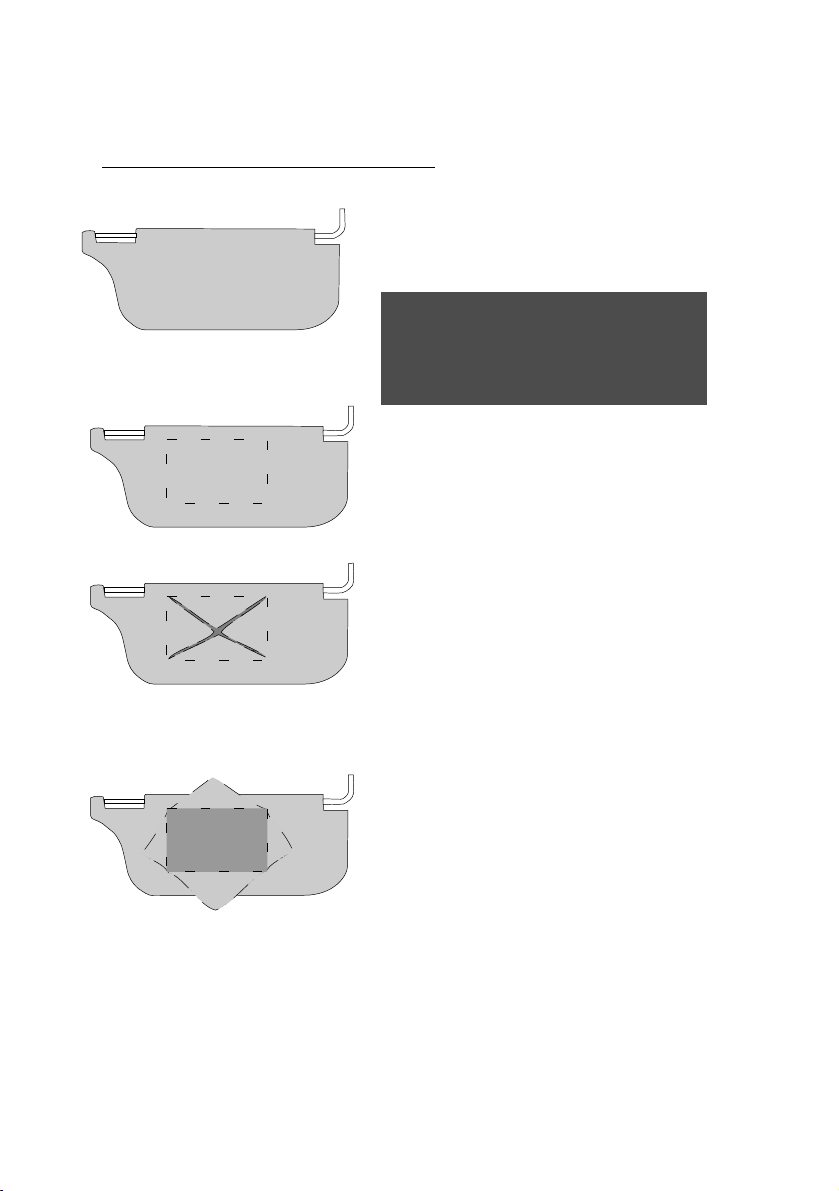

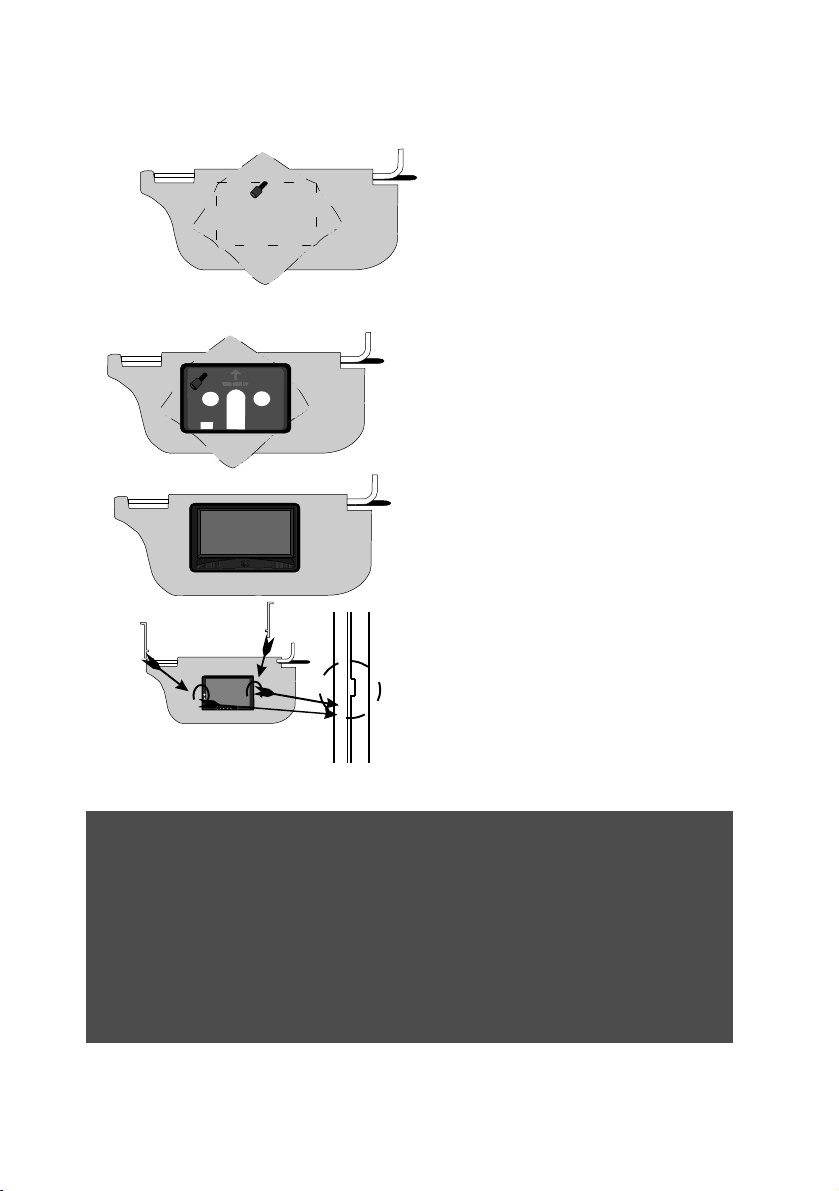

Installing sun-visor with shroud

Installing of headrest case

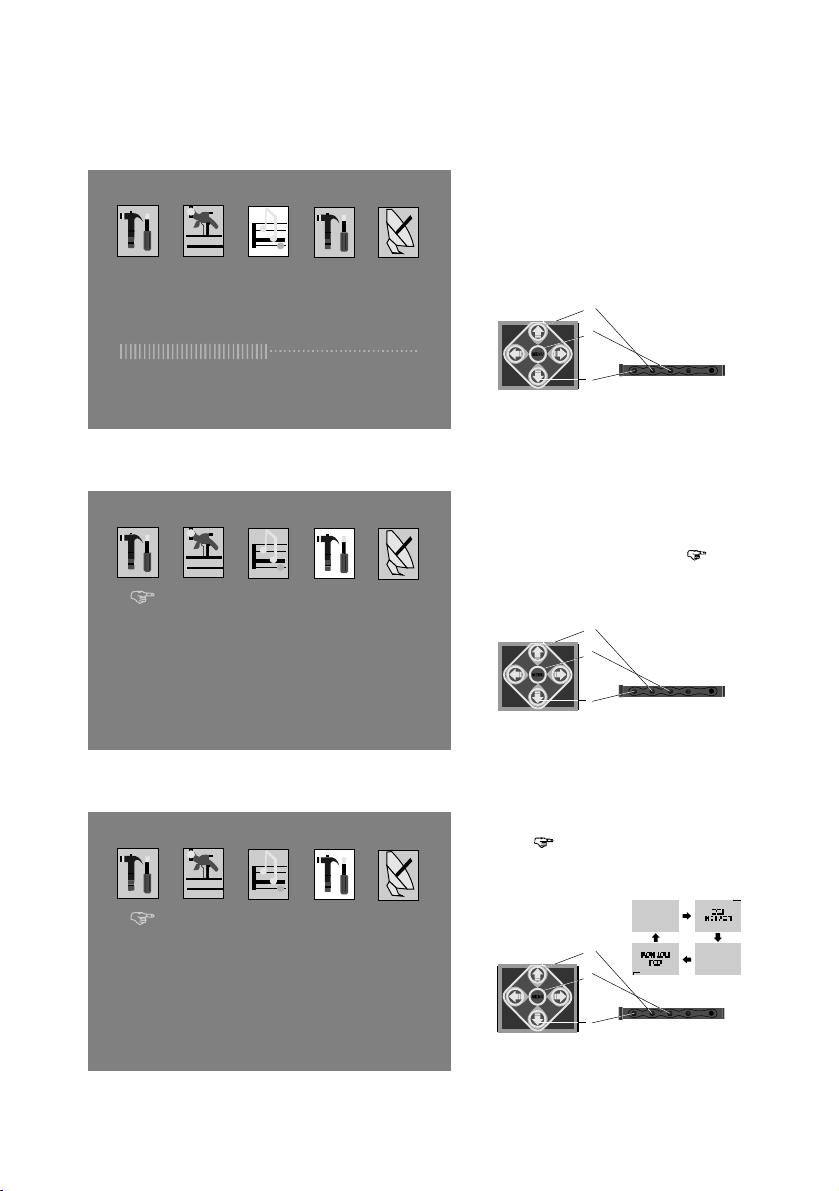

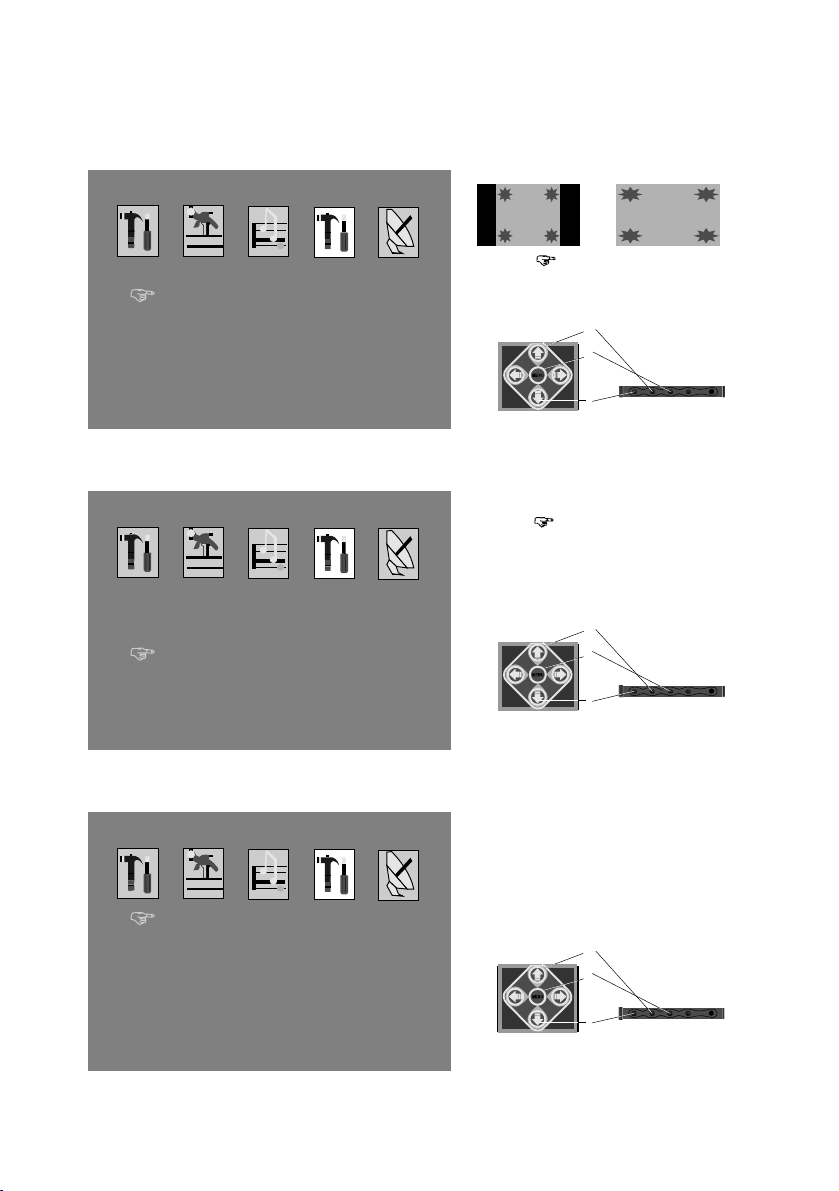

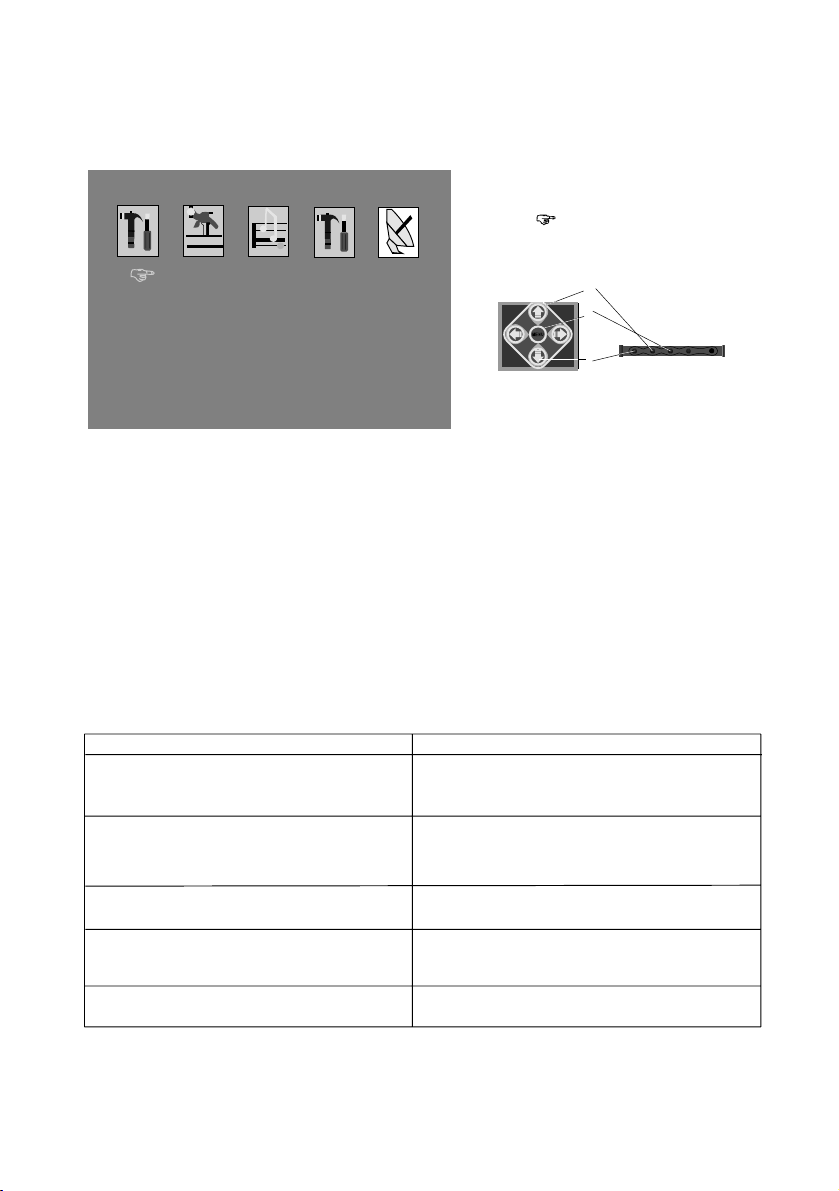

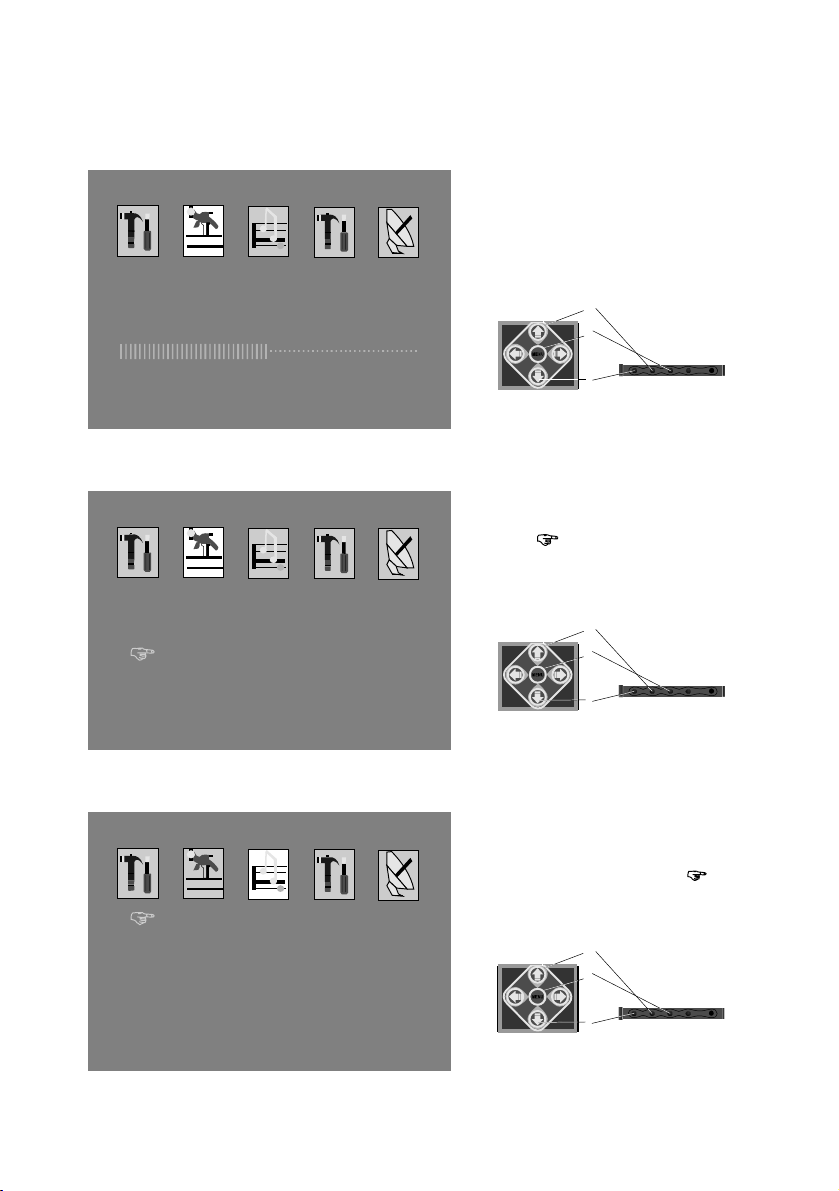

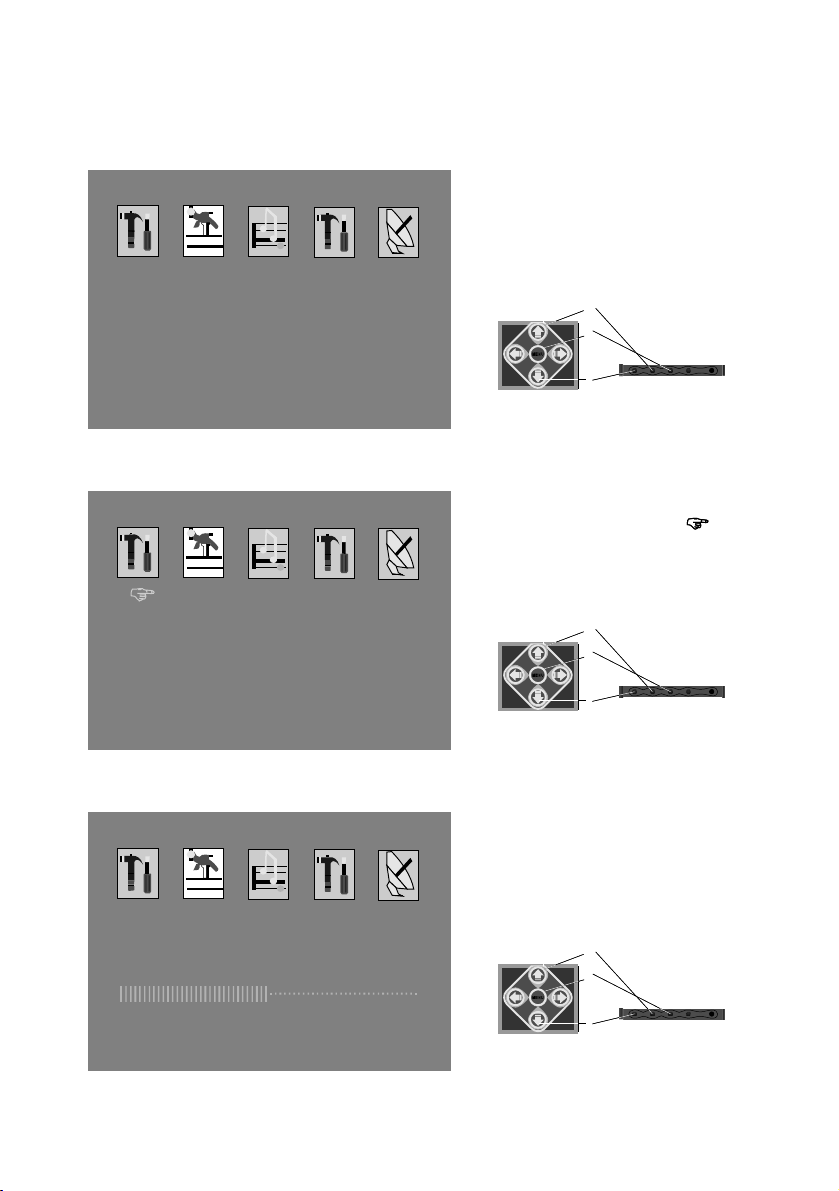

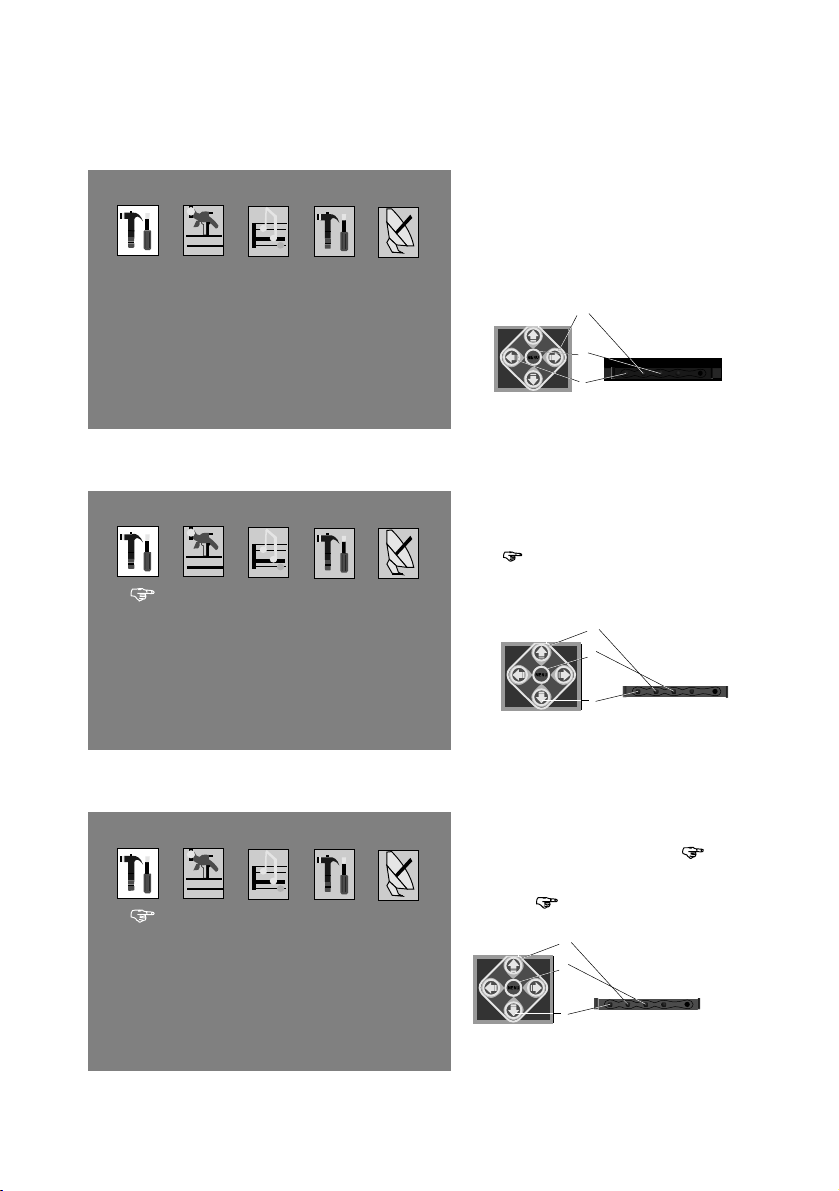

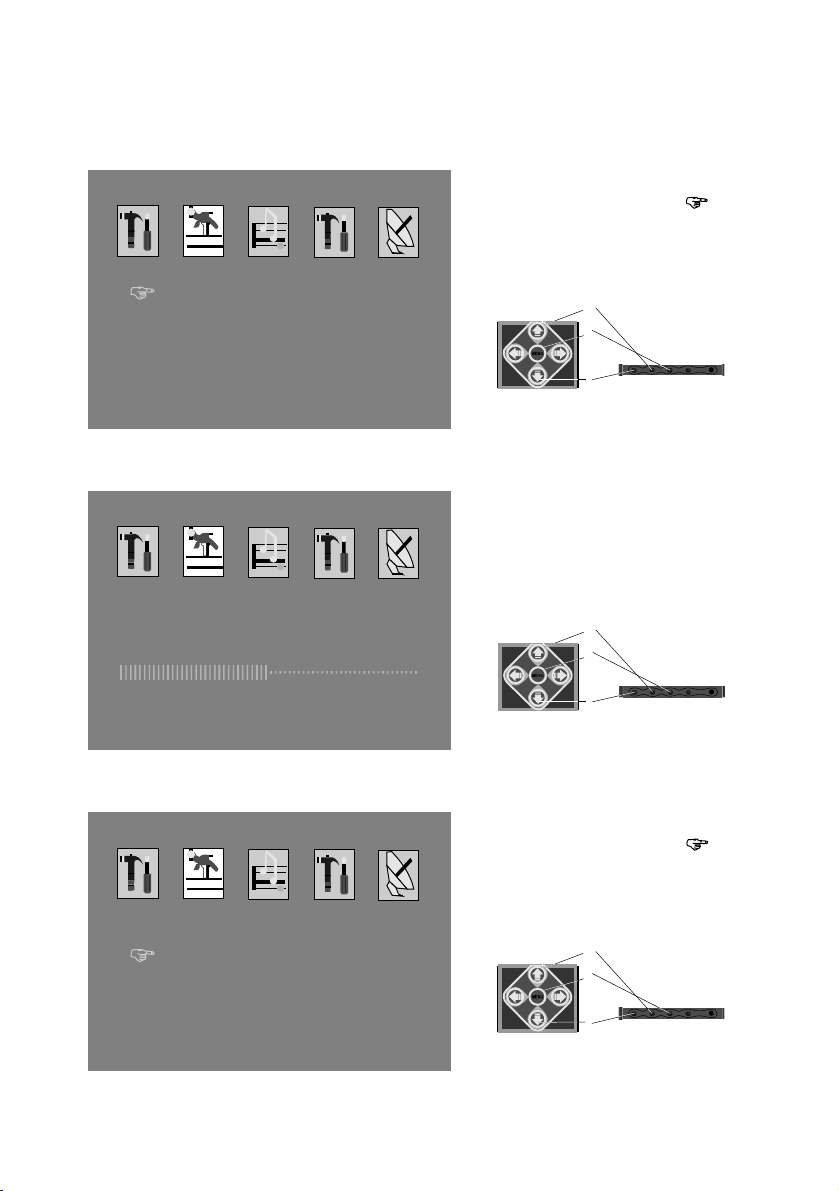

Function Setting

Troubleshooting guide

Specifications

7-8

9-10

12-18

About the liquid crystal display (LCD) panel

1. Do not press on the LCD panel on the monitor unit as doing so can distort the picture orcause a malfunction, the picture may become unclear, or the LCD panel may be damaged.

2. Notes on cleaning

-clean the LCD panel with a slightly damp soft cloth.

- do not use solvents such benzine, thinner, commerciallyavailable cleaners or antistaticspray.

3. Do not use this unit temperatures under 5C (41F) or over 45C (113F).

o o o o

4. If your car was parked in a clod or hot place, the picture may not be clear.The monitor isnotdamaged. The picture will become clear after temperature in your car becomes normal.

5.Some stationary blue or red dots may appear on the monitor.These are called brightspots,and happen

with anyLCD.The LCD panel is highly sophisticated, and more then99.99% ofthe segments used in the panel are flawless.However, there is a possibility that less than 0.01% of the segments are defective

and maynot light up properly.However, these segments will not interfere with your viewing.

Safety

To avoid the risk of accident and the potential violation of applicable laws, the fronts tv should Never used while the vehicle is being driven.Also, rear displays should not be location where It is a visible distraction to the driver. In some countries the viewing of image on a display inside a vehicle even by persons other than The driver may be illegal. Where such regulations, they must be obeyed and this unit’s features Should not be used.

Warning

To Prevent fire or shock hazard,do not expose the unit to rain or moisture.

CAUTION!!

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Caution:To reduce the risk of electric shock Do not remove cover (or Back) No user-serviceable parts inside Refer servicing to qualified service personnel

This symbol is intended to alert the user to the presence of uninsulated “DANGEROUS VOLTAGE” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and maintenance(servicing) instructions in the literature accompanying the appliance.

Disposal of old electrical & electronic equipment ( applicable in the European Union & other European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. In stead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product

Precautions

Please read this manual completely and carefully prior to attempt to install your new car video equipment. Install correctly, your new equipment will provide you with years of enjoyable and safe usage.

Installing this unit requires technical expertise.This unit should be installed by a qualified technician or service personnel. If you try to install this unit by yourself, do it properly, referring to the installation and wiring diagrams in this operating manual. Improper installation may result in fire or electric shock.

1.Do not operate this equipment while driving-safe driving should always be your highest priority.

2.Do not install components in areas which are susceptible to rain, moisture direct sunlight,extremely heat or cold, excessive dust, dirt or humidity.

3. Immediately unplug the power cord and send the monitor to your local dealer or service center as soon as possible:

a) If there is smoke or any peculiar odor present during used b) If there is damage to any of the internal components

4.To avoid damage to the monitor and risk of electronic shock, do not permit any of thisequipment to

become damp or wet from water or liquid. If this does occur, immediately unplug the power cord and send the monitor to your local dealer or service center as soon aspossible.

5. Do not attempt to repair, open or disassemble any of the components. Dangerous highvoltages are present which may result in electric shock.

6. Use only a power source with DC12 volts car battery (negative ground).

7. Do not place or suspend objects on the power cord, as this may damage the cord.

8. Do not twist or place the power cord near any source of heat in the vehicle.

9. Do not attempt to repair a damaged, broken or faulty power cord. Replace it with a new one immediately.

10.Avoid dropping any metal objects or inflammable items into the monitor ventilation slots.

11.After the monitor is installed, do not arbitrarily pull it down or strike it.This may loose the mounting screws and cause it fall down.

12. Do not install this unit where: a) it will obstruct the driver’s view. b) it will obstruct the operation of the airbag system. c) it will obstruct the operation of the vehicle, especially the steering wheel, shift lever, or brake pedal. d) a diver or passengers may injure themselves when getting into or out of the car.

13. Do not damage any pipes, tubes, the fuel tank or electric wiring when installing this unit. this can cause a fire. if you drill a hole in car panels, make sure that any hidden car parts will not be damaged.

14. do not use any nuts or bolts for safety devices such as steering linkage, fuel supply or braking systems. this can cause a fire or an accident .take care to prevent cords and wires from getting tangled or crimped in the moving portion of a seat rail.

Controlandlayoutforthemonitor

This multipurpose button serves

Adjust Decrease

to decrease the selected

parameter, such as volume,

Front L & R audio input

Remote control sensor IR

contrast, etc.

V1/V2

to select Video input

FrontAudio Input

(open the speaker cover)

Power Cord (Male)

Remote Sensor

Notice:somefunctionsworkbyremotecontrol.

Turn On / Off the monitor

This multipurpose button serves to

adjustdownto selectmenu function and increase the selected parameters such as contrast,color,brightness etc

Adjust reduce headphone output

This button brings up the on-screen

menu for adjustment of a range of

monitor parameters such as,

vol, con, col, bri, tint. Etc

Power On/Off

Adjust Increase

Volume

Reduce

volume

To adjust the picture

up/down/left/right

Invert

Blue screen when

no video signal

Power On / Off

Turn on/off the monitor

Adjust Increase

This multipurpose button serves to increase the selected parameters, such as volume, contrast etc.

This button brings up the on-screen menu for adjustment of range of monitor parameters such as, volume, brightness, color, contrast, tint

Front Video Input

Front video input

(open the speaker cover)

IR Sensor

Infra RedAudio Output

Mute

Press to Mute the sound, press again to restore the previous volume level

VolumeIncrease

Adjust increase headphone output volume

Adjust Decrease

This multipurpose button serves to adjust up to select menu function and decrease the selected parameters such as contrast, color, brightness etc.

Preset

Picture preset by factory

V1/V2

Select Video 1 or Video 2 Input

When you use a wireless radio or portable telephone near this unit, picture or sound interference may occur. Do not use such devices near this unit.

Accessories

SunVisorHousing

HeadrestHousing

Key-for removing the monitor from headrest or visor shroud

Video Cable

UniversalStand

Headrest Bag

Extension Min Din Cable

With DCAdapter (12-28 Volts)

Audio Cable

Instruction Manual

Audio Cable

(For IPOD use)

Remote Control
