Page 1
PLG8C
8'' Midbass Woofer Sound Speaker System
Pro Loud Range Audio 600 Watt Peak Power
w/ 4 Ohm Impedance and 45-4KHz Frequency Response
for Car Component Stereo
Page 2
PYLE PLG-SERIES SPEAKER IS A STATE OF THE ART PRODUCT CAREFULLY
DESIGNED & MANUFACTURED FOR VEHICLE USE, AND HAS BEEN
THOROUGHLY TESTED TO ENSURE CONSISTENT AND RELIABLE
PERFORMANCE.
MOUNTING INSTRUCTIONS
MIDWOOFERS
1. Using mounting template for speaker,
mark the correct mounting loction by a
pencil or pen.
2. Cut out the panel by this marking and
drill 4 holes for the mounting bolts to
pass through.
3. Separate the punching metal from the
grill frame.
www.PyleUSA.com
2
4. Connect the terminal of speaker to car
audio correctly by using cord provided.
Caution:
Be careful not to misconnect polarity.
5. Insert grill frame & speaker unit in the
speaker mounting hole at the rear panel
and x speaker with bolts, screw & nuts
provided.
6. Put the purching metal back with the
grill frame.
Page 3
TWEETERS
• SURFACE MOUNT
1. Assemble each parts as above method.
Put the tweeter unit into bracket and rotate clock-
wise unit the bracket.
2. Before screwing up the bracket, investigate the
layout of your automobile thoroughly.
This it to check whether there is enough space for
screw in behind and to check whether there is no
electrical wiring in behind. Take care when working
near the petrol line or hydraulic lines and electrical
wiring.
• FLUSH MOUNT
1. Assmble each parts as above method.
Put the tweeter unit into bracket and rotate clock-
wise unit the tweeter unit is locked to the bracket.
2. Make 45mm diameter hole where you want to
install. Before cutting hole, investigate the layout of
check whether there is no electrical wiring in behind.
Take care when working near to the petrol line or
hydraulic lines and electrical wiring.
3. Push the assembled tweeter into the hole after
connecting each wires.
www.PyleUSA.com
3
Page 4

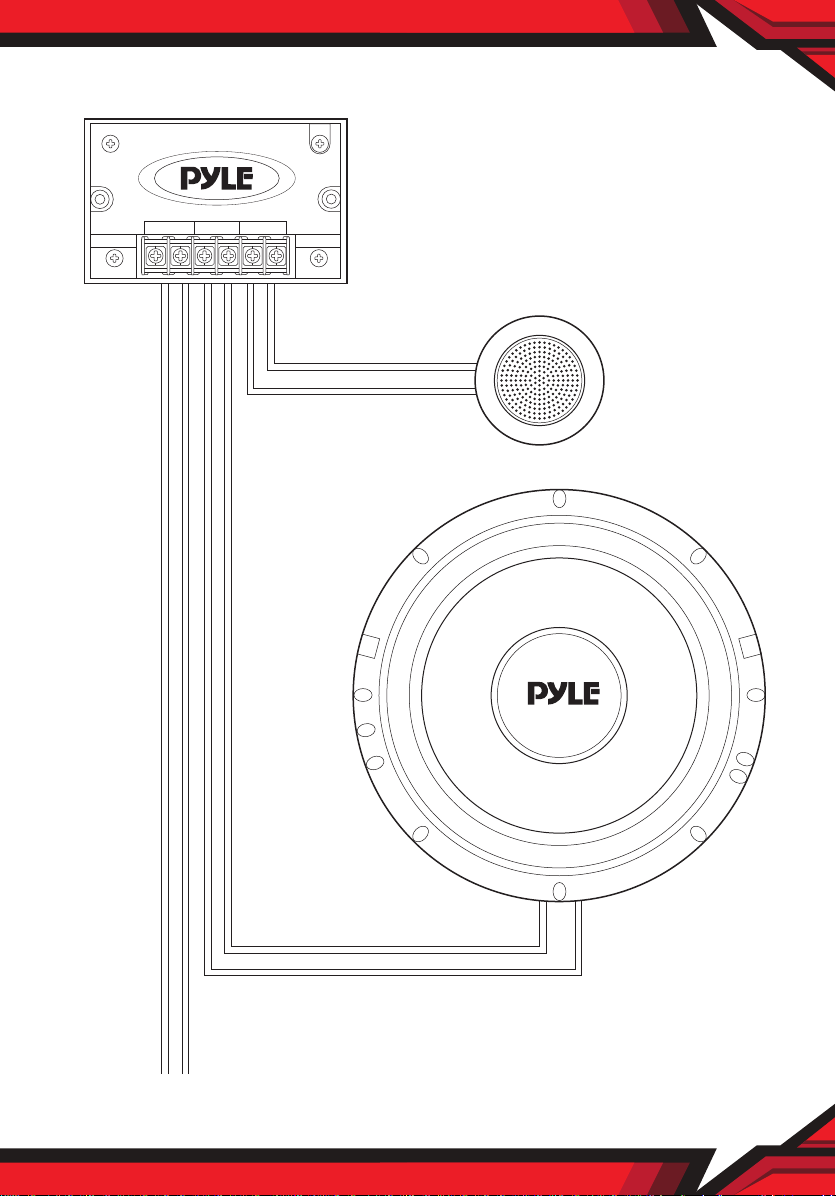

WIRING INSTRUCTIONS
- IN + - WF + - TW +
+
-
www.PyleUSA.com
4
+
-
Page 5
SPECIFICATIONS
TWEETER
Frequency Response: 1.3K-22kHz
Power Handling: 100 Watts
Nominal Impedance: 4 Ohms
SPL: 92 dB
PLG5C MIDWOOFER
Frequency Response: 60-6k Hz
Power Handling: 300 Watts
Nominal Impedance: 4 Ohms
SPL: 89 dB
PLG6C MIDWOOFER
Frequency Response: 50-5k Hz
Power Handling: 400 Watts
Nominal Impedance: 4 Ohms
SPL: 91 dB
PLG8C MIDWOOFER
Frequency Response: 50-5k Hz
Power Handling: 400 Watts
Nominal Impedance: 4 Ohms
SPL: 91 dB
www.PyleUSA.com
5
Page 6

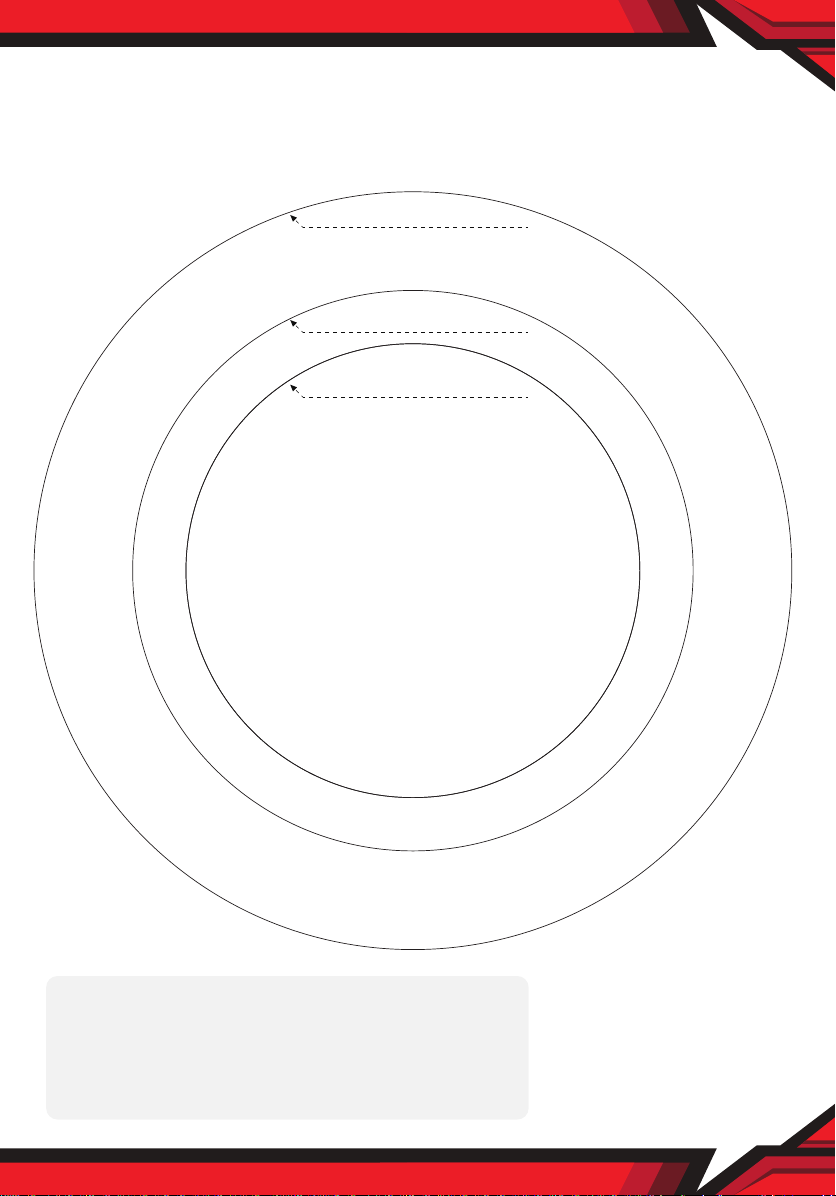

TEMPLATE
PLG5C MIDWOOFER (115mm) / PLG6C MIDWOOFER (142mm)
PLG8C MIDWOOFER (192mm)
PLG8C MIDWOOFER CUTOUT
192mm
PLG6C MIDWOOFER CUTOUT
142mm
PLG5C MIDWOOFER CUTOUT
115mm
What's in the Box:
• (2) 8'' Midbass Woofer
• (2) Tweeters
• (2) Crossovers
www.PyleUSA.com
6
• (2) Grills
• Wires
• Installation Hardware
Page 7
Features:
• One Pair 8” Mid Bass Speaker:
• Standard 8” Sizes Fits OEM Locations
• Flush Surface or Swivel
• Yellow Color Poly Injection Cone
• Specially Treated Rubber
• Edge Suspension
• 1.25'' High-Temperature Aluminum Voice Coil
• Rubber Magnet Boot Cover
• Non-Fatiguing Butyl Rubber Surround
• High-Temperature Aluminum Voice Coil
• Yellow High Strength Engineering Plastic Basket
• 40 Oz. Magnet Structure
• Includes Custom Grills, Wires and Installation Hardware
• One Pair Passive Crossover Network
• 12dB Octave Slope
Technical Specs:
• Construction Material: Ferrite Magnet
• Power Handling: 300Watts RMS/600 Watts Peak
• Impedance: 4 Ohm
• Magnet Weight: 40 Oz.
• Frequency Response: 45-4KHz
• Mounting Depth: 3.1"
• 3 Mounting Options: Flush, Surface, or Angle Mount
• Cut-out Size: Φ192 mm / 7.55”
• One Pair 0.5”Neodymium Dome Tweeter:
• 50 Watts RMS/100 Watts Peak
• Frequency Response:1.3K-22KHz
• Impedance:4 Ohms
• Product Dimensions (L x W x H): 8.6'' x 8.6'' x 4.2'' -inches
www.PyleUSA.com
7
Page 8
Questions? Issues?
We are here to help!
Phone: (1) 718-535-1800
Email: support@pyleusa.com
