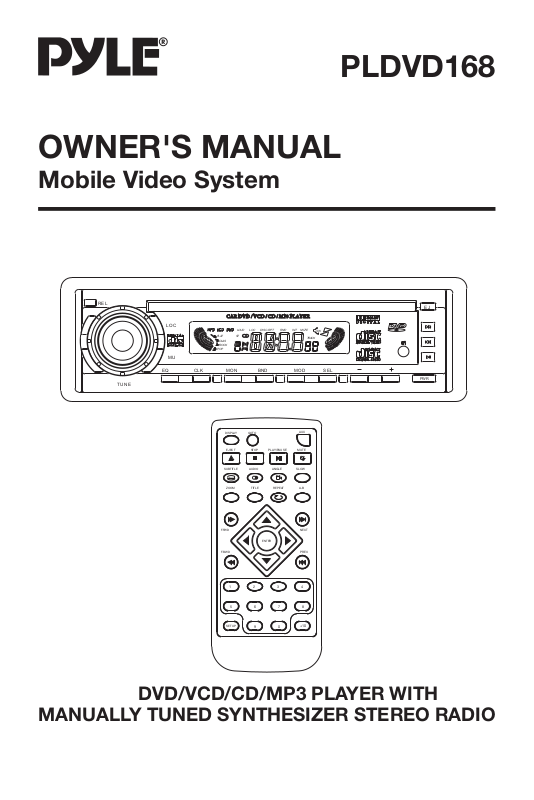

OWNER'S MANUAL

Mobile Video System

OWNER'S MANUAL

Mobile Video System

PLDVD168

REL

TUNE

LOC

EQ CLK MON BND MOD SEL

FLAT

CLAS ROCK

POP

DISPLAY

EJECT

SUBTITLE

ZOOM TITLE

F.FWD

F.BWD

SETUP

LOUD LOC

GOTO

STOP

AUDIO

DISC-RPT

RND INT

PLAY/PAUSE

ANGLE

REPEAT A-B

ENTER

708

MUTE

TRACK

AUX

MUTE

SLOW

PREV.

+10

PWR

DVD/VCD/CD/MP3 PLAYER WITH

MANUALLY TUNED SYNTHESIZER STEREO RADIO

CONTENTS

Safety Information ........................................................................................3

Disc Notes ....................................................................................................4

Installation.....................................................................................................5

Electric Connection ......................................................................................8

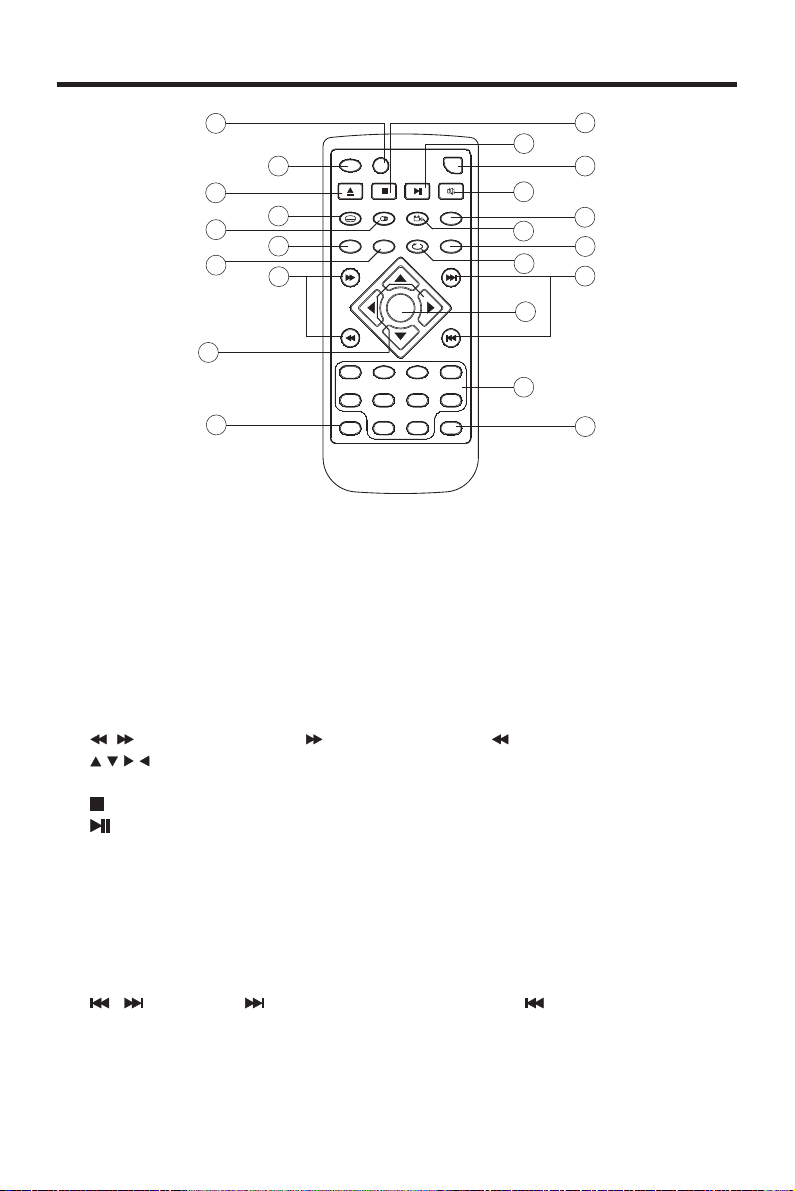

Remote Control.............................................................................................9

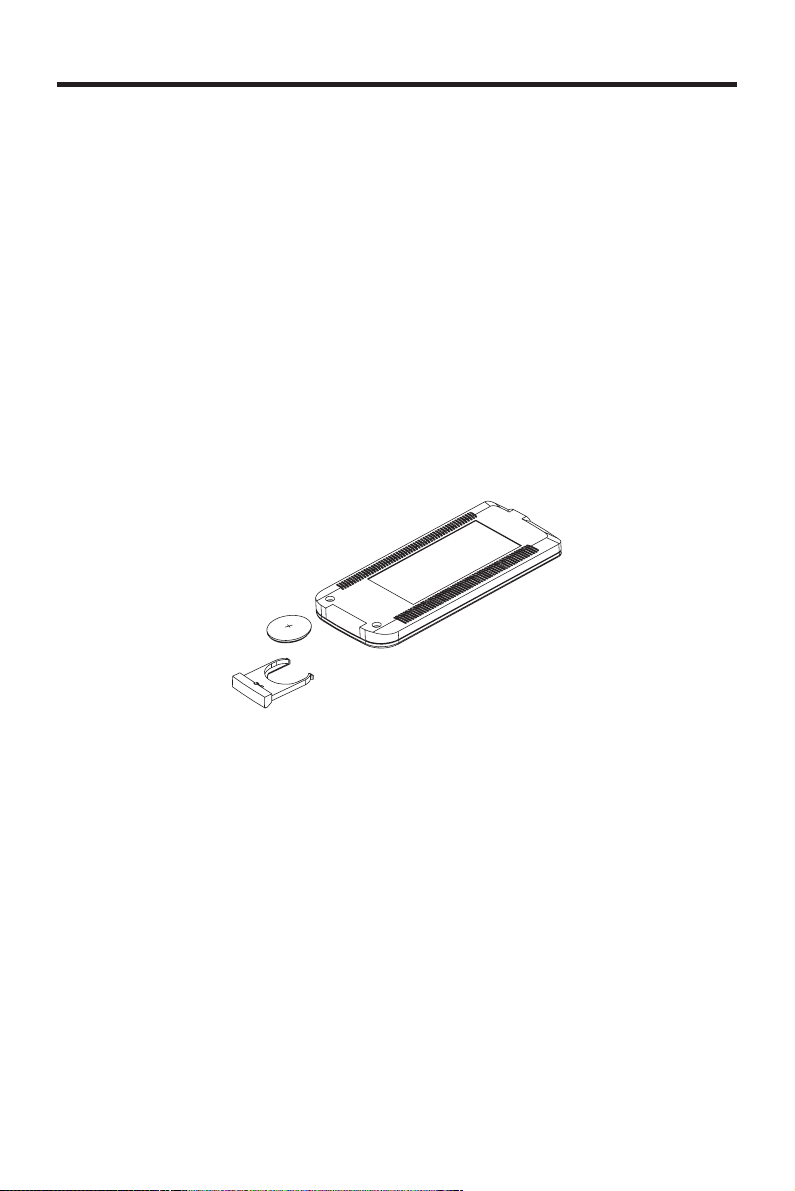

Preparing the Remote Control......................................................................10

Basic Operation ............................................................................................11

On-Screen Display Function.........................................................................15

Muti-audio Language Function.....................................................................15

Menu Function..............................................................................................16

Title Menu Function (For DVD only) ..............................................................16

Multi-subtitle Language Function (For DVD only).........................................16

Multi-angle Function (For DVD only).............................................................16

MP3 Disc Play...............................................................................................16

Setup ............................................................................................................17

Initial Setup ...................................................................................................17

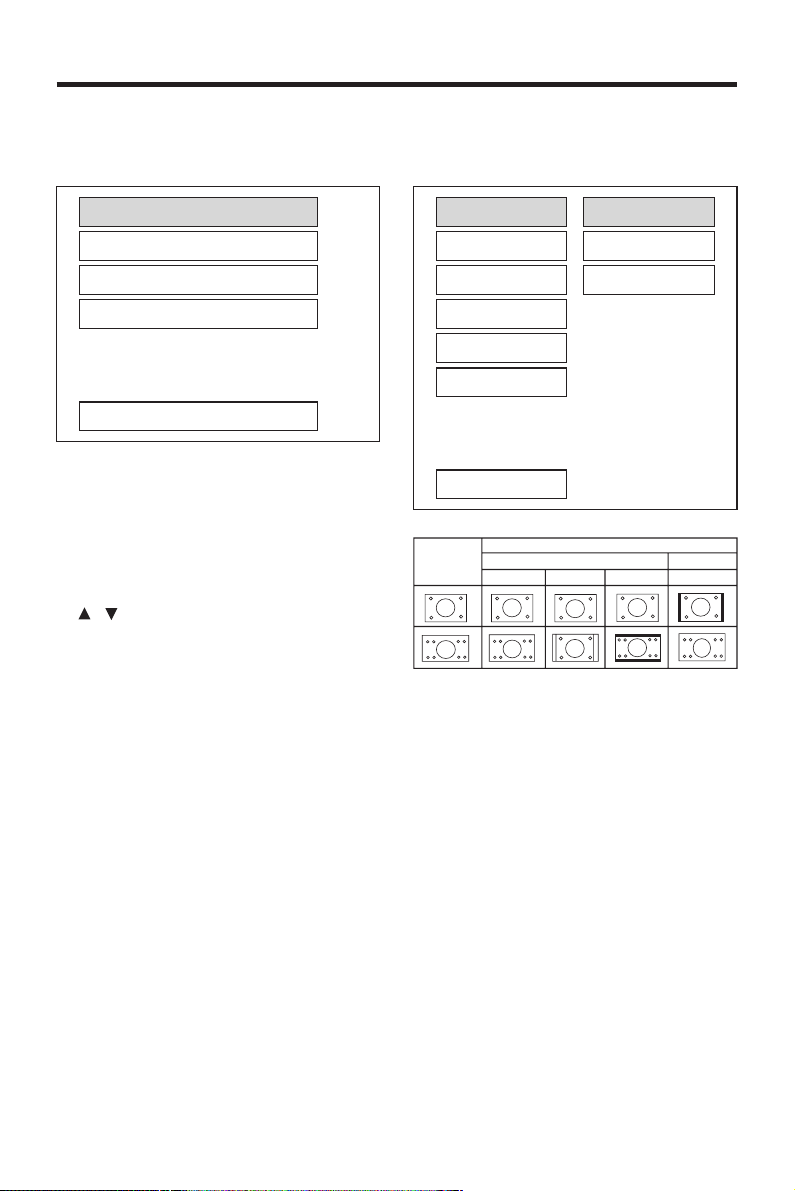

General Setup...............................................................................................17

Speaker Setup ..............................................................................................19

Audio Setup ..................................................................................................19

Preferences Setup ........................................................................................20

Defaults Table ...............................................................................................22

Specifications ...............................................................................................23

Trouble Shooting...........................................................................................24

SAFETY INFORMATION

CAUTION: THIS DVD PLAYER IS A CLASS I LASER PRODUCT. HOWEVER THIS DVD PLAYER USES A VISIBLE/INVISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE DVD PLAYER CORRECTLY AS INSTRUCTED. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND - DO NOT REPAIR YOURSELF. REFER SERVICINGTO QUALIFIED PERSONNEL.

WARNING:

• TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

• TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, AND ANNOYING INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES.

• THIS DEVICE IS INTENDED FOR

CONTINUOUS OPERATION.

Region Management InformationRegion Management Information: This DVD Player is designed and manufactured to respond to the Region Management Information that is recordedon a DVD disc. If the Region number described on the DVD disc does not correspond to the Region number of this DVD Player, this DVD Player cannot play this disc.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering ordisassembly is prohibited.

DISC NOTES

Disc formats supported by this player

DVD

12 cm disc (Single-sided disc only)

Video CD

12 cm disc

MP3

12 cm disc

Label side up

Do not touch the underside of the disc

Discs which cannot be played with this player

• DVD-ROM

• DVD-R/DVD-RAM

• CDV

• CD-G

Handling and Cleaning

• Dirt, dust, scratches and warping disc will cause misoperation.

• Do not place stickers or make scratches on discs.

• Do not warp discs.

• A disc should always be kept in its

case when not in use to prevent from damaging.

• Do not place discs in the following places:

1. Direct sunlight

2. Dirty, dusty and damp areas

3. Near car heaters

4. On the seats or dashboard

Disc Cleaning

Use a dry soft cloth to wipe the surface. If the disc is quite dirty, use a soft cloth slightly moistured with isopropyl (rubbing) alcohol. Never use solvents such as benzine, thinner or conventional record cleaners as they may mar the surface of the disc.

Note:

A disc may become somewhat scratched (although not enough to make it unusable) depending on your handle it and conditions in the usage environment. Note these scratches are not an indication of any problem with the player.

Do not bend

Wipe the disc from center toward the outside edge

Preparing New Discs with Rough Spots

A new disc may have rough edges on its inside and outside edges. If a disc with rough edges is used, the proper setting will not be performed and the player will not play the disc. Therefore, remove the rough edges in advance by using a ball point pen or pencil as shown on the right. To remove the rough edges, press the side of the pen or pencil against the inside and outside edges of the disc.

Rough spots on outside edge

Ball point pen or pencil

Rough spots on inside edge

INSTALLATION

Notes:

• Choose the mounting location where the unit will not interfere with the normal driving function of the driver.

• Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and the system work properly.

• Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions.

• Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle.

• Install the unit where it does not get in the driver’s way and cannot injure the passenger if there is a sudden stop, like an emergency stop.

• If installation angle exceeds 30˚ from horizontal, the unit might not give its optimum performance.

30˚

• Avoid installing the unit where it would be subject to high temperature, such as from direct sunlight, or from hot air, from the heater, or where it would be subject to dust, dirt or excessive vibration.

DIN FRONT/REAR-MOUNT

This unit can be properly installed either from “Front” (conventional DIN Front-mount) or “Rear” (DIN Rear-mount installation, utilizing threaded screw holes at the sides of the unit chassis). For details, refer to the following illustrated installation methods.

INSTALLATION

HEXNUT

SPRING WASHER

PLAIN WASHER

TAPPING SCREW

DASH BOARD

METAL MOUNTING STRAP

CONSOLE

SLIDE BRACKET HOUSING

HEX BOLT

INSTALLATION

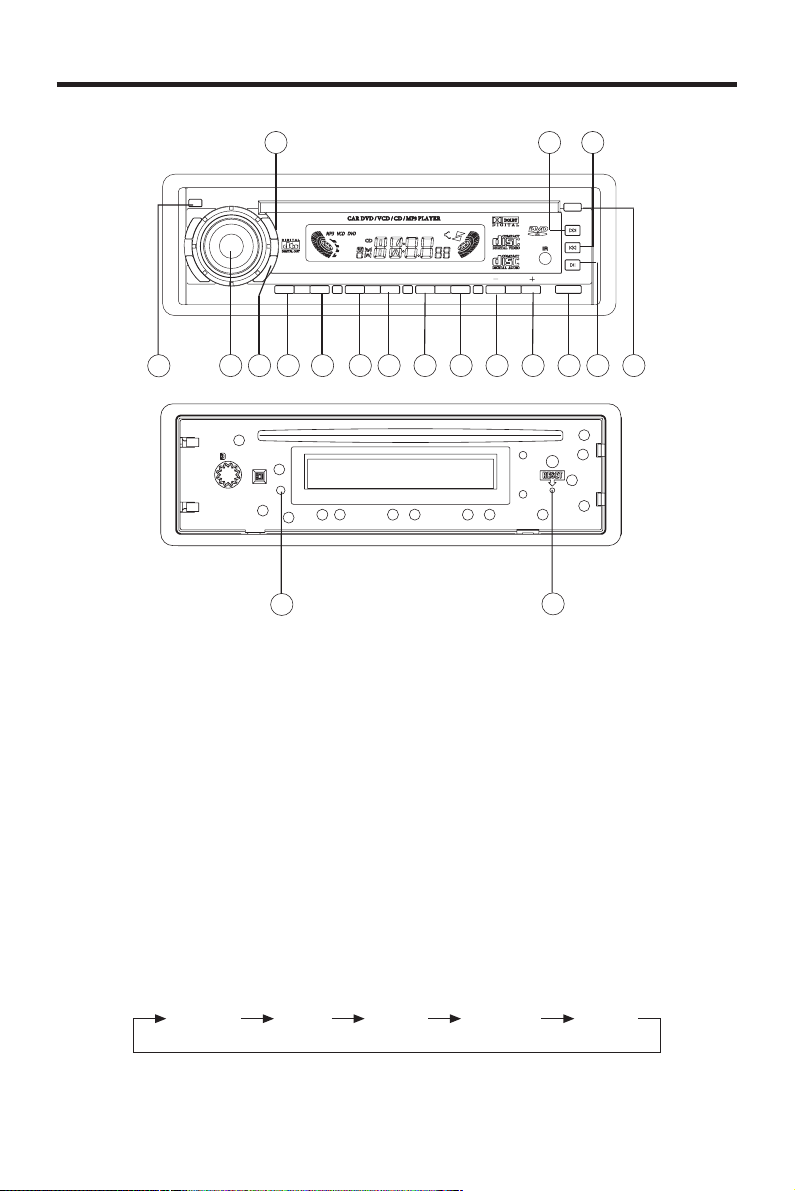

HOW TO REMOVE AND INSTALL THE FRONT PANEL

1. Press the release button and pull-off the front panel.

Keep the front panel into the case.

2. To install the front panel, insert the panel into the housing and make sure the panel

is properly installed, otherwise, abnormalities occurs on the display or some keys will not function properly.

REMOVING THE FRONT PANEL

FRONT PANEL

INSTALLING THE FRONT PANEL

RELEASE BUTTON

ELECTRIC CONNECTION

WIRING CONNECTION FOR 4x7W SYSTEM

MAIN UNIT

IGNITION SWITCH

MEMORY BACK-UP (B+)

GROUND (B-)

POWER ANTENNA

ANTENNA CONNECTOR

RED

CHOKE BOX

YELLOW

BLACK

BLUE

FRONT

Lch SPK.

REAR

Lch SPK.

WHITE

WHITE/BLACK

GREEN

GREEN/BLACK

AUX

RCA CABLE

REAR RCA OUTPUT CABLE (OPTIONAL)

FRONT RCA OUTPUTCABLE

(FOR RCA LINE OUT VERSION ONLY)

GREY

GREY/BLACK

VIOLET

VIOLET/BLACK

FRONT Rch SPK.

REAR Rch SPK.

VIDEO IN YELLOW RCH IN RED LCH IN WHITE

VIDEO OUT 1 YELLOW VIDEO OUT 2 YELLOW

COAXIAL OUT BROWN

RCH RED

LCH WHITE

RCH RED GREY SUB WOOFER

LCH WHITE
