Pyle PLDINTV7 User Manual

Page

◆ PRECAUTION 3

◆ USAGE OF DISK 5

◆ BEFORE YOU BEGIN 6

◆ COMPATIBLE DVD DISCS 7

◆ INSTALLATION IN THE CAR 8

◆ VIEW OF A/V BOX & DVD (HEAD UNIT) 9

◆ A/V BOX POWER CABLE LINE 10

◆ USING THE KEY 11

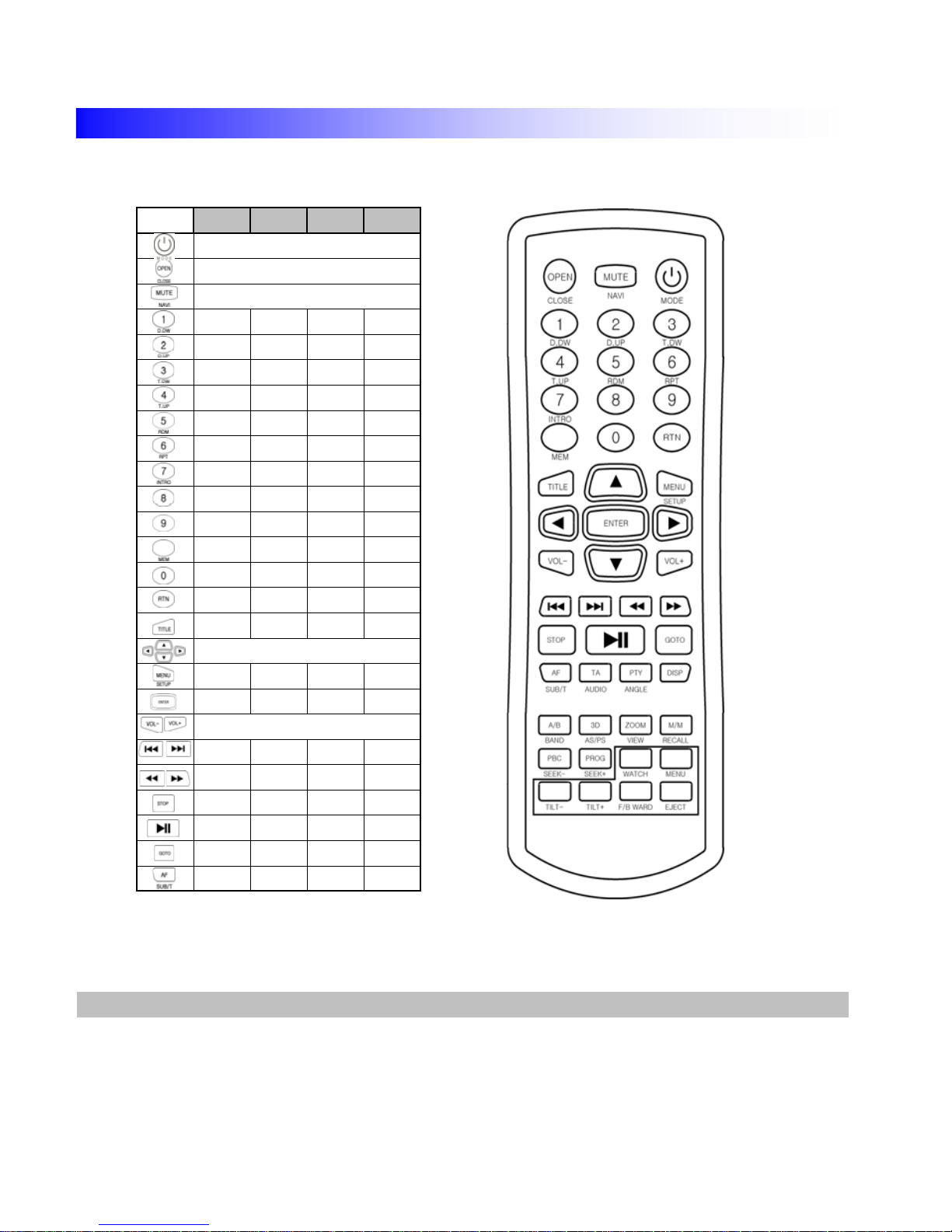

◆ REMOTE CONTROL 13

◆ COMPATIBILITY OF THE UNIT 15

◆ MAIN KEY 16

OSD DISPLAY MENU

- MAIN MENU

- SYSTEM MENU (PAGE 1 & PAGE 2)

- PICTURE MENU

- SCREEN MENU

- SOUND MENU (PAGE 1 & PAGE 2)

◆ RADIO MODE 24

◆ TV MODE 25

◆ DVD MODE 27

◆ BASIC DISC MENU CONTROL 28

◆ MP3 DISC 29

◆ FAST FORWARD / BACKWARD 31

Contents

Contents

1

Contents

◆

◆

◆

◆

◆

◆

◆

◆

◆

◆

◆

◆

◆

◆

◆

◆

◆

OSD MENU (A/V, NAVI, CAMERA)

ZOOM MODE
DVD MODE(REPEATING A SPECIFIC SECTION)
DVD MODE(VCD PBC FUNCTION)
DVD (CONTROL DVD MODE ON OPERATION)

DVD MODE(AUDIO SETUP)
DVD MODE(VIDEO SETUP)
DVD MODE(DVD SETUP - PREFERENCE)

MULTI MODE PLAY

34

DVD MODE(DVD SETUP - EXIT)
DVD MODE(RANDOM PLAY)

REPEAT MODE ( A / B )

35
36
37
38
39

CD / DVD CHANGER MODE (OPTION)

DVD MODE(GENERAL SETUP)

32
33

Page

DVD MODE ( SET UP DISPLAY & LANGUAGE )
SUBTITLE

RDS RADIO(EUROPE ONLY)

52
54

40
41
45
46

50

49

51

Contents

2

BE SURE TO READ THIS PRECAUTION
BEFORE USE TO PREVENT ACCIDENTS OF USERS.

Upon running or parking, adjust the volume so that

you can hear external sound.

Upon stop, if starting this product after switching off the ignition,
pay attention to an electric discharge.

Avoid moisture.

The function of this product is subject to change without prior notice.

This product is compatible with the NTSC/PAL system.

RESET KEY
When screen operation is not enabled or other problems occur,
press the RESET key.
Or, when this product does not operate normally, press the RESET key.
Press the key with a sharp drill or a ball-point pen.

Precaution

3

BE SURE TO READ AND UNDERSTAND THE FOLLOWING
MATTERS FOR SAFE DRIVING AND TO AVOID PRODUCT DAMAGES.

Do not install and fix the DVD or VIDEO screen at a visible position from drivers
to avoid accidents.

The rear video outlet of this product can be connected to the display unit so
that passengers at rear seats can view DVD or VIDEO CD.

This product requires(common-cathode)DC12V.

When a heavy impact is applied, there may occur a problem in product
operation.
Do not put this product near conductors.

Do not repair and alter/remodel this product for other uses.

Do not install this product at a visible position from drivers to reduce danger
of accidents and avoid violation of related laws.

Keep it in mind that, in come countries, drivers or passengers in a vehicle
are not allowed to view the screen of televisions or other monitors in law.

Precaution

4

THE FOLLOWING ARE PRECAUTIONS WHEN USING A DISK.

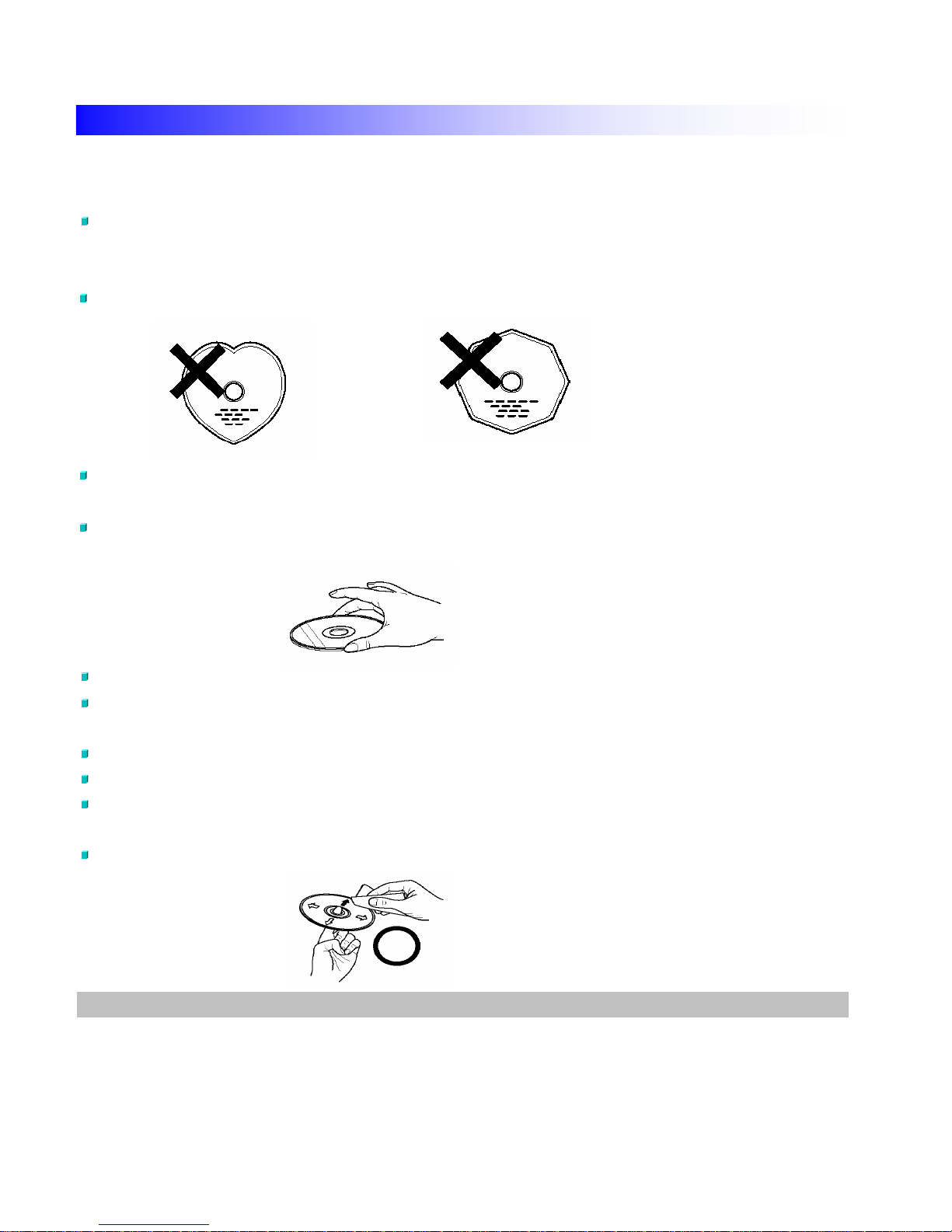

Although playable, a disk in a peculiar form(Heart shape, a shape
other than circles, etc.) can not be played. Such disks cause player troubles.

This product requires use of 12cm circular disks only.

For all disks, check damage, scratch, and warp before use.

When handling disks, be careful so that the recording side of disks
is not touched by hands or other alien materials.

Avoid direct rays of light or high temperature.
When using a heater in a vehicle in cold winter, the product may be
condensed.
Do not forcibly insert and remove disks.
Do not clean the disk surface with thinner, benzene, and other chemicals.
If the road surface is irregular, there may occur a problem in the play of this
product.
Slowly polish contaminated disks with soft, well-dried cloth.

Usage of DISK

5

This product can be applied to DVD, TV, RADIO, CD, MP3 CD and VCD.
Since region codes differ according to countries, products with different
region codes can not be used. See the following features:

Able to support various subtitle languages.
Able to look and listen within various angles.

Able to enjoy play of screens repeatedly.
Still image and image play by frame enabled.

Able to provide such sound quality as to enable users to
enjoy DVD movies or music supporting 5.1 channel function
just like at a theater. However, this function limits only to
DVD titles enabling 5.1 channel support.

Able to enjoy movies or music supporting DTS function.
However, this function limits only to DVD titles enabling

5.1 channel support.

♣ Ref : There may be different functions on each VIDEO DISC & DVD DISC.

And some functions may not be operated.

Dolby Digital

Play of

Slow Motion

ID3 Function

for MP3 Media

limits only to video CD V2.0

Supports ID3 OSD function in MP3 format media. However,
D3 Type III JPEG information is not supported.

Multi Audio

Multi Aspect

Freely supported in a variety of audio systems recorded.

Convertible in wide screen, letter box and Pan & Scan display.

Able to play slow motion.

PBC function

Video CD

Able to use video CD supporting PBC function. However, this function

Multi Subtittle

Repeat Play

Mutil Angle

Still Image

Before you begin

6

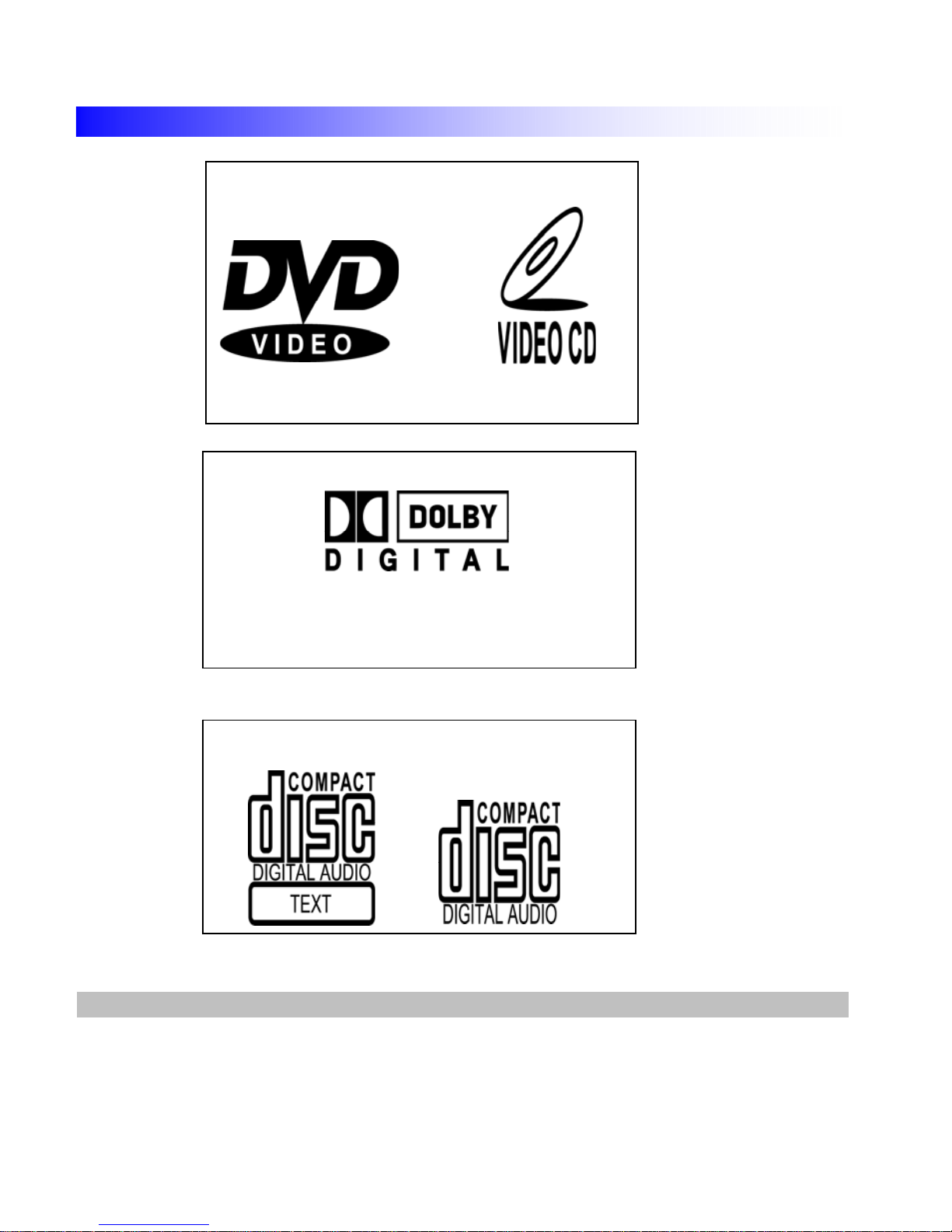

Compatible DVD Discs

DVD

VIDEO CD

Dolby Digital

VIDEO FORMATIC

AUDIO DISC

7

※ Cautions : Please separate Battery Units before setting
products to prevent from fire and electric shock.

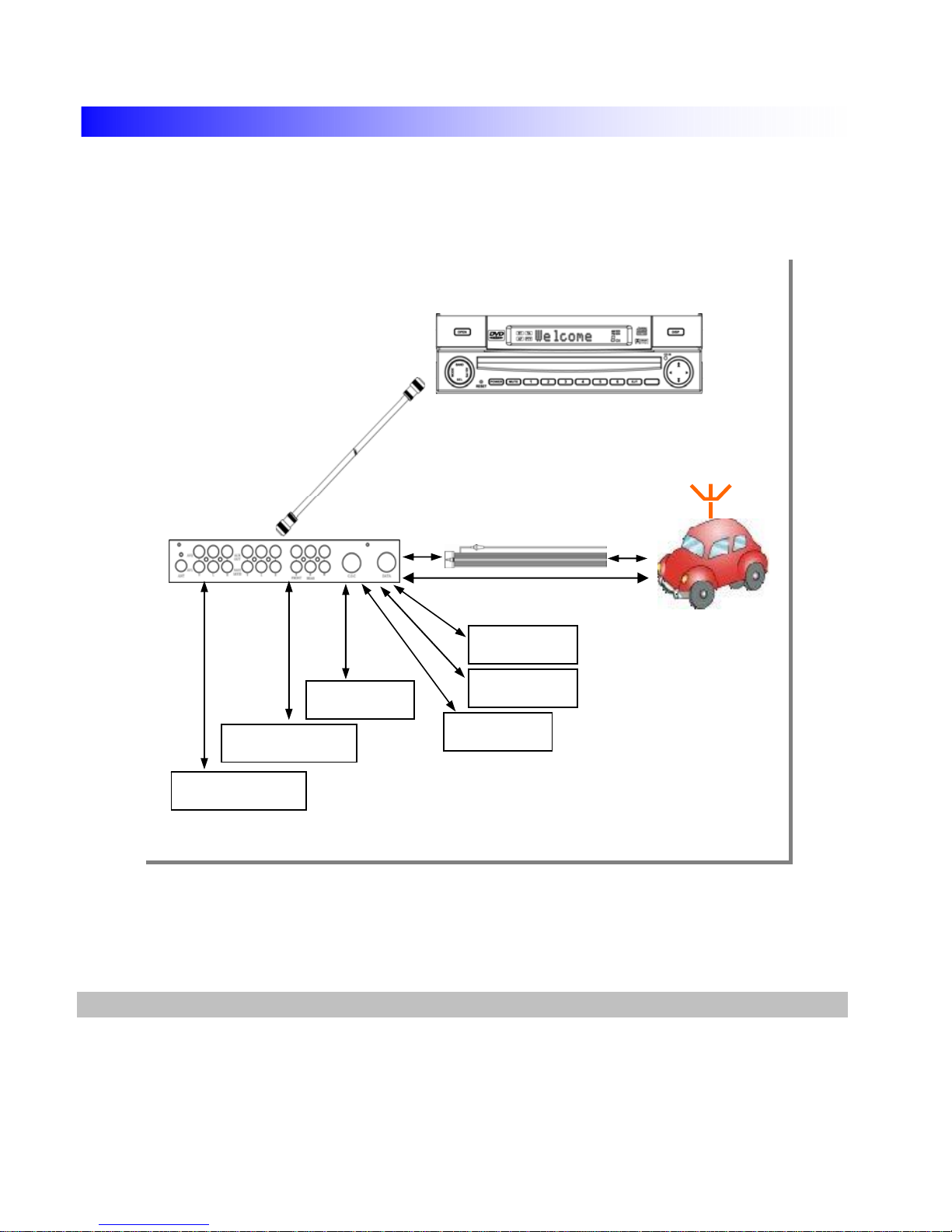

Installation In The CAR

POWER

CABLE

ANT CABLE

DATA

CABLE

CD

CHANGER

NAVIGATION

(

AV3

)

REAR CAMERA

(

AV2

)

AV1 INPUT

AUX OUT

5.1CH

LINE OUT

8

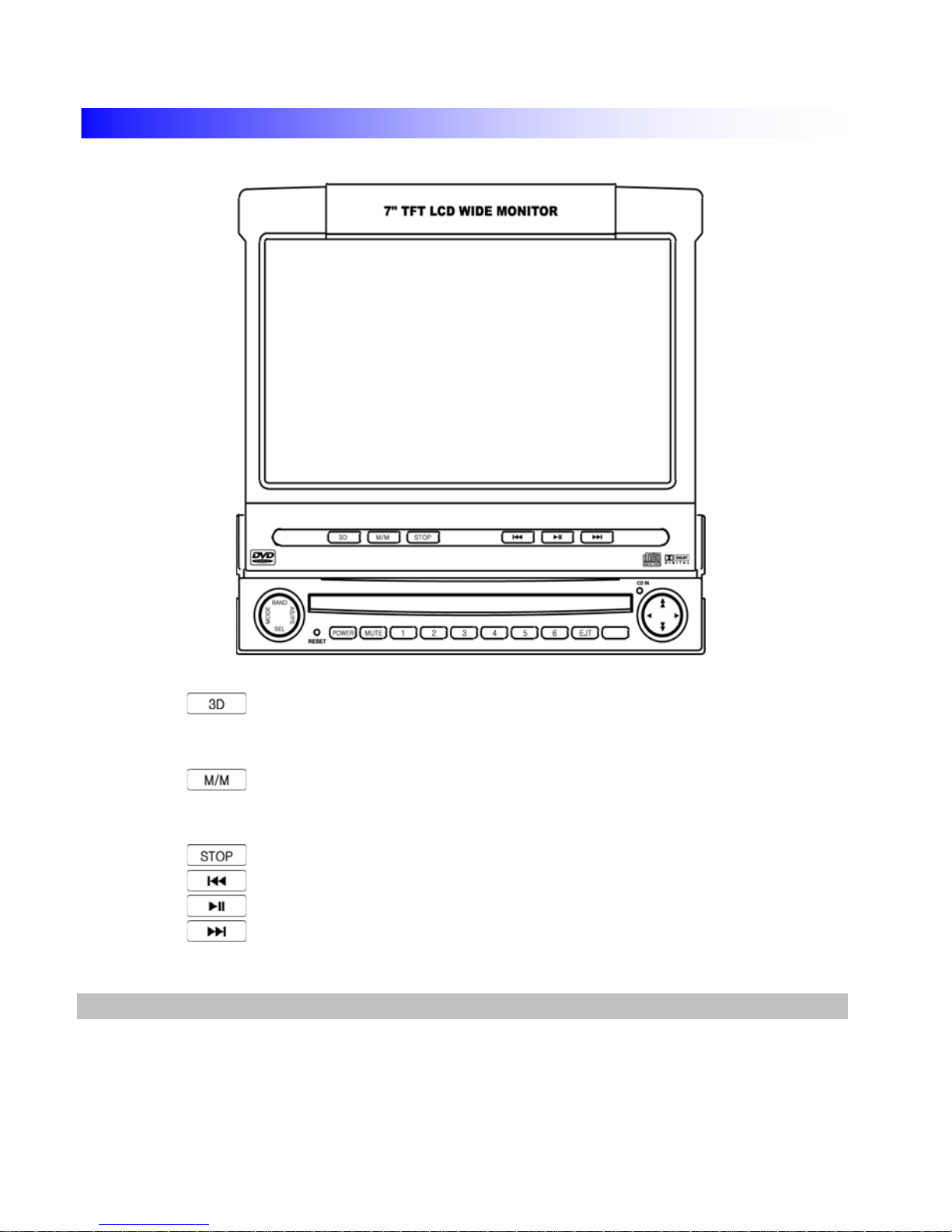

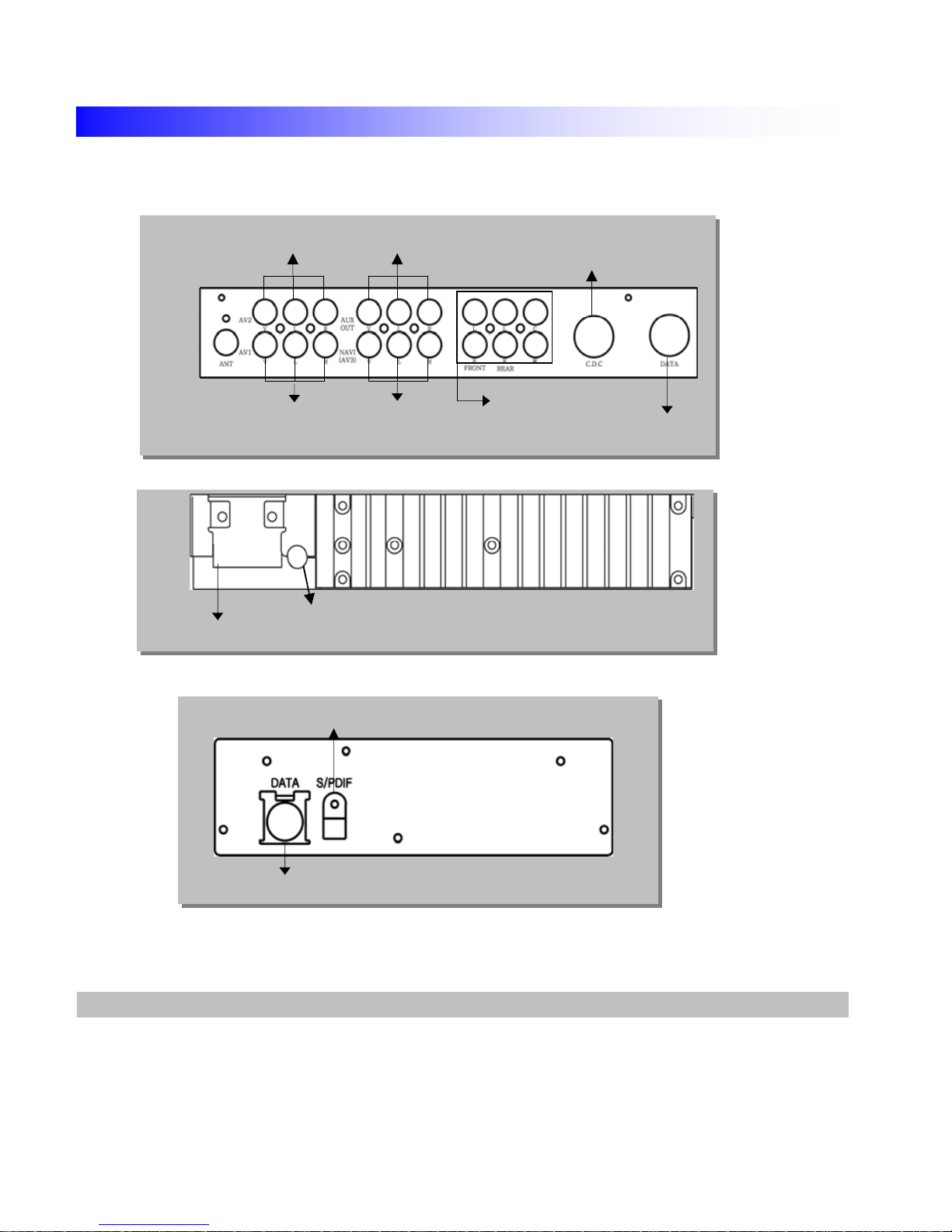

- AV BOX - FRONT

- AV BOX - REAR

- DVD (HEAD UNIT)

A/V BOX & DVD Instructions (Head Unit)

AV1 INPUT NAVIGATION

& AV3 INPUT

5.1CH AUDIO LINE OUT

AV2 & REAR CAMERA INPUT

VIDEO,AUDIO L,R LINE OUT

CD CHANGER

DATA CABLE

POWER CABLE

CENTER AMP

DATA CABLE

S/PDIF DIGITAL

(Mono Headsets Available)

9

ACC

GREEN/BLACK

SIDE BRAKE

YELLOW

WHITE

REAR CAMERA

YELLOW

FRONT L-

BACK UP(+14.4V)

NO CONNECT

REAR R-

VIOLET

VIOLET/BLACK

NO CONNECT

FRONT R-

BLACK/WHITE

WHITE/BLACK

REAR L-

FRONT L+

FRONT R+GRAY

REAR R+

GRAY/BLACK

REAR L+

1

4

3

CONNECTCOLOR

GND

17

PIN NO

2

5
6
7
8
9

10

GREEN

11

19

18 BLACK

BLUE/WHITE

ORANGE

NC14

15

BLUE

16 BLACK

RED

BACK UP(+14.4V)

ORANGE/WHITE

NC12

13 ILL

GND

REMOTE

AUTO ANT20

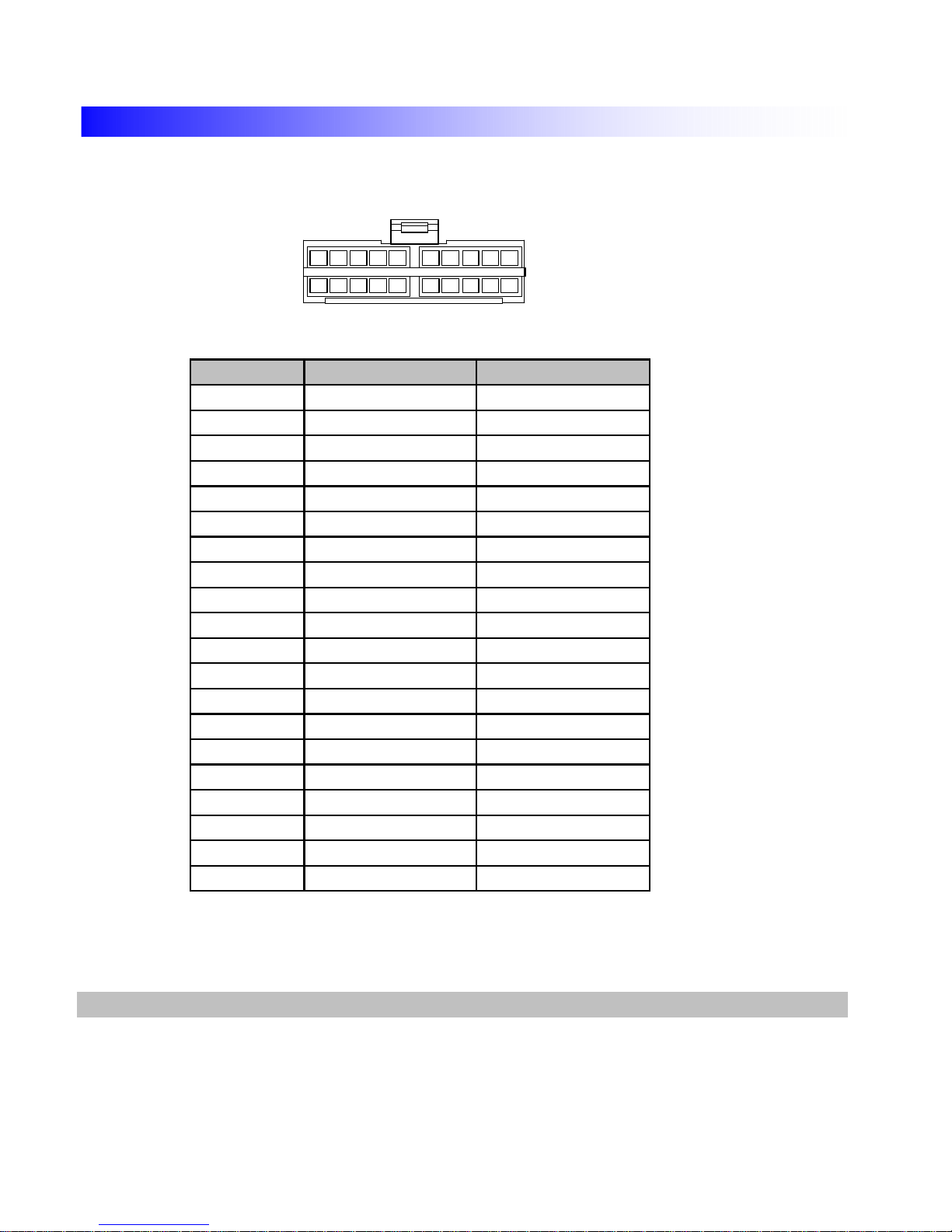

A/V BOX Power Cable Line

19 17 15 13 11 9 7 5 3 1

20 18 16 14 12 10 8 6 4 2

WIRE VIEW

10

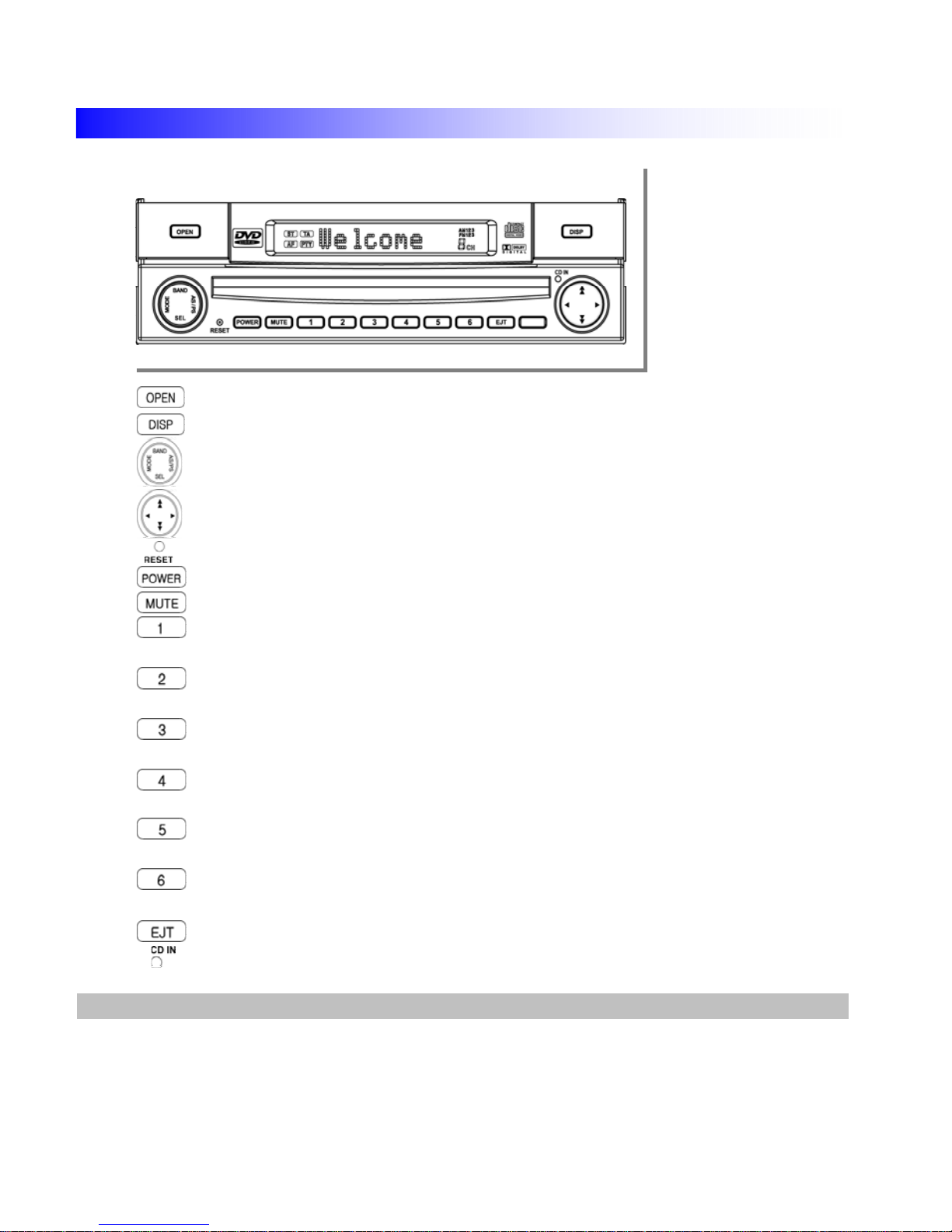

Monitor OPEN/CLOSE
LCD Display (Time / Disply)
BAND Change on TV & RADIO Mode.
AS/PS : AUTO Search/ PROGRAN Search on TV & RADIO Mode.
L/R (Volume Control : 0 ~ 40), Move Cusor on DVD Mode,

UP/DW (TV/RADIO Search)
Restart
POWER ON/OFF
Turns On/Off Audio Outputs
Save in Memory No1 on TV/RADIO Mode.
And select Stored No1. DISC DOWN on CDC Mode.
Save in Memory No2 on TV/RADIO Mode.
And select Stored No2. DISC UP on CDC Mode.
Save in Memory No3 on TV/RADIO Mode.
And select Stored No3. TRACK DOWN on CDC Mode.
Save in Memory No4 on TV/RADIO Mode.
And select Stored No4. TRACK UP on CDC Mode.
Save in Memory No5 on TV/RADIO Mode.
And select Stored No5. ALL RANDOM on CDC Mode.
Save in Memory No6 on TV/RADIO Mode.
And select Stored No6. ALL REPEAT on CDC Mode.
DISC Eject
It shows Signal of CD is inserted ,or not.

Using the KEY

11

3D Stereo Surround on DVD Mode.
DVD Surround Off->Rock->Pop->Live->Dance->Techno

->Classic->Soft->Off
Select play mode on DVD Mode (RANDOM,SINGLE,REPEAT ONE,
REPEAT FOLDER, FOLDER,CHAPTER REPEAT,TITLE REPEAT)
But it depends on Discs.
Stop play on DVD Mode
Track Down(Chapter) on DVD Mode
Replay and Pause on DVD Mode
Track Up(Chapter) on DVD Mode
* Ref : The above KEYS operate only on DVD Mode.

Using the KEY

12

RADIO TV CDC DVD

No1

Memory CH

No1

Memory CH DISC DOWN NO 1

No2

Memory CH

No2

Memory CH DISC UP NO 2

No3

Memory CH

No3

Memory CH

TRAC

K

DOWN NO 3

No4

Memory CH

No4

Memory CH TRACK UP NO 4

No5

Memory CH

No5

Memory CH

Random

Play NO 5

No6

Memory CH

No6

Memory CH Replay NO 6

INTRO NO 7

NO 8

NO 9

Memorize

NO 0

RETURN

TITLE

MENU

DVD MENU

MENU

ENTER

TRAC

K

UP/DOWN

FF/REW

STOP
PLAY
/PAUSE
Pla

y&

Replay

AF(RDS)
EU ONLY

SUBTITLE
ON/OFF

Monitor OPEN/CLOSE

Power ON/OFF & Change MODE

Turns On/Off Audio & Change NAVI MODE

Audio Volume

Move

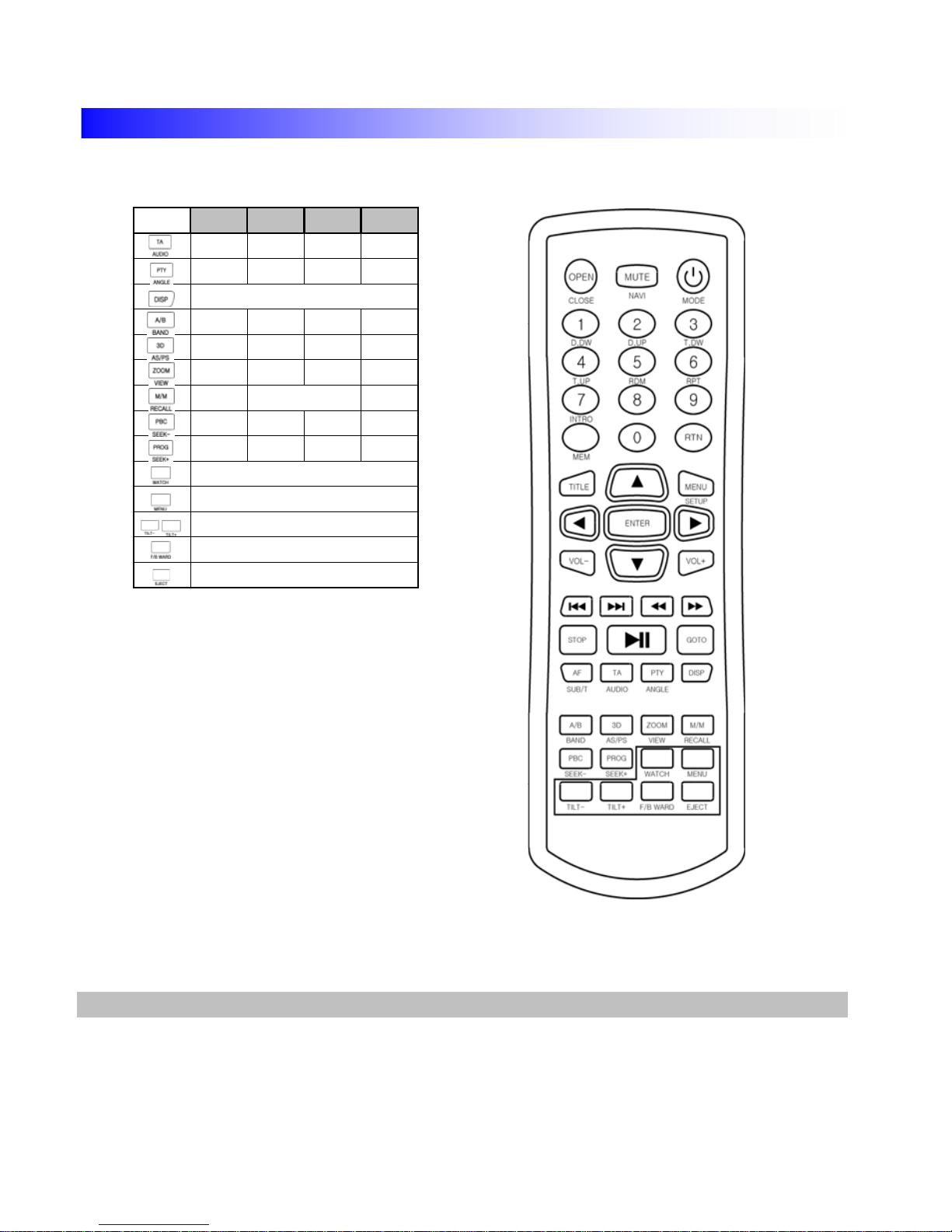

Remote control

13

RADIO TV CDC DVD

TA(RDS)
EU ONLY AUDIO

PTY(RDS)
EU ONLY

ANGLE

BAND BAND A ▶ B

AS/PS AS/PS 3D SOUND

LIST OF CH ZOOM

BEFORE CH REPLAY

SEEK- SEEK-

PBC
CONTROL

SEEK+ SEEK+ PROGRAM

MONITOR DISTANCE CHANGE

EJECT

MAIN MENU

MONITOR VISIBLE ANGLE

FRONT LCD DISPLAY

CLOCK ON/OFF

Remote control

14

Description of the Compatibility of the Product

For some DVDs, some operations may not be enabled depending on software
characteristics. Also, a method of systematizing the dual operation mode title
and chapter while playing with disks enabling menu operation may cause the
function of repeated play not to be performed. In such a case, a mark of " "
is displayed. Such a mark may not be displayed in some disks.

The contents of a DVD consist of several titles, and a title is composed of
several chapters. A single product recorded with DVDs corresponds to
a single title with several scenes (chapters).
However, some disks may not be produced as above according to
the intention of DVD producers.

The contents of VIDEO CDs consist of tracks, and one track corresponds to
one song. For some disks, a track consists of one index.
For VIDEO CDs with the PBC function, users can use a menu to execute play mode.
At this time, the use of Repeat or Search function may not be enabled.

When operating some DVD-VIDEO disks, there may occur unavailable
functions. Play may not be enabled according to the status of DVD­ VIDEO disks. For disks recorded and produced in VIDEO format, the
Play function of this product may not be provided due to disk
characteristics, scratch or comtamination on the surface of disks.
Contamination and condensed materials of internal lens may cause play troubles.
Also, owing to contamination of the selection of menus may not be provided.
Play may be impossible for copied DVD-VIDEO disks.

Compatibility Of The Unit

15

- Setting MAIN MENU by Remote Control KEY.

- Eject CD

- Control sound by Remote Control KEY(Left) and Front Button(Right).

- OPEN / CLOSE Monitor by Remote Control and Front Button.

♣ Ref : All functions of this unit must be on ACC.

- OPEN / CLOSE MONITOR

- POWER ON / OFF

- POWER On/Off on Remote Control KEY(Left) and Front Button(Right).

- DISC EJECT

- TIME

- Time ON/OFF display.

- MAIN MENU

※ MAIN MENU - SYSTEM, PICTURE, SCREEN, SOUND SETTING.

- AUDIO CONTROL

Main KEY

16

- MAIN MENU

Press MENU KEY and SEL KEY for the above picture. Push Arrows KEY of Remote Control.

◎ SYSTEM : Setting Time, ON/OFF Buzzer, REAR CAMERA ON/OFF,

NAVIGATION ON/OFF.

◎ PICTURE : BRIGHT,CONTRAST,COLOR,TINT,DIMMER.
◎ SCREEN : FULL,WIDE,NORMAL
◎ SOUND : FADER,BALANCE,TREBLE,BASS,WOOFER,CENTER

of Remote Control or SEL KEY (Unit Front) with closing LCD monitor.

- FADER, BALANCE, TREBLE, BASS, CENTER, WOOFER
& BUZZER ON/OFF CONTROL : These functions are displayed
on LCD monitor.

♣ Ref : Speaker Volume control is available when you press Menu KEY

OSD Display Menu (Main Menu)

MAIN MENU

SELECT :

▲ ▼ ENTRY :◀

▶

SYSTEM
SCREEN
SOUND
EXIT

17

- SYSTEM MENU(PAGE1)

SYSTEM MENU has 2 pages. Move to SYSTEM MENU from selecting Arrow KEY
of MAIN MENU for setting SYSTEM MENU.
◎ WATCH : Press Arrows Key for control of TIME.
◎ BUZZER : BUZZER ON/OFF when pressing Remote Control KEY and this unit's KEY.
◎ CAMERA : For setting REAR CAMERA.
A. When switch on CAMERA, AV2 will be changed into REAR CARMERA MODE.
Upon putting rear gear OSD of camera will appear.
B. When switch off CAMERA, CAMERA MODE is chan

g

ed into AV2. Pleae select AV2 Mod

e

for other line-out functions. When changing it into AV2 Mode, AV2 can be used for out

p

◎ NAVI : NAVIGATION FUNCTION
A. Upon selecting NAVI KEY AV3 is changed into NAVI. Press NAVI KEY of Remote Control
longer for seeing NAVIGATION DISPLAY.
B. NAVI OFF : NAVI MODE is changed into AV3 for other lineout functions.

System Menu (Page 1)

SYSTEM MENU

SELECT : ▲ ▼ ADJUST :◀ ▶

WATCH : PM 00:00
BUZZER : ON
CAMERA : OFF
NAVI : OFF
NEXT PAGE
RETURN

18

-SYSTEM MENU(PAGE 2)

◎ LOCK : Lock Function
Be sure to enter Pass word for Lock Function when you turn on.
Initial Pass Word is "1234".
◎ MODIFY : Modify Pass Word Of Lock Function.
For changing pass word.
: Before P/W → New P/W Enter.
Please do not lose your P/W.
◎ RESET : Press this key " ▶" to format this system for 3 seconds.
(Memorized Radio and TV Channel will be deleted.
All options of MENU will be formated)
◎ RESET : Press this key " ▶" to format this system for 3 seconds.

System Menu (Page2)

SYSTEM MENU

SELECT : ▲ ▼ ADJUST :◀ ▶

LOCK : OFF
MODIFY : LOCK
RESET : OFF
BACK PAGE
RETURN

19

-PICTURE MENU

Press Picture KEY by UP/DW cursor for setting Picture Display.

◎ BRIGHT, CONTRAST, COLOR, TINT, DIMMER : By using UP/DW KEY or L/R KEY.
♣ Ref : BRIGHT Control (-15 ~ +15)

CONTRAST Control (-15 ~ +15)
CLOR Control (-15 ~ +15)
TINT Control (-15 ~ +15)
DIMMER Control (0 ~ 15)

Picture Menu

PICTURE MENU

BRIGHT : 0
CONTRAST : 0
COLOR : 0
TINT : 0
DIMMER : 0
RETURN

SELECT : ▲ ▼ ADJUST :◀ ▶

▶[

◀]

20

-SCREEN MENU

Press SCREEN KEY by UP/DW cursor for setting SCREEN DISPLAY (SCREEN SIZE).

◎ Adjust screen size (WIDE).
(FULL ☞ WIDE ☞ NORMAL)

♣ Ref : FULL SCREEN
WIDE RATIO - 16:9 SCREEN
NORMAL - 4:3 SCREEN

Screen Menu

SCREEN MENU

WIDE : FULL
RETURN

SELECT : ▲ ▼ ADJUST :◀ ▶

21

-SOUND MENU(PAGE 1)

◎ FADER, BALANCE, TREBLE, BASS : BY UP/DW and L/R KEY.

♣ Ref : FADER - Front and Rear Speaker Control (F15 ~ R15)
BALANCE - Left and Right Speaker Control (L15 ~ R15)
TREBLE - High Sound Function (-7 ~ +7)
BASS - BASS Sound Function (-7 ~ +7)

Press SOUND KEY by UP/DW cursor for setting SCREEN DISPLAY (Volume & Sound).

Sound Menu (Page1)

SOUND MENU

FADER : 0
BALANCE : 0
TREBLE : 0
BASS : 0
NEXT PAGE

SELECT : ▲ ▼ ADJUST :◀ ▶

▶[

]

◀

22

-SOUND MENU(PAGE 2)

The second page of sound menu as the above will appear when pressing NEXT PAGE
in page 1 of sound menu.
◎ WOOFER, CENTER : Control of WOOFER AND CENTER.

♣ Ref : WOOFER - Control of WOOFER Speaker ( -7 ~ +7 )

CENTER - Contol of CENTER speaker ( -7 ~ +7 )

Sound Menu (Page2)

SOUND MENU

WOOFER : 0
CENTER : 0
BACK PAGE : 0
NEXT PAGE
RETURN

SELECT : ▲ ▼ ADJUST :◀ ▶

23

(CD changer may not appear on this OSD without setting CD changer.

- Frequency Modify : By pressing UP/DW KEY.

- Band Modify : By pressing this unit's front button or Remote Control Button.

- Frequency Search : By pressing Button of Remote Control (SEEK+,SEEK-) &
this unit's front button(Arrows Button) longer.

- Save & Search Frequency : Save Frequency choosen to No1 ~ 6 by pressing AS/PS
of this unit's front button or Remote Control.

- Listening by using memories : Listen stored frequency by pressing Remote Control.

(L/R KEY) & this unit's front button (UP/DW). Or Listen frequency by NO 1 ~ 6.

Press Button No 1 ~ 6 longer for saving frequency you are listening.

♣ Ref : RADIO☞CD CHANGER☞AV1☞AV2☞AV3☞TELEVISION☞DVD DECK

Press Mode KEY of Remote Control & this unit's front button for Radio Mode Change.

♣ Ref : FM1☞FM2☞FM3☞AM1☞AM2☞AM3

- Save Frequency during listening :

Radio Mode

FM : 87.50MHz Pch : 1

- Pch List -

(1) 87.50MHz
(2) 90.10MHz

(3) 98.10MHz
(4) 100.70MHz

(5) 107.10MHz
(6) 108.00MHz

- INFO LIST -

ST

PM 3 : 17

24

- TV Mode

- Band Modify : By pressing this unit's front button or Remote Control Button.

- Channel Modify : By pressing Remote Control Button
DVD(Arrows Button) longer.

- Save Channel during seeing : Save Channel choosen to No 1~6 by pressing MEM
button of Remote Control.

- Forward Channel : See Channel by pressing RECALL KEY of Remote Control.

♣ Ref : RADIO☞CD CHANGER☞AV1☞AV2☞AV3☞TELEVISION☞DVD DECK

Press mode key of Remotoe Control & this unit's front button for TV MODE change.

TV Mode

TV1 Pm1 Ch : 11

BAND

MEMORY CH

25

- TV Mode

Control ( L/R KEY ) or this unit's front button ( UP/DW).

- Checking list of the memorized channels : Display saved channels
on monitor during watching.

- Delete Channel : Press VIEW(KEY) shortly.

- Save & Search Channel : Save Channel choosen to No 1~6 by pressing
AS/PS button or Remote Control.

- Seeing by Saved Channel : Seeing saved Channel by pressing Remote

TV Mode

SCAN

10 24 28 30 33

NOW SCANNING ‥‥‥‥ 5

TV1 Pm1 Ch : 11

- Pch LIST -

(1)

87.50MHz
(2) 90.10MHz
(3) 98.10MHz
(4) 100.70MHz
(5) 107.10MHz
(6) 108.00MHz

26

DVD Mode

Press Modify KEY of Remote Control & this unit's front button
for DVD MODE ( or insert CD for DVD MODE)

- Play of DISC
Insert a DISC into a CD slot for play of DISC.
When you insert a disc, this unit will operate automatically.

DVD Mode

DVD

27

- Basic PlayBack Control

PLAY/PAUSE( ) : Start playback or pause a disc is playing (Press again
to restart playback).
STOP( ) : Stop playback
FR( ) : Press for fast backward search
FF( ) : Press for fast forward search
PREV( ) : Skip to the previous chapter
NEXT( ) : Skip to the next chapter

Basic DISC Menu Control

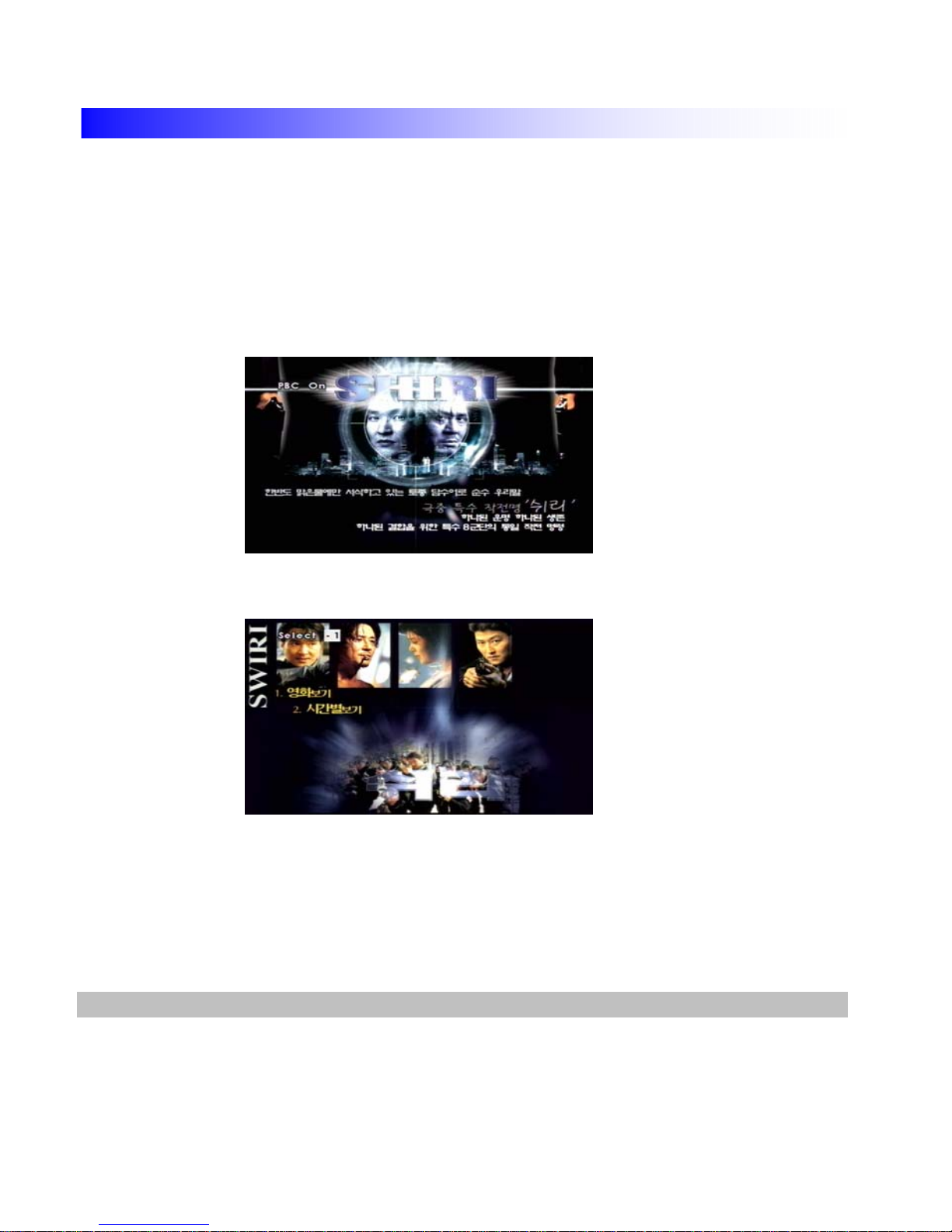

Some DVD discs contain menus. Sometimes these are displayed automatically when
you start playback; others only appear when you press Menu or Title remote control.

TITLE button : Displays the top menu of a DVD disc
MENU button (Blue) : Displays a DVD disc menu-this varies with the disc and may
be the same as the top menu.
RETURN button : Returns to the previously displayed menu screen.
Arrows button : Move the cursor around the screen.
ENTER button : Selects the current menu option.
Number button : Selects a numbered menu option.

NOTE !

- When " " appears on the TV screen while a button is pressed, it means that
this function is not available on the disc you are playing.

- Depending on the DVD disc, some operations may be different or restricted. Refer
to the jacket or case of disc you are playing.

Basic Disc Menu Control

28

folder(directory) structure.

4. Press the ENTER button to select. The TV screen shows the file
lists under the folder.

Press the ENTER button to select.

Press the Enter key, Replay starts.

6. In the screen, the L/R key turns over pages, and the UP/DW key moves the

5. Using UP( ▲ ) or DOWN( ▼ ) button to find the desired MP3 title.

3. Using the UP( ▲ ) or DOWN( ▼ ) button to find the desired folder.

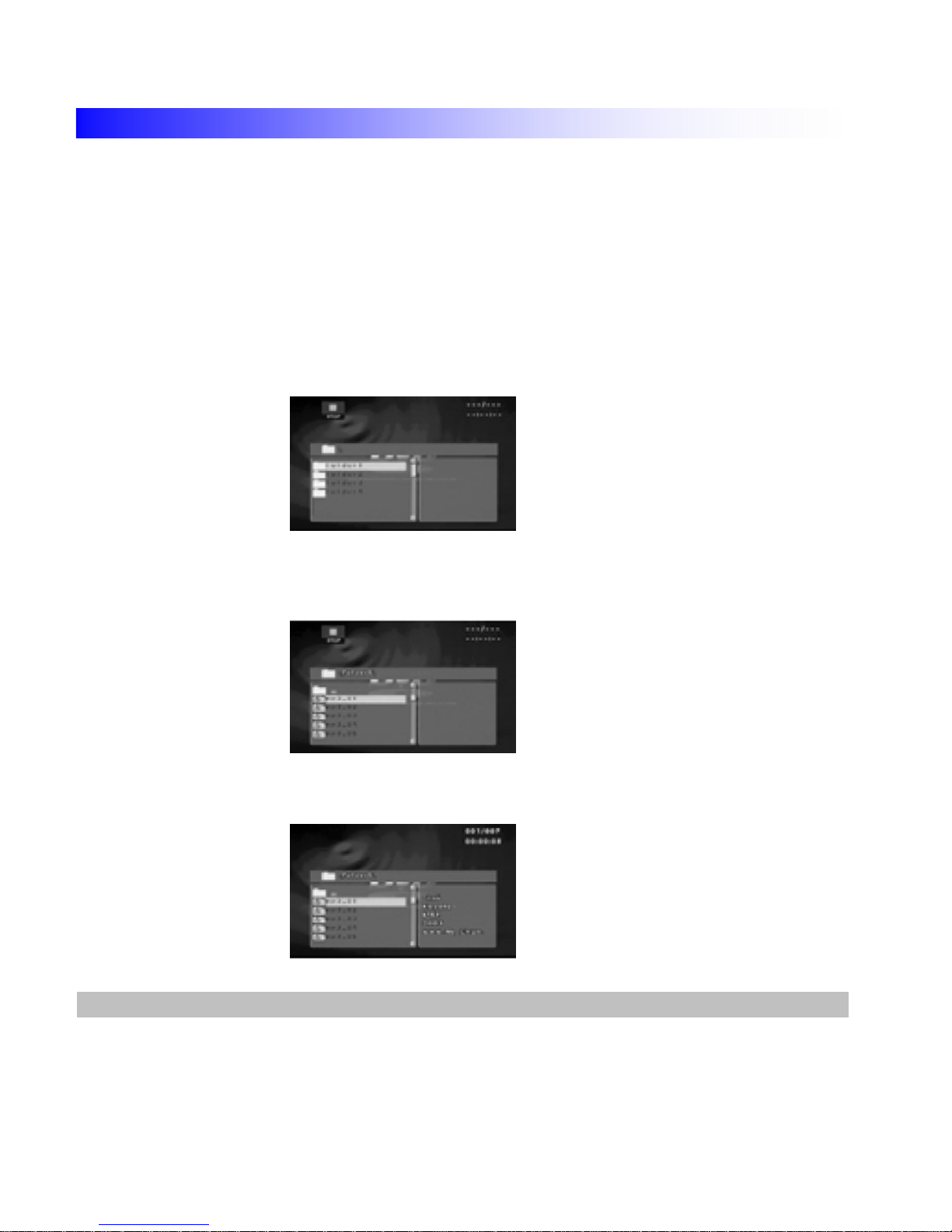

2. MP3 menu screen is displayed automatically depending on MP3 disc's

1. Insert the MP3 disc. Disc's label must be facing up.

- PLAYING MP3 DISCS

MP3 DISC

29

a desired song is displayed.

8. Viewing the song being replayed : If pressing the RTN key of the Remocon
when the cursor is at another song, the cursor moves to the song being replayed.

NOTE!

- The file name is only displayed in English.

- This DVD player is compatible with the "MPEG-2 Audio Layer 3 "," MPEG-2.5 Audio
Layer 3", MP1, MP2, etc.

- This DVD player is not compatible with ID3-Tag.

- Do not play CD-R/RW discs containing any files other than music CD files, MP3
and JPEG files.

- Programmed playback is not possible with MP3 discs.

- When writing MP3 files on CD-R/RW discs, select "ISO6990 level 1" as the writing
software format.

7. If pressing the number of songs through using of Remote Control and

MP3 DISC

30

During searching, audio will be muted (except CD-DA ).

1. Press the FR( ) of FF( ) button during disc play.

2. Press the PLAY/PAUSE ( ) button to resume normal playback.

Skip Forward/Backward

CD-DA.

1. Press the PREV( )button to go to the previous chapter or track.

2. Press the NEXT( )button to go to the next chapter track.

- This function will not operate if there is only one chapter per a disc.

Use this function to move to the net or previous chapter for DVD, track for VCD and

NOTE!

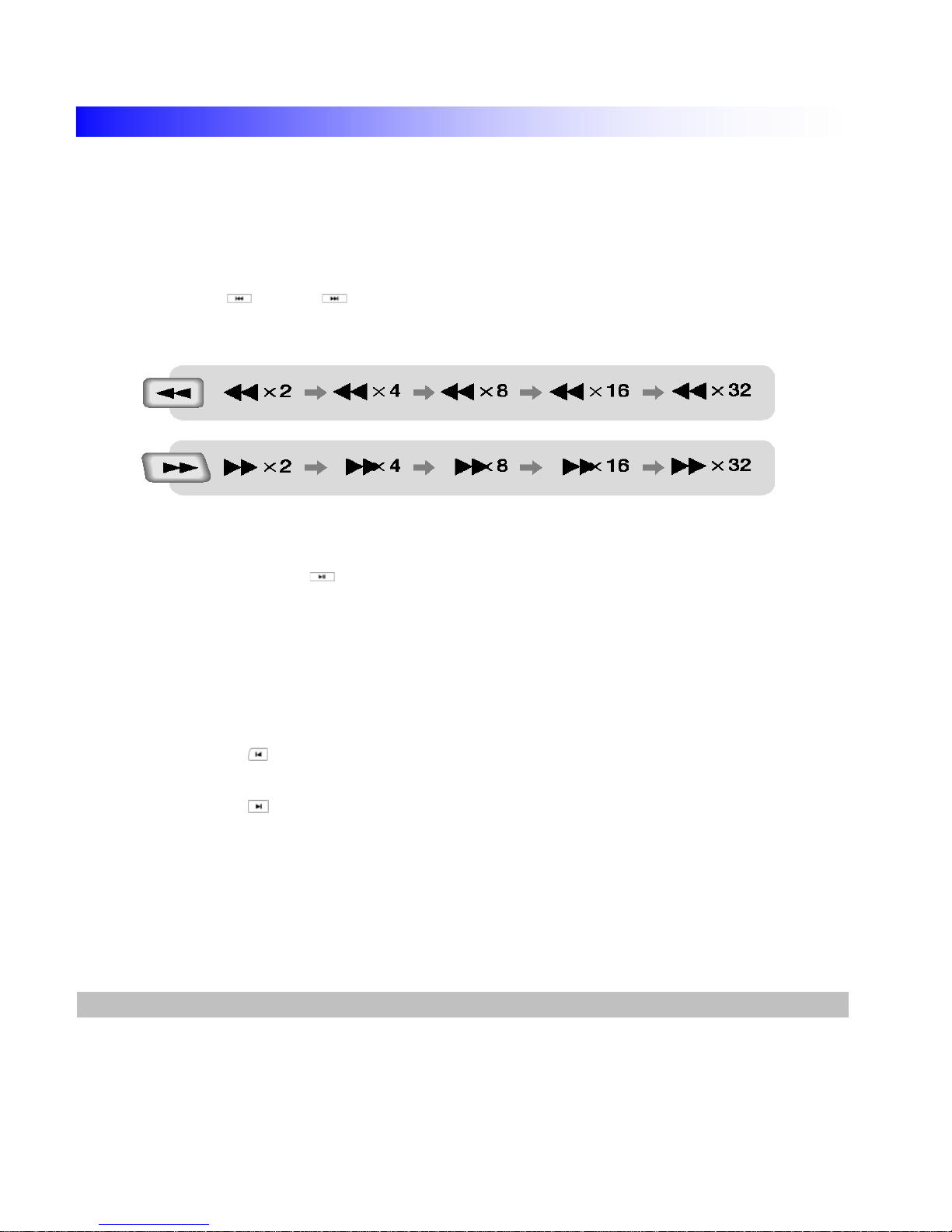

Use the function to play the DISC contents in Fast Forward or Fast Reverse.

Fast Forward / Backward

31

- Disc, Chapter(DVD),Track(CD-DA), Time information appears on screen.

2. To turn off the on-screen display, press the DISP button.

Selecting Audio Language
It is possible to change the audio soundtrack language to a different language
from the one selected at the initial settings. It works only with discs on which
multiple audio soundtrack languages are recorded. If the loaded disc supports
multiple languages, you can select the audio language.

1. Press the AUDIO button repeatedly during playback.
When you pressed, the audio language is changed.

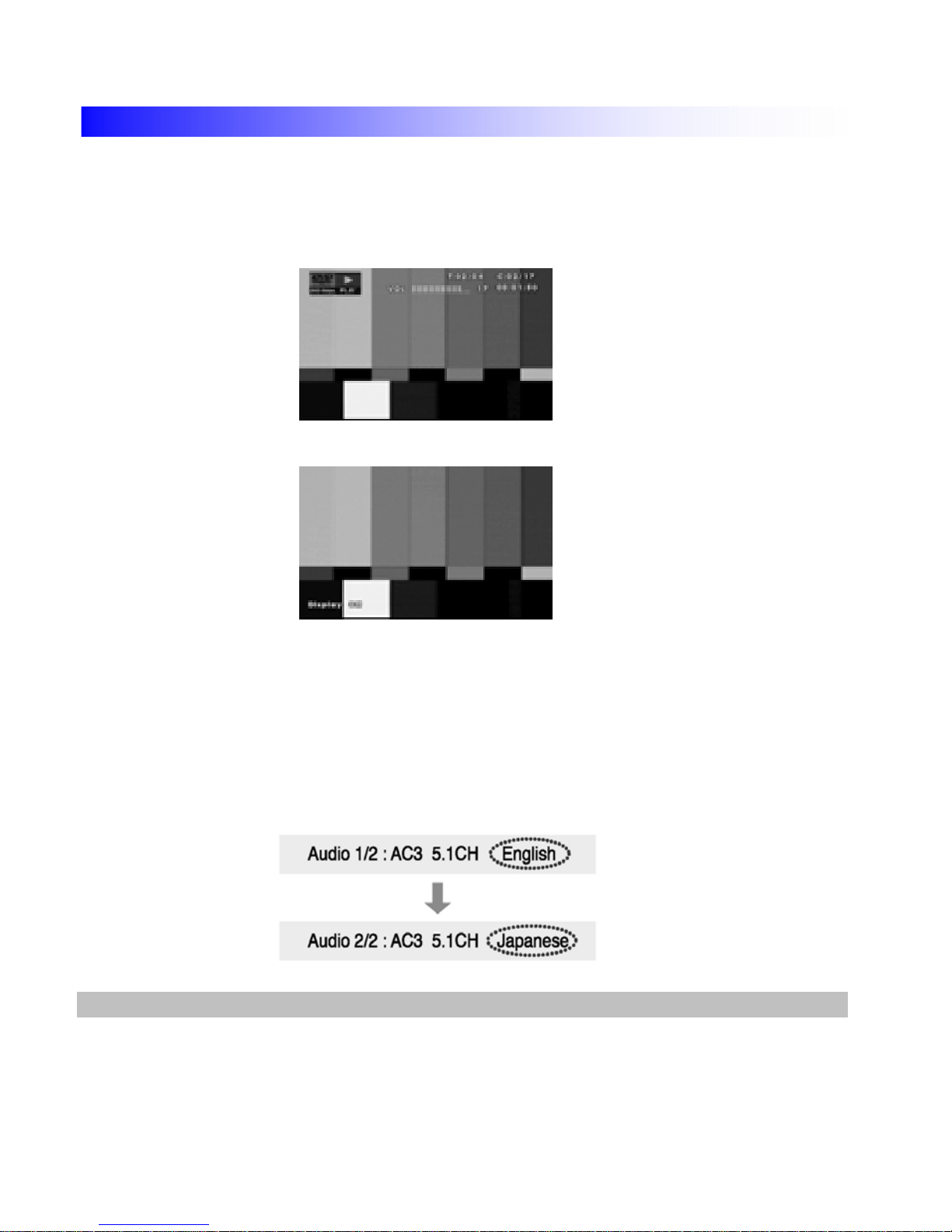

Title,Chapter Number, Playing Time, Disc.

You can display the playback on TV screen as following ;

1. Press the DISP button during play.

DVD Mode (Set Up Display & Language)

32

the subtitle on the screen.

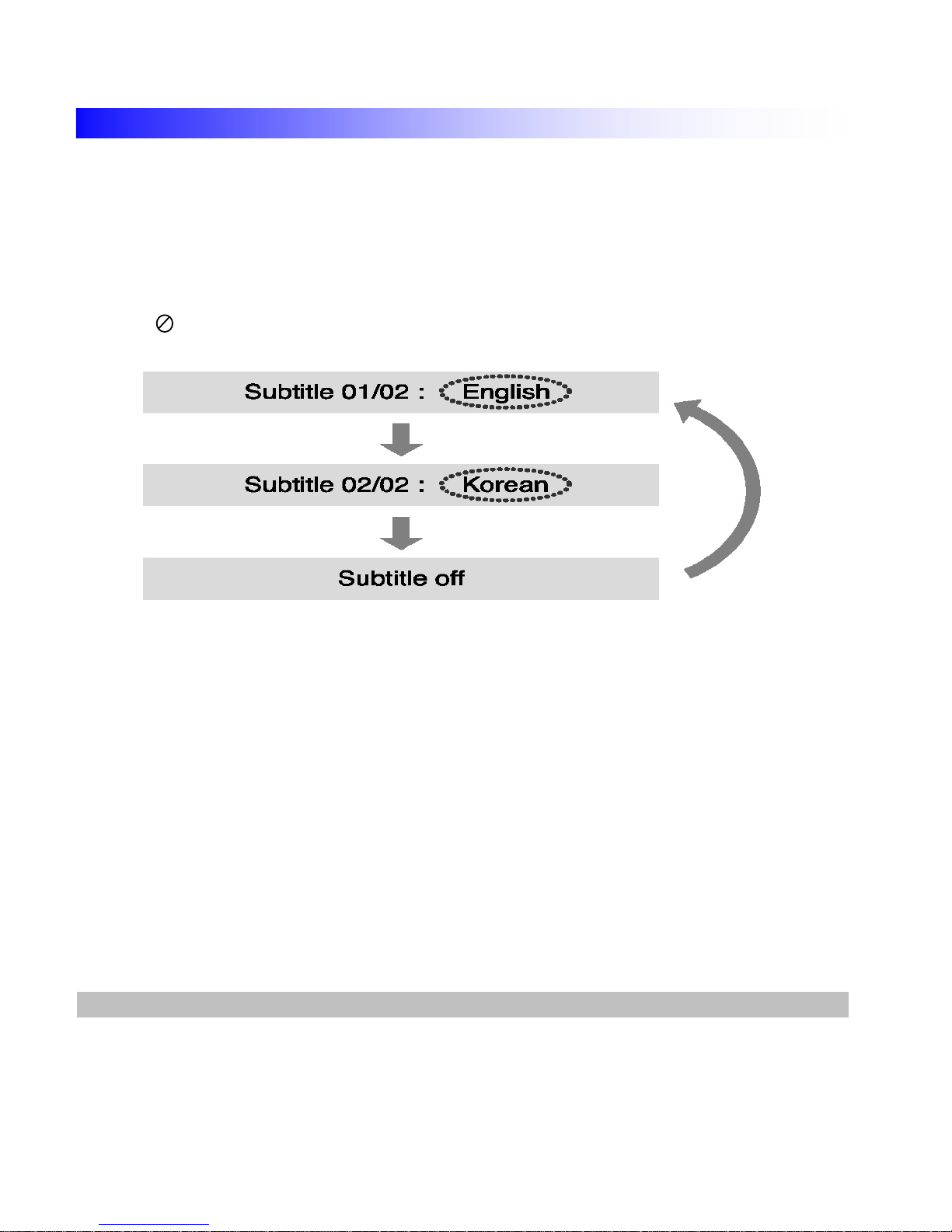

1. Press the SUB/T button during disc play. The subtitle info
banner appears. The default is Subtitle off. If no subtitle are recorded,
the( ) icon will appear.

2. Press the SUB/T button repeatedly until the desired subtitle
language is displayed.

3. To turn subtitle off, press the SUB/T button until Subtitle off is displayed.

NOTE!

- This function depends on DISCS. There are some DVD discs to
prevent from selecting subtitle even if it supports multiple subtitles.
In this case, the subtitle should be selected via disc menu.

When DVD is recorded with subtitles,you can see the subtitle features to view

Subtitle

33

You can select Play and Repeat mode for desired title, chapter(DVD), track(CD-DA)

1. Press the Multi Mode Button (M/M-) during play.

- When press the Multi Mode (M/M) Button, it will be changed
as the belows.
CD-DA : TRACK REPEAT ☞ ALL REPEAT ☞ SHUFFLE
MP3 : RANDOM ☞ SINGLE ☞ REPEAT ONE ☞ REPEAT FOLDER
☞FOLDER ☞ SHUFFLE
DVD : CHAPTER REPEAT ☞ TITLE REPEAT ☞ SHUFFLE

2. For Multi Mode Play, press and hold the M/M button until "SHUFFLE"
is displayed.

3. 3D SOUND Setting
Press 3D KEY of remote control when a disc is playing.

TECHNO

NOTE !
When playing DVD disc or other discs, Set-Up function is different from using
KEY of Remote Control and This Unit. But this unit is available to operate function of Equalizer &
Reverb at the same time. Therefore users have to remember this important point that users can
control each effect of these functions, because the only method to set up Equalizer & Reverb
is different. If you want to delete "REVERB" function on screen when replaying DVD disc
after changing REVERB SET UP, please use DVD Set Up Menu.
Ex) : If users play other DVD DISC after setting with Reverb Cave in case of playing MP3 DISC,
Cave effect will be operated. And if users want to delete this fuction, users need to
Reverb Off of DVD Main Setup Menu.

- CD-DA, MP3, VCD(REVERB) : CONCERT☞LIVING ROOM☞HALL

☞CLASSIC ☞SOFT☞OFF

- DVD DISC(EQUALIZER) : ROCK☞POP☞LIVE☞DANCE☞

Multi Mode Play - TITLE, CHAPTER (DVD), TRACK (CD-DA)

☞BATH ROOM ☞CAVE☞ARENA☞CHURCH☞OFF

Multi Mode Play

34

1. During playback, press the A/B button at the beginning of the desired section.

2. Press the A/B button again at the end of the section. "AB" will be displayed
on the screen then the A/B section is continually repeated.

3. To resume normal playback,press the A/B button repeatedly until the repeat mode
indicator disappears on screen.

Repeat (A/B)

35

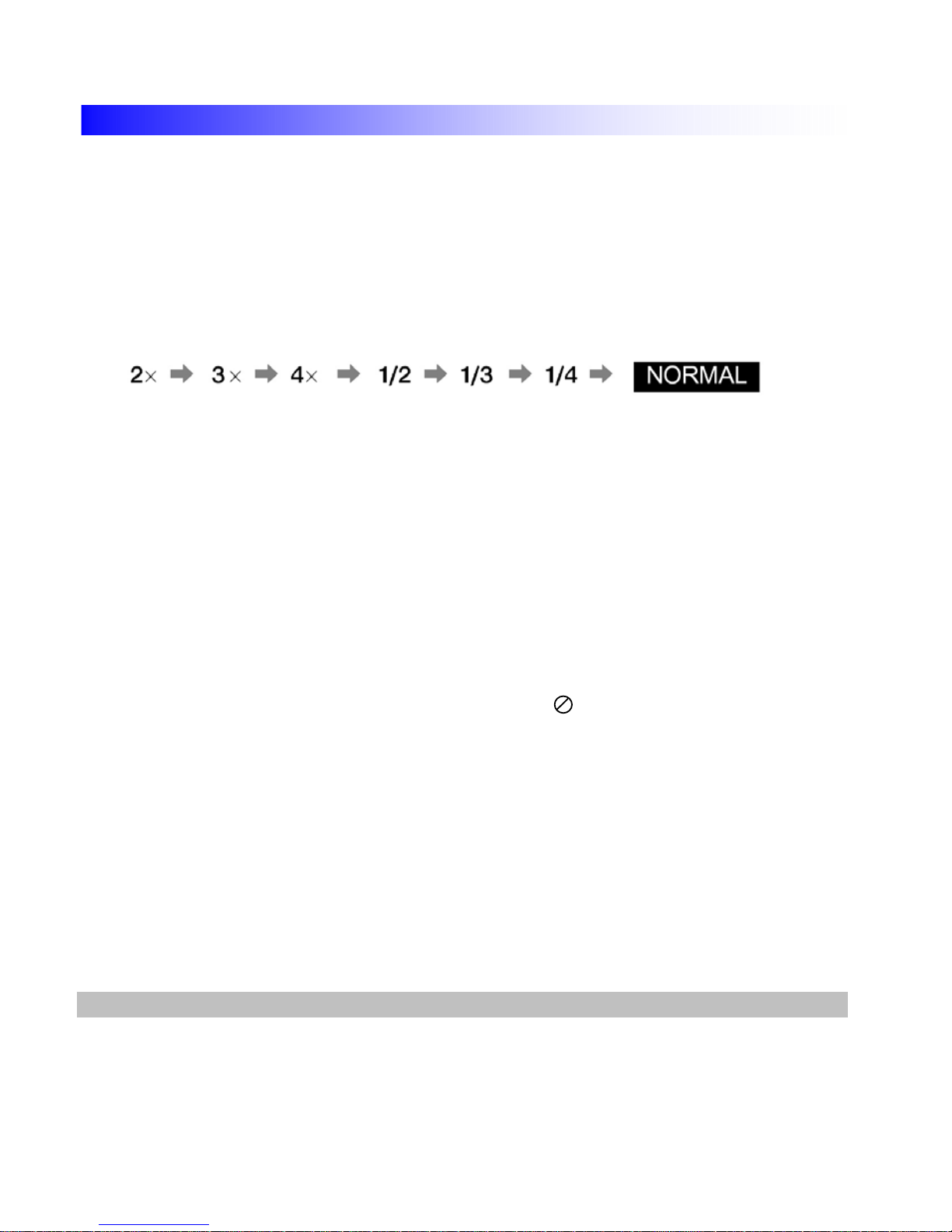

ZOOMING A PICTURE

1. Press the ZOOM button during playback

2. Each press of the ZOOM button changes the zoom mode in the following

3. If you press the direction button during the ZOOM mode, the ZOOM point will shift.

4. To resume normal playback, press ZOOM button repeatedly until the repeat mode

SWITCHING THE CAMERA ANGLE
Some DVDs contain scenes that it has been shot simultaneously
from multiple angles.

1. Press the ANGLE button on the remote control during disc play. The ANGLE icon
appears. If no additional camera angle are recorded, the ( ) icon will be displayed.

2. If multiple camera angles are recorded, the ANGLE icon displays the current angle
number and the number of availability.

Zoom Mode

36

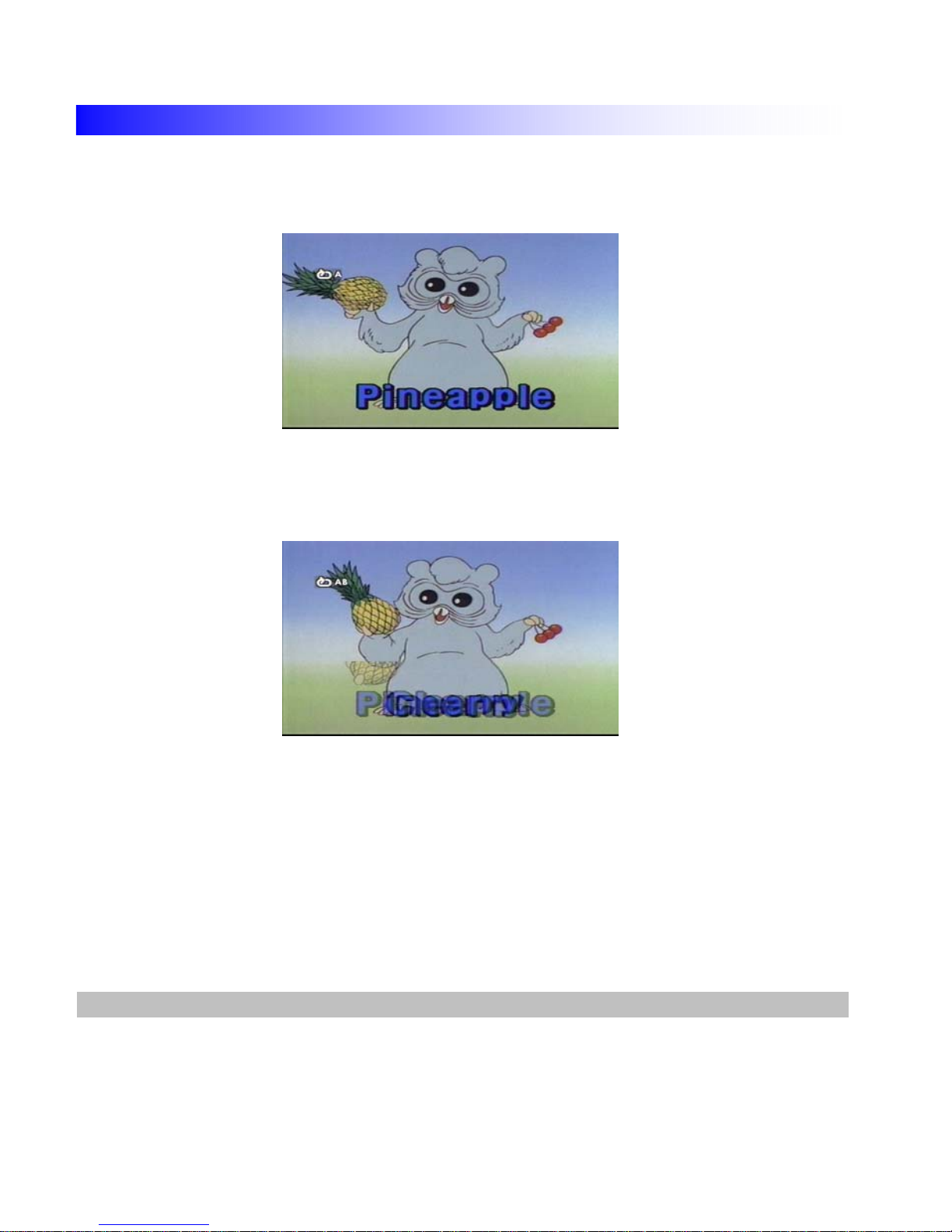

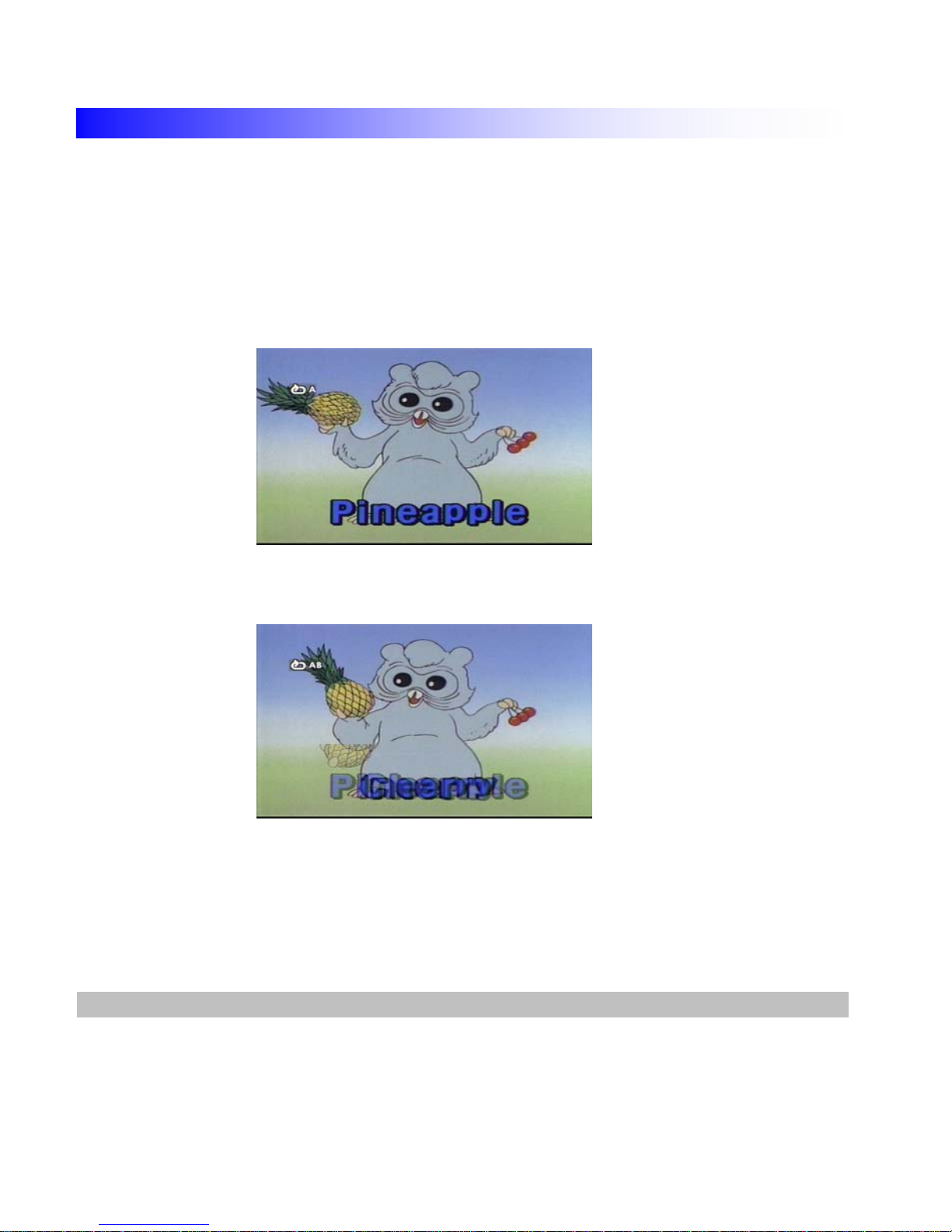

SECTION REPEAT

1. Press "A/B" button for repeating a specific section users want.

2. Press "A/B button" one more time for replaying section between A and B.

3. Press "A/B" button one more until "AB" disappears when returning
to normal play mode.

DVD Mode ( Repeat A Specific Section )

37

PBC (PLAY BACK CONTROL) function is available only for compatible Discs.
Users can control On and Off with PBC button of remote control after inserting a Disc.

♣ Ref : PBC is the same function as SKIP FORWARD function for selecting track.

PBC main screen appears by pressing PBC key when watching a VCD.

DVD Mode ( VCD PBC Function )

38

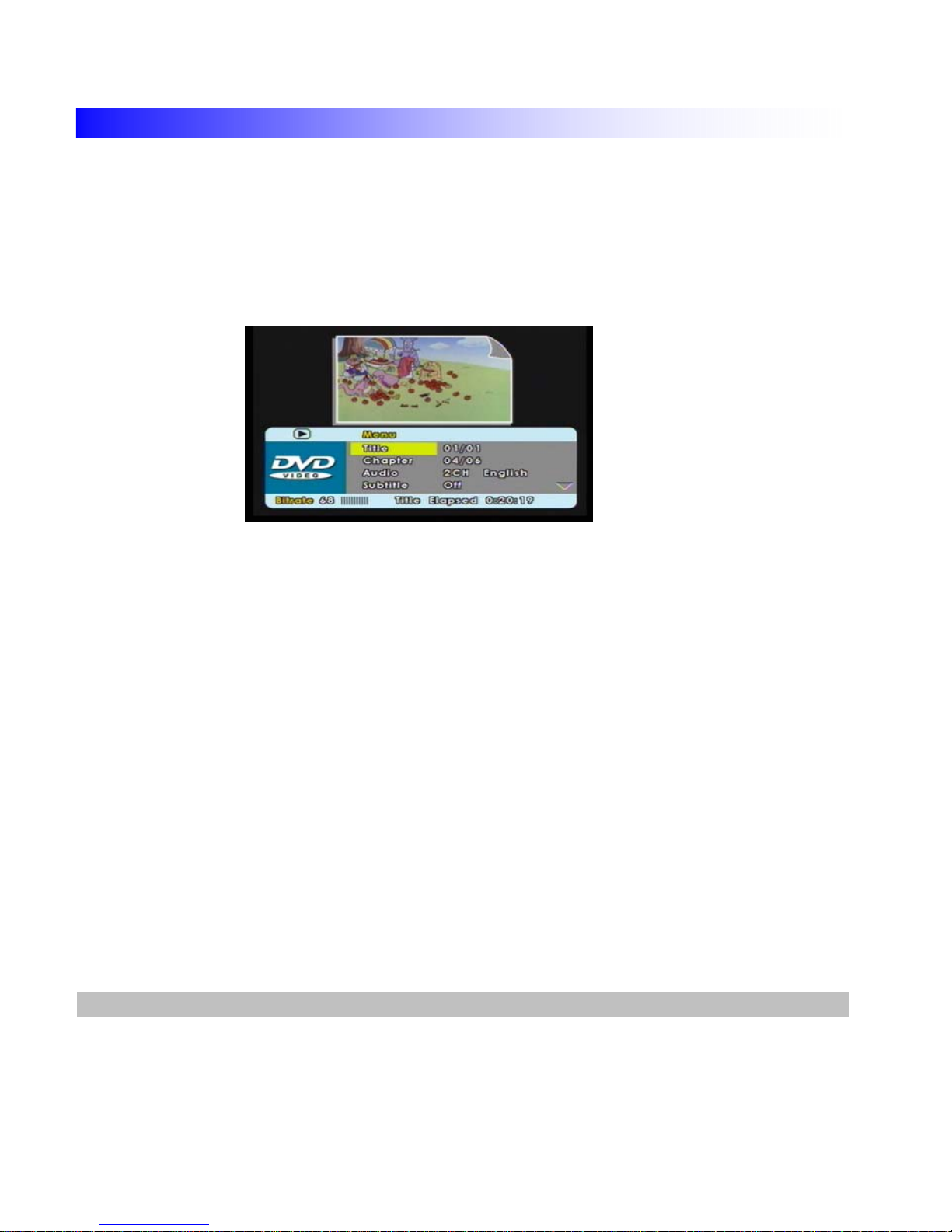

DVD Control Mode on operation.

Press GOTO KEY on operation for the below OSD picture.

Users can use ENTER AND REMOTE CONTROL KEY on operation.

DVD Mode ( DVD Control Mode On Operation )

39

- DVD Setup menu appears if you press SET UP KEY longer.

SET UP MENU are possible to select in case of NO DISC.
Some functions of SET UP MENU are available to select on playing DVD.

Users can select arrows button(key) of remote control for set up.

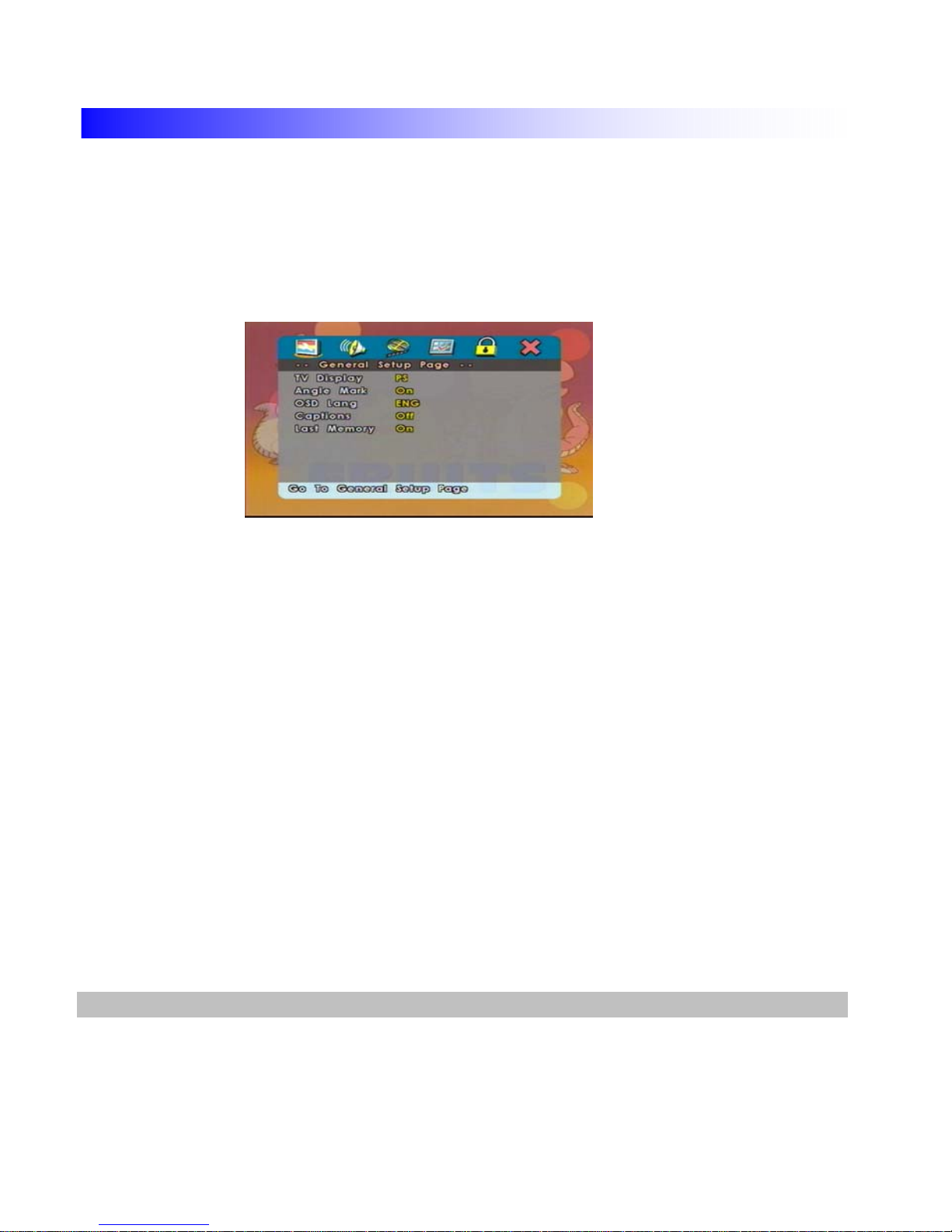

General Set Up Page
TV Display : PAN & SCAN, LETTER BOX, WIDE

1. PAN & SCAN : It is for viewing TV.
Formated picture by PAN - SCAN displays as the above. (16:9)

2. LETTER BOX

3. WIDE : It is for WIDE SCREEN TV.

Angle Mark (On/Off) : For display of Angle Mark On & Off.
OSD Lang : Set up languages during operation of DVD.

( English & Chineese)

Caption (On/Off)
Last Memory (On/Off) : This function is for storing the latest screen
when power off.

Stored screen will start when power on.

This function needs to be no disc in the DVD player on operation. All functions of

DVD Mode ( DVD - General Setup )

40

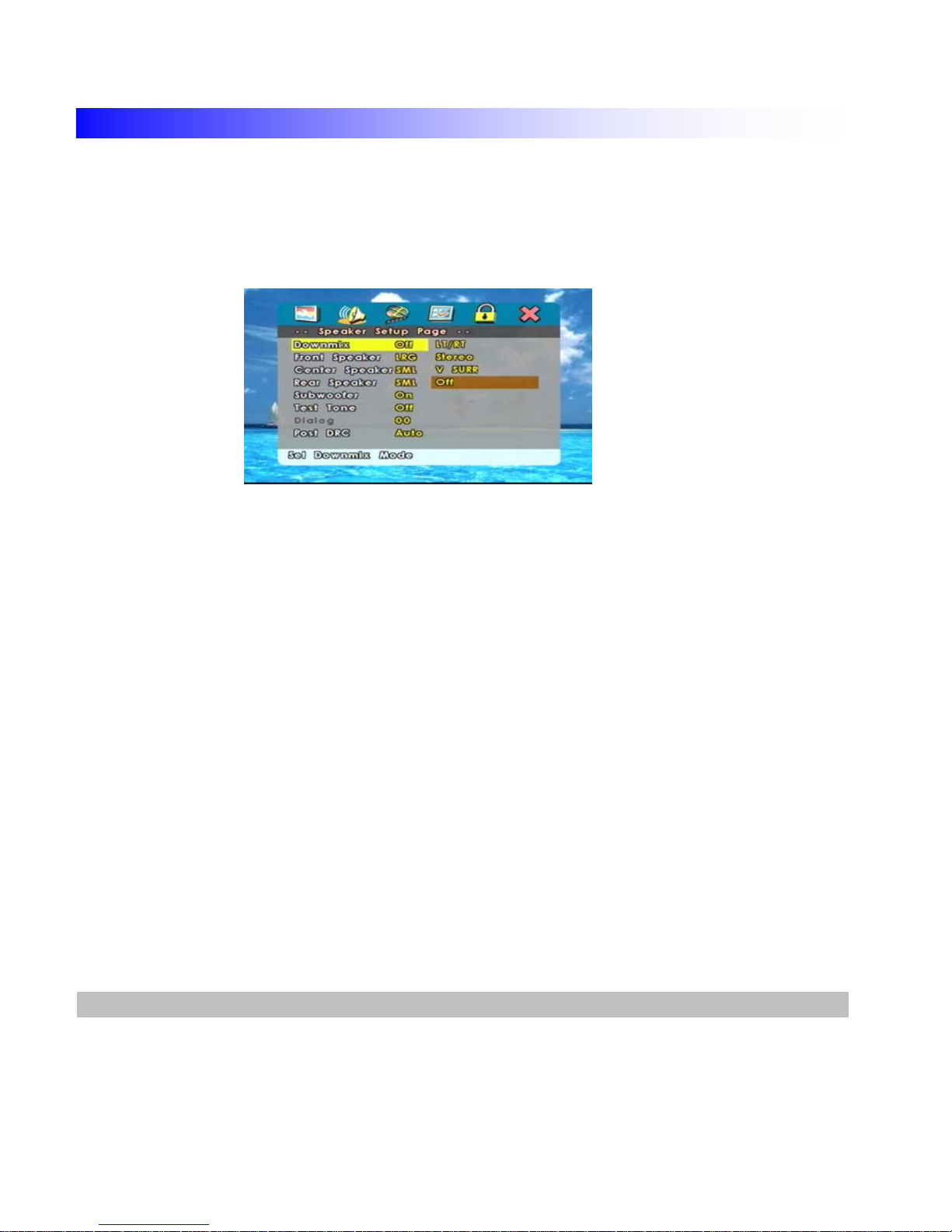

- AUDIO SETUP PAGE

DOWNMIX : According to Audio system connected in DOWNMIX of speaker setup,
users can select LT/RT (TV mono), STEREO(TV stereo),
V surround(surround), OFF (5.1CH speaker).

FRONT SPEAKER : Large One for Wideband is available to low frequency.
Small One is for normal.

CENTER SPEAKER : In case of using center speaker you can select
"Large or Small" according to the types.
REAR SPEAKER : In case of using rear speaker you can select "Large or Small"

according to the types.

SUB WOOFER : Select "ON" for using woofer speaker.

TEST TONE : Sound test for each speaker.

POST DRC : Set Up for DRC.

DVD Mode ( Audio Setup )

41

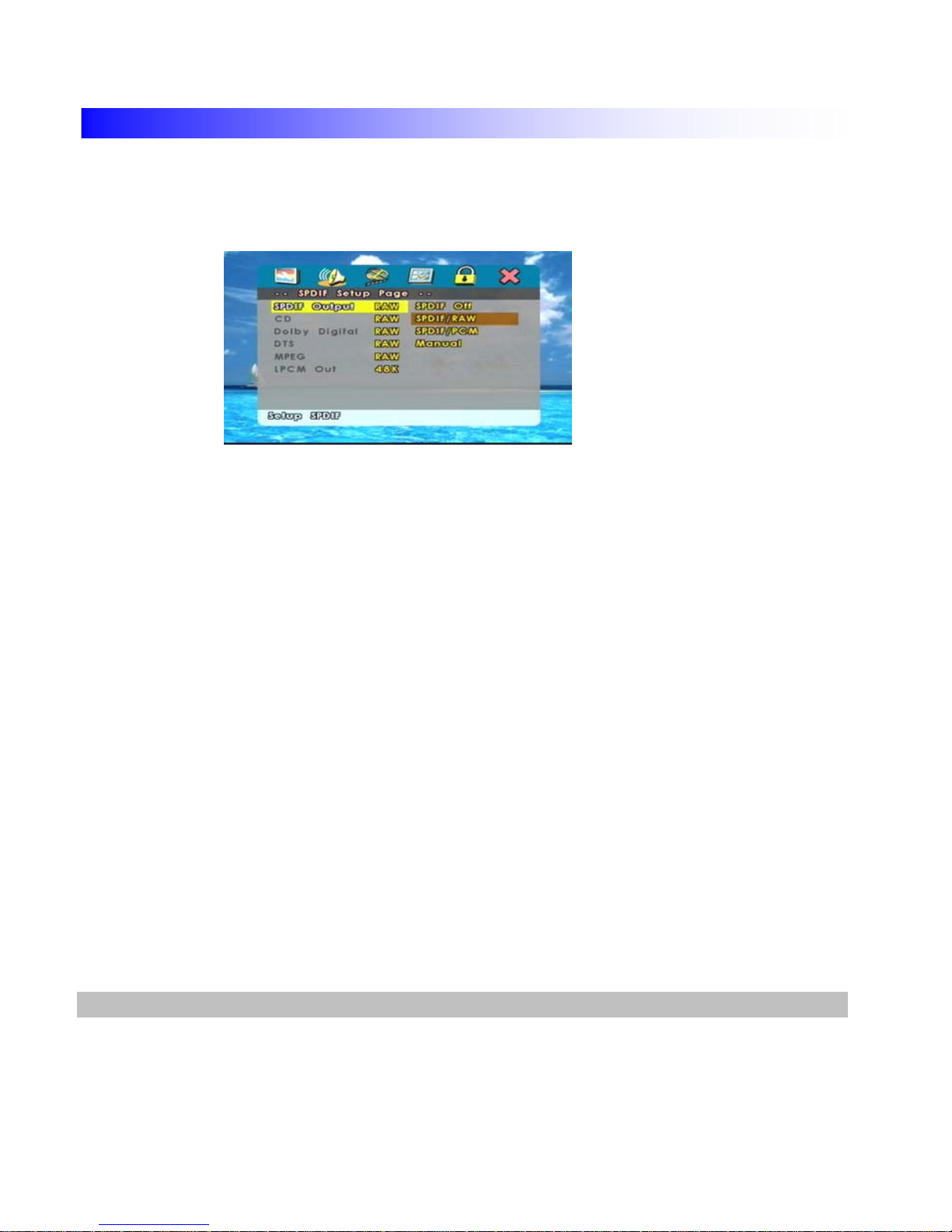

Set up Digital Audio Output

1. SPDIF OUTPUT
It can be used when digital amp is connected with this function.

2. When setting up SPDIF OUTPUT by MANUAL,
audio output format will be selected according to each audio format.
When choosing PCM commonly in DIGITAL/DTS/MPEG/CD/DOLBY,
audio stream composed of PCM date outputs at a decoded PCM data.

- DOLBY DIGITAL : When choosing RAW, DTS stream outputs.
Please set up this mode if your digital AMP will be able to support
DTS decoding.

- MPEG : When choosing RAW, MPEG audio stream outputs.
Please set up this mode if your digital AMP will be able to support
MPEG audio stream.

- PCM CHANNEL : PCM data of selected channel stream outputs.

3. LPCM OUT

- Sample frequency may set up for LINEAR PCM .
If A/V receiver is possible up to 96K, users can set up 96K.

- SPDIF SETUP

DVD Mode ( Audio Setup )

42

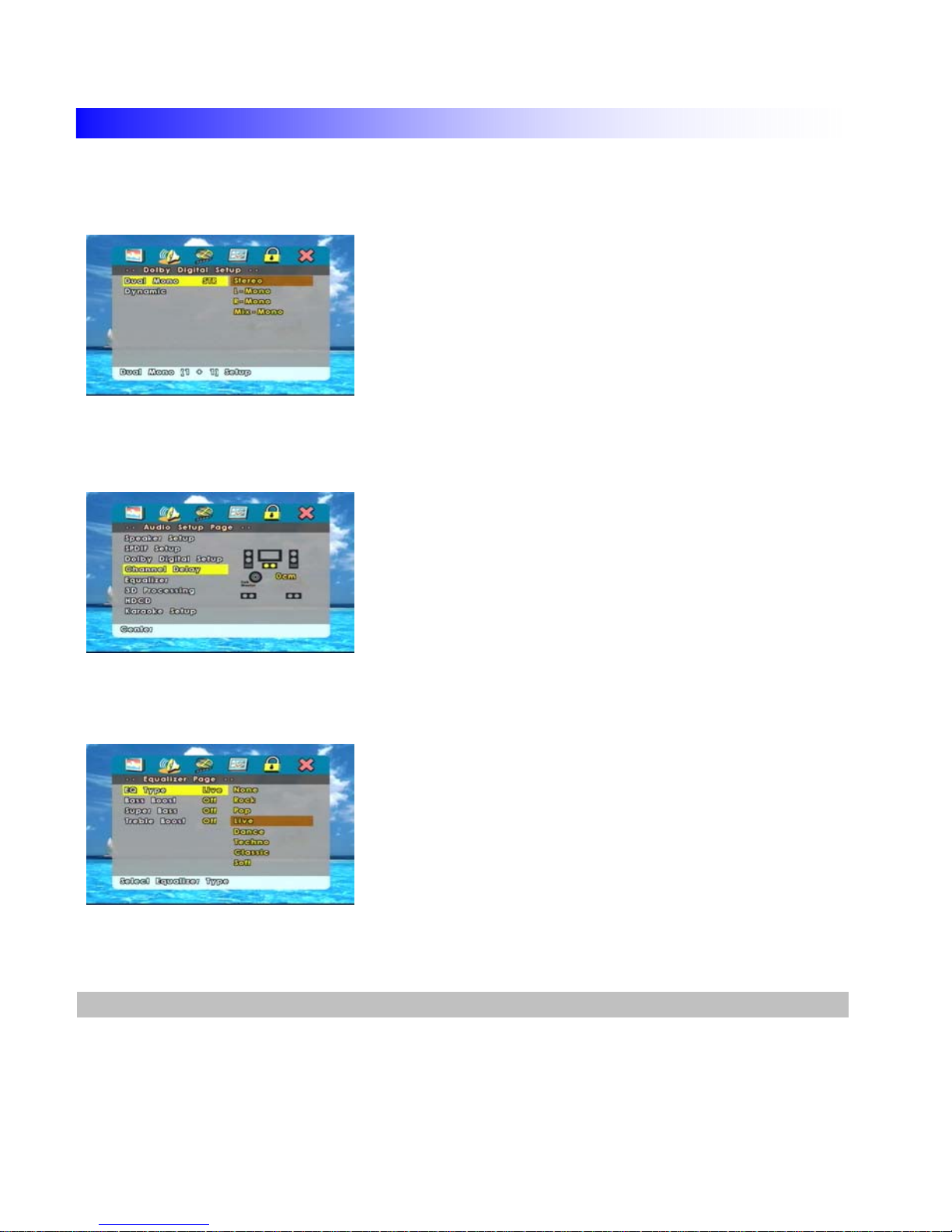

-DOLBY DIGITAL SETUP DUAL MONO : This function is for Mono Audio & TV.

DYNAMIC : This function is for TV sound ,
or Stereo System troubles.
Please control with Arrows Key

after pressing ENTER.

-CHANNEL DELAY When setting up SURROUND SYSTEM,

users can control the correct position of speakers
on each different position.

-EQUALIZER EQ TYPE : Select EQUALIZER users want.

(ROCK,POP,LIVE,DANCE,TECHNO,CLASSIC,SOFT)

BASS BOOST : Low Sound Control

SUPER BASS : For specific BASS.

TREBLE BOOST : For TREBLE.

Users can enter by Arrows Key.

DVD Mode ( Audio Setup )

43

1. MODE : Select Project II Mode

2. PANORAMA : It plays panorama sound effectively and broadly.

3. DIMENSING : Control of volume between rear and front speaker.

It is for 2 CH.

4. CENTER WIDTH : It plays sound coming out from Front and Left/Right speakers.

REVERB MODE : Users can enjoy various sound effects like actual sound.

Available set up

- (CONCERT,LIVING ROOM,HALL,BATHROOM,CAVE,ARENA,CHURCH)

PRO LOGIC Ⅱ : It plays with 5.1CH with upgraded matrix decoder.

-3D PROCESSING

DVD Mode ( Audio Setup )

44

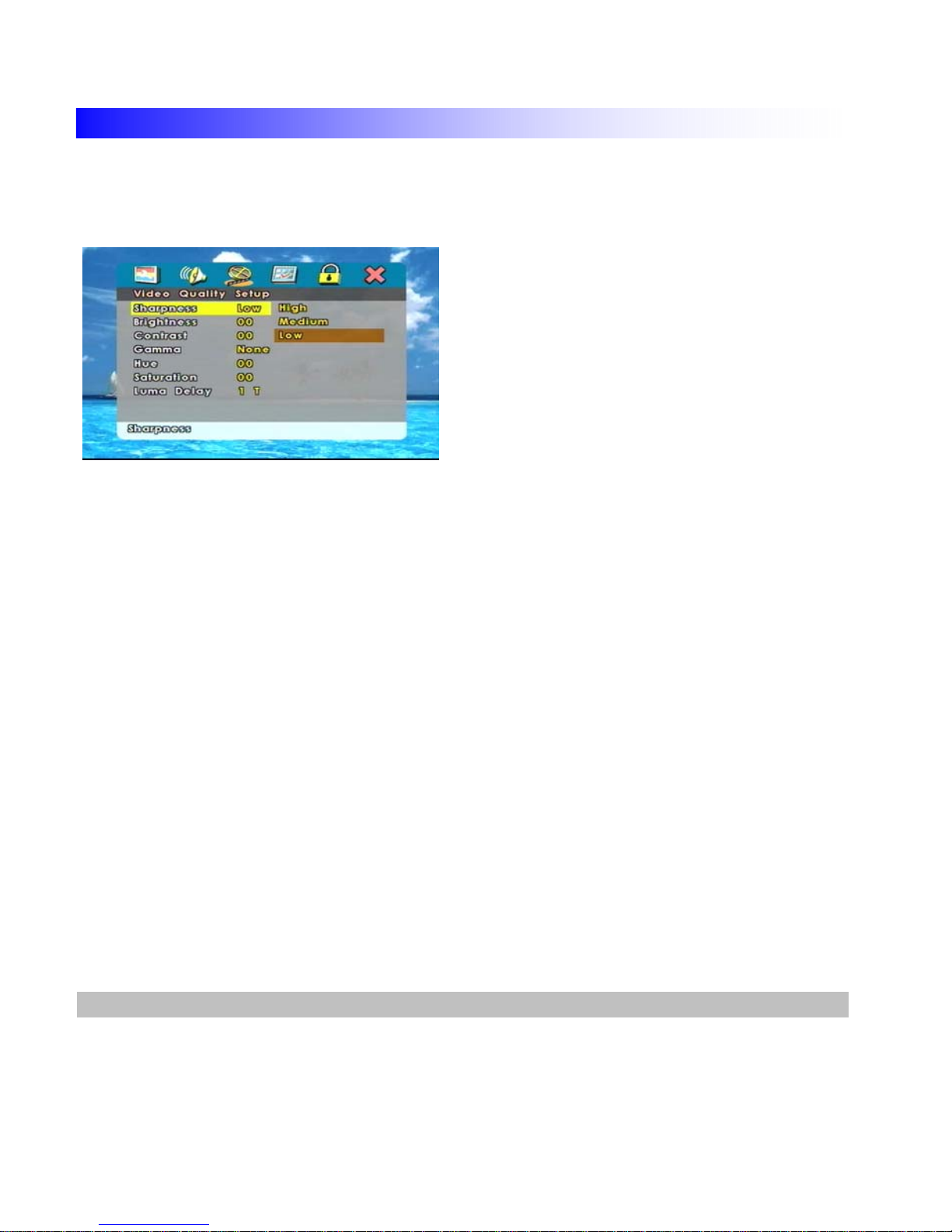

-QUALITY

SHARPNESS : This function is for

Screen Sharpness.

Control by using Arrows Button.

BRIGHTNESS : Control by using Arrows Button.

CONTRAST : Control by using Arrows Button.

GAMMA : Control by using Arrows Button.

HUE : Control of Color tone by by Arrows Button.

SATURATION : Control by using Arrows Button.

LUMA DELAY : Control of image quality by selecting Luma(Y signal) Delay.

DVD Mode ( Video Setup )

45

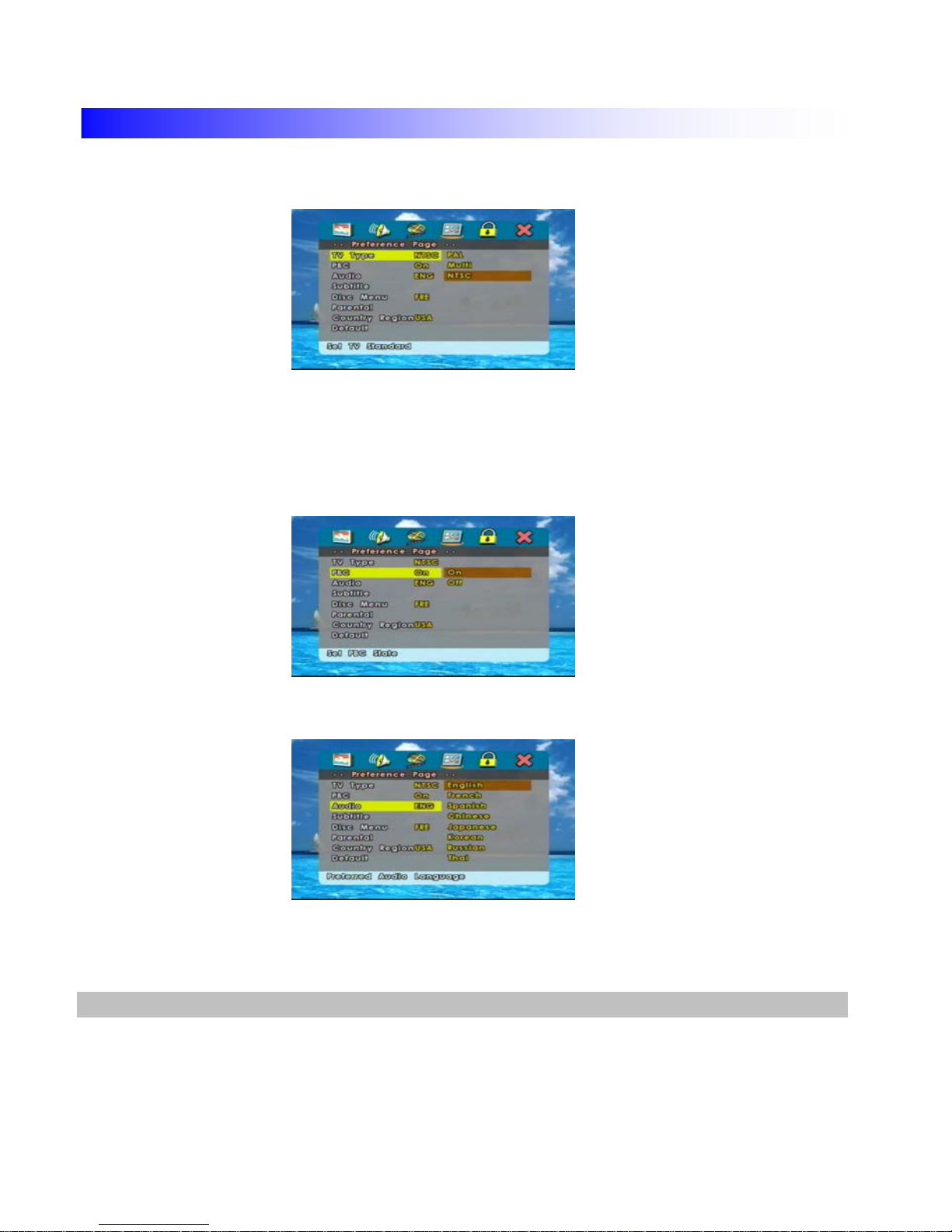

Select specific language of Audio on playing DVD.

Select VIDEO SIGNALS and NTSC or PAL SYSTEM. Mutil for auto select.

- TV TYPE

In case of selecting MULTI the screen may blink for a while.
KOREA - NTSC system.

Users select On/OFF of PBC on playing VIDEO CD.

- AUDIO

(Discs may supports specific languages)

Select MULTI if users want to change automatically.

- PBC

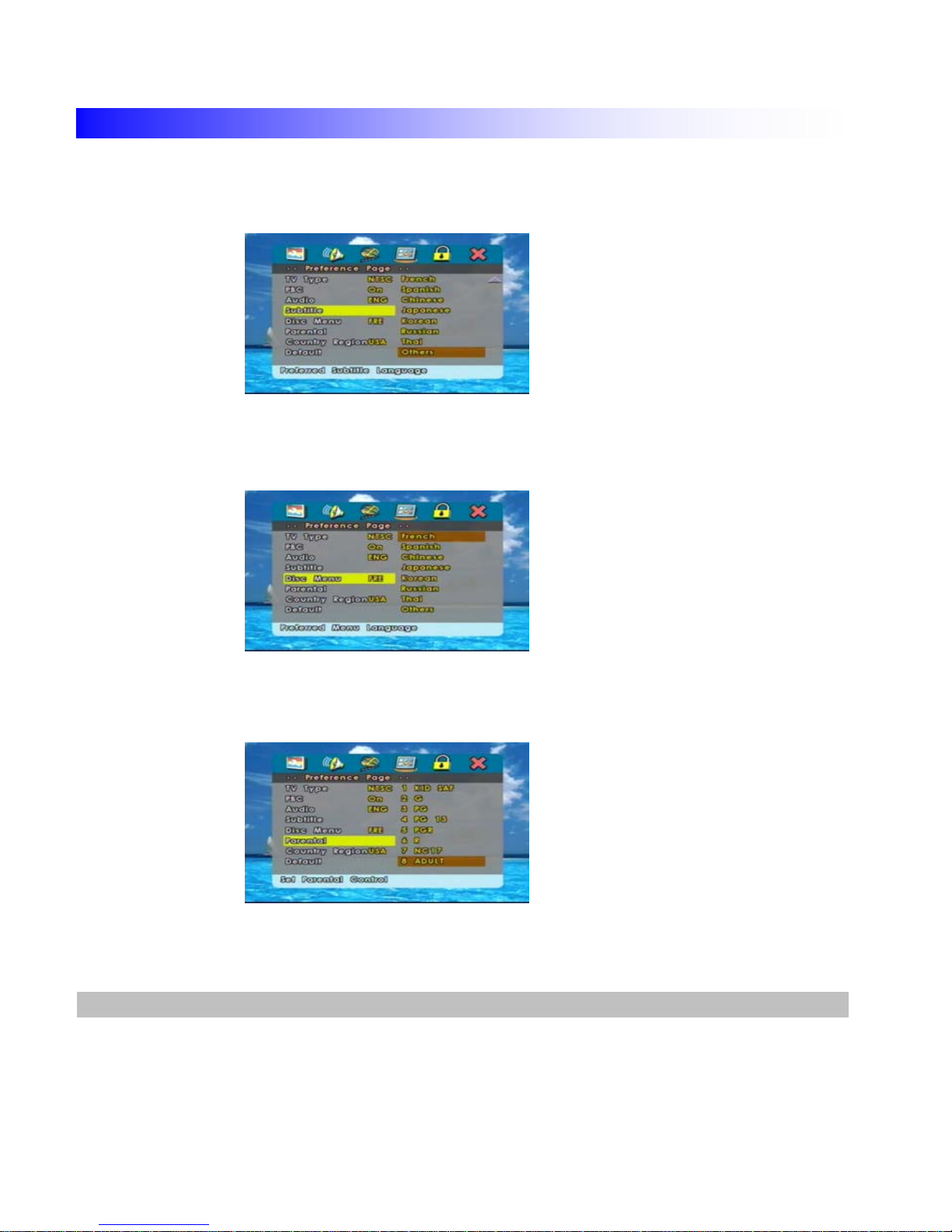

DVD Mode ( DVD Setup-Preference )

46

- SUBTITLE

Specific language may set up on playing DVD.
(Each language is different according to Disc)

- DISC MENU

Users can select specific language according to Discs.

- PARENTAL

This function for protecting childrens from the prohibited movie.
Users can select LEVEL out of 8 LEVLES. It may not be limited in case of Adult.

DVD Mode ( DVD Setup-Preference )

47

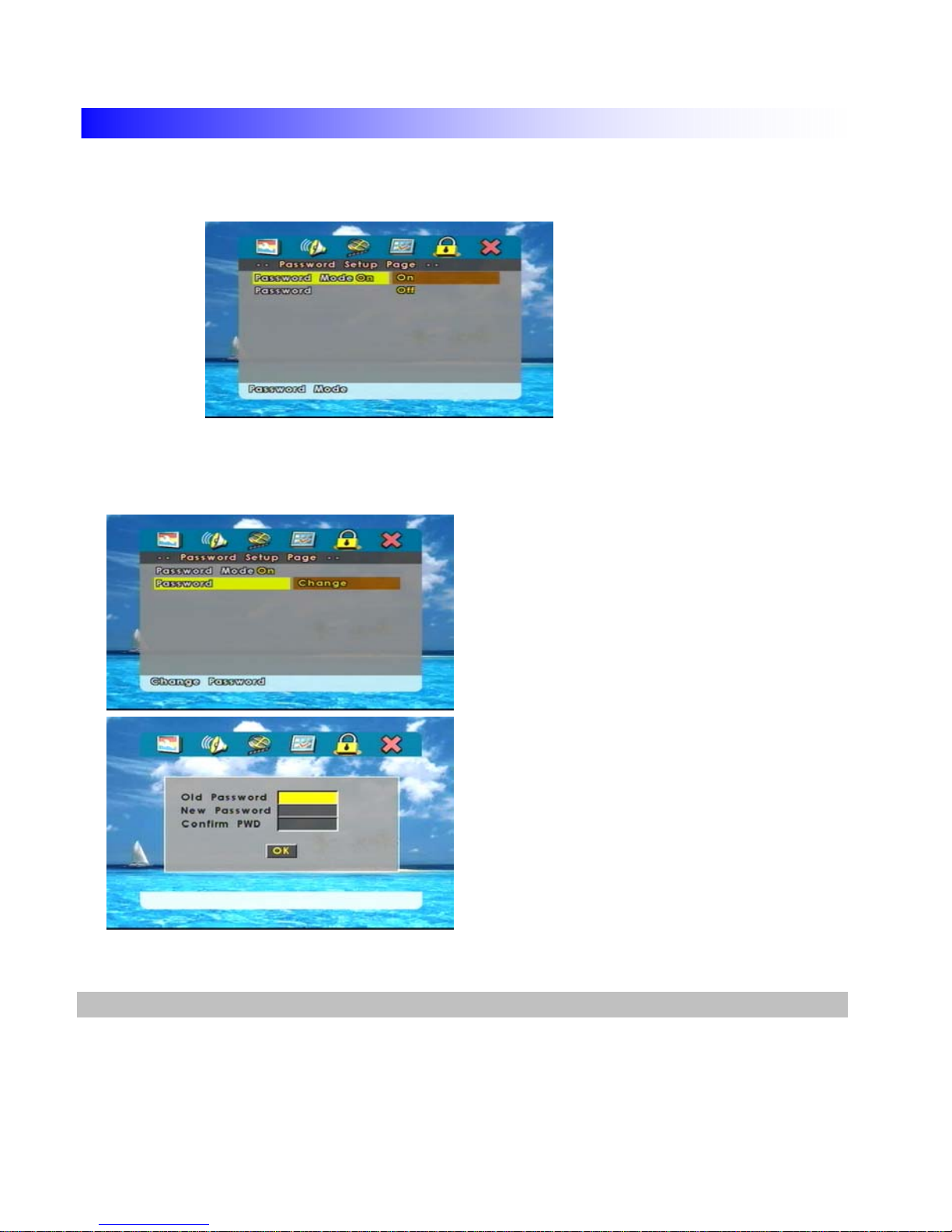

- PASSWORD MODE

- PASSWORD

Firstly set up pass word change.

Note!

- Do not lose your pass word.

- Users can not change new pass word
without existing one.

- Initial pass word is " 1356900 ".

(Include existing and new pass word)

Users can change pass word with choosing ON/OFF..

Enter 4 digits(pass word) users want.

Select "OK" after entering new pass word.

DVD Mode ( DVD Setup-Preference )

48

- EXIT

If you want to exit from DVD SETUP MENU, please select EXIT and press ENTER.

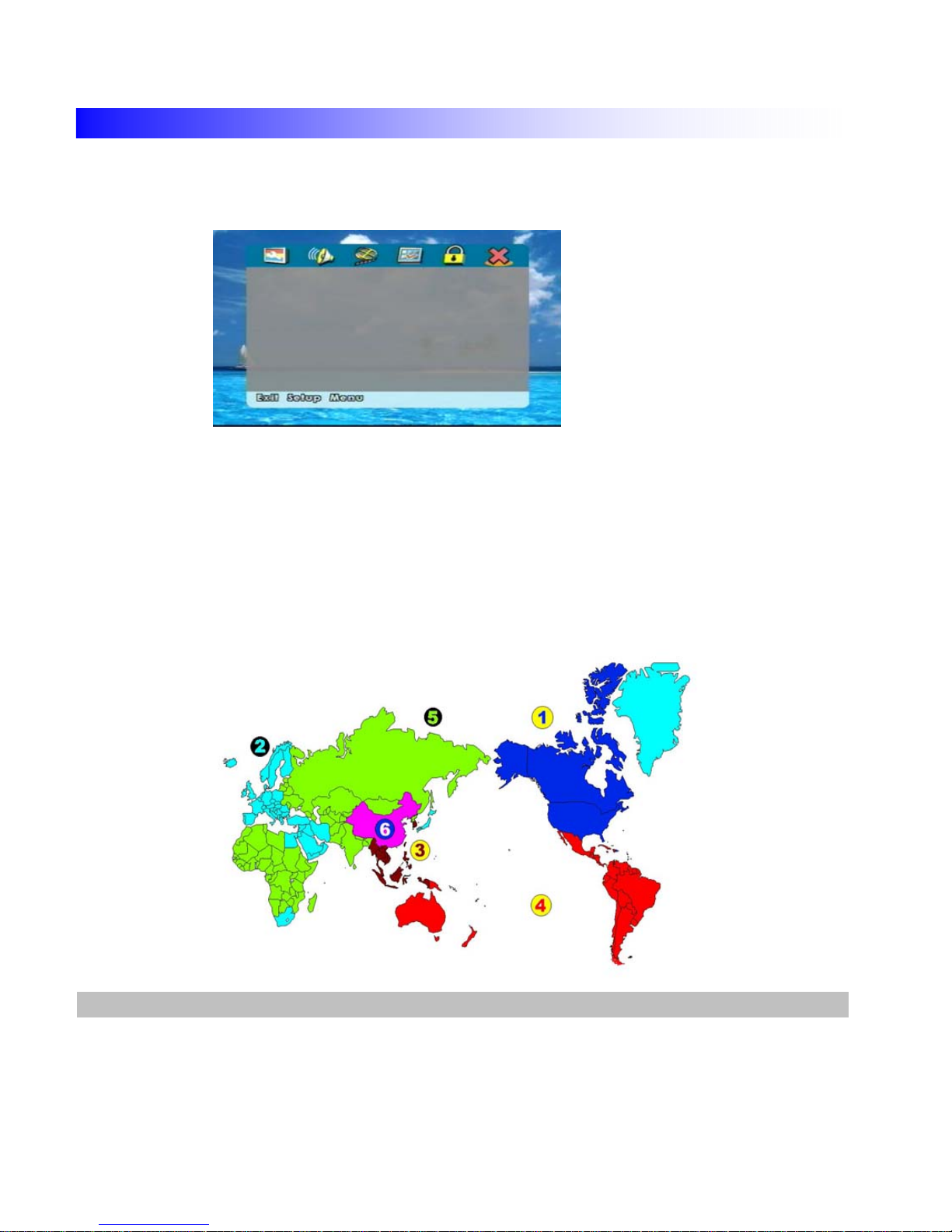

♣ Ref : DVD DISC REGION CODE
Before playing DVD, please check connection
between TV & SPEAKERS INPUTS and OUTPUTS correctly.
Select external INPUT after pressing TV / OUTPUT button.
Be sure to check Region Code of DVD Player.
DVD player may not be playing with a different region code.

DVD Mode ( DVD Setup-EXIT )

49

####

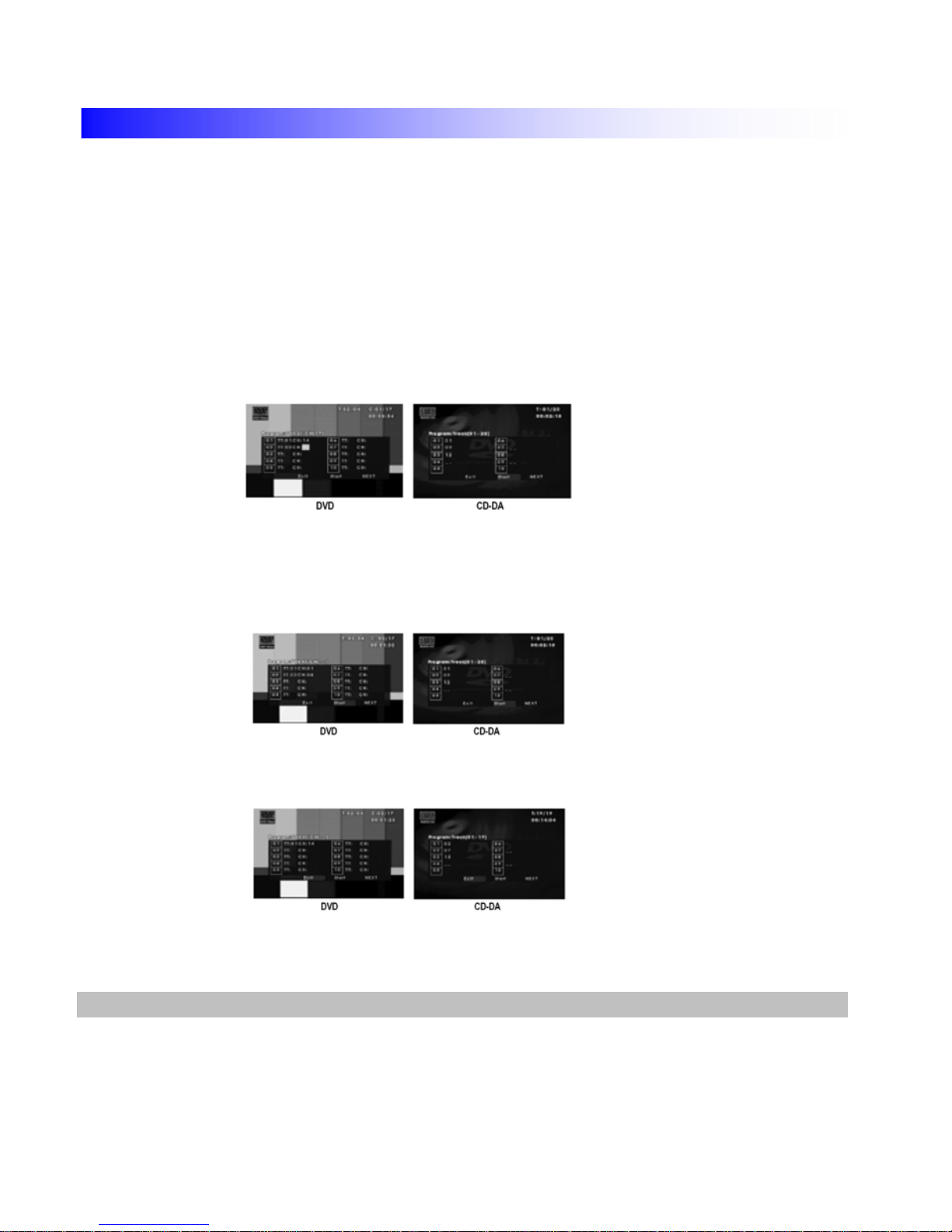

Random Play
This function is used to play the Title,Chapter and Tracks on the disc in order to
desired procedures.

1. Press the PROG button on remote controller.Program menu is displayed

on screen.

2. Select the Title,Track NO is displayed on the TV screen.

3. If you want to select other title, chapter and track and then repeat the previous steps.

Program playing is available up to NO 20.

4. When finished, using the UP(▲) or DOWN(▼) button to select the "Start".

5. If you need to stop play mode, press Program one more.

Select "Stop" by UP(▲) or DOWN(▼) button.

DVD Mode ( Random Play )

50

If switching Off CAMERA & NAVI, it displays
as the left picture when changing MODE.
At this time users can use sounds and pictures
of other devices that thery are connected with
AV1, AV2, and AV3

AV2 : Users can use on CAMERA MODE ON.
If putting rear gear on CAMERA MODE ON,
the rear camera will be available.

AV3 : It is available to change NAVI directly with
pressing NAVI button at NAVI MODE ON and
with pressing MODE key. If selecting NAVI MODE,
users can listen existing sound continously and
the picture for NAVIGATION wll display.

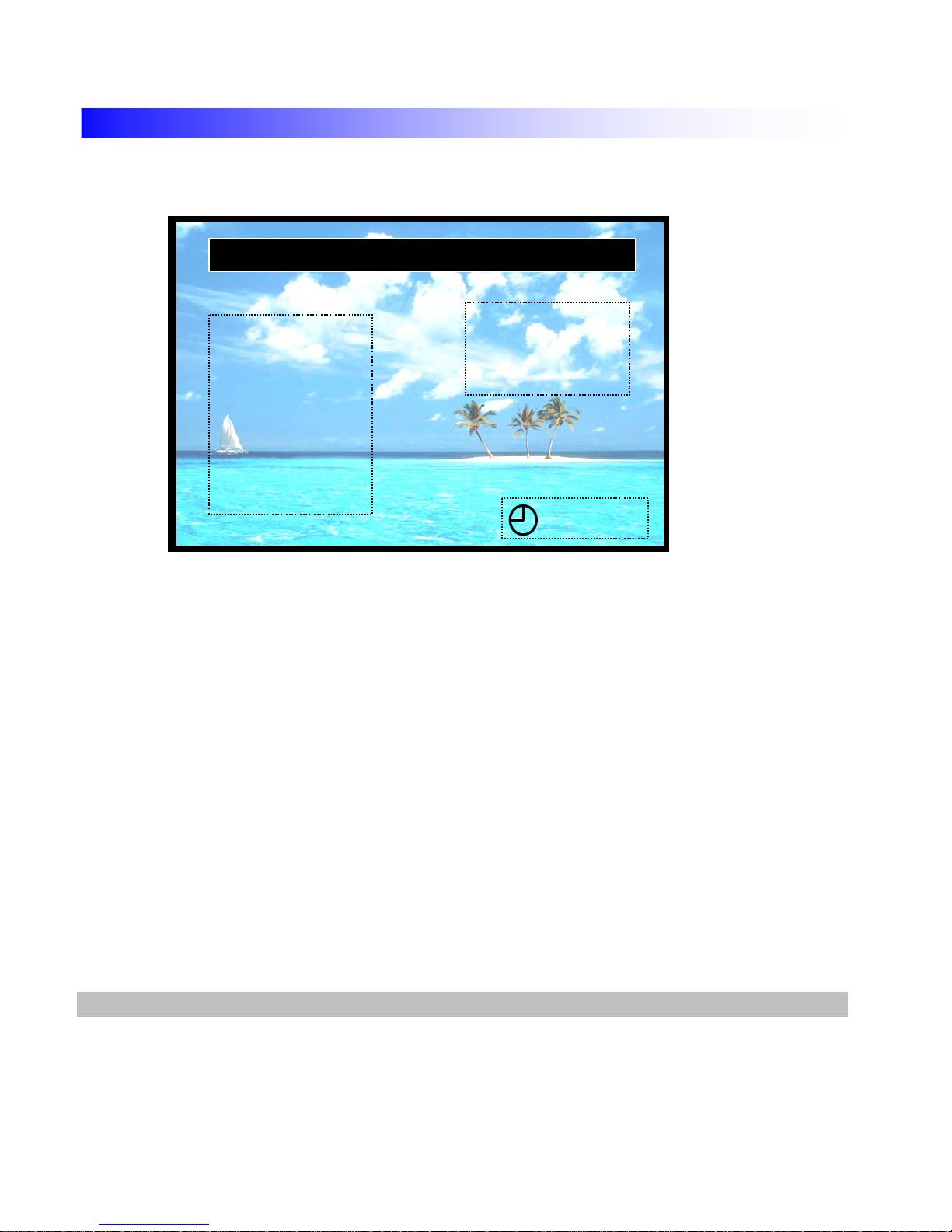

A/V 1

A/V 2

A/V 3

NAVI

CAMERA

OSD Menu ( A/V, NAVI, CAMERA )

51

Available CD Changer - SHIN HEUNG
Available DVD Changer - SANYO & SHIN HEUNG

- If CDC of the AV BOX was mounted on, CDC will play after pressing MODE key.

- Changer Display : It displays the count of DISC ( 6 Discs or 12 Discs).

- Current DISC : It displays the number of DISC is playing.

NOTE !
Users need to select the number of DISC for 6 DISCS changer.
Automatically 12 DISCS changer may be searched at every change.

NOTE !

- Current TRACK : It displays the number of TRACK is playing.

- DISC Status : It displays whether DISC is inserted or not.

CDC6 PLAY 00:57

- DISC:04 -

(1) CD
(2) CD
(3) CD

(4) CD
(5) CD
(6) CD

- TRACK : 05 - -

PM 3 : 18

CD & DVD Changer Mode ( Option )

52

- DISC Change : Through the use of the key and the key, DISC can be changed.

- TRACK Change : Through the use of the key and the key, TRACK can be

changed.

- RANDOM Replay : By pressing the key during Replay, you can perform random

replay.
But, random replay is done only for DISC that has been replayed.

Press Shortly >> RANDOM
Press Longer >> ALL RANDOM

- REPEAT : By pressing the key during Replay, you can set Repeat.

Press Shortly >> REPEAT
Press Longer >> ALL REPEAT

- INTRO Function : If pressing " " key, initial each selected song may be introduced

for 10 seconds with pressing shortly and No 1 song of each disc
may be introduced with pressing longer (ALL REPEAT).

INTRO FUNCTION - For all of Songs
ALL INTRO - For the first song

♣ Ref : "INTRO" - Users can listen to music only for 10 secs out of each song.

CD & DVD Changer Mode (Option)

53

1. Program Type (PTY)
It shows type of 31 programs, and it can be used for auto tune.

2. List of Alternative Frequency (AF)
A Receiver to store frequencies will save time to change with other frequency.
Some broadcast in an adjacent area transmits other broadcanst's frequency till 25.

3. Traffic Announcement Identification (TA)
It is for Traffic Information.

RDS is available only in Europe, users can control PTY, AF, TA button of
Remote Control on Radio Mode.
(When using this function, displays for PTY, AF and TA appears on monitor.

RDS Radio ( Europe )

FM : 87.50MHz Pch : 1

- Pch List -

(1) 87.50MHz
(2) 90.10MHz
(3) 98.10MHz
(4) 100.70MHz

(5) 107.10MHz
(6) 108.00MHz

- INFO LIST -

ST

PM 3 : 17

PTYAF

TA

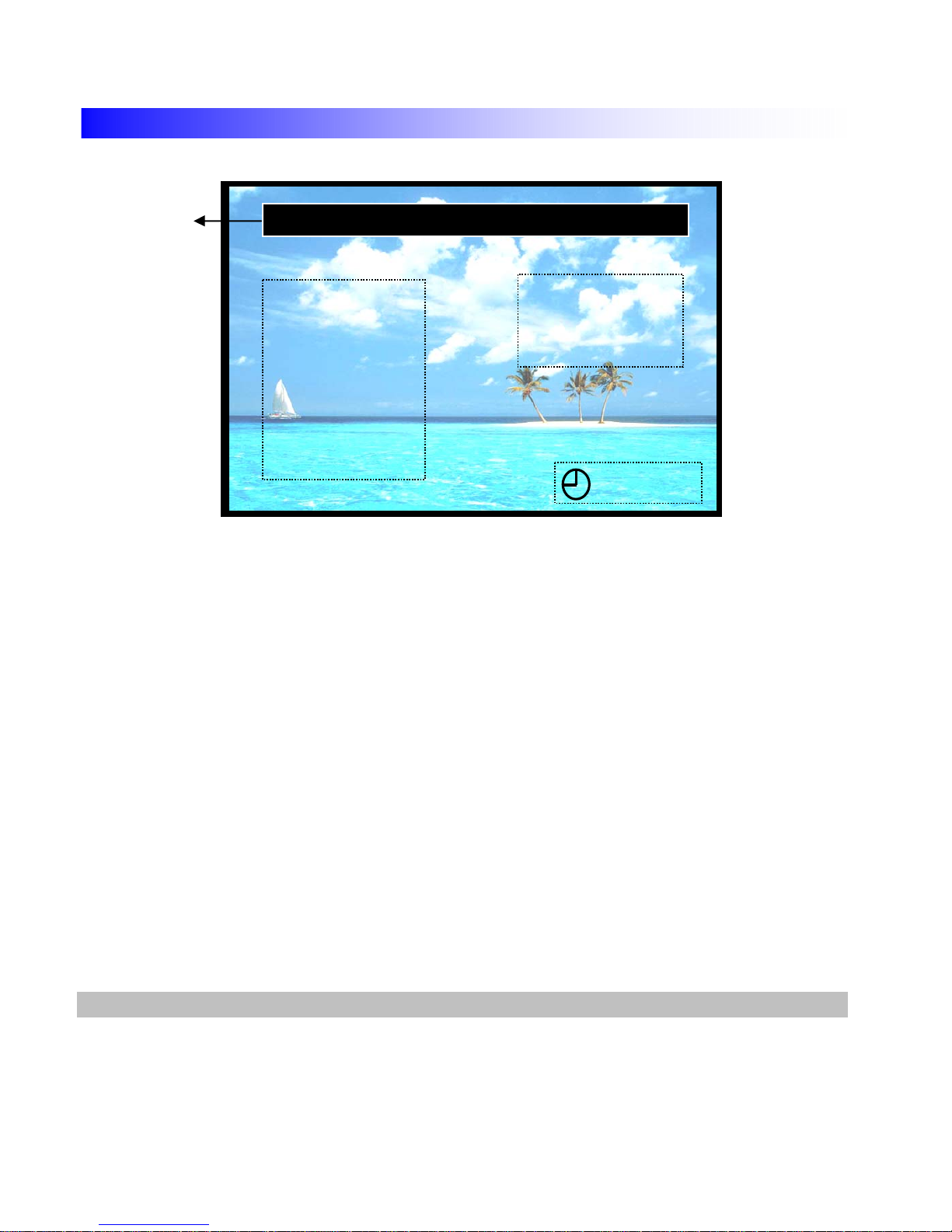

TITLE BAR

(PS NAME)

PTY DISPLAY

RADIO TEXT DISPLAY

54

TA

- ON RADIO MODE

TA indicator will be blinking for searching channels when this unit receives TA signal.
And then TA changes when it is completed to find channels.

- ON OTHER MODE

Channel searing will start by TA on RADIO MODE. And then if searcing is finished,
sound levels up to 3.
When TA signal doesn't work, it will return into previous mode and sound will level down.

to the first prodecure.
PTY

- Press Button "PTY" shortly for On/OFF.

- PTY menu displays when users press button "PTY" longer.

If selecting PTY or ENTER after choosing some menu by Up/Down button,
channel searching will start. (You can cancel searching by entering PTY button.
The light of the indicator stops blinking after channel searching is completed.

11. RELIGION 21. POP M1. NEWS

9. TRAVEL 19. EASY M 29. AFFAIRS

10. PHONE IN 20. ROCK M

2. DOCUMENTS 12. SOCIAL 22. VARIED

3. FOLK M 13. CHILDREN 23. SCIENCE

4. OLDIES 14. FINANCE 24. CULTURE

7. JAZZ 17. CLASSICS 27. SPORT

PTY MENU LIST

8. LEISURE 18. LIGHT M 28. INFO

5. NATIONAL M 15. WETHER 25. DRAMA

6. COUNTRY 16. OTHER M 26. EDUCATE

TA indicator will stop blinking when TA broadcasting finishs, and then it will return

When frequency is complete, the blinking stops.

RDS Information

AF : If this frequency sensitivity is low, AF will be blinking on monitor.

RDS Radio ( Europe )

55

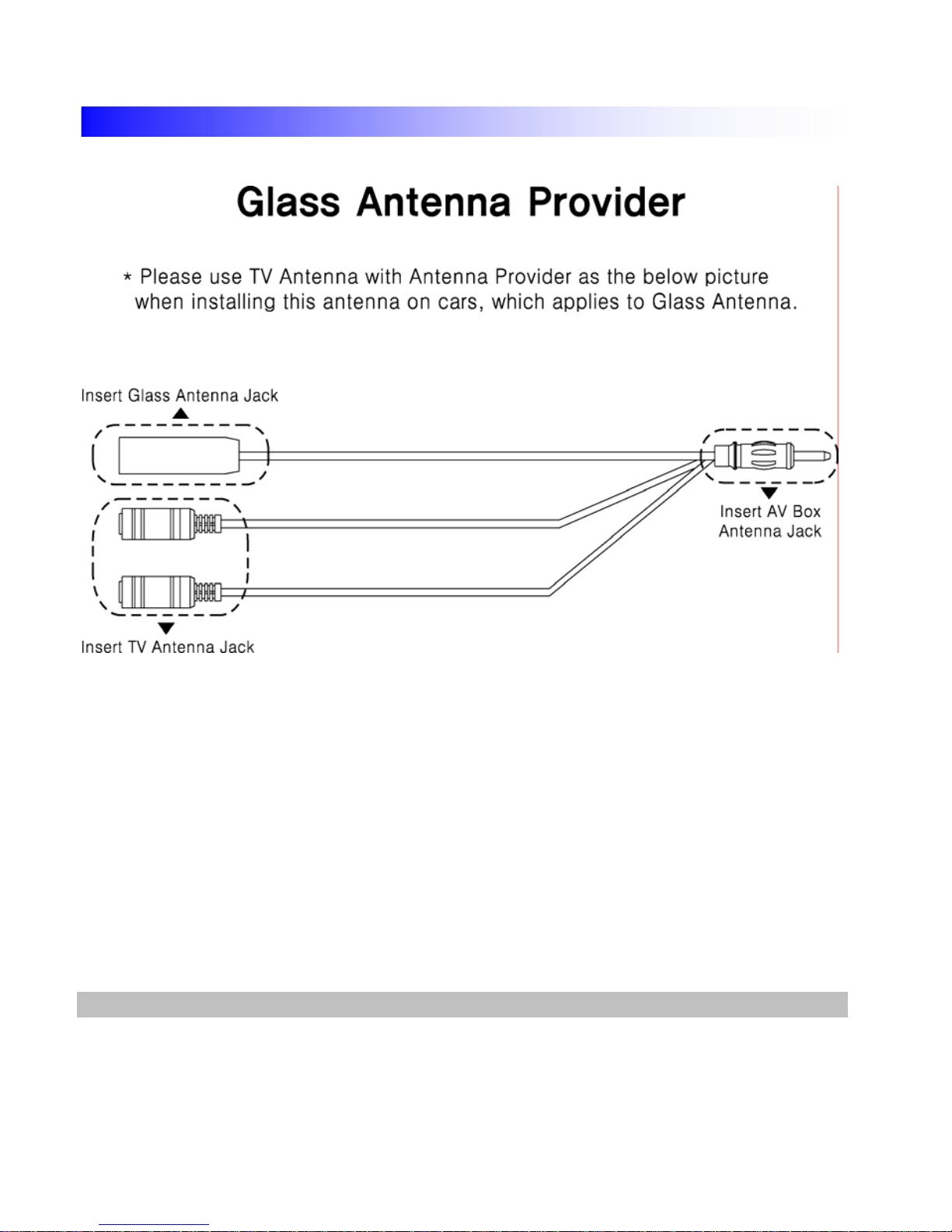

ANTENNA PROVIDER

56

Limited W

arranty

One (1) Year Limited Warranty

WHO IS COVERED?

allow the incidental or consequential damages, so the above exclusion may not apply
to you. This includes, but is not limited to, prerecorded material, whether copyrighted

A proof of purchase is required to receive warranty service.

WHAT IS EXCLUDED?

authorized, or repair of products damaged by these modifications.

A sales receipt or other document showing original date of purchase is considered proof
of purchase.
Warranty repair is one(1) year limited warranty coverage :
* Parts and labor are included under warranty repair :

WHAT IS NOT COVERED?

Please keep your sales receipt or other document showing proof of purchase.
Also keep the original box and packing material in case you need to return your product.

or not copyrighted.)

MAKE SURE YOU KEEP

This warranty gives you specific legal rights.

You may have other rights which vary from state/province to state/province

MODEL NO :

CUSTOMER SUPPORT

NOTE : If you don't have proof of purchase, then your unit will be considered
out-of-warranty. Out-of-warranty will be charged at a flat labor rate, including any
necessary parts.

Your warranty does not cover :

* A product that requires modification or adaptation to enable it to operate in any country
other than the country for which it was designed, manufactured, approved and/or

* Incidental or consequential damages resulting from the product. (Some states do not

* Labor charges for installation or setup of the product, adjustment of customer controls
on the product, and installation or repair of antenna systems outside of the product.
* Product repair and/or part replacement because of misuse, accident, unauthorized
repair or other cause not within the control of its manufacturer.

57

USER'S MEMO

58

USER'S MEMO

59

USER'S MEMO

60
