Pyle PLD63C User guide

PLD63C

2 Pcs. 6.5'' SVC Speakers

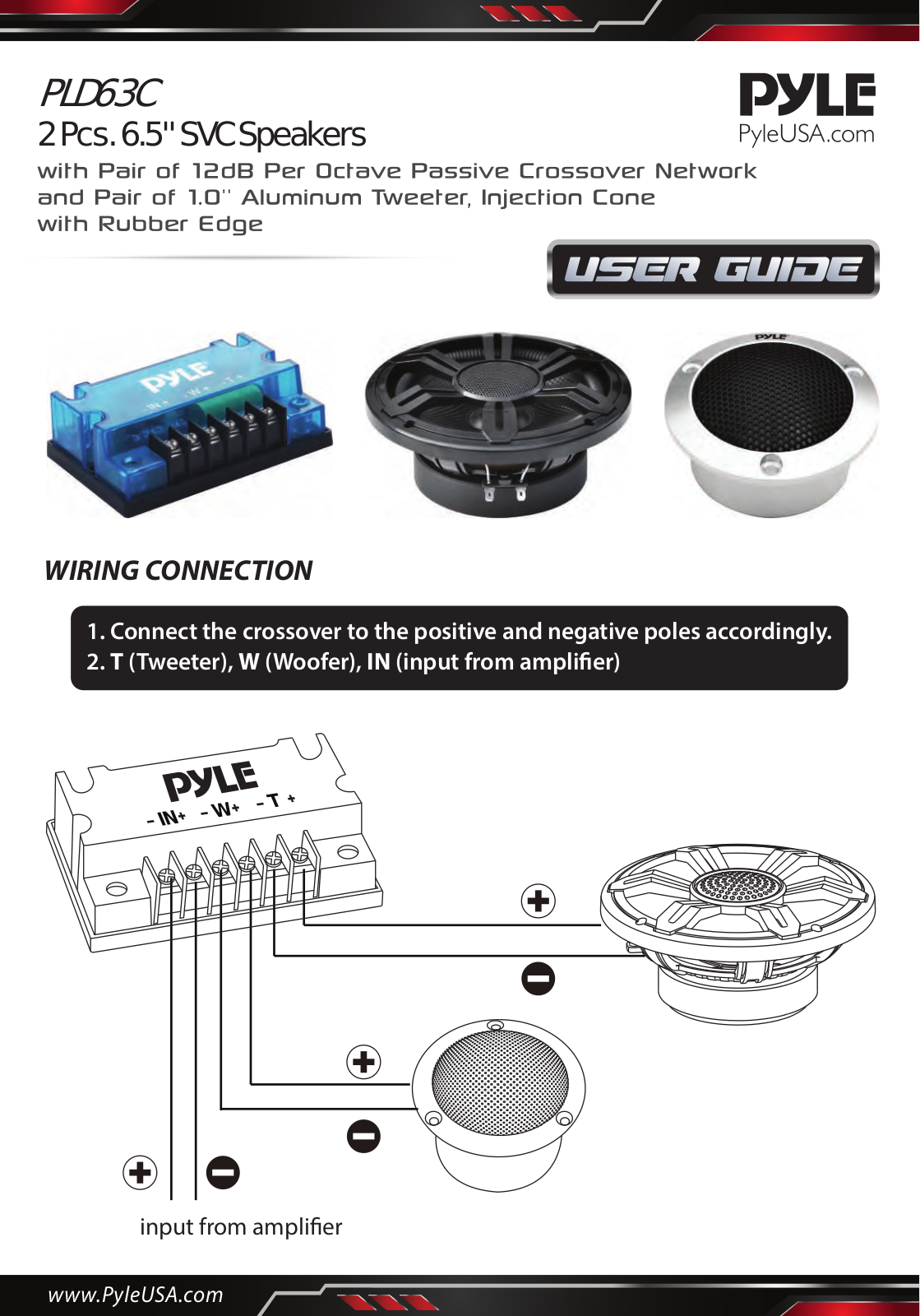

WIRING CONNECTION

1. Connect the crossover to the positive and negative poles accordingly.

2. T (Tweeter), W (Woofer), IN (input from amplier)

IN

input from amplier

www.PyleUSA.com

W

T

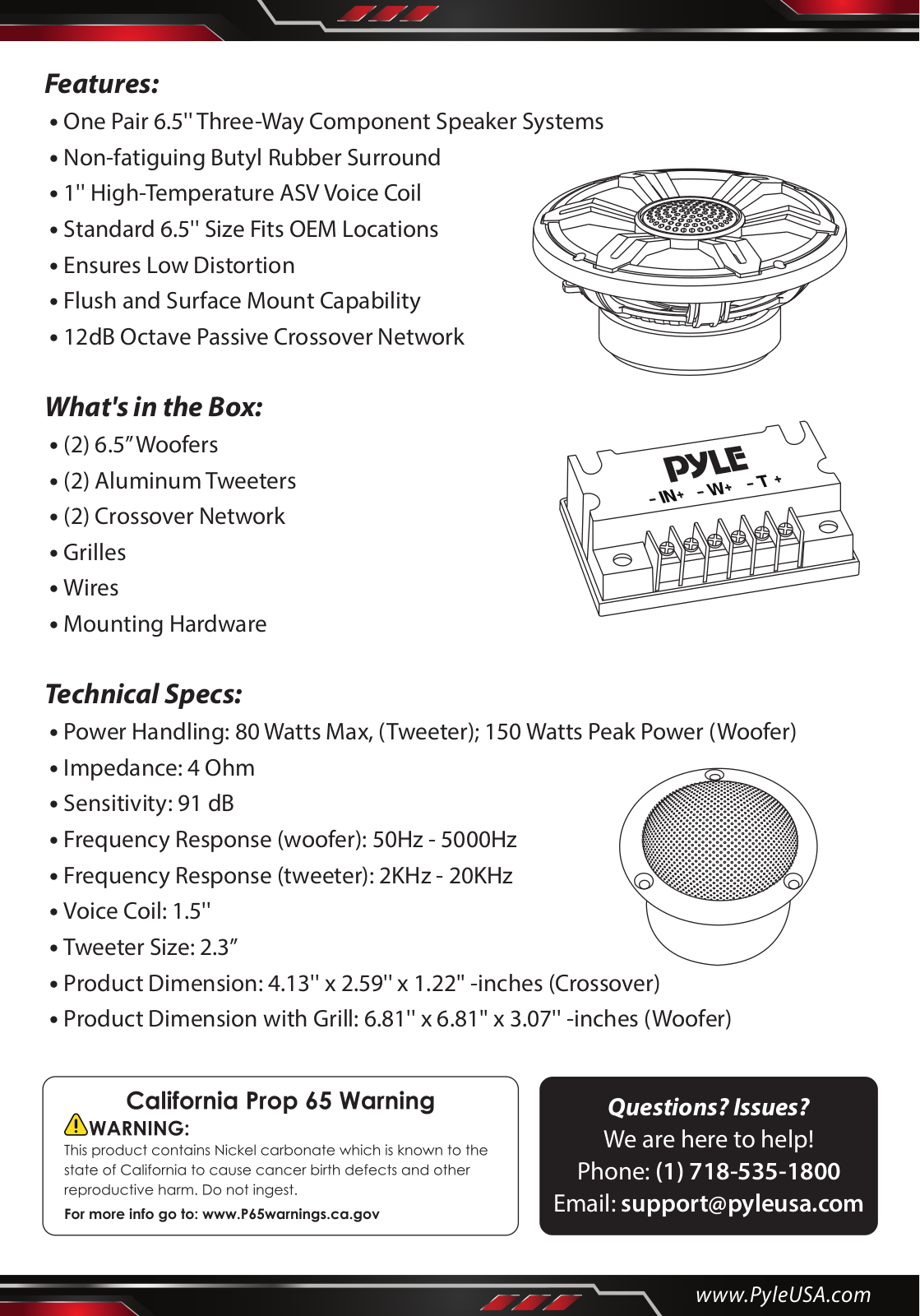

Features:

• One Pair 6.5'' Three-Way Component Speaker Systems

• Non-fatiguing Butyl Rubber Surround

• 1'' High-Temperature ASV Voice Coil

• Standard 6.5'' Size Fits OEM Locations

• Ensures Low Distortion

• Flush and Surface Mount Capability

• 12dB Octave Passive Crossover Network

What's in the Box:

• (2) 6.5” Woofers

• (2) Aluminum Tweeters

IN

T

W

• (2) Crossover Network

• Grilles

• Wires

• Mounting Hardware

Technical Specs:

• Power Handling: 80 Watts Max, (Tweeter); 150 Watts Peak Power (Woofer)

• Impedance: 4 Ohm

• Sensitivity: 91 dB

• Frequency Response (woofer): 50Hz - 5000Hz

• Frequency Response (tweeter): 2KHz - 20KHz

• Voice Coil: 1.5''

• Tweeter Size: 2.3”

• Product Dimension: 4.13'' x 2.59'' x 1.22'' -inches (Crossover)

• Product Dimension with Grill: 6.81'' x 6.81'' x 3.07'' -inches (Woofer)

Questions? Issues?

We are here to help!

Phone: [phone]

Email: [e-mail]

www.PyleUSA.com
