Notice

For your safety, don’t watch video or operate monitor when driving. Non-professionals don’t
dismantle the product without permission. Please consult after service agency or send it to the
local service department when product in failure.

Caution: Please install the product in legal position; we disclaim any legal liability due to incorrect
installation.

Attention: When in cold weather, there appears dark screen during starting up. The display screen
will slowly resume to normal with the increasing temperature after power on.

Product function and Application

 7’’ Digital LCD panel ,16:9 display
 Resolution:800*R.G.B*480
 Panel key : touch button
 Remote control

 System language: English,

Simplify Chinese, Traditional Chinese

 System resource:4 ways real time record
 Video standard: PAL & NTSC

 Image compression: MOTION JPEG
 Video compression: A

D

PCM

 AV format :AV record the real time
 video record: Automatic
 Searching by: file name .time
 4 channel with 4 pin connector or RCA connector (optional)
 Audio input 1 channel with 4 pin connector or RCA connector
 Display Single. Quad picture
 DVR image: 640*480
 recording Speed: 30 FPS
 Video Save: SD card support 32G
 Local playback : support
 Trigger input :4 triggers
 one battery built in PCB board
 Power supply: DC-12V -24V
 Working temperate：0℃~60℃
 Bracket : U shape iron bracket or stand bracket
 sunshade
 Storage temperate: -10℃~70℃
 180mm*121mm*24mm Dimension: 180mm*121mm*24mm
 weight:0.63KGS

Product Application

This product adopts digit

al TFT panel display real-time monitoring of high definition, the

SD card storage medium. The monitor built in DVR single image recording or quad image

recording function. Support one audio recording, with speaker and remote control. easy to be
installed in different kinds of vehicles. With on radiation, low consumption, beautiful and vivid
image, nice panel, adjustable pole distance etc features.

Product description

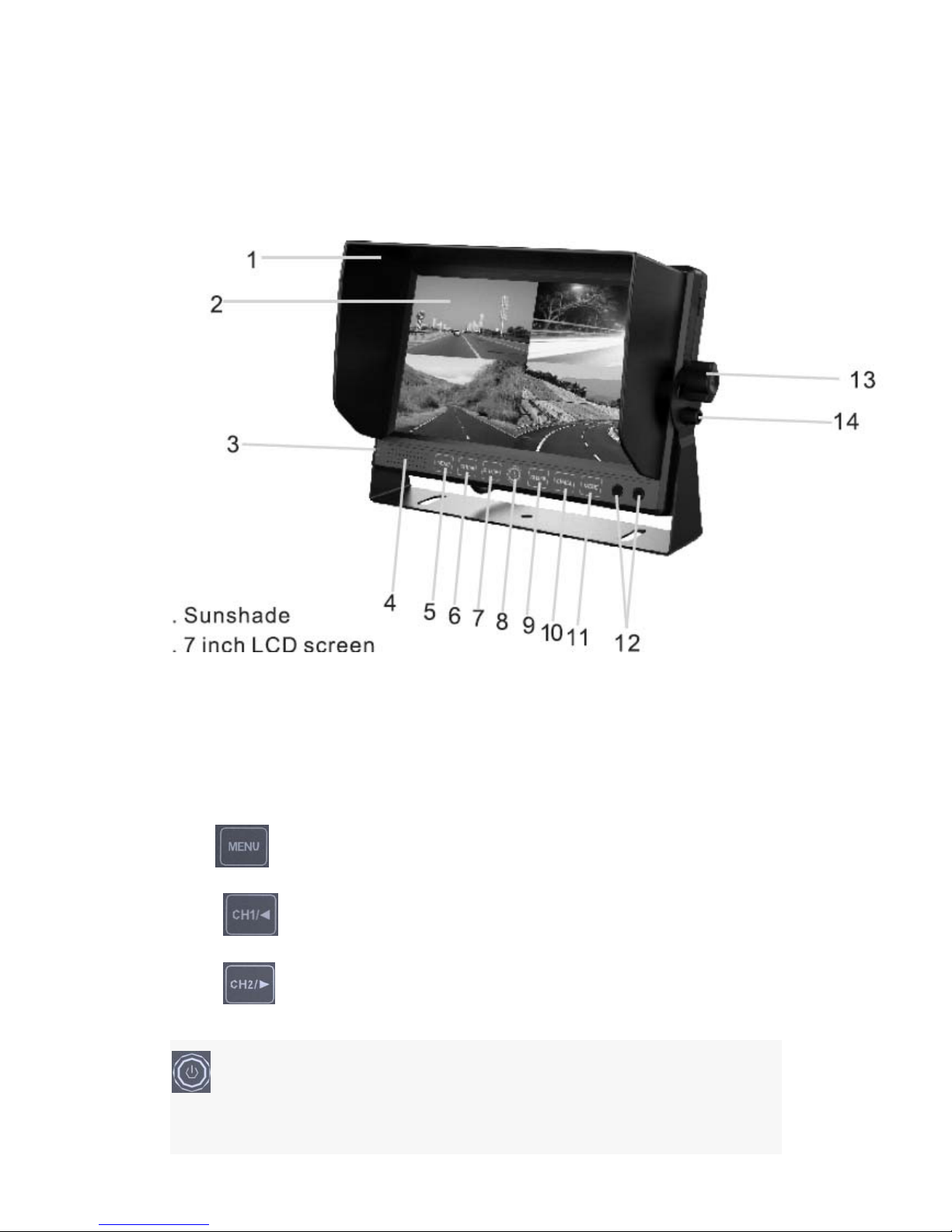

panel operational specification

1) sunshade

2) 7 inch LCD s

creen

3) DVR indicator light: Blue is power on, flash red is recording

4) Loud speaker

5)

： Menu key:pasue recording . return back in menu and playback status

6)

： CH1 Key: Enter CH-1 ,select left in menu ,Select last song in playback

7)

： CH2 ：Enter CH-2 ，select right in menu. Select next song in playback

： POWER: when power on, recording /stop recording switch. Long press power key to

three seconds can turn off monitor. Short press power key can turn on monitor. To choose play
/pause in menu status. Long press power key to ten seconds can reset system

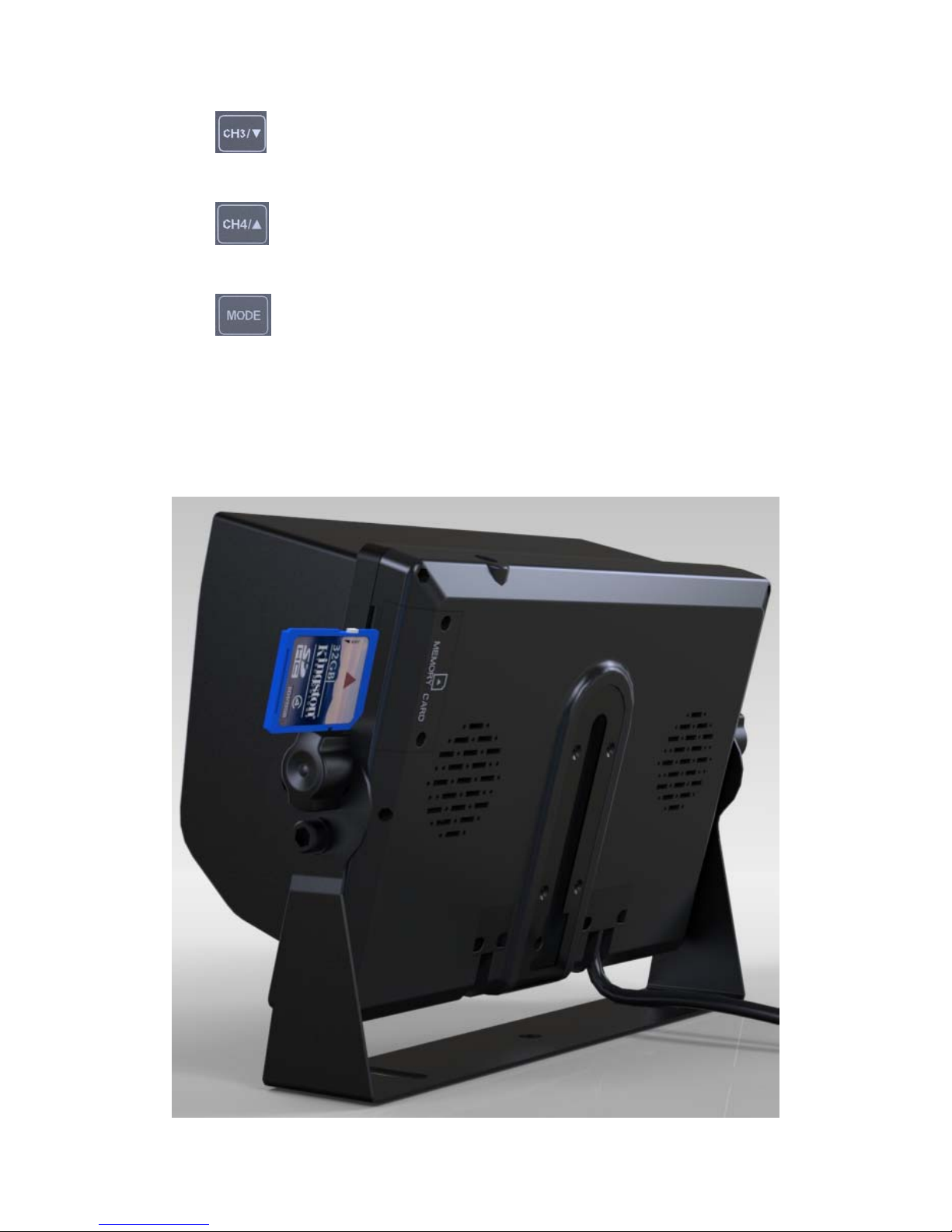

8)

： CH3: Enter CH3, Select down direction in menu status. It’s volume decrease in

playback status

9)

： CH4: Enter CH4, select up direction in menu status. It’s Volume increase in

playback status

10)

： Mode: quad images button To choose the volume decrease/ play /pause in

playback status

11) Remote window

12) Plastic screw

13) screw

14)screw

 SD card slot

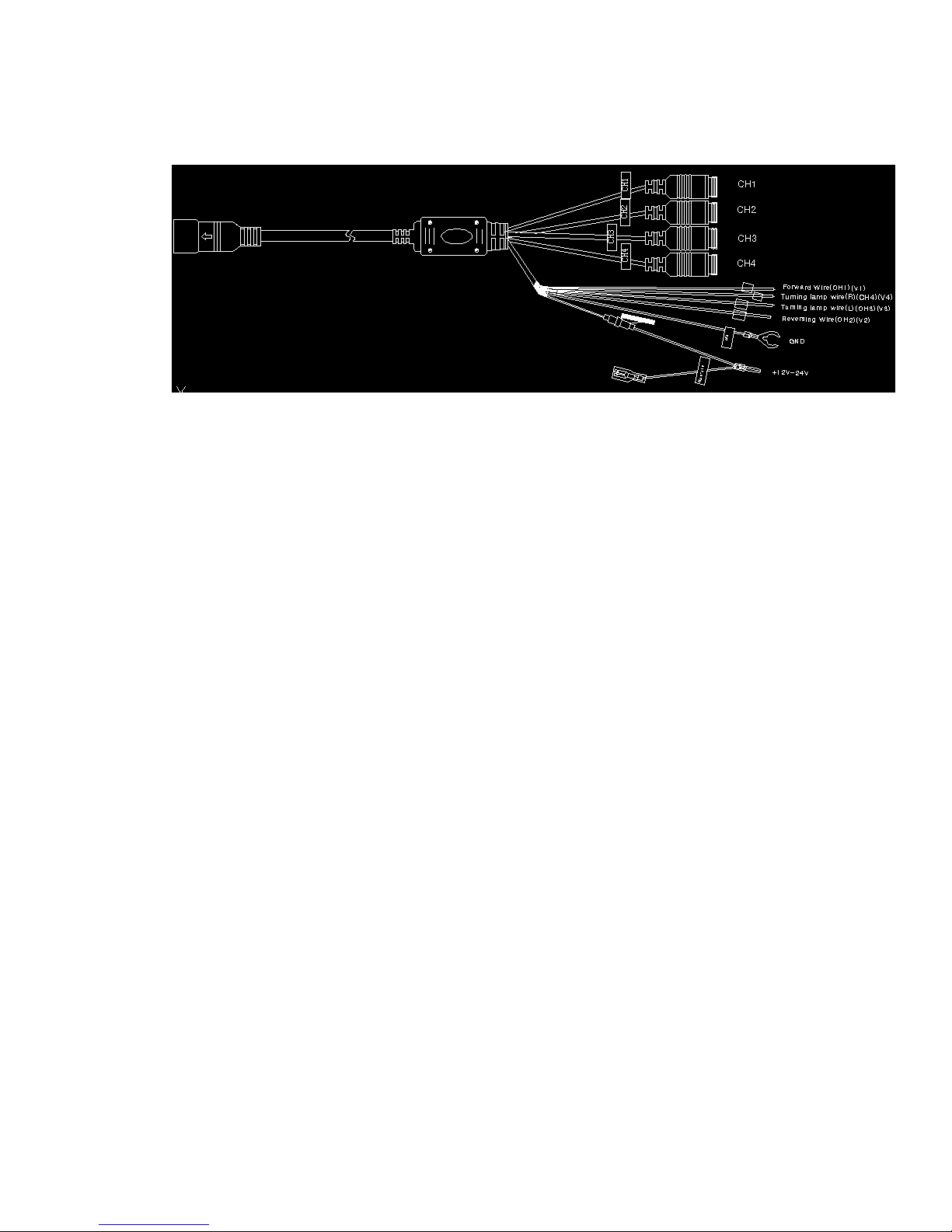

3、Connection

4 PIN

Red: DC 12V /24V power supply

Black wire: ground

Brown wire: CH1 trigger
Green wire: CH2 trigger
Blue wire: CH3 trigger

Grey wire: CH4 trigger

1、 CH1 : V1 signal input
2、 CH2: V2 signal input
3、 CH3: V3 signal input
4、 CH4: V4 signal input

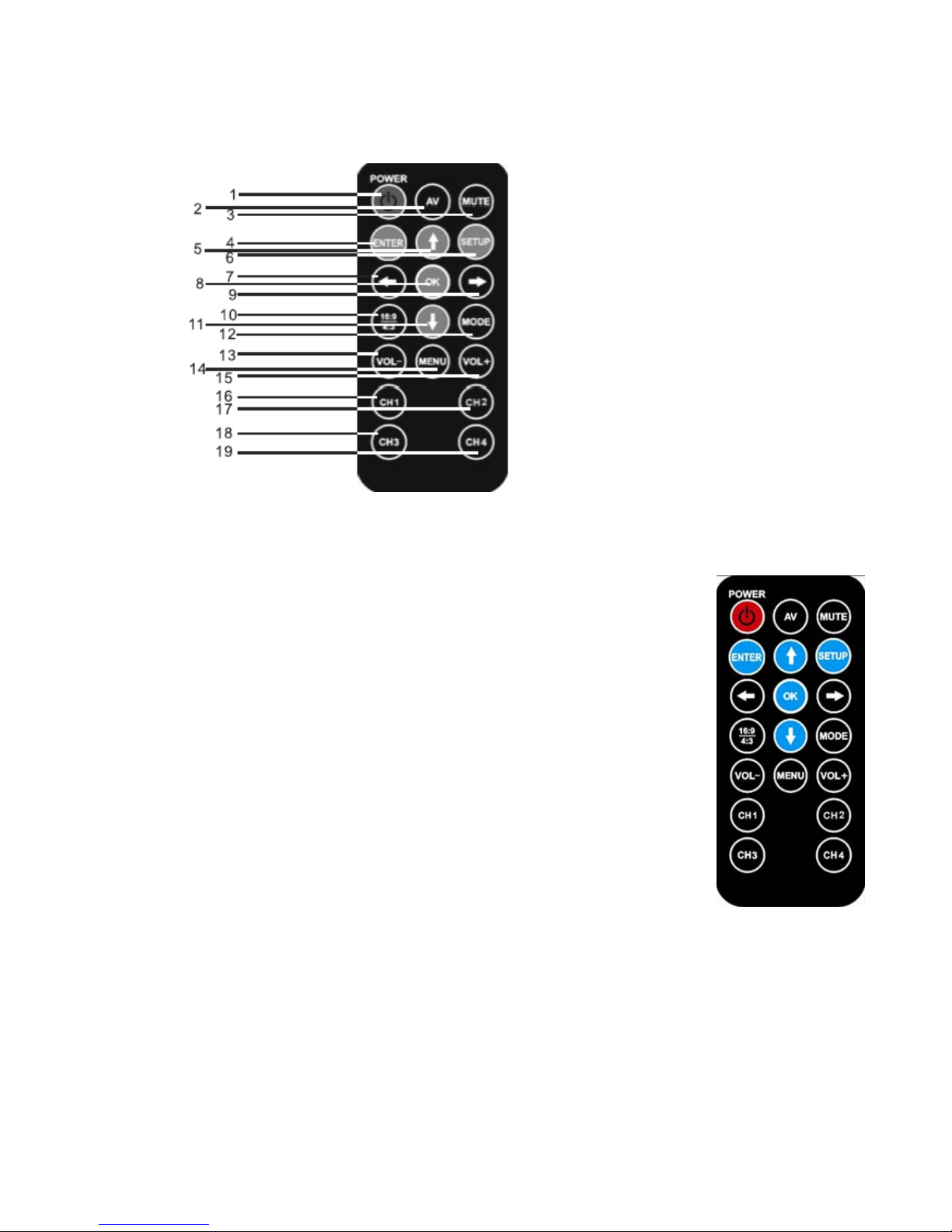

Remote control function

1. Turn on/off power

2. Switch at CH1/CH2/CH3/CH4

3. Sounds off

4. Enter: when DVR operating, switch at record & playback

5. UP: When DVR operating, select up

6. When DVR operating, can select menu set. To exit in menu status.
Return video file list in playback.

7. Left direction key: select left .last song in playback status

8. OK key: recording / stop recording switch in recording status. Confirm
in menu status。 Play / pause in playback status

9. Right key: Select right in menu status. Next song in playback status

10. 16:9 / 4:3 key, Switch aspect ratio

11. Down direction key: Select down direction

12. MODE Key: Switch image effect mode

13. VOL – Key: decrease the sound, decrease analogy quantity

14. MENU key: To enter menu

15. VOL+ key: Increase the sound, increase analogy quantity

16. CH1 key: Enter CH1

17. CH2 key: Enter CH2

18. CH3 key: Enter CH3

19. CH4 key: Enter CH4

Operating instructions

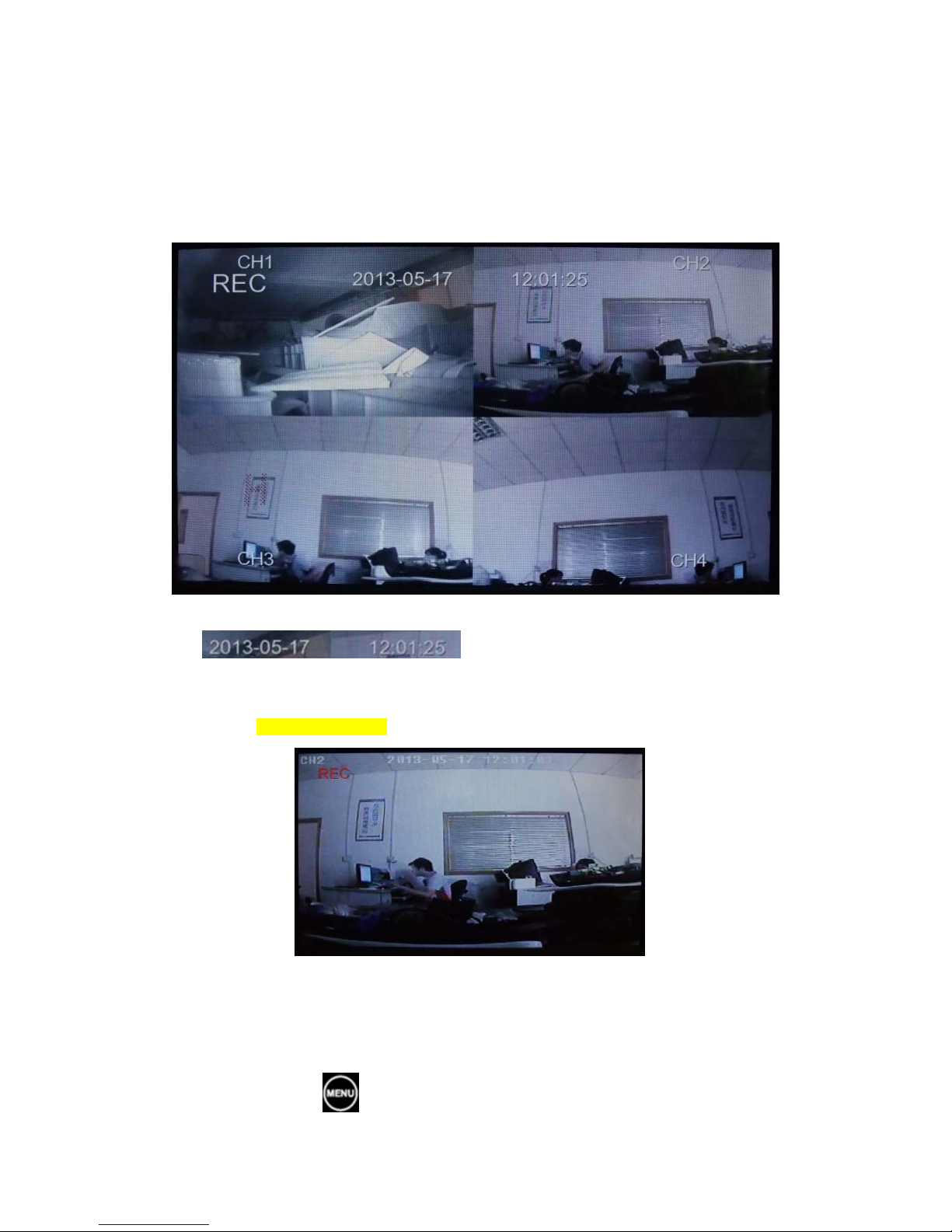

1.Main interface instructions

1) CH1/CH2/CH3/CH4：CH1/CH2/CH3/CH4 channel display

2)

：Real data and time display

3) REC instruction: recording when “REC” in red word. Recording stopped when “REC” in
white word

4) A single video amplification

2、Menu operation

1) Press the “ ”key on remote control to set “ Contrast ”

“Brightness” “Saturation”menu, then press“ ” and “ ”

to set the parameter

2) Press the“

“ ” key on remote control to set the volume. Press

the “

” key on remote control to set mute

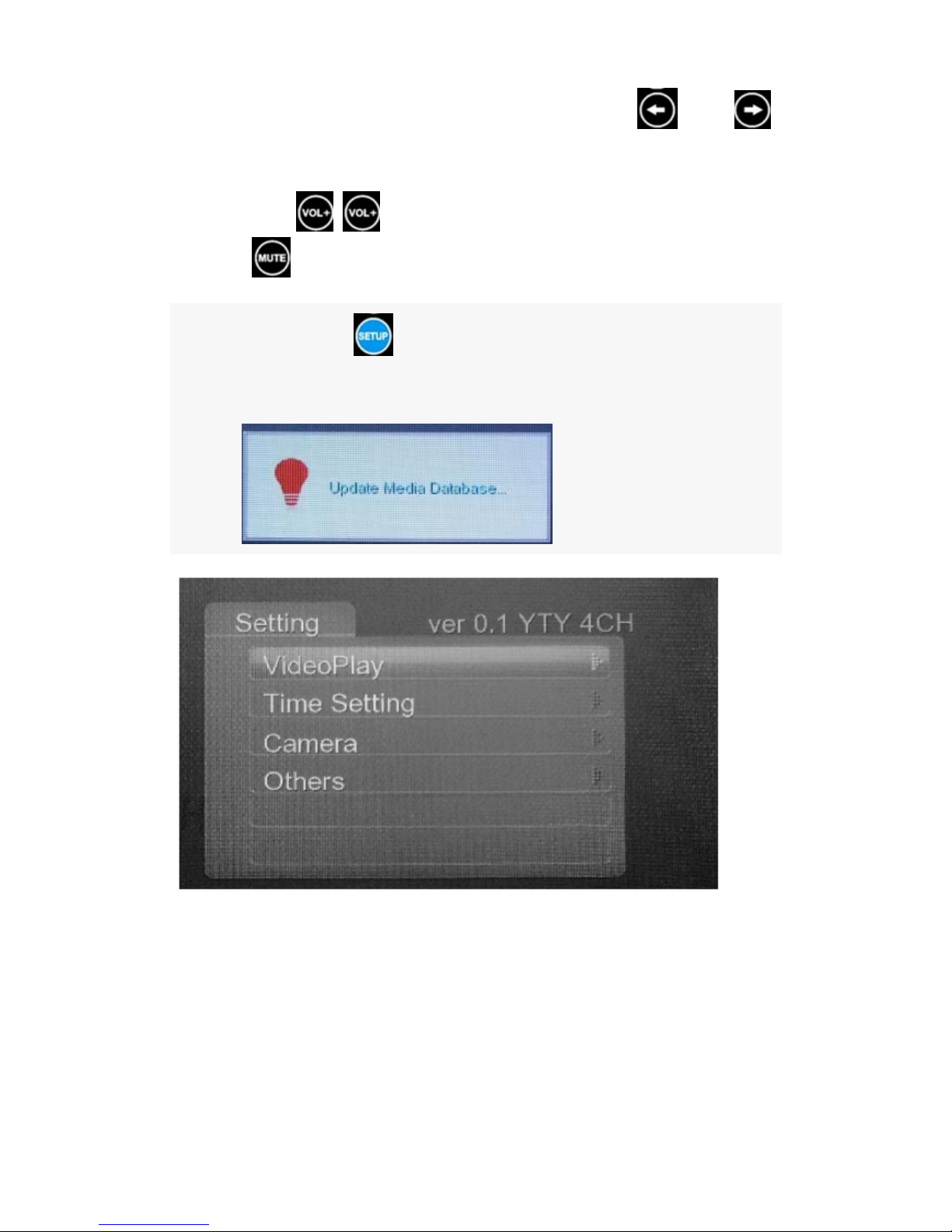

3)Setting :Press the“ ”key on remote control to enter the main menu,

Before entering the main menu will have a waiting process, ( see figure as

follows)

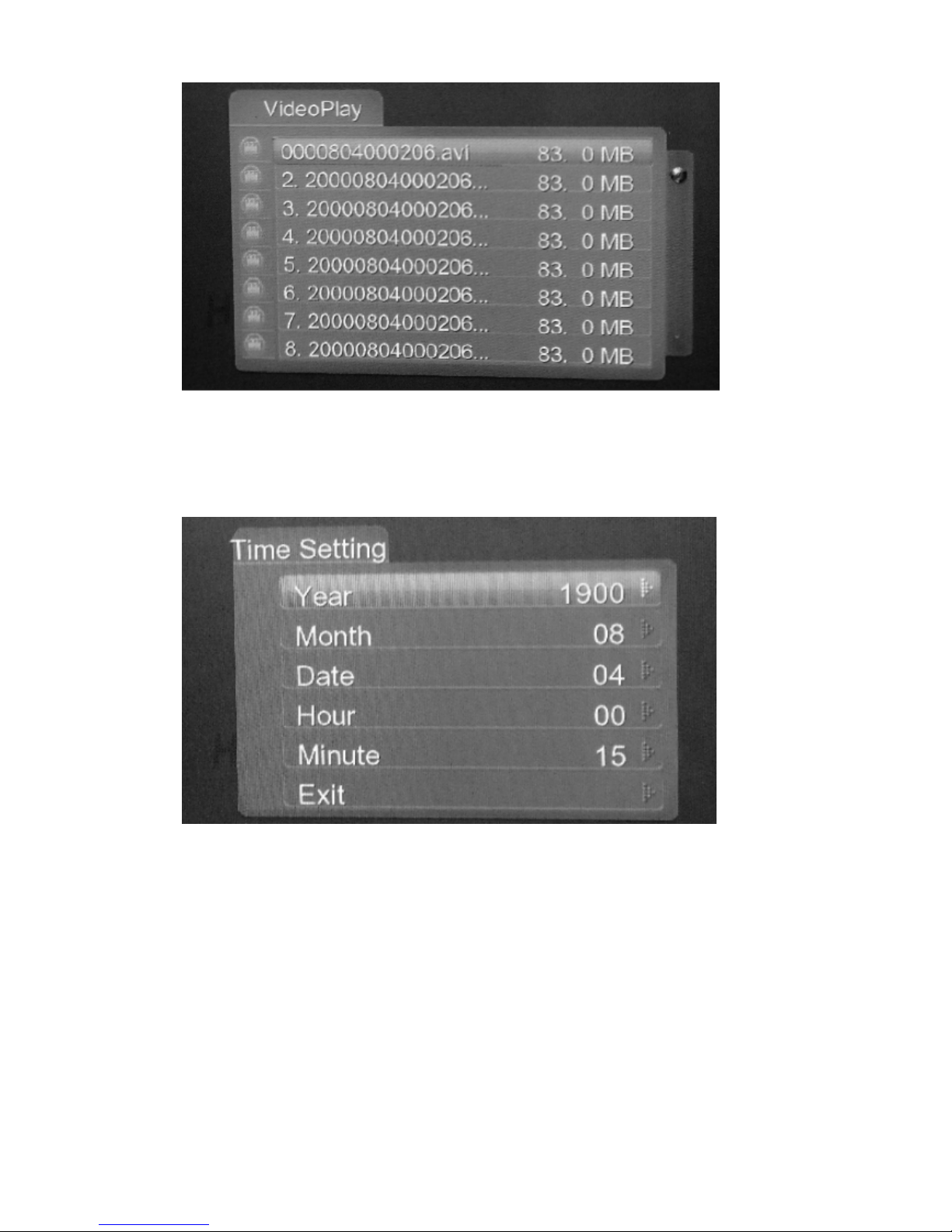

1. Video play: Enter videoplay menu

( see figure as follows), select

the video and play video by remote controller to playback

2. Ti

me Setting: Enter the menu of Time setting

(see figure as

follows).user can set the date and time then save the setting.

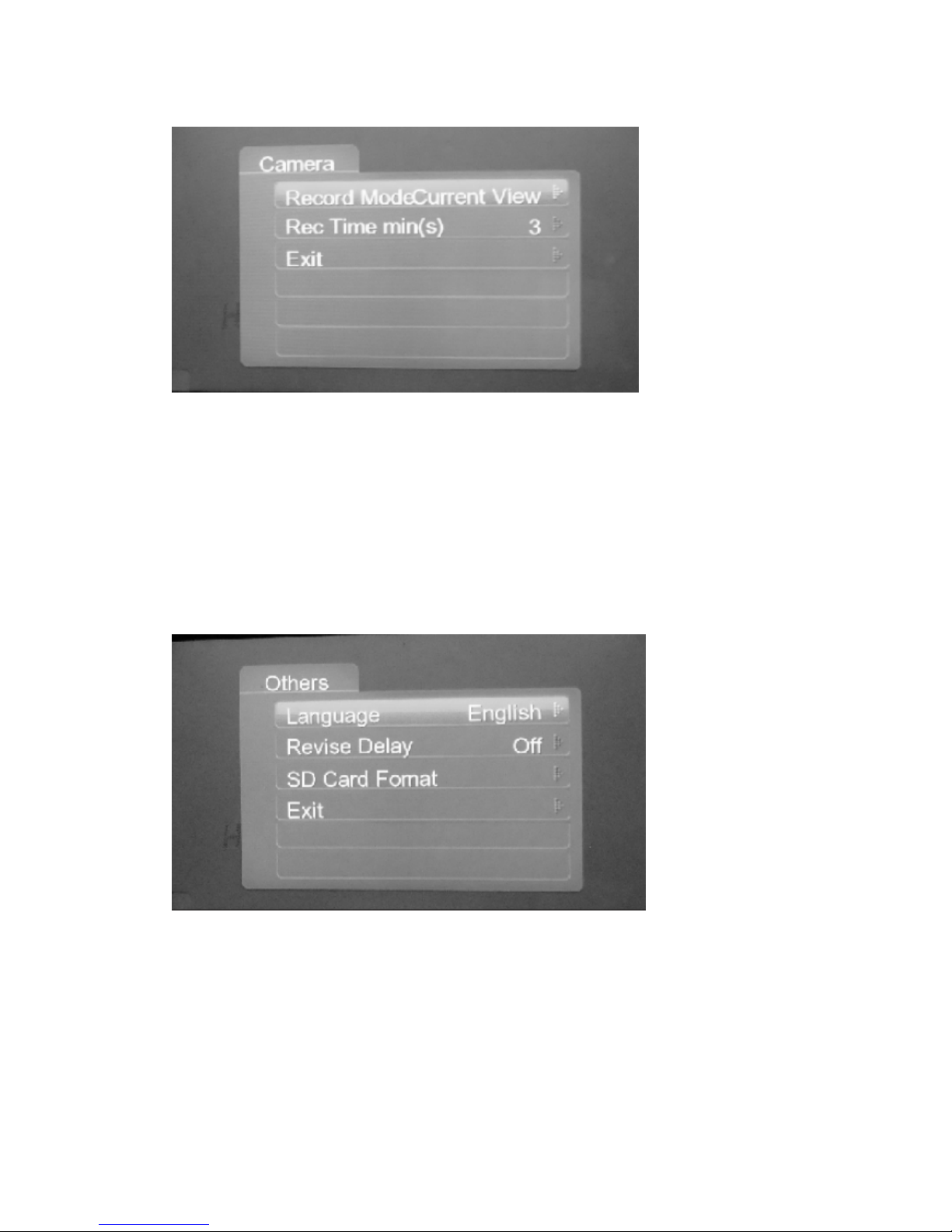

3. Camera: Enter the menu of the camera s

et

(see figure as follows),

to select the target channel (current view or all channels). (Notice:

change the set of the recording channel will occupy memory

large space; the system will be reset after exit the camera set.

Recording Time min(s): Enter the menu of REC Time min(s);

select the recording time from 3 minutes to 10 minutes to set for

every recording video.

4. Others: Enter the menu of the others (see figure as follows), select

the language “English” “Simplify Chinese” “Traditional Chinese” to set
your desire
Revise delay: Enter the menu of the revise delay, select the revise
delay “off” “2 Second” “3 Second” to set your desire

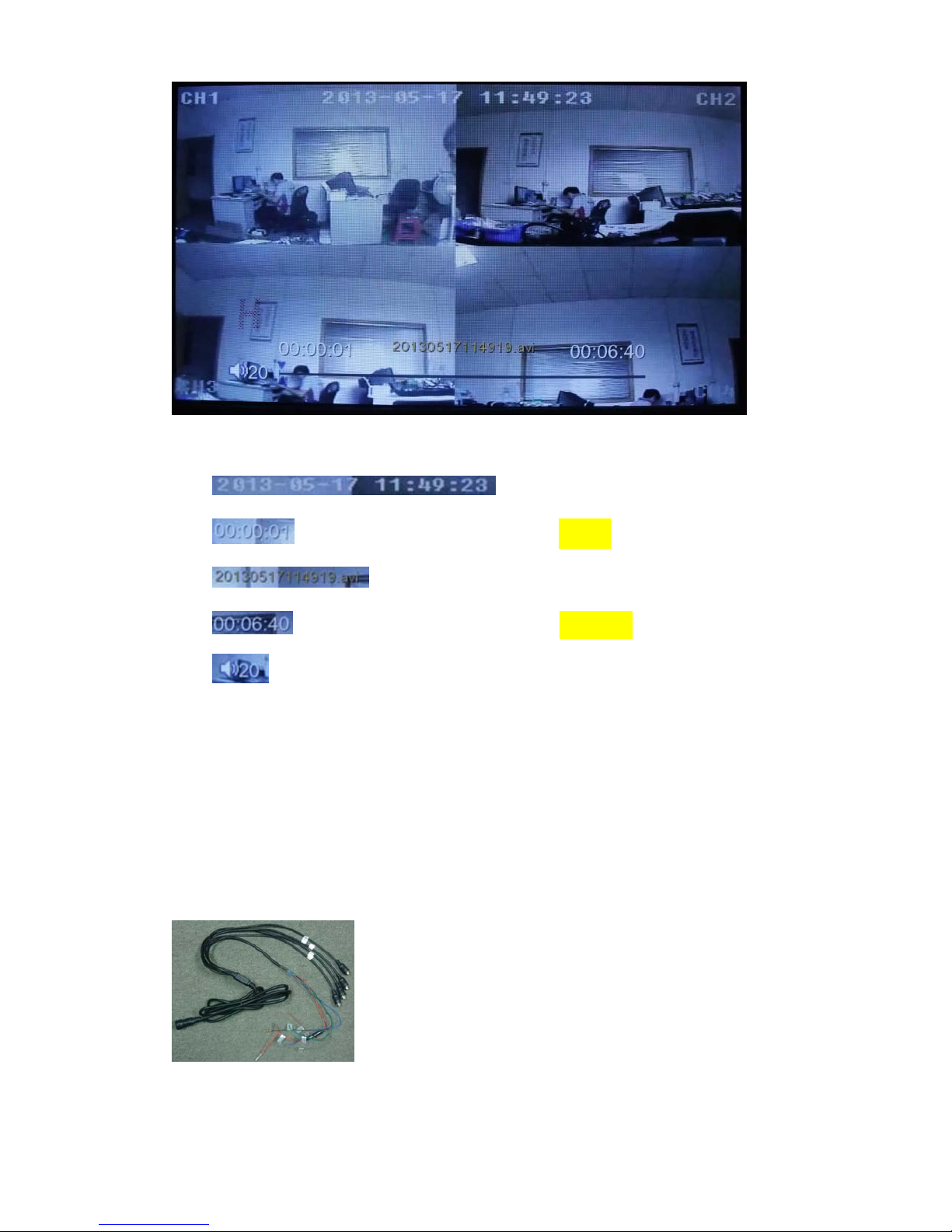

3、Play Back：

Enter the main menu ,to select your desire video to play in video play list

1) CH1/CH2/CH3/CH4 channel

2) ： REC real time and date

3) ： The current video file playback time display

4)

： Playback file name

5) ： The total time of current playback of video files

6)

： System volume display

The user can do some setting such as play/puause, last song, the next song and return etc operation
on panel keys or remote controller. Operation details please above Product description

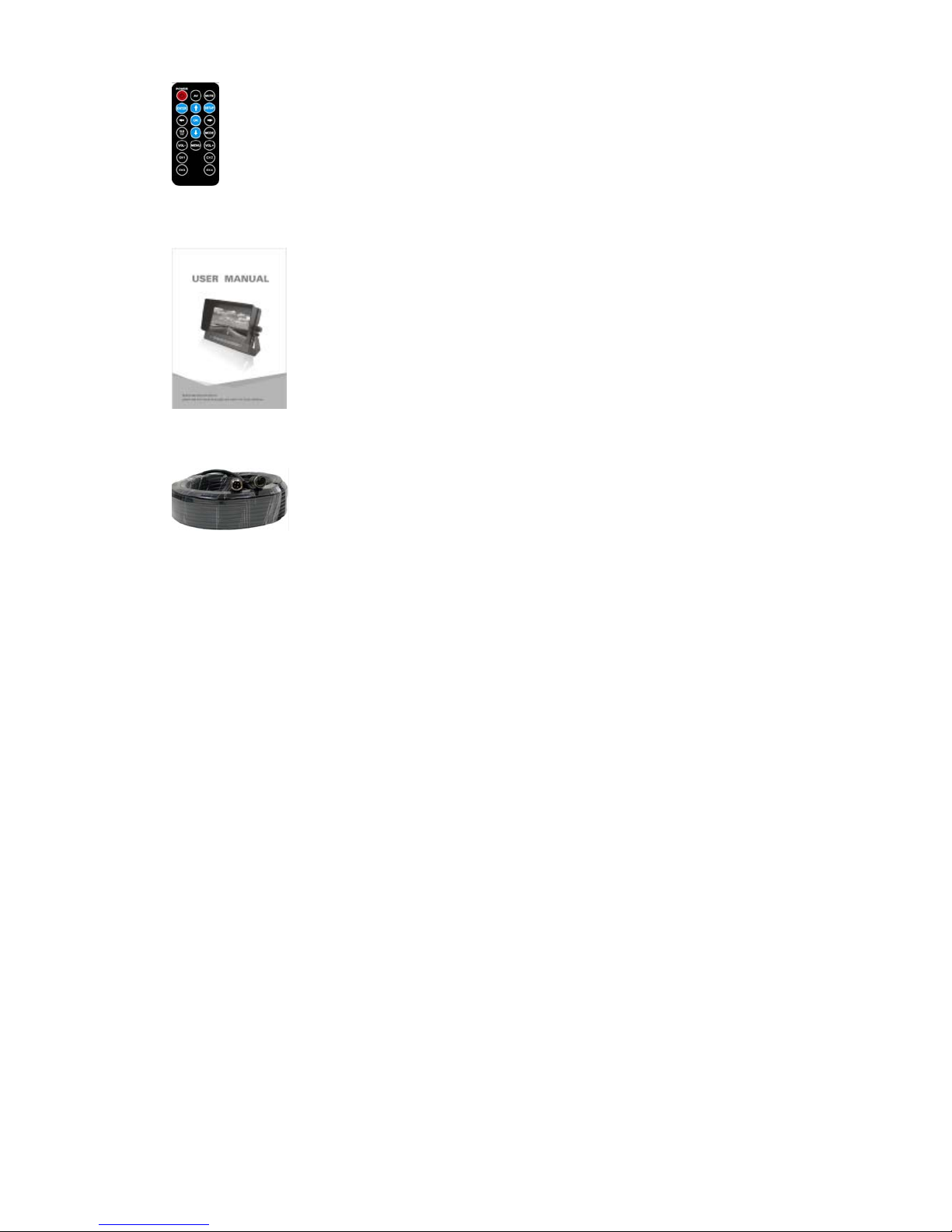

六、Accessories

1、cable

2、remote controller

3、manual

4 Extension cable 1 pcs 15 m

eter cable
