Pyle PLCM4560 User guide

PLCM4560

Rearview Backup Camera & Monitor System Kit

4.3’’ LCD Display, Waterproof Night Vision Cam

with Parking Assist Moving Distance Scale Lines

Please read instructions carefully before installation and use.

Installation should be performed by a professional installer.

General Introduction

This rear view mirror monitor is designed for car rear view purpose, which
can work with a reversing camera (NTSC or PAL) to show the real-time
images behind your car, with good compatibility with multimedia parking
sensor system beside the camera. With dual video input, it can be connected
to a car DVD player, too. When reversing gear is engaged the rear view
system automatically starts to work and when the monitor is powered o,
the mirror functions just like a normal rear view mirror as the monitor is
hidden and almost invisible. OEM Replacement style with Bluetooth and
compass function optional.

Operation

• The screen only works when it has video signal going into it. When video 1

input receives signal the screen turns ON to video one. You can use the
power buttons to turn the mirror o and on. When the signal is removed
the screen turns o.

• When video channel 2 receives video signal the screen powers ON and

switches to video two, regardless of whether there is signal going into

channel 1. When in video two mode, the power button on the mirror can

be used to control 5 dierent brightness settings of the monitor. When
signal is removed from video two either the screen will switch to video
one if there is signal present there or switch o if there is no signal.

• The screen can adjust its brightness according to the ambient light

condition. When the ambient light is strong, the screen will be brighter;
similarly, the screen will decrease its brightness to protect your eyesight
and so it isn’t too bright while driving when the ambient light is low.

• The mirror also has a compass and temperature features, long press the

power button to on/o this function, when the compass works, it will
indicate the driving direction with 8 dierent directions (E, SE, A, SW, W,
NW, N, NE); In temperature mode is alternating with outside temperature.

www.PyleUSA.com

2

Specications

Model
Description
Screen Size
Display Screen
Display Resolution
Aspect Ratio
Power Consumption
Working Voltage

4.0"

TET-LCD

480(H)*272(V)

16:9

3 .6W

DC12V

Brightness

4.3"

TET-LCD

480(H)*272(V)

16:9

4W

DC12V

Video Input

Signal System

V1 to GPS/DVR/DVD, etc.

V1 to Reverse Camera

PAL/AUTO/NTSC

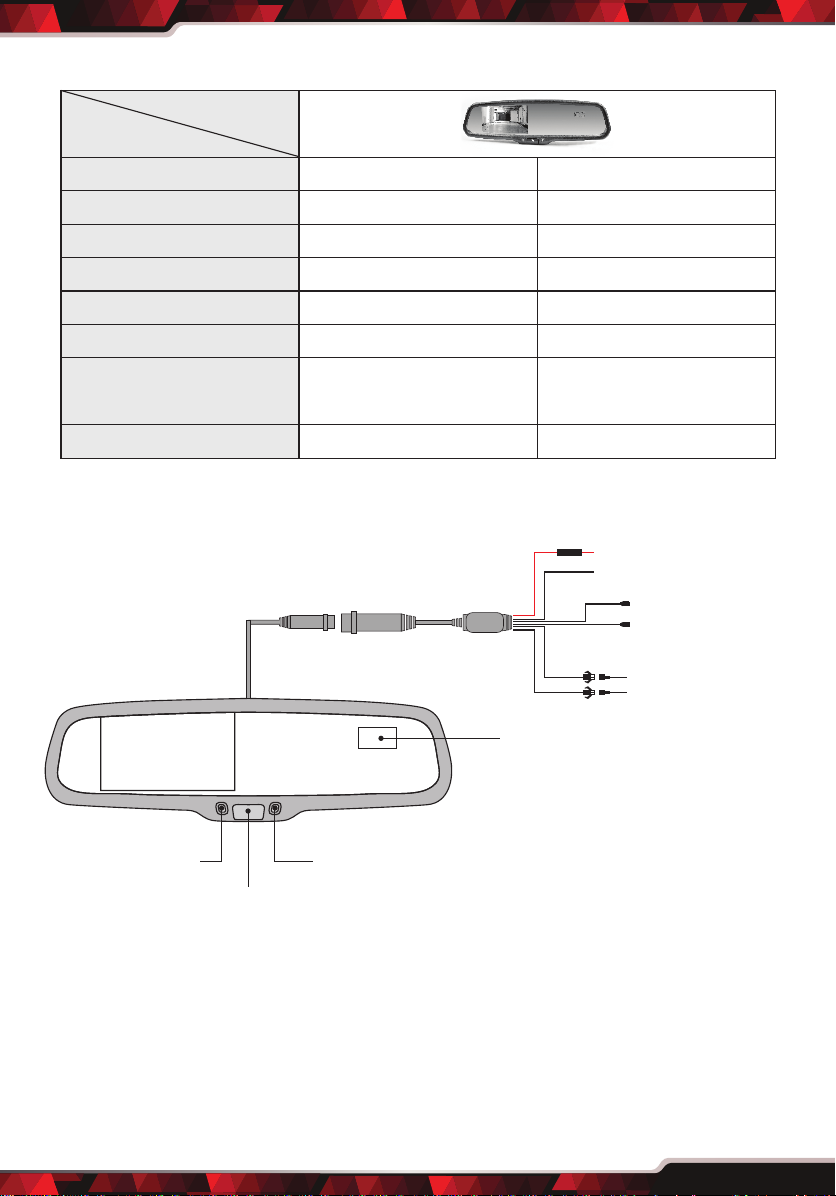

Wiring Diagram

Rearview Mirror

Ambient Light Sensor Standby Indicator

Power Button

When V2 channel has signal in, press to adjust brightness

V1 to GPS/DVD, etc.

V1 to Reverse Camera

PAL/AUTO/NTSC

RED + 12V (ACC)
BLACK(to Ground)

Av1(to DVD player)

Av2(to Reversing camera)

TEMPERATURE IN
TEMPERATURE OUT

COMPASS

When V1 channel has signal in, press to on/off

Attention

When connecting with Power cable, please make sure not to mistaken the positive
and negative pole, otherwise the fuse will melt down itself immediately for security
protection. In case it happens,please replace the melted fuse with a new one with
same specication, and the connect properly to the right pole. Don't randomly
increase the current magnitude of the fuse, and NEVER use metal wire as a substitute.

3

www.PyleUSA.com

REAR VIEW BACKUP CAMERA

Wire Connection

1. Please hard wire the red positive wire connected to the round 1mm DC
plug (pictured below) to your reverse tail light positive 12V connection

and the black wire to the closest available ground. You will probably need
a small length of wire to reach from your reverse tail light to the DC plug.

2. This model is with license plate frame camera, so the unit can be installed
with the number plate.

There is the trajectory parking line function (the camera distance scale line
will be moving according to where the car moves, when car in reverse or
parking status). As the above 2 picture is shown.

3. Please plug the round 1 mm DC plug that you just wired to your reverse

tail light into the red (A) power connection (pictured above)

4. Use the included 5m video cable to connect the yellow video wire (B) to
your video monitor.

Video Cable

Monitor

Video (out)

CAMERA

Backup Light Power

Red: + 12V (in)

Black: GND (in)

Attention:

The camera switch is controlled by the reverse gear shift. When you put your car in

reverse, the camera will receive its 12V power from the reverse tail light.

4

www.PyleUSA.com

PLCM4560

Rearview Backup Camera & Monitor System KitLine Display, Night

4.3’’ LCD Display, Waterproof Night Vision Cam

with Parking Assist Moving Distance Scale Lines

Features:

• Kit Includes Rearview Mirror Monitor Assembly + Backup Camera

• Rearview Mirror Designed to Replace Existing Mirror Assembly

• Includes All Necessary Cables/Wires for Installation

• Responsive / Moving Digital Rearview Distance Scale Line

• Automatic Activation When Car is Placed in Reverse Gear

• Backup/Reverse Camera Trigger

Rearview Mirror Assembly:

• 4.3'' TFT LCD Display Built-into Mirror Panel

• Auto Dimming and Brightness

• Compass and Dual Temperature Display

• Ability to Connect up to (2) Video Sources

• RCA Video Connector Types

• Total Pixels: 480 x 272

• Aspect Ratio: 16:9

• Video System: PAL/NTSC

• LCD Display: ON/OFF

• Power Consumption: 4W

• Dimensions (L x W x H): 10.6'' x 3.5'' x 1.8'' -inches

Backup Camera:

• Marine Grade Camera Construction

• Waterproof & Fog Resistant (IP67 Rating)

• Low Lux Light Performance (0.2 LUX)

• Preferably Mounted Above the Rear

License Plate

• Tilt Adjustable Camera Lens Angle

• 420 TVL Horizontal Resolution

• True Color Reproduction

• Total Pixels: 656 x 492

• Resolution: 420 TV Lines

• Viewing Angle: 170 Degree

• Auto White Balance

What’s in the Box:

• Mirror Monitor Assembly

• Backup Camera

• Mounting Hardware

• Power & Wiring Harness

• RCA Video Cable

• Video Output: 1.0V PP-75 Ohm

• Power Supply: DC 12V

• Dimension (L x W x H):

10.0’’ x 0.7’’ x 1.3'' -inches

• Sold as: 1

5
