Page 1
H T T P : / / W W W . P Y L E A U D I O . C O M
Instruction Manual
3.5” Slim TFT LCD Monitor with License Plate
Mount Rearview Camera w/ Night Vision
PLCM36
Page 2
Specification
MONITOR:
* Screen size: 3.5" (4:3)
* Resolution: 640xRGBx480
* Automatically Switch When Reversing
* Two Video Inputs, V1/V2 switching
* Power on/off when signal input/no signal input
* Visible area: 72x52.56
* Power supply: DC 12V
* Power consumption: 0.53W
* Operating temperature: 0°C~80
* Storage temperature: -10 ~80
* NTSC/PAL System Auto Switch
* Brightness: 200 cd/m2
* Contrast: 200:1
* Dimensions: 3.7”W x 3.3”H x 0.67”D
CAMERA:
* CMOS water proof 1.25" flush mount housing
* 20 foot male to male RCA video cable
* Require drill cutout tool included
* Output Standard: PAL/NTSC
* High Resolution: 380TV Lines x 60 Fields
* Image Sensor: Ov 7910 Color CMOS
* Lens: 6mm 92°
* Low Light Illumination: 1.5 Lux/F1.2
* Video Output: RCA 1.0 Vpp Composite Video @ 75 Ohm
* Power Supply: DC 12 V > 75 Ohm
* Temperature: -10~50° Celcius
* Unit Dimensions: 1.3''(H) x 8''(W) x 1.26''(D)
°C
°C °C

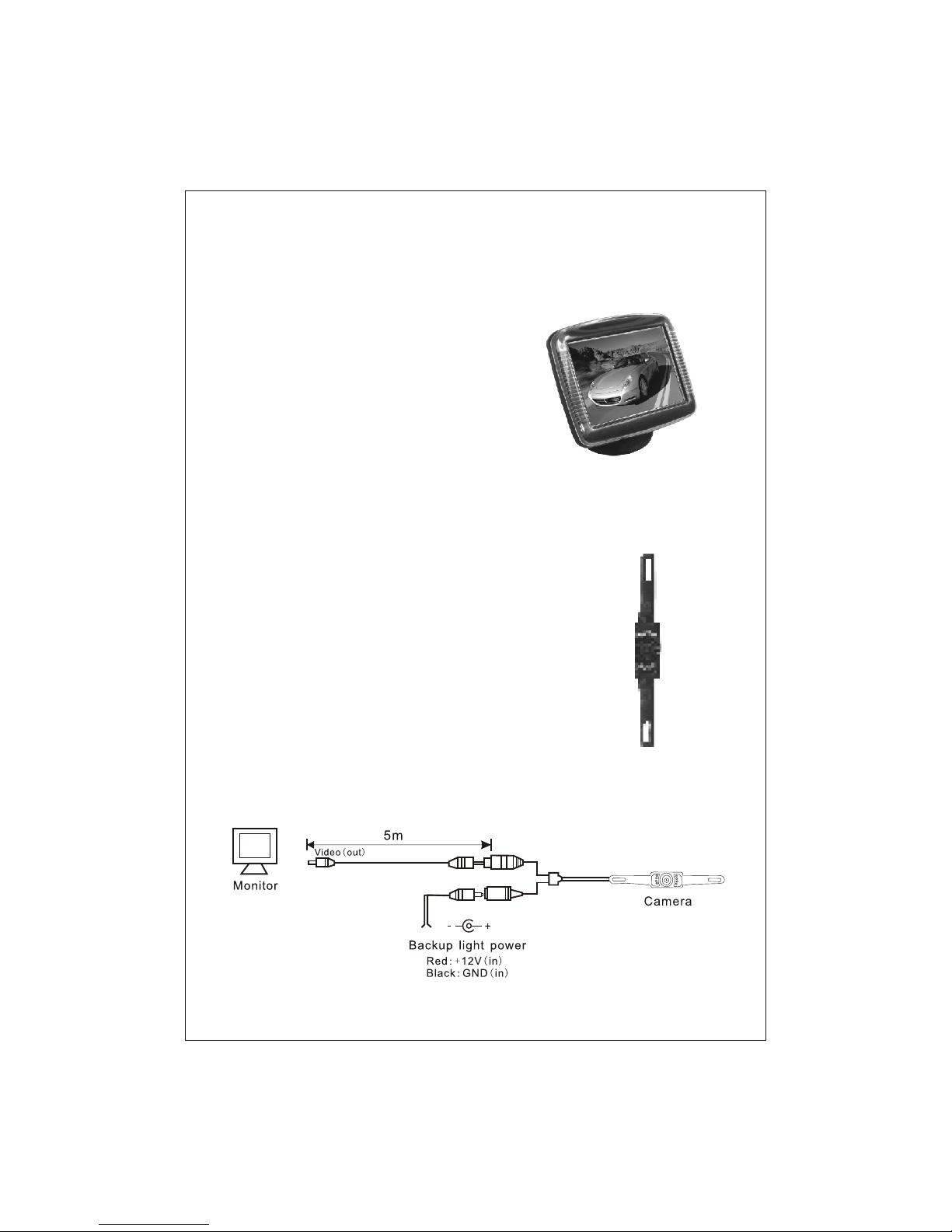

Connection:
3.5"
