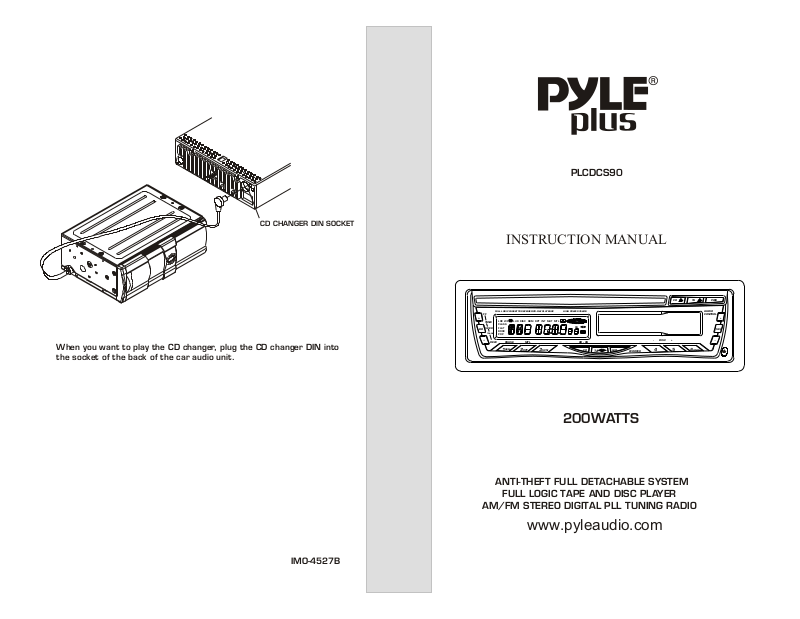

Pyle PLCDCS90 User Manual

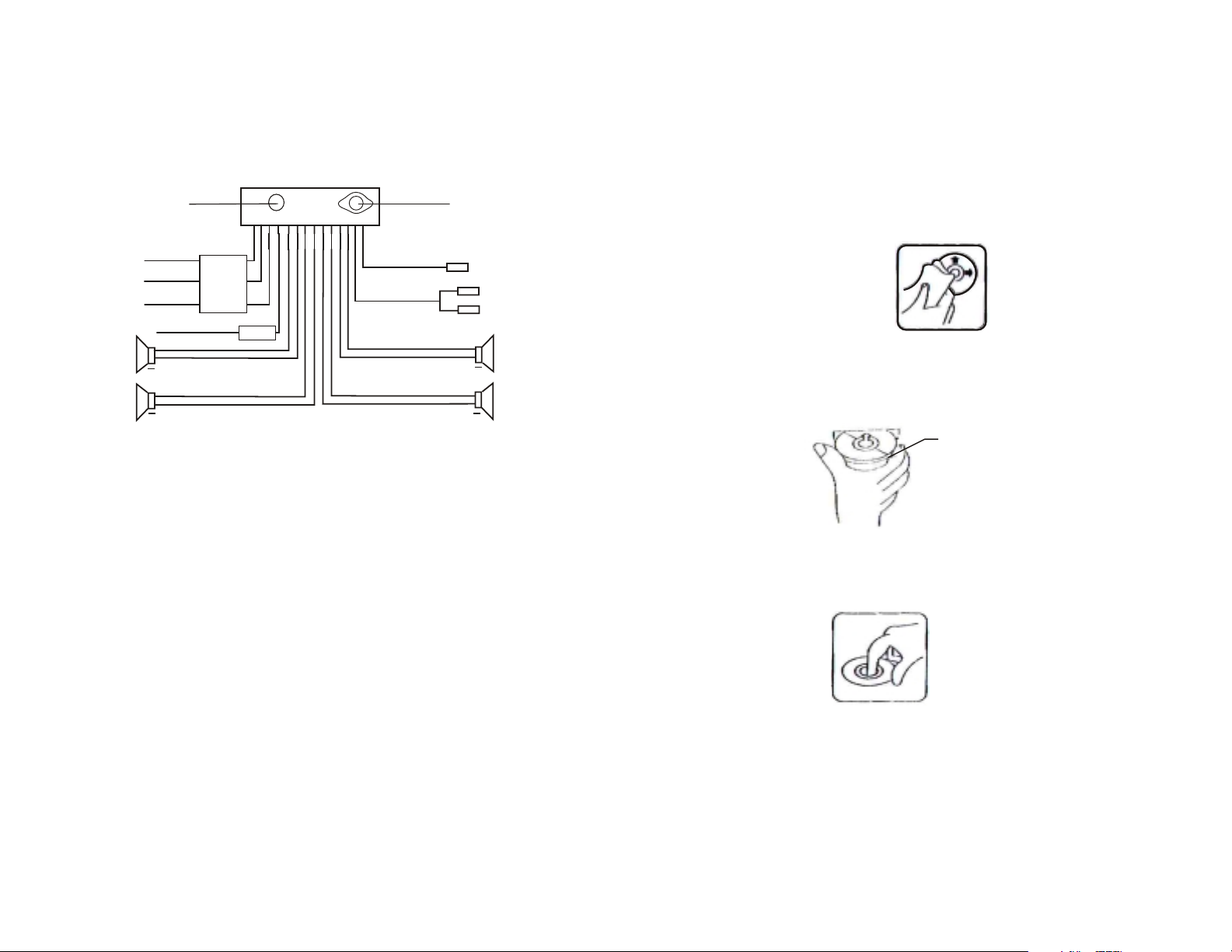

CD CHANGER DIN SOCKET
When you want to play the CD changer, plug the CD changer DIN into
the socket of the back of the car audio unit.
PLCDCS90
INSTRUCTION MANUAL
FULL LOGIC CASSETTE/RECEIVER/CD-R/W PLAYBACK HIGH POWER 35WX4
FF
+
TUNE
SEEK
BD
TRACK
--
REW
LUDWF INTRPTRDM MTLMUT
LOC
CLASS
FLAT
ROCK
POP
PAUSE
RDM
1
DISC
MTL
RPT
SCN
2
3
CH
CD - CH
CD LUD
TA
200WATTS
WOOFER
TA
CD
+
-
DISC
4
5
PWR
AUDIO
CONTROL
+
SEL
-
-
AMS
6
IMO-4527B
ANTI-THEFT FULL DETACHABLE SYSTEM
FULL LOGIC TAPE AND DISC PLAYER
AM/FM STEREO DIGITAL PLL TUNING RADIO
www.pyleaudio.com
LOCATION AND FUNCTION OF CONTROLS
12 3
FULL LOGIC CASSETTE/RECEIVER/CD-R/W PLAYBACK HIGH POWER 35WX4
FF
+
LOC
TUNE
CLASS
SEEK
FLAT
BD
ROCK
TRACK
POP
--
PAUSE
REW
RDM
1
19
4
DISC
LUDWF INTRPTRDM MTLMUT
MTL
RPT
SCN
2
3
161718
CH
CD - CH
CD LUD
15
1. BAND BUTTON
Press it to switch from tape, CD player or CD changer mode to radio, and
the LCD screen will be shown as below:
FM 1 FM 2 FM 3 MW(AM) 1 MW(AM) 2
2.19. TUNE/SEEK/TRACK UP OR DOWN, FF/RW BUTTONS
In radio mode, press the + or - button, it will start automatic tuning and
stop at the next receivable station; press the + or - button for more than
2 seconds to research for the higher or lower frequency station.
In tape mode, press the + or - button to fast forward or rewind the tape,
and press TAPE button to resume normal tape playing.
In CD player or CD changer mode, press the + or - button to skip to the
beginning of the next track or one of the track currently playing. Press the
- button twice to skip to the beginning of the previous track. Press and
hold the + or - button for more than 2 seconds to search quickly (with
sound) in the forward or reverse direction, and press it again to resume
normal playing.
5
TA
WOOFER
1314
12
-
DISC
4
67
CD
+
5
10
11
TA
AUDIO
CONTROL
AMS
6
89
PWR
+
SEL
-
-
20
SPECIFICATION
GENERAL
Power Supply The Main Unit..................DC 13.8 Volts.Negative Ground
Maximum Output Power........................................................4 x 50W
Unit Dimension.............................................178(W) x 167(D) x 50(H)
FM TUNER SECTION
Frequency Range.......................................87.5MHz - 108.0MHz(USA)
Usable Sensitivity......................................................................10dB
Frequency Response(+/- 3dB)......................................50Hz - 12.5KHz
I.F. Rejection...........................................................................100dB
Image Rejection.........................................................................65dB
Signal-to-Noise Ratio..................................................................60dB
Selectivity.................................................................................65dB
Stereo Separation.....................................................................30dB
Capture Ratio.............................................................................2dB
Antenna Impedance....................................................................75
AM TUNER SECTION
Frequency Range..........................................530KHz - 1720KHz(USA)
Usable Sensitivity(S/N 20dB).....................................................20uV
I.F. Rejection.............................................................................80dB
Image Rejection........................................................................75dB
Antenna Impedance...................................................................75
TAPE SECTION
Wow&Flutter............................................................................0.1%
S/N Ratio(Normal)....................................................................52dB
Separation................................................................................50dB
Frequency response.......................................................50Hz - 15KHz
CD SECTION
Disc size.......................................................................................5"
Channels...................................................................2-channel stereo
Sampling frequency...............................................................44.1KHz
D/A converter...................................................................Twin. 1- bit
Pickup...........................................Optical 3-beam semiconductor laser
Output filter.............................................................................Active
Frequency response........................................................5Hz - 20KHz
Dynamic range..........................................................................85dB
Signal-to-noise ratio...................................................................90dB
Wow and flutter..............................................Below measurable limits
Channel separation(1 KHz).........................................................85dB
3. LCD (LIQUID CRYSTAL DISPLAY)
