Pyle PLCD-68-MP-3 Owners manual

OWNER'S MANUAL

ANTI-SHOCK CD / MP3 PLAYER

CD CHANGER CONTROL

AUXILIARY INPUT

SUPER POWER OUTPUT

ANTI-THEFT FLIP DOWN DETACHABLE FACE

FM/AM BAND RADIO RECEIVER

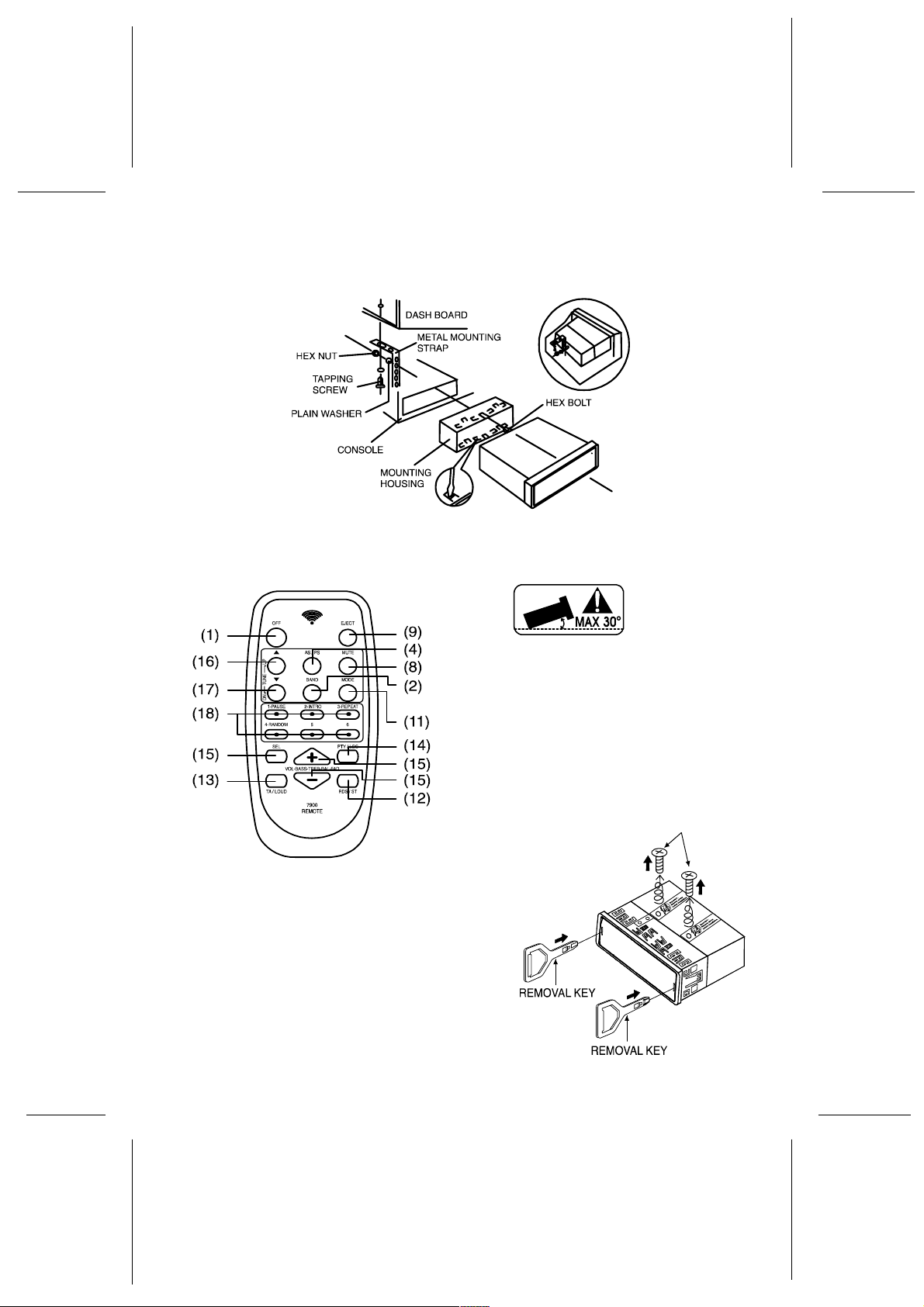

REMOTE CONTROL

MODEL:

PLCD68MP3

Page. 1

P / N : 570-F78902-01

LOCATION OF CONTROLS

REMARK :

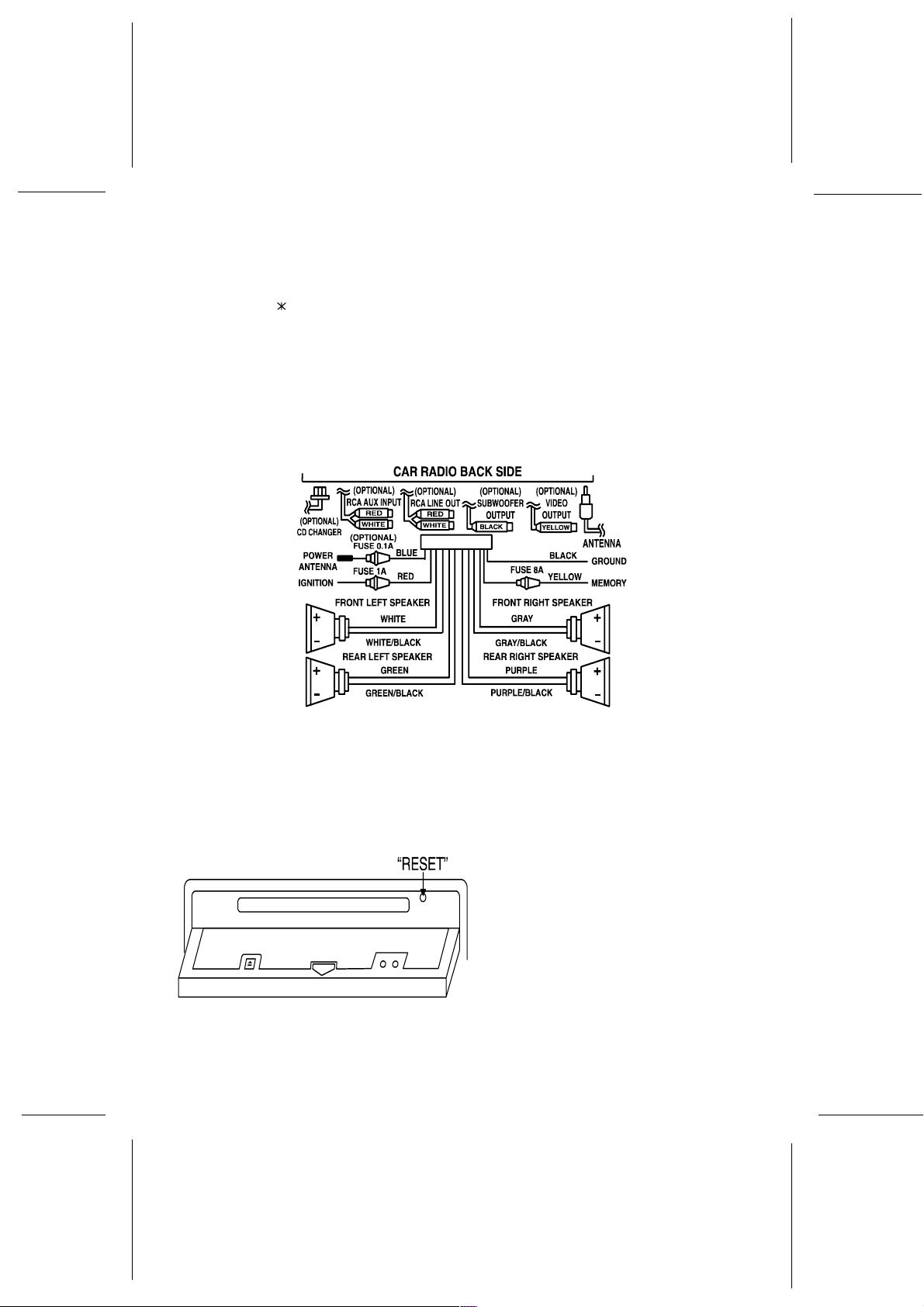

AT ANY TIME, IF THE WIRE IS DISCONNECTED, THE RESET SWITCH MUST BE PRESSED AGAIN BEFORE OPERATE THE
RADIO (REFER TO PAGE 6 FOR DETAIL). OTHERWISE, THE RADIO MAY NOT WORK PROPERLY.

FIGURE A

OPERATING INSTRUCTIONS

1. POWER ON/OFF CONTROL

Press the button to turn the power “ON” or “OFF”.
Note : The unit can be turn on by pressing any keys on the panel (except panel
release button & disc eject button). It will help the user who cannot find the power
button in dark.

2. BAND SELECTOR

Each time this button is pressed, the radio band is changed. The indication “FM1”,
“FM2”, “FM3”, “MW1” or “MW2” will appear on the display according to your selection.

3. SCAN CONTROL

Press this button to scan the receivable FM / MW stations. When receivable stations are
tuned in, they are monitored for approximately 4 seconds before advancing to the next
receivable station. Press SCAN button once again to stop scanning as desired.

4. PRE-SCAN/AUTO-STORE BUTTON

This button allows you to enjoy “Preset Memory Scan” function by pushing it shortly,
and “Auto-Store Memory” function by pushing it more than 2 seconds.

• PS (PRESET MEMORY SCAN) - It calls the memorized station frequencies (from 1-6)
automatically every 5 seconds.

• AS (AUTO-STORE MEMORY) - It searches all station frequencies upward and
memorize automatically 6 stations by catching the frequency which has scan-stop level,
the memorized station is shown on LCD as “CH1...6”. After memorizing, auto-store
memory function will be changed to “Preset Memory Scan” function automatically.

5. DISC SLOT

Holding the disc and insert into the disc slot. The disc mechanism will automatically
engage into CD/MP3 play mode.

6. LCD DIGITAL DISPLAY

The unit utilizes a digital type display which shows numerical indication of station
FREQUENCY and other FUNCTIONS.

7. CLOCK CONTROL

The button serves to show available information as following:

-Time

- Track No. / Playing Time (during CD and MP3 mode)

- Directory Name / File Name (during MP3 mode and the file must contain directories or files
name written by the CD writer)
