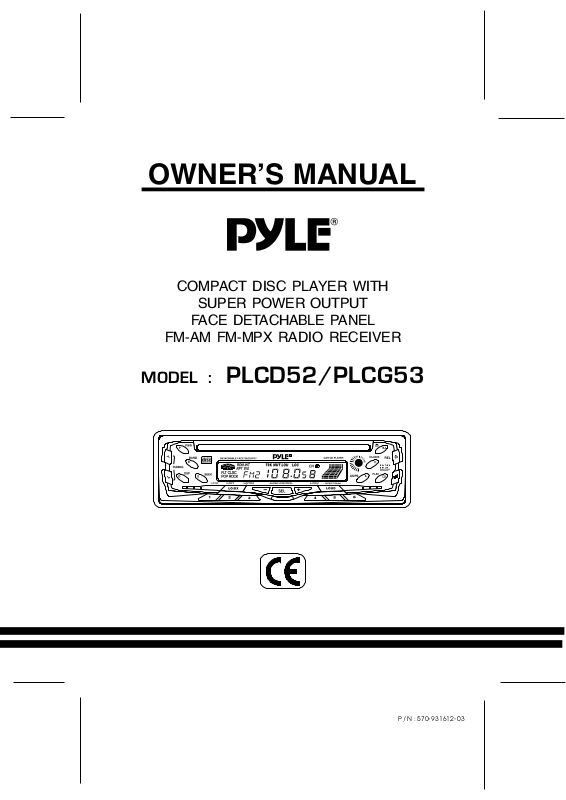

OWNER'S MANUAL
COMPACT DISC PLAYER WITH
SUPER POWER OUTPUT
FACE DETACHABLE PANEL
FM-AM FM-MPX RADIO RECEIVER
MODEL : PLCD52/PLCG53
Page. 1
P / N : 570-931612-03
LOCATION OF CONTROLS
OPERATING INSTRUCTIONS
1. POWER ON/OFF CONTROL
Press this button to turn the power "ON" or "OFF".
2. BAND SELECTOR
Each time this button is pressed, the radio band is changed. The indication "FM1", "FM2", "FM3", "MW1" or "MW2" will appear
on the display panel according to your selection.
Note : If you press the band button during CD mode, the CD mode will stop play automatically and the radio will be
activated.
3. LOCAL/DISTANT SELECTOR
Press this button to prevent strong local stations from overlapping weaker stations. For normal operation, press this button again
for distance.
4. SEEK CONTROL
Press this button seeks to next higher receivable station.
5. CD SLOT
Holding the disc to insert into the disc slot. The disc mechanism will automatically engage into CD play mode.
6. LCD DIGITAL DISPLAY
The unit utilizes a digital type display which shows numerical indication of station FREQUENCY and other FUNCTIONS.
7. DSP CONTROL
Press this button to select the sound effect (Pop, Rock, Classic, Flat).
8. CLOCK CONTROL
During radio and CD operation, press this button to call the time display on the incorporated quartz clock.
SETTING CLOCK TIME
1. Press CLOCK button and hold until the display flash and release.
2. Press tuning button to set the HOUR and Press tuning button to set MINUTES.
9. EJECT BUTTON
Press the eject button will eject the disc.
10. PANEL RELEASE BUTTON
This button is used to release the panel that holds the front panel to the chassis. To detach the front panel, press the button
so that the right side of the panel is released. Grasp the released side and pull it off of the chassis. To re-attach the
panel, position the left side of the panel in place first and then press the right side of the panel until the mechanism locks it
into place.
Page. 2
P / N : 570-931612-03
