Pyle PLCD4MRKT User Manual

1

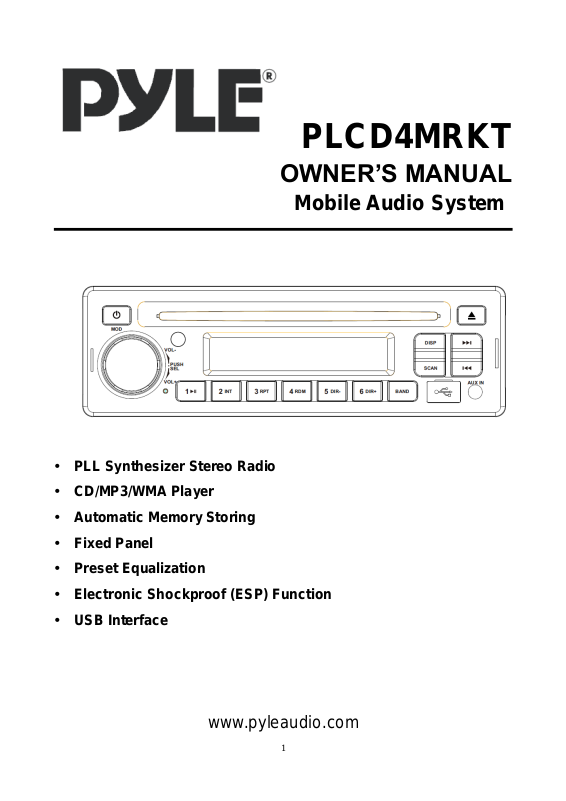

PLCD4MRKT

OWNER’S MANUAL

Mobile Audio System

 PLL Synthesizer Stereo Radio
 CD/MP3/WMA Player
 Automatic Memory Storing
 Fixed Panel
 Preset Equalization
 Electronic Shockproof (ESP) Function
 USB Interface

www.pyleaudio.com

2

CONTENTS

Installation ............................................. 3

Take out screw before installation ......... 3

DIN Front-Mount (Method A) ................. 3

DISPLAY INFORMATION .................. 10

USB play operation ........................... 10

Disc notes.......................................... 11

Installing the unit ............................... 3

Removing the unit ............................. 4

DIN Rear-Mount (Method B) ................. 5

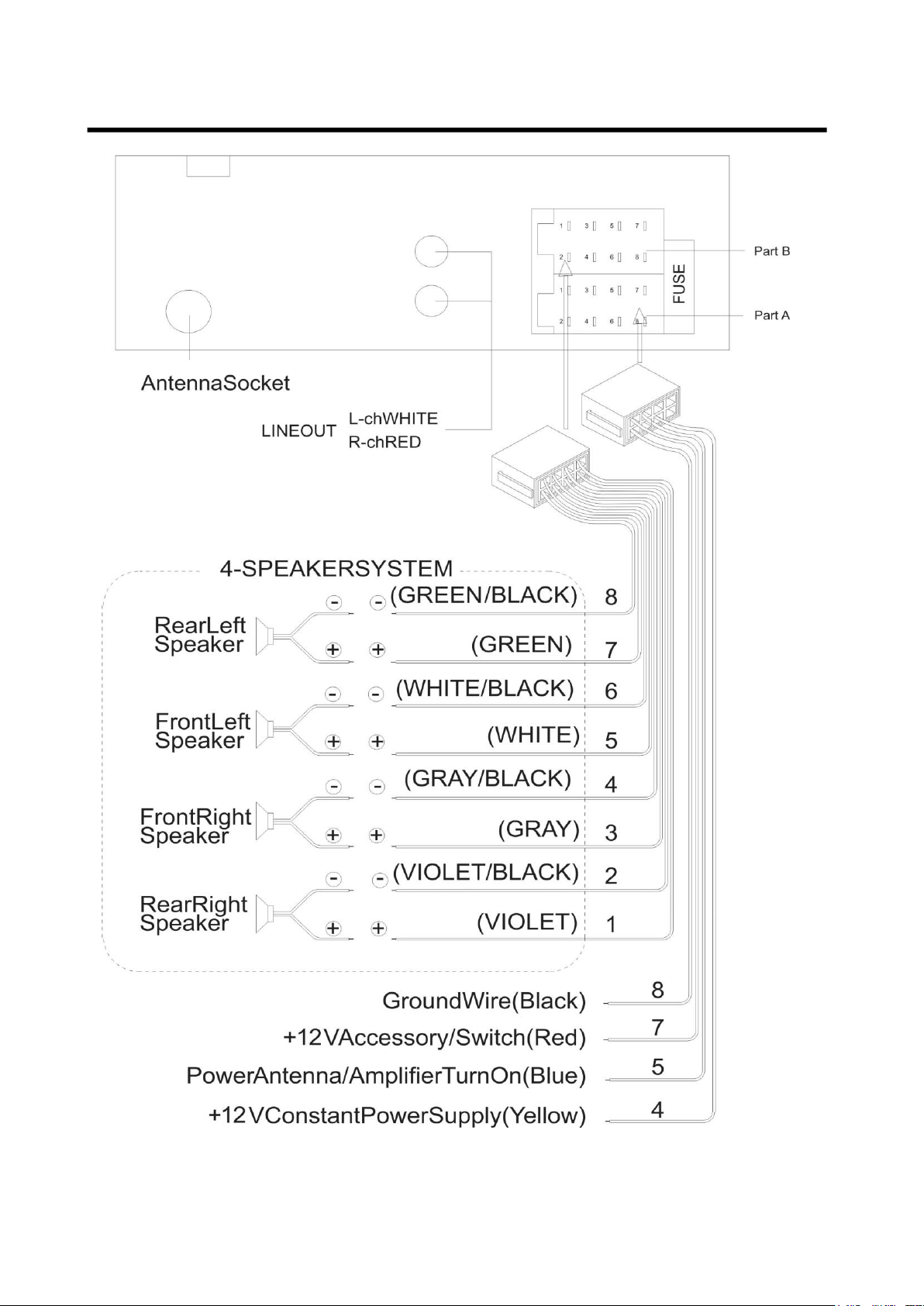

Wiring Connection ................................ 6

Operation .............................................. 7

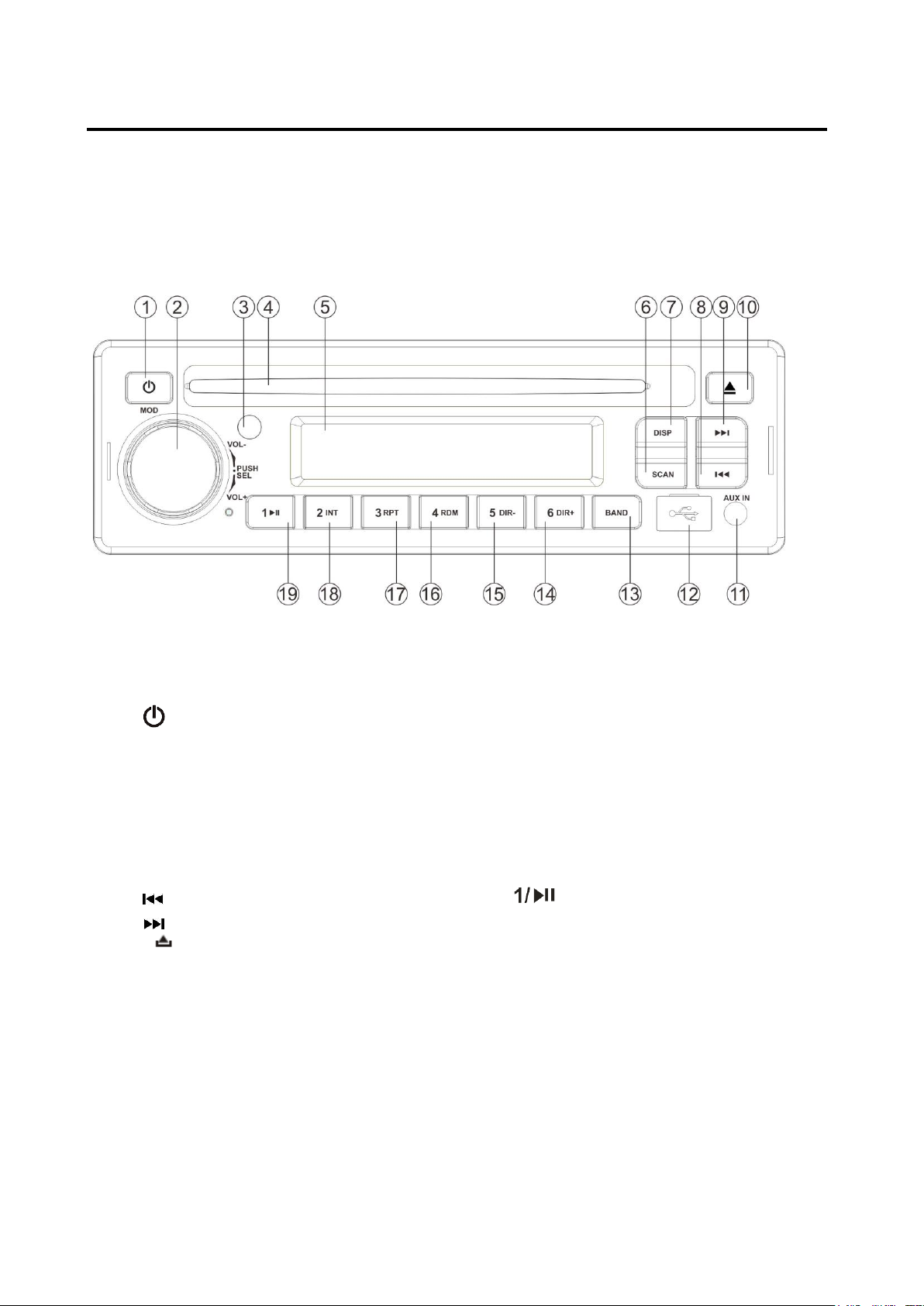

Location of keys .................................... 7

Switching on/off the unit ........................ 8

Sound adjustment ................................. 8

EQ function ........................................... 8

Display information ............................... 8

Liquid crystal display ............................. 8

Reset function ....................................... 8

Radio operation .................................... 8

Switching to radio mode .................... 8

Selecting the frequency band ............ 8

Selecting station ................................ 8

Automatic memory storing &

program scanning ............................ 9

Manually Store Station & Recall Preset
Station……………………………………..9

CD/MP3/WMA operation ................... 9

Switching to CD mode ....................... 9

Selecting tracks ................................. 9

Pausing playing ................................. 9

Previewing all tracks .......................... 9

Repeating the same track ................. 9

Playing all tracks in random .............. 9

Ejecting a disc ....................................... 9

Selecting Directory Up/Down ............ 9

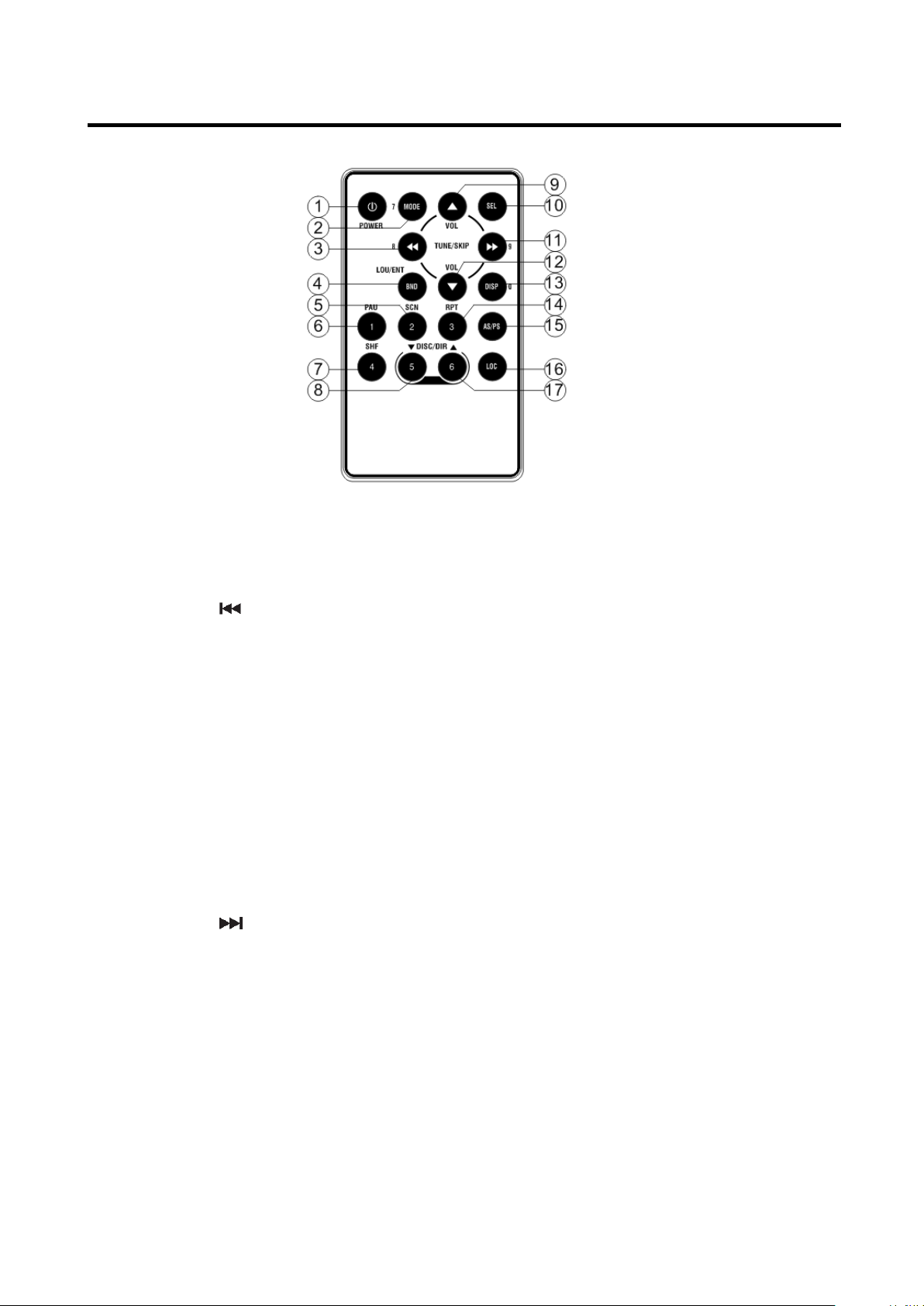

Remote control ................................ 12

Specification ...................................... 13

Trouble shooting ................................ 14

Selecting Tracks By AS/PS /SCH……9

3

INSTALLATION

30

53mm

182mm

Take out screw
before installation.

Notes:

 Choose the mounting location where

 Before finally installing the unit, connect

 Use only the parts included with the

 Consult with your nearest dealer if

 Install the unit where it does not get in

 If installation angel exceeds 30°from

 Avoid installing the unit where it would

DIN FRONT/REAR-MOUNT

This unit can be properly installed either

from “Front” (conventional DIN Front-mount)
or “Rear” (DIN Rear-mount installation,

utilizing threaded screw holes at the sides
of the unit chassis). For details, refer to the
following illustrated installation methods.

the unit will not interfere with the
normal driving function of the driver.

the wiring temporarily and make sure it
is all connected up properly and the
unit and the system work properly.

unit to ensure proper installation. The
use of unauthorized parts can cause
malfunctions.

installation requires the drilling of holes
or other modifications of the vehicle.

the driver’s way and cannot injure the
passenger if there is a sudden stop, like
an emergency stop.

horizontal, the unit might not give its
optimum performance.

be subject to high temperature, such as
from direct sunlight, or from hot air,
from the heater, or where it would be
subject to dust, dirt or excessive
vibration.

TAKE OUT SCREW BEFORE INSTALLATION

Before install the unit, please remove the
two screws.

DIN FRONT-MOUNT (Method A)

Installation Opening
This unit can be installed in any dashboard
having an opening as shown below:

Installing the unit
Be sure you test all connections first, and
then follow these steps to install the unit.

1. Make sure the ignition is turned off, and
then disconnect the cable from the
vehicle battery’s negative (-) terminal.

2. Disconnect the wire harness and the
antenna.

3. Press the release button on the front
panel and remove the control panel
(see the steps of “removing the front
panel”).

4. Lift the top of the outer trim ring then pull
it out to remove it.

5. The two supplied keys release tabs

inside the unit’s sleeve so you can

remove it. Insert the keys as far as

4

INSTALLATION

Tabs

Screwdriver

Sleeve

Dashboard

Mounting Bolt

Spring Washer

Plain Washer

Tapping Screw

Hex Nut

Metal Strap

Outer Trim Ring

Front Panel

L Key

Sleeve

R Key

they will go (with the notches facing up)
into the appropriate slots at the middle
left and right sides of the unit. Then slide
the sleeve off the back of the unit.

6. Mount the sleeve by inserting the sleeve
into the opening of the dashboard and
bend open the tabs located around the

back of the unit in place. Use the supplied
hardware (Hex Nut (M5mm) and Spring
Washer) to attach one end of the strap to
the mounting bolt on the back of the unit. If
necessary, bend the metal strap to fit your

vehicle’s mounting area. Then use the

supplied hardware (Tapping Screw
(5x25mm) and Plain Washer) to attach the
other end of metal strap to a solid metal
part of the vehicle under the dashboard.
This strap also helps ensure proper
electrical grounding of the unit.

Note to install the short threading
terminal of the mounting bolt to the back
of the unit and the other long threading
terminal to the dashboard.

sleeve with a screwdriver. Not all tabs
will be able to make contact, so
examine which ones will be most
effective. Bending open the appropriate
tabs behind the dashboard to secure
the sleeve in place.

7. Reconnect the wire harness and the
antenna and be careful not to pinch any
wires or cables.

8. Slide the unit into the sleeve until it
locks into place.

9. To further secure the unit, use the
supplied metal strap to secure the

10. Reconnect the cable to the vehicle
battery’s negative (-) terminal. Then
replace the outer trim ring and install the

unit’s front panel (see the steps of

“installing the front panel”).

Removing the unit

1. Make sure the ignition is turned off,
then disconnect the cable from the
vehicle battery’s negative (-)
terminal.

2. Remove the metal strap attached the
back of the unit (if attached).

3. Press the release button to remove
the front panel.

5

Dashboard or Console

Screw

Factory Radio
Mounting Bracket

Side View showing
Screw Holes marked
T, N

Screw

INSTALLATION

4. Lift the top of the outer trim ring then
pull it out to remove it.

5. Insert both of the supplied keys into
the slots at the middle left and right
sides of the unit, then pull the unit out
of the dashboard.

DIN REAR-MOUNT (Method B)

If your vehicle is a Nissan, Toyota, follow
these mounting instructions.
Use the screw holes marked T (Toyota), N
(Nissan) located on both sides of the unit to
fasten the unit to the factory radio mounting
brackets supplied with your vehicle.

To fasten the unit to the factory radio
mounting brackets.
Align the screw holes on the bracket with
the screw holes on the unit, and then
tighten the screws (5x5mm) on each side.
Note: the outer trim ring, sleeve and the
metal strap are not used for method B
installation.
