Pyle PLCD26 Instruction Manual

Download

Page 1

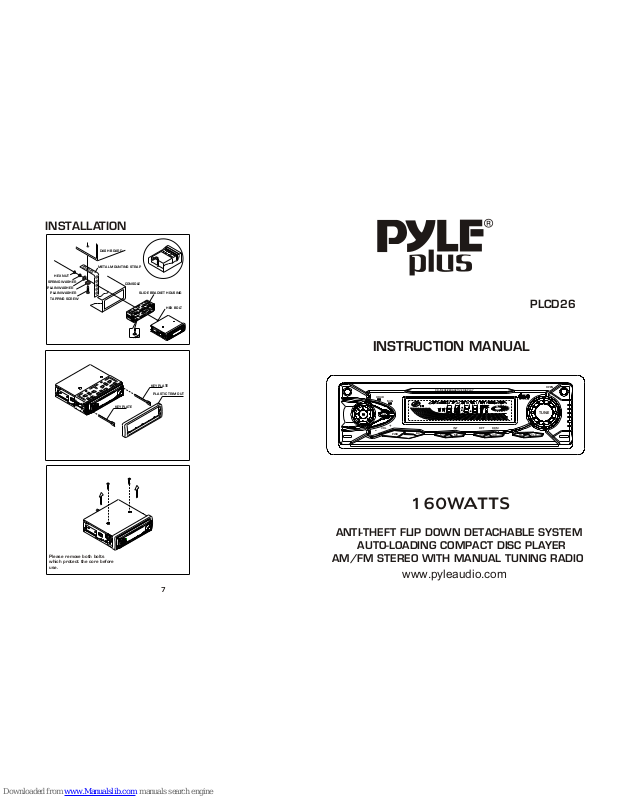

INSTRUCTION MANUAL

PLCD26

ANTI-THEFT FLIP DOWN DETACHABLE SYSTEM AUTO-LOADING COMPACT DISC PLAYER

AM/FM STEREO WITH MANUAL TUNING RADIO

160WATTS

www.pyleaudio.com

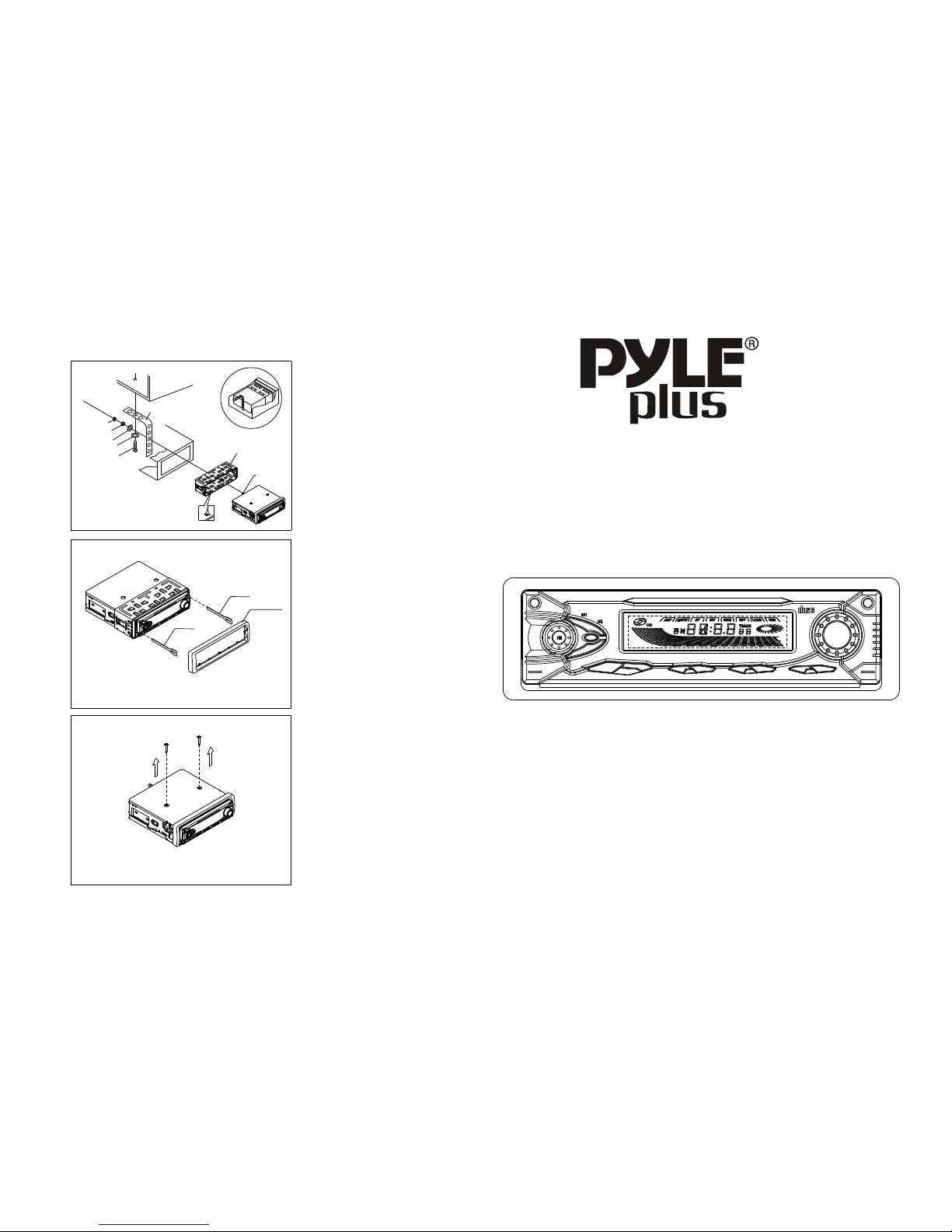

INSTALLATION

KEY PLATE

PLASTIC TRIM OUT

KEY PLATE

DASH BOARD

METAL MOUNTING STRAP

CONSOLE

SLIDE BRACKET HOUSING

HEX BOLT

HEX NUT

SPRING WASHER

PLAIN WASHER

TAPPING SCREW

PLAIN WASHER

Please remove both bolts which protect the core before use.

SEL

MIN

HOUR

VOL

PWR

INT

LOC

RPT

LUD

RDM

CLK

TUNE

OPEN

CD/RECEIVER&ACTIVE DISPLAY

COMPACT

DIGITAL AUDIO

Page 2

SPECIFICATION GENERAL

Power requirement................................................................................................DC 13.8V.

Chassis dimensions.......................................................................178[W] X 50[H] X 159[D].

FM SECTION

Frequency range....................................................................................88MHz -108.0MHz.

Usable sensitivity.........................................................................................................10uV.

I.F Frequency........................................................................................................10.7MHz.

AM(MW) SECTION

Frequency range.....................................................................................530KHz - 1700KHz.

LINE - OUT [OPTION]

Output................................................................................250mV @ FM 10% THD POWER.

Impedance............................................................................................................600 ohm.

CD PLAYER

System........................................................................................compact disc audio system.

Usable disc......................................................................................................compact disc.

Signal format.............................................................................sampling frequency 44.1KHz.

No of quantization bits 1bit.

Frequency characteristics...............................................................................5-40Hz < 5dB

10K-20KHz < 5dB.

Signal to noise radio................................................................60dB [1KHz] [IEC - A net work].

Current consumption..............................................................................................7A MAX.

Power output.........................................................................................................4 X 40W

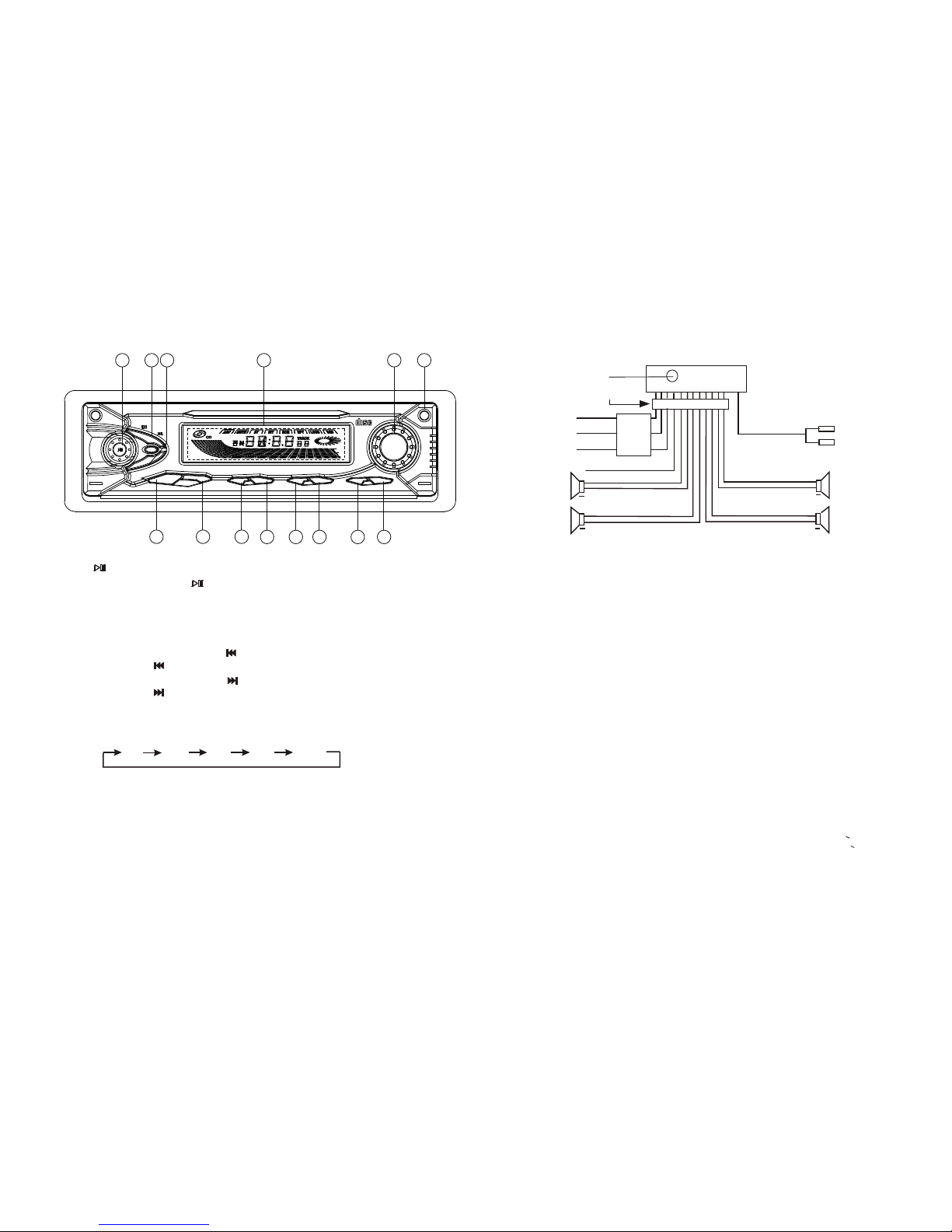

LOCATION AND FUNCTION OF CONTROL

1 2 3 4 5 6

7 13 8 9 10 11 12 14

1. CD ( CD PLAY, PAUSE) BUTTON At tuner mode, press button to switch to CD mode. At CD mode,

press it to pause the CD program and press it again to resume CD playback.

2. TRACK UP/DOWN BUTTONS

a. During CD mode, press button allow you to track backwards. Hold the button allow you to skip backwards.

b. During CD mode, press button allow you to track forwards. Hold the button allow you to skip forwards.

BASS CONTROL

a. Press the SEL button to select the bass mode until BAS appears on the display.

b. Press + or - to adjust the bass effect.

3. SEL( AUDIO MODE SELECT)/VOLUME +/- BUTTON Press SEL button to change the mode in the sequence of

a. The volume level can be adjusted at any time by pressing the audio level+ or

- button as select mode has been initially defaulted at volume mode. b. The volume level is also obtained by stepping through the SEL button until the function VOL is displayed and then press + or - button to adjust the sound level. c. Press and hold the + or - button to adjust the sound level.

VOL BAS TRE BAL FAD

FUSED FILTER BOX

0.5A &7A FUSES

YELLOW

ANTENNA PLUG

MEMORY B+

BLACK(GND)

RED (B+)

RCA LINE OUT

RED R

WHITE L

FRONT

REAR

RIGHT

BLUE AUTO ANT

FRONT

WHITE

WHITE/BLACK

GREEN/BLACK VIOLET/BLACK

GRAY/BLACK

GRAY

VIOLETGREEN

REAR

LEFT

Speaker Connection

12 P

SEL

MIN

HOUR

VOL

PWR

INT

LOC

RPT

LUD

RDM

CLK

TUNE

OPEN

CD/RECEIVER&ACTIVE DISPLAY

COMPACT

DIGITAL AUDIO

Page 3

TROUBLE SHOOTING

Before going through the check list, wiring connection, should any of the problem persist after check list has been made, consult your nearest service dealer.

Symptom

No power

Disc cannot be loaded or ejected

Cause

The fuse is blown

Presence of CD disc inside the player

Inserting the disc in upside down

Compact disc is extremely dirty or defective

Temperature inside the car is too high

Condensation

Volume is in minimum

No sound

Sound skips

The antenna cable is not connected the signals are too weak

Insert the antenna cable firmly

select a station manually

The radio does not work

Wiring is not properly connected

The installation angle is more than 30 degrees

The disc is extremely dirty or defective

Clean the compact disc/try to play a new one

Adjust the installation angle to less than 30 degrees

Adjust volume to a desired level

Check wiring connection

Leave the player off for an hour or so, then try again

Cool off until the ambient temperature returns to normal

Clean the disc or try to play a new one

Insert the compact disc with the label facing upward

Remove the disc in the player then put a new upward

Replace the fuse

The car ignition is not on. If the power supply is properly

connected to the car accessory switch the ignition key to " ACC "

Solution

6. OPEN BUTTON Press it to flip down the front panel when you want to take away. Press it to flip down the front panel then you can insert a disc into the compartment or eject the disc by pressing the EJ button.

5. TUNING BUTTON During tuner mode, rotate it to select your desired radio broadcasting station within FM/MW.

4. LCD ( LIQUID CRYSTAL DISPLAY)

Press it to eliminate the sound temporarily when you need, press it again to resume normal play state.

9. MUTE BUTTON

7. POWER BUTTON Press it to turn on or off the unit.

TREBLE CONTROL

a. Press the SEL button to select the treble mode until TRE appears on the display.

b. Press + or - to adjust the treble effect.

BALANCE CONTROL

FADER CONTROL

a. Press the SEL button to select the balance mode until BAL appears on the display.

a. Press the SEL button to select the fader mode until FAD appears on the display.

b. Press the + button or - button to increase or decrease the sound level of

left or right speaker.

front or rear speaker.

8. BAND BUTTON At CD mode, press it to switch tuner mode. Press it to select your desired radio band and the band which is selected will be displayed on LCD.

10. MO/INT BUTTON MO MODE: Press it to select mono or stereo mode. INT MODE:

During CD mode, press " INTRO "button to hear the first 10 seconds of each track on the disc. Press this button again to restore the player to its normal play mode.

Page 4

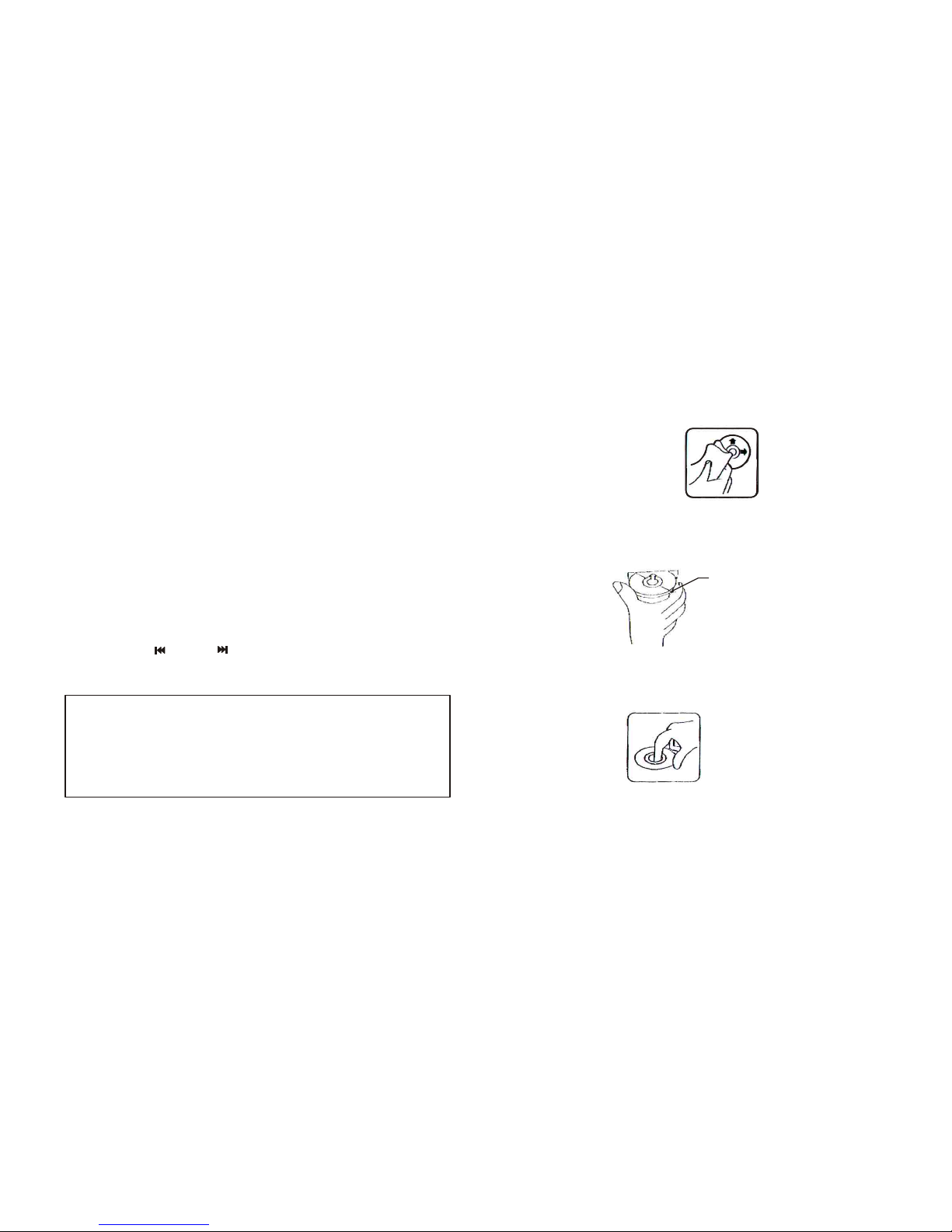

DISC PLAY:

Cleaning discs Before playing, clean the disc with a clean, lint-free. Flip the disc in the direction of the arrow.

NOTE: . Do not use so solvents such as benzine, thinners. Commercially available cleaners or anti static spray damage the unit.

Insert a disc with the label surface down. Doing so may damage the unit.

NOTE: . Do not try to insert another disc when one has been already inserted. Doing so may damage the unit.

Label surface up

.Handle the disc by its edge. And to keep the disc clean, do not touch the surface.

.Do not stick paper or tape on the disc.

.Do not expose the disc to direct sunlight or heat sources such as hot air ducts. Or leave it in a car parked in direct sunlight where there can be a considerable rise in temperature.

12. LUD/RDM BUTTON

LUD MODE: When reduce the volume to half level, press it to enhance the bass effect.

RDM MODE:

During CD mode, press " RDM " button and hold for 2 seconds,

it display " RDM " and Random function performs.

IMPORTANT: MEMORY WIRE ( FOR BACKUP) AND POWER WIRE CAN NOT BE SWITCHED OFF AT THE SAME TIME, ONCE IT HAPPENS, ALL THE FUNCTION WILL BE TOTALLY IN DISORDER (DISTORTED DISPLAY IS ALSO INDICATED ). PLEASE FOLLOW THE INSTRUCTIONS AS MENTIONED BELOW: PLEASE SWITCH ON THE MEMORY WIRE FIRST (CAN NOT PASS THROUGH IGNITION SWITCH) AND THEN SWITCH ON THE POWER. IT WILL RETURN TO NORMAL FUNCTION SOON.

IF IT REALLY HAPPENS,

5 MINUTES LATER,

13. EQ BUTTON Press it to switch between 4 preset equalizer curves: FLAT, POP, CLAS, ROCK. The sound quality will be changed.

11. LOC/RPT BUTTON LOCAL/DISTANCE MODE:

REPEAT MODE:

During CD mode. Press RPT button to repeat a single track.

Attention: During AM mode, LOC is non-functional.

When in the radio mode, press them to select local or distance broadcast station receive sensitivity. The word LOC will appear on LCD during local state.

14. CLOCK ADJUSTMENT BUTTON During frequency display, press it to change to clock function. Press the button for more than 2 seconds, until time flashes. and you can adjust time now. Press the tune button or continually to adjust Hours and Minutes, when adjustment is completed, press CLK button to resume normal play state and retain the adjustment
