Pyle PLCD25 User Manual

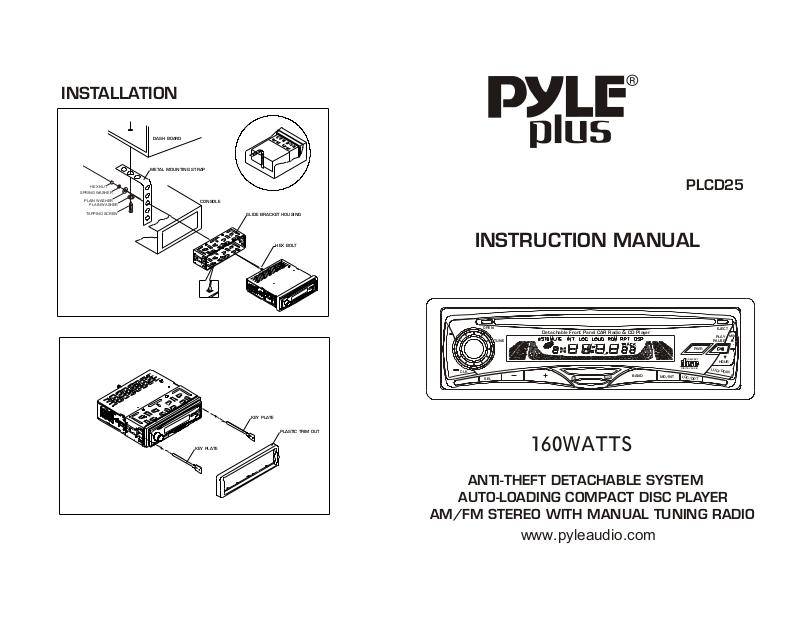

INSTALLATION
DASH BOARD
METAL MOUNTING STRAP
HEX NUT
SPRING WASHER
PLAIN WASHER
PLAIN WASHER
TAPPING SCREW
PLCD25
CONSOLE
SLIDE BRACKET HOUSING
KEY PLATE
KEY PLATE
HEX BOLT
PLASTIC TRIM OUT
INSTRUCTION MANUAL
OPEN
TUNE
CLK
SEL
Det achable Front Panel CAR Radio & CD Player
BAND
EQ
MUTE
MO/INT
COMPACT
DIGITAL AUDIO
LOC/RPT
PWR
EJECT
PLAY
PAUSE
HOUR
LUD/RDM
MIN
160WATTS
ANTI-THEFT DETACHABLE SYSTEM
AUTO-LOADING COMPACT DISC PLAYER
AM/FM STEREO WITH MANUAL TUNING RADIO
www.pyleaudio.com
LOCATION AND FUNCTION OF CONTROL
Speaker Connection
2 3
OPEN
CLK
1
TUNE
SEL
Det achable Front Panel CAR Radio & CD Player
8 9 10 11
4
BAND
EQ
MUTE
12
MO/INT
13
5 6 7
EJECT
MIN
PLAY
PAUSE
PWR
COMPACT
DIGITAL AUDIO
LOC/RPT
HOUR
LUD/RDM
14 15 16 17
1. CLOCK ADJUSTMENT BUTTON
During frequency display, press it to change to clock function.
Press the button for more than 2 seconds, until time flashes. and you can adjust
time now.
To adjust hour:
with time on display, push the tune button adjust hour, when adjustment is
completed, release the button.
To adjust minute:
with time on display, push the tune button adjust minute. When adjustment is
completed, release the button.
2. TUNING BUTTON
Rotate it to select your desired radio broadcasting station.
3. OPEN BUTTON
Press it to detach the front panel when you want to take away.
4. LCD ( LIQUID CRYSTAL DISPLAY)
5. POWER BUTTON
Press it to turn on or off the unit.
ANTENNA PLUG
12 P
FRONT
LEFT
SP
REAR
YELLOW
FUSED
FILTER
BOX
0.5A &7A
FUSES
BLUE AUTO ANT
+
WHITE
WHITE/BLACK
+
GREEN/BLACK VIOLET/BLACK
RCA LINE OUT
GRAY
GRAY/BLACK
VIOLETGREEN
+
+
RED R
WHITE L
FRONT
RIGHT
SP
REAR
MEMORY B+
BLACK(GND)
RED (B+)
NOTE:
In spite of having any kinds of speaker system, make sure use 4 ohms
impedance of speaker to reduce the distortion during high volume level.
SPECIFICATION
GENERAL
Power requirement................................................................................................DC 12V.
Current consumption..............................................................................................7A MAX.
Power output............................................................................................................4 X 40W
FM SECTION
Frequency range....................................................................................88MHz -108.0MHz.
Usable sensitivity.........................................................................................................10uV.
I.F Frequency........................................................................................................10.7MHz.
AM(MW) SECTION
Frequency range.....................................................................................530KHz - 1700KHz.
LINE - OUT [OPTION]
Output................................................................................250mV @ FM 10% THD POWER.
Impedance............................................................................................................600 ohm.

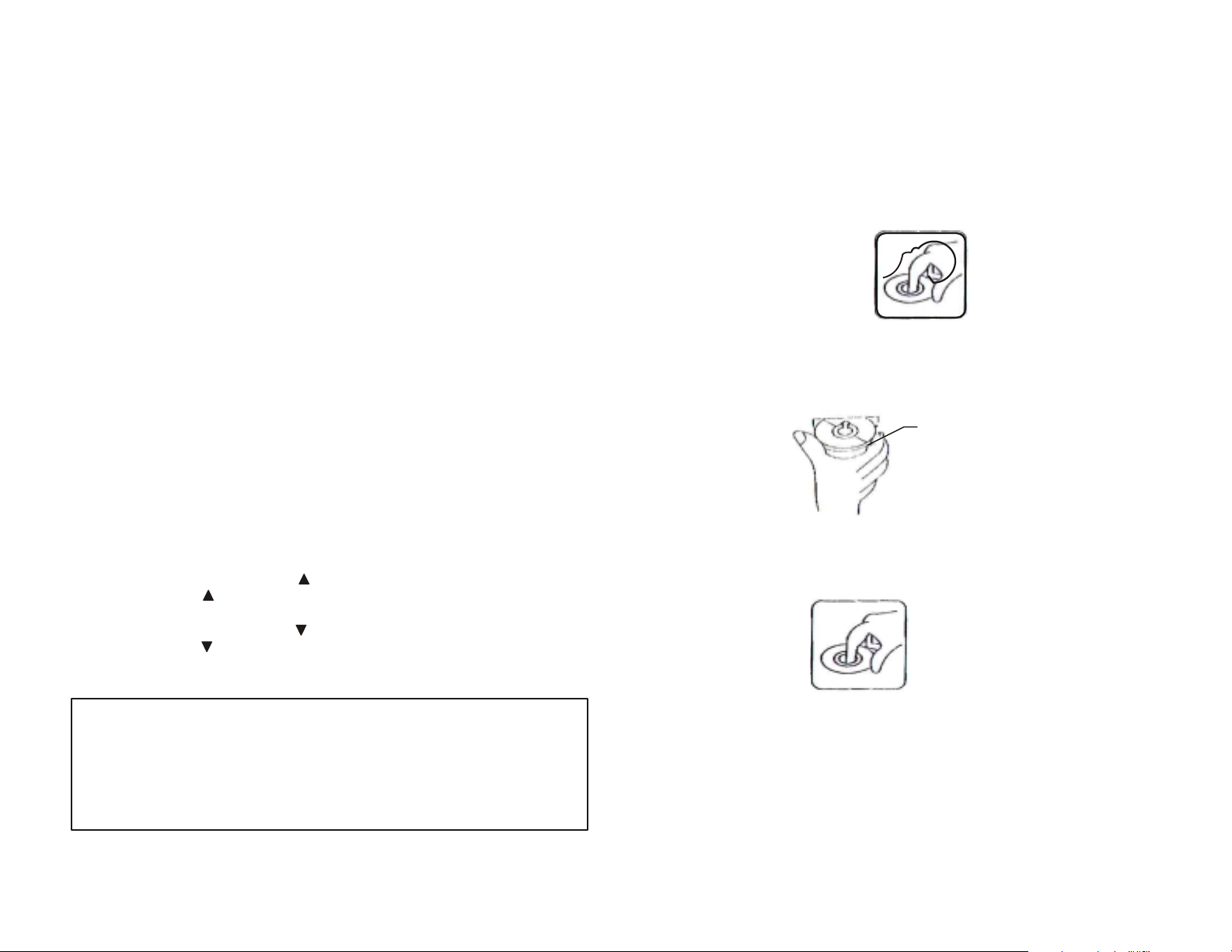

CD PLAYER
System........................................................................................compact disc audio system.
Usable disc......................................................................................................compact disc.
Signal format.............................................................................sampling frequency 44.1KHz.
No of quantization bits 1bit.
Frequency characteristics...............................................................................5-40Hz < 5dB
10K-20KHz < 5dB.
Signal to noise radio................................................................70dB [1KHz] [IEC - A net work].
Chassis dimensions........................................................................183[W] X 53[H] X 160[D].
