Pyle PLCD-10-CH Owners manual

OPERATING INSTRUCTIONS

PLCD10CH

DIGITAL AUDIO

COMPACT DISC CHANGER

Disc Magazine Compact Disc Changer System

Open

Disc Auto Changer

Compact Disc Auto Changer

CONTENTS

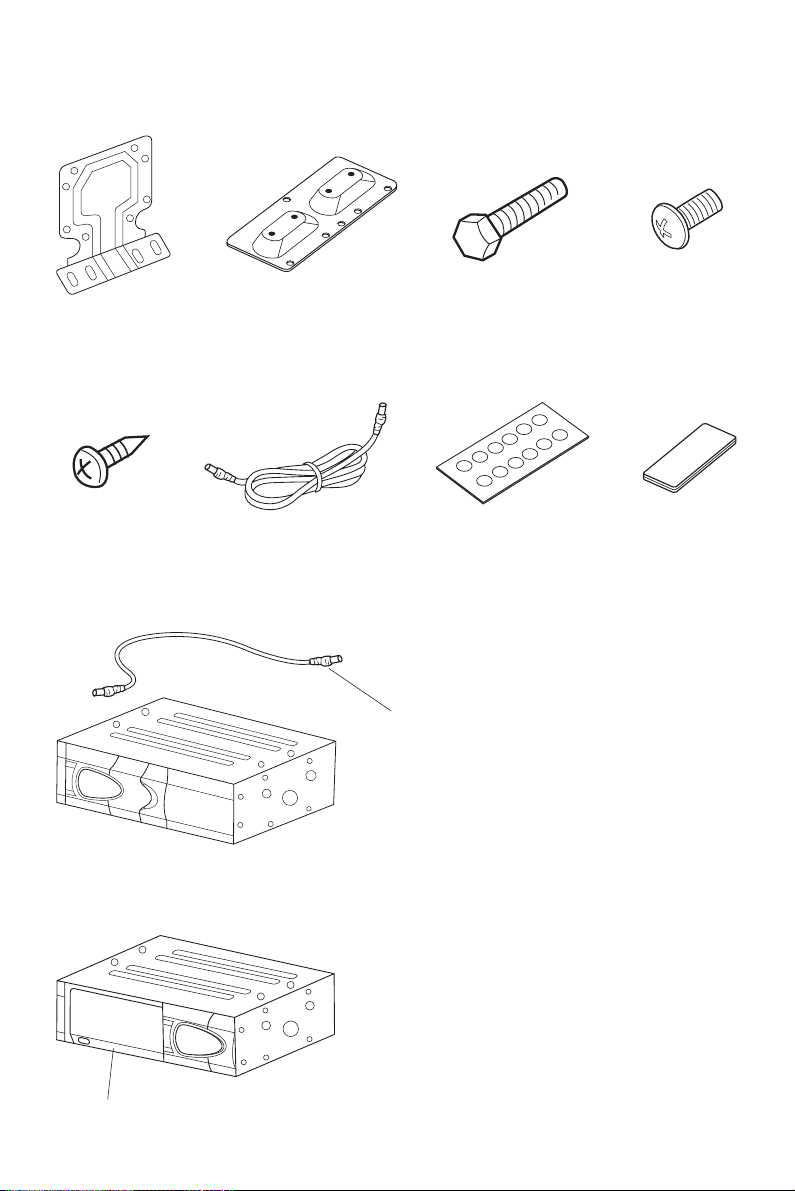

HINTS FOR CORRECT AND SAFE OPERATION 2 HOW TO USE THE MAGAZINE 3 PRECAUTIONS FOR HANDLING DISCS 4 INSTALLATION PARTS 5 WIRING 5 RESET FUNCTION 5 BEFORE INSTALLING THE UNIT 6

• Transport Lock Screws 6

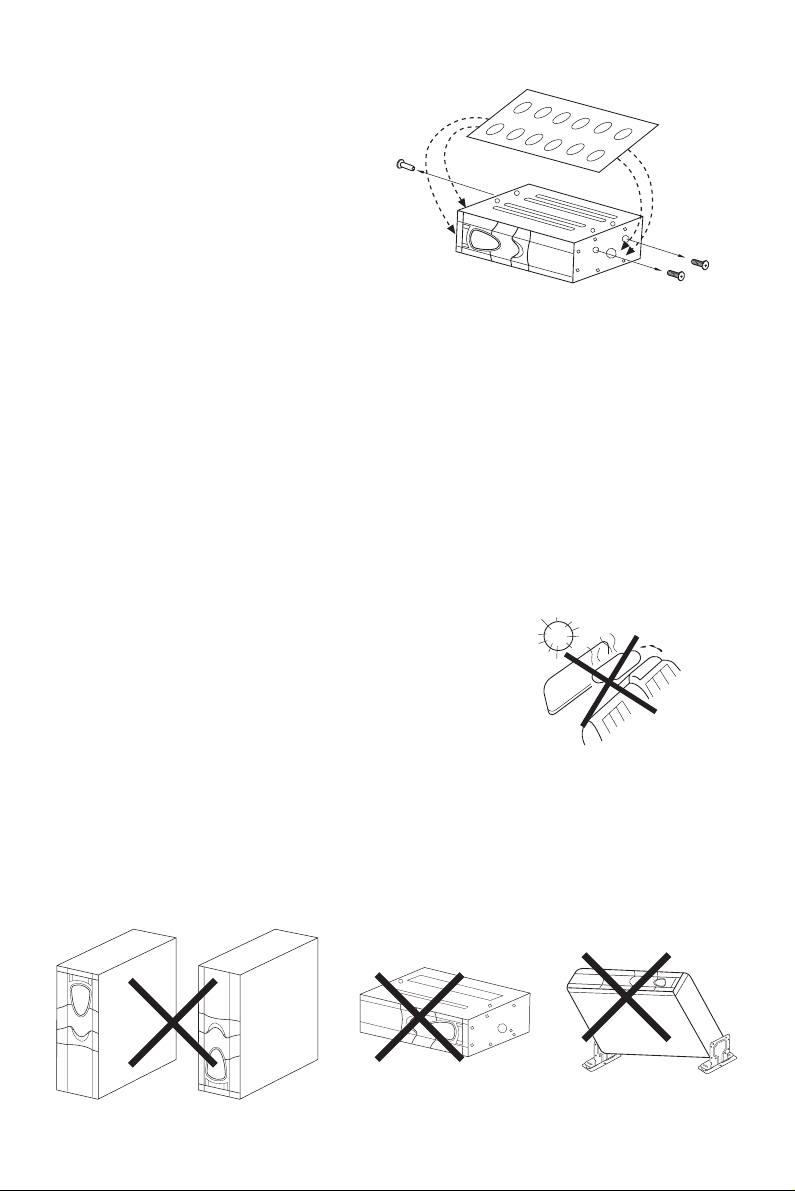

• Installation and Wiring Precautions 6

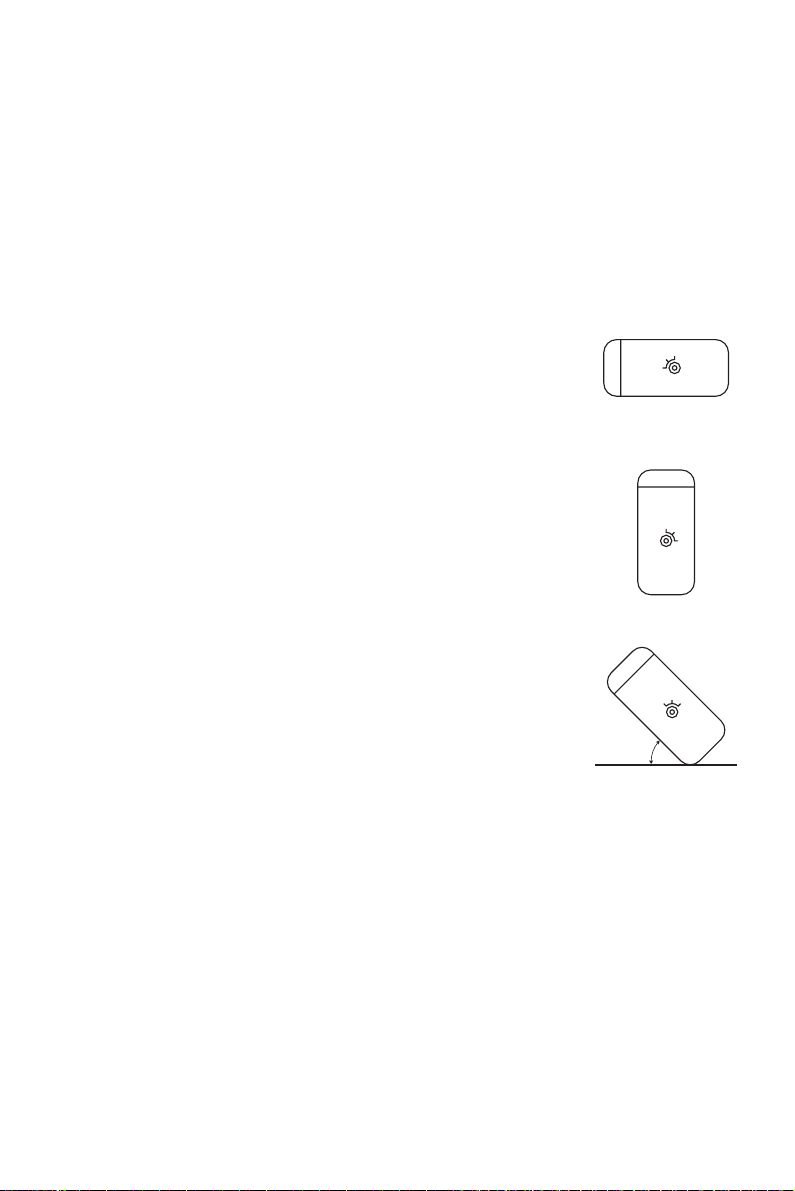

• Position of the built-in anti-vibration Board 7 INSTALLATION 8

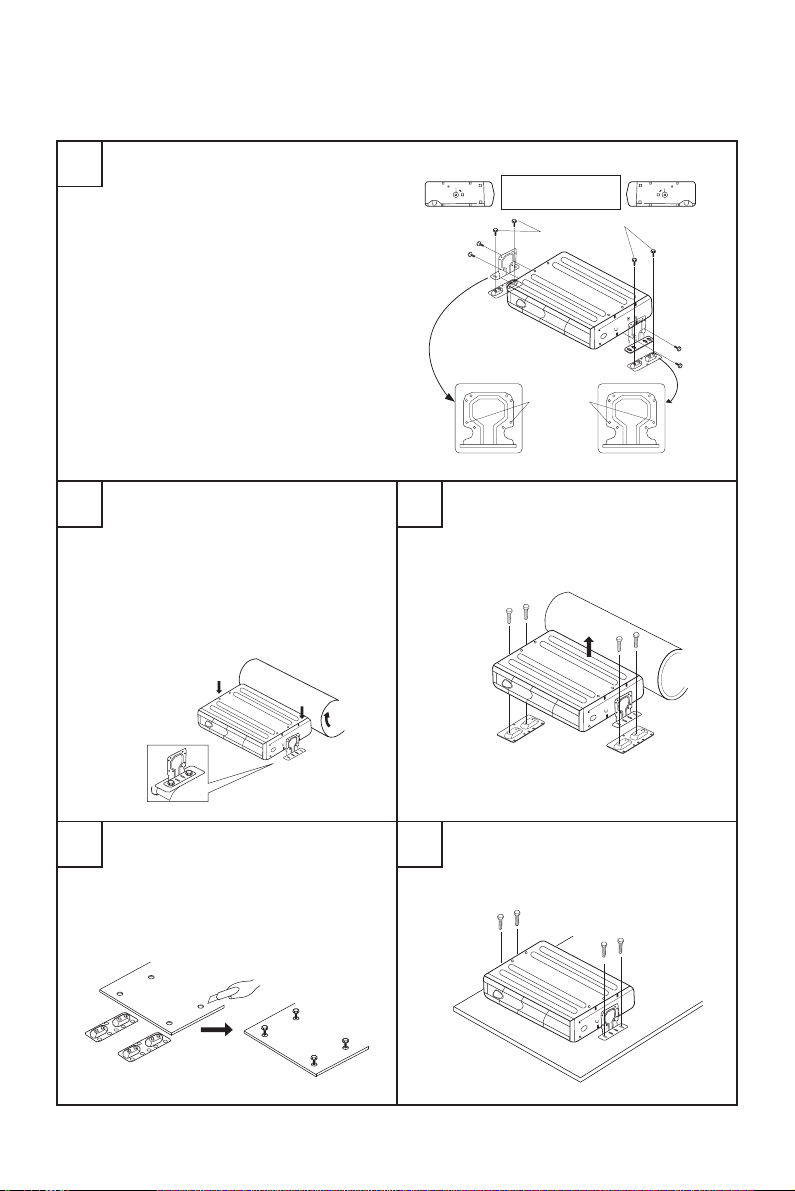

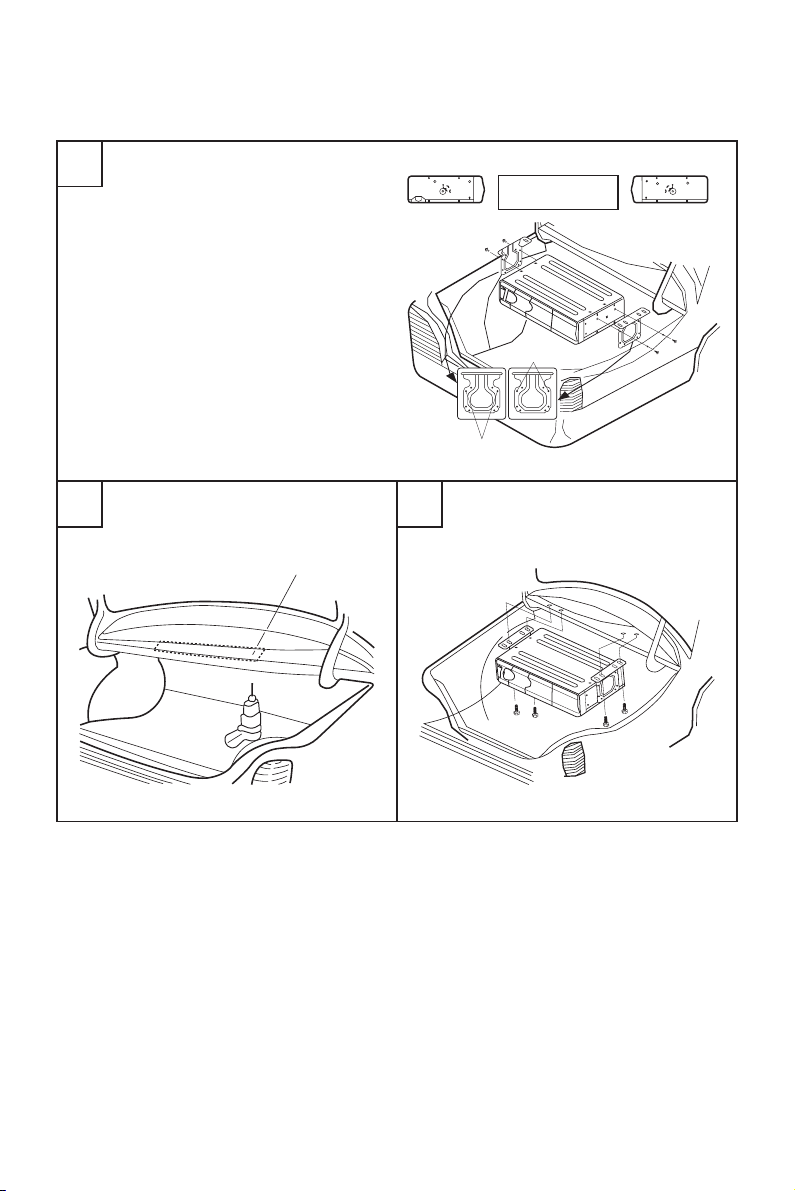

• Procedure for Installation on Carpet (Horizontal Position) 8

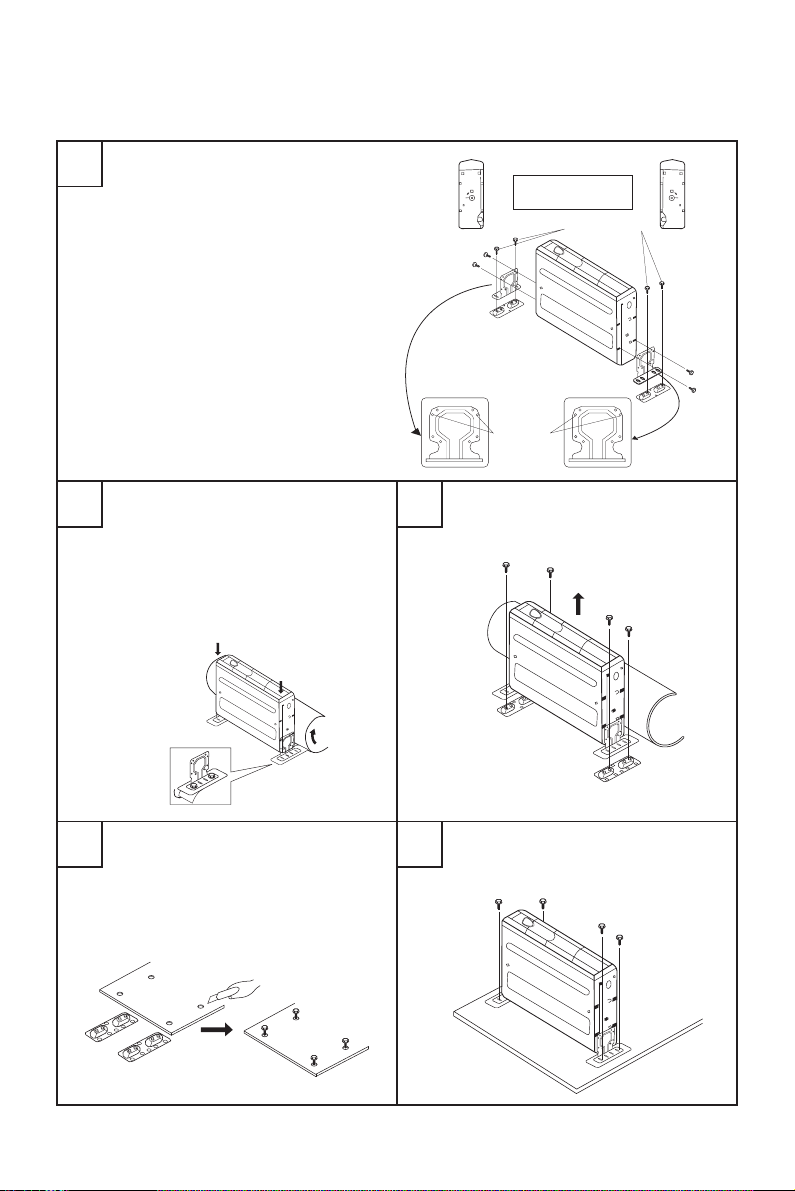

• Procedure for Installation on Carpet (Vertical Position) 9

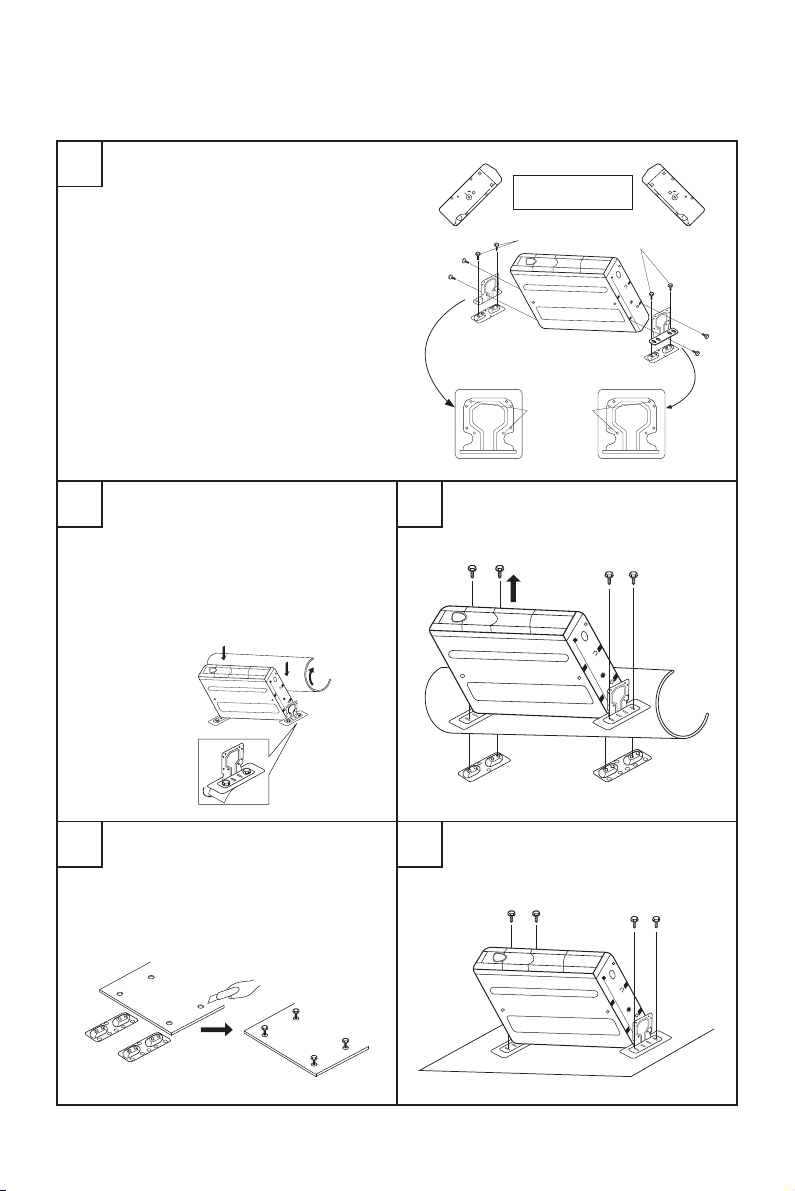

• Procedure for Installation on Carpet (At a 45° angle) 10

• Procedure for Installation (Suspended Position) 11 HANDLING THE DISCS 12 TROUBLE SHOOTING 12

HINTS FOR CORRECT AND SAFE OPERATION

This CD Changer is designed to be operated only on +12 volt DC negative ground systems. The unit cannot be used on +24 volt or positive ground systems.

The unit may not operate correctly in extremely hot or cold temperatures. The unit is equipped with a built in self-protection circuit. When the temperature reaches a preset level, the protection circuit halts all unit operations. If this should happen, open a window and allow the car to cool.

Condensation Moisture can condense on the laser lens of the CD changer during rainy and humid days, or right after the heater is turned on in the car. If this should happen the unit will not operate correctly. To remedy the situation, remove the magazine from the unit and wait approximately one hour. During this time the moisture will evaporate and the unit will operate normally.

Remove the magazine from the unit when it is not being used during hot weather and the CD changer is not used for long periods of time.

HOW TO USE THE MAGAZINE

Loading a disc

1. Pick the tab on the magazine’s disc tray and pull out only of the trays.

2. Place the disc on the tray with its play surface facing down (label surface facing up).

• Each tray can accommodate only one disc.

3. Press the tab on the disc tray to store the tray back in the magazine.

• Up to ten discs can be loaded.

Installing the magazine

1. Slide the door toward the right.

2. First check that the magazine with the discs has its top side facing up and it is pointed in the right-direction for installation. Push it in until clicks into place, indicating that it is now locked.

• When the magazine is used for the first

time, it will not lock into place unless the power supply has been connected.

• Ejecting the magazine

The magazine is ejected by pressing the eject button ( ).

Label side up

Play side down

Notes: Be absolutely sure to close the door after having inserted or ejected the magazine. Dust or dirt finding its way inside may cause malfunctioning of the unit.

Eject button

PRECAUTIONS FOR HANDLING DISCS

With new discs

The symptoms described below sometimes occur when new discs are used:

• The disc is not played even

when it is loaded.

• Operation changes to the next

disc before the first disc has a chance to be played.

• The same disc is played over

and over again.

• The designated disc is not

played.

These symptoms occur when there are burrs on the center hole or outside circumference of the disc and, as a result, the disc has not been loaded properly or the disc catches on something inside the magazine. In cases like these remove the burrs using a ball point pen or similar implement, as shown in the figure on the right.

Burrs

Remove all plastic particles of burr from surfaces of disc before loading in magazine.

Center hole

Burrs

Outside circmference

WARNING

Although protective film is being marketed as CD accessories, use of these products will result in malfunctions and should absolutely be avoided.
