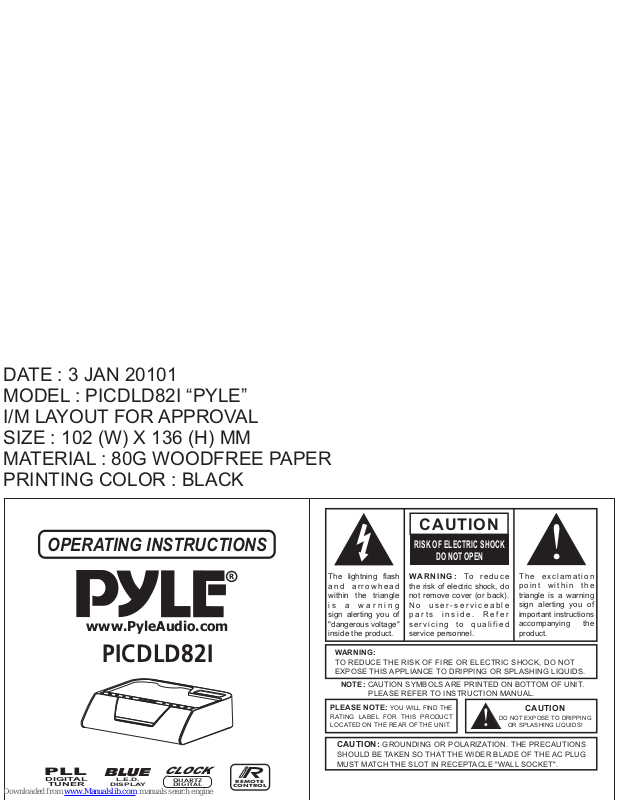

www.PyleAudio.com
PICDLD82I
OPERATING INSTRUCTIONS
REMOTE
CONTROL
BLUE
L.E.D.
DISPLAY
PLL
DIGITAL
TUNER
CLOCK
QUARTZ
DIGITAL
DATE : 3 JAN 20101
MODEL : PICDLD82I “PYLE”
I/M LAYOUT FOR APPROVAL
SIZE : 102 (W) X 136 (H) MM
MATERIAL : 80G WOODFREE PAPER
PRINTING COLOR : BLACK
R
1. READ INSTRUCTIONS -
2. RETAIN INSTRUCTIONS -
3. HEED WARNINGS -
4. FOLLOW INSTRUCTIONS -
5. CLEANING -
6. ATTACHMENTS -
7. WATER AND MOISTURE -
8. ACCESSORIES -
9.
10. VENTILATION -
11. POWER SOURCES -
12. GROUNDING OR POLARIZATION -
ALTERNATE WARNINGS -
All the safety and operating instruction should be read before the product
is operated.
The safety and operating instruction should be retained for future
reference.
All warning on the product and in the operating instructions should be adhered to.
All operating and use instructions should be followed.
Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or
aerosol cleaners. Use a dry cloth for cleaning.
Do not use attachments not recommended by the product manufacturer as they
may cause hazards.
Do not use this product near water- for example, near a bath tub,
wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.
Do not place this product on an unstable cart, stand, tripod, bracket, or table.
The product may fall, causing serious injury to a child or adult, and serious damage to the product.
Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with
the product. Any mounting of the product should follow the manufacturer's instructions, and should
use a mounting accessory recommended by the manufacturer.
A product and cart combination should be moved with care. Quick stops,
excessive force, and uneven surfaces may causethe appliance and cart
combination to overturn.
Slots and openings in the cabinet are provided for ventilation
and to ensure reliable operation of the product and to protect it from
overheating, and these openings must not be blocked or covered. The openings should never be
blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should
not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is
provided or the manufacturer's instruction have been adhered to.
This product should be operated only from the type of power source indicated
on the marking label. If you are not sure of the type of power supply to your home, consult your
product dealer or local power company. For products intended to operate from battery power, or
other sources, refer to the operating instruction.
This product may be equipped with a polarized
alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the
power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the
outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your
obsolete outlet. Do not defeat the safety purpose of the polarizes plug.
This product is equipped with a three-wire grounding-type plug, a plug
having a third (grounding) pin. This plug will only fit into a grounding-type power outlet.
This is a safety feature. If you are unable to insert the plug into the outlet, contact you electrician to
IMPORTANT SAFETY INSTRUCTIONS
SEE FIGURE:
NEC - NATIONAL ELECTRICAL CODE
GROUND
CLAMP
ANTENNA
LEAD IN WIRE
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
ELECTRIC
SERVICE
EQUIPMENT
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
16. LIGHTNING -
17. POWER LINES -
18. OVERLOADING -
19. OBJECT AND LIQUID ENTRY -
20. SERVICING -
For added protection for this product during a lightning storm, or when it is left
unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the
antenna or cable system. This will prevent damage to the product due to lightning and power-line
surges.
An outside antenna system should not be located in the vicinity of overhead
power lines or other electric light or power circuits, or where it can fall into such power lines or
circuits. When installing an outside antenna system, extreme care should be taken to keep from
touching such power lines or circuits as contact with them might be fatal.
Do not overload wall outlets, extension cords, or integral convenience
receptacles as this can result in a risk of fire or electric shock.
Never push objects of any kind into this product through openings
as they may touch dangerous voltage points or short-out parts that could result in a fire or electric
shock. Never spill liquid of any kind on the product.
Do not attempt to service this product yourself as opening or removing covers may
expose you to dangerous voltage or other hazards, Refer all servicing to qualified service personnel.
Unplug this product from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
a) When the power-supply cord or plug is damaged,
b) If liquid has been spilled, or objects have fallen into the product,
c) If the product has been exposed to rain or water,
d) If the product does not operate normally be following the operating instructions. Adjust only
those controls that are covered by the operating instructions as an improper adjustment of
other controls may result in damage and will often require extensive work by a qualified
technician to damage and will often require extensive work by a qualified technician to restore
21. DAMAGE REQUIRING SERVICE -
- OPEN THE BATTERY DOOR AT THE BOTTOM OF UNIT.
- INSERT 1 PC CR-2032 LITHIUM CELL BATTERY IN THE BATTERY COMPARTMENT.
THIS BATTERY IS FOR BACKUP OF THE "REAL TIME CLOCK" AND "RADIO
MEMORY PRESET STATIONS DURING BRIEF POWER OUTAGES". PLEASE OBSERVE THE
CORRECT POLARITIES OR THE MEMORY WILL NOT BE PROPERLY MAINTAINED.
BACK UP BATTERIES
PREPARATION OF REMOTE CONTROL
- REMOVE (GENTLY PULL OUT) THE PLASTIC "TAB" FROM THE BATTERY
COMPARTMENT AT THE REAR OF THE REMOTE CONTROL.
- TEST THE REMOTE CONTROL BY PRESSING THE ( ON/ STANDBY) KEY TO
CHECK THAT THE UNIT SWITCHES ON PROPERLY USING THE REMOTE CONTROL.
AC OPERATION (EXTERNAL AC-DC POWER ADAPTOR)
- THIS SET IS EQUIPPED WITH A "DC-JACK" CAPABLE OF ACCEPTING
AC-ADAPTORS WITH A RATING OF DC = 6V, 3A, AND WITH A PLUG
WITH THE FOLLOWING POLARITIES AS SHOWN (CENTER POSITIVE) :
- PLEASE USE ONLY THE SUPPLIED AC-ADAPTOR TO OPERATE THE UNIT.
USE OF OTHER ADAPTORS MAY DAMAGE THE UNIT OR CAUSE IT TO MALFUNCTION.
- PLUG THE TAIL END OF THE AC-ADAPTOR INTO THE DC-JACK (SOCKET)
ON THE UNDERNEATH OF THE MAIN UNIT.
- MAKE SURE THE VOLTAGE OF THE AC ADAPTOR OPERATES AT THE SAME VOLTAGE
AS YOUR LOCAL HOUSEHOLD VOLTAGE.
- INSERT THE PLUG AT THE END OF THE POWER CORD INTO THE WALL AC SOCKET.
- PRESS THE "ON/ STANDBY" KEY TO SWITCH ON THE UNIT.
- THIS UNIT IS DESIGNED TO OPERATE WITHOUT EVER BEING TOTALLY POWERED "OFF".
IT WILL EITHER BE "ON" OR IN "STANDBY MODE".
- ANYTIME DURING STANDBY MODE, YOU CAN SWITCH "ON" THE UNIT BY PRESSING
THE "ON/ STANDBY" KEY.
- SAVE ENERGY BY SWITCHING THE SYSTEM TO "STANDBY" MODE.
POWER SUPPLY
-
+
REMOTE CONTROL:
1. ON/ STANDBY KEY
2. SLEEP/ EQ KEY
3. FUNCTION KEY
4. BACK/ TUNE DOWN KEY
5. PLAY/ PAUSE/ FM MODE KEY
6. NEXT/ TUNE UP KEY
7. DISPLAY/ CLOCK SET KEY
8. MEM./ RECALL KEY
9. VOLUME + KEY
10. DIMMER KEY
11. ALARM - ON/ OFF SET KEY
12. VOLUME - KEY
13. BATTERY COMPARTMENT
1
2
3
4
7
10
5
8
11
6
9
12
13
2
1
4
5
678
3
9 10
11
12
13
14
15
21 22
23
16
17
19A
19B
20
18
LOCATION OF CONTROLS
1. CAVITY FOR DOCK ADAPTOR
2. UNIT TRAY
3. VOLUME UP + / DOWN - KEY
4. ON/ STANDBY KEY
5. EQ/ SLEEP KEY
6. CLOCK ADJ./ DISPLAY KEY
7. DIMMER KEY
8. FUNCTION KEY
9. DIGITAL DISPLAY
10. TOUCH SNOOZE PLATE
11. BACK/ TUNE - KEY
12. PLAY/ PAUSE/ FM MODE KEY
13. NEXT/ TUNE + KEY
---- - -
14. MEMORY/ RECALL KEY
15. ALARM SET/ OFF KEY
16. SPEAKERS (LEFT & RIGHT)
17. USB JACK
18. DC JACK SELECTOR
19A. DC JACK - 1
19B. DC JACK - 2
20. BACK UP BATTERY COMPARTMENT
21. AUX INPUT SOCKET
22. DC JACK (DC 6V )
23. FM ANTENNA WIRE
