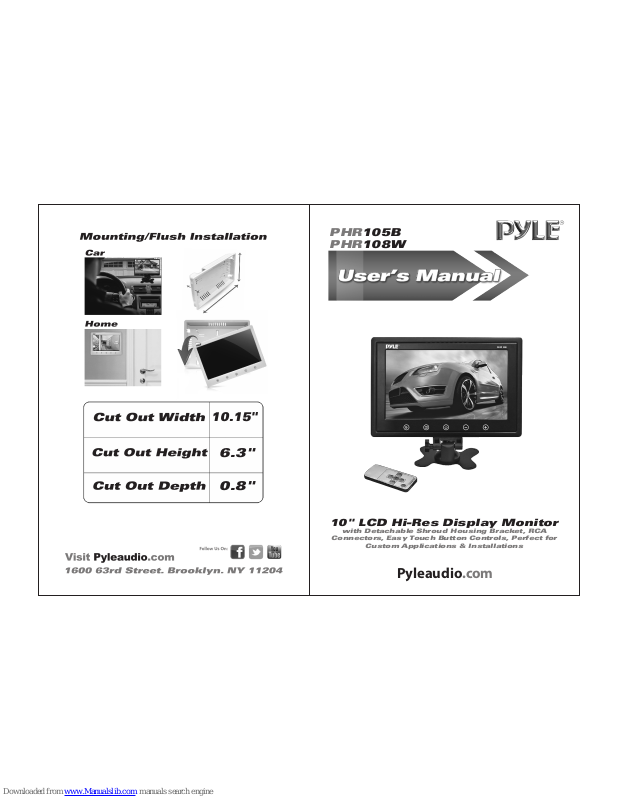

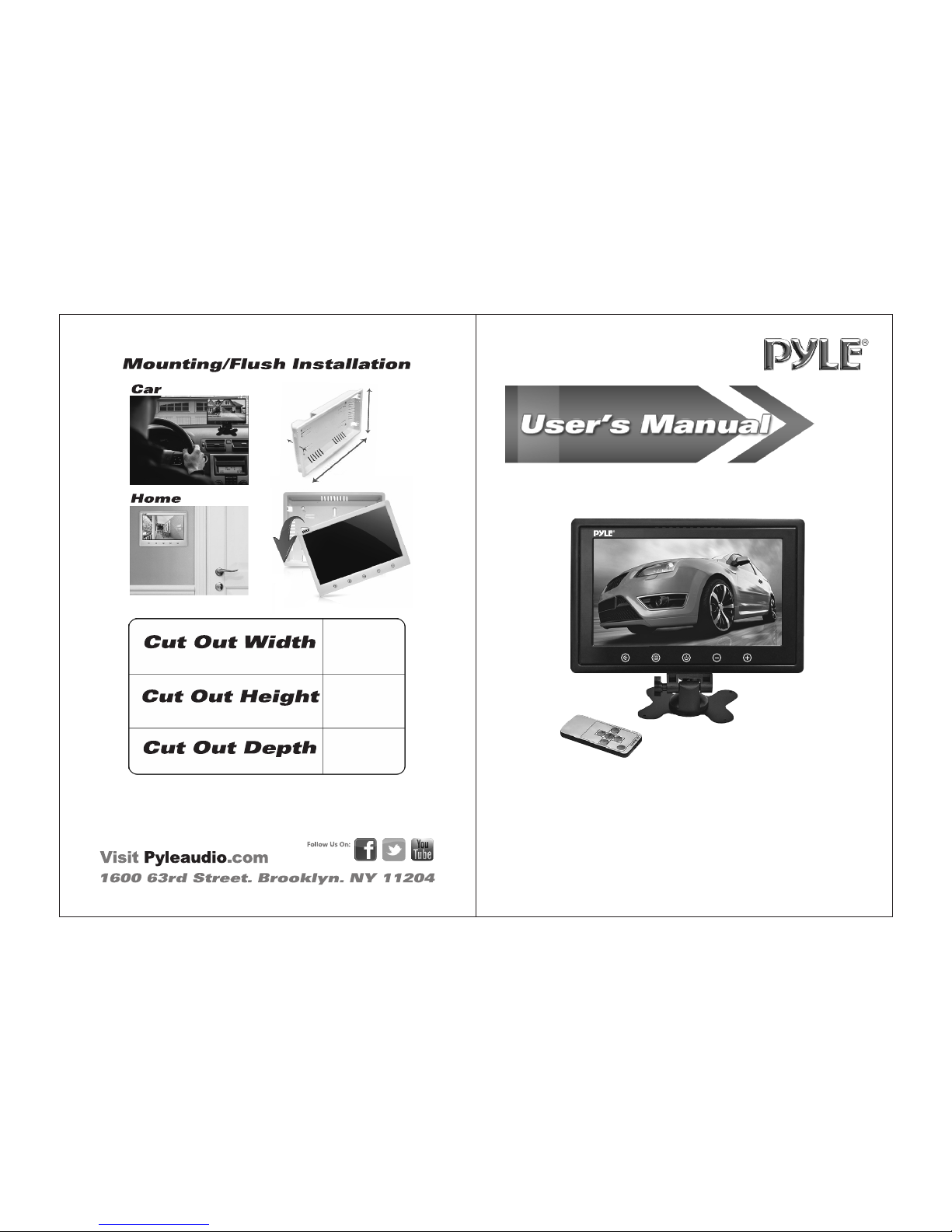

Page 1
Pyleaudio.com
PHR105B
PHR108W
PHR105B
10" LCD Hi-Res Display Monitor
with Detachable Shroud Housing Bracket, RCA
Connectors, Easy Touch Button Controls, Perfect for
Custom Applications & Installations
10.15"
6.3"
0.8"
Page 2
PHR105B

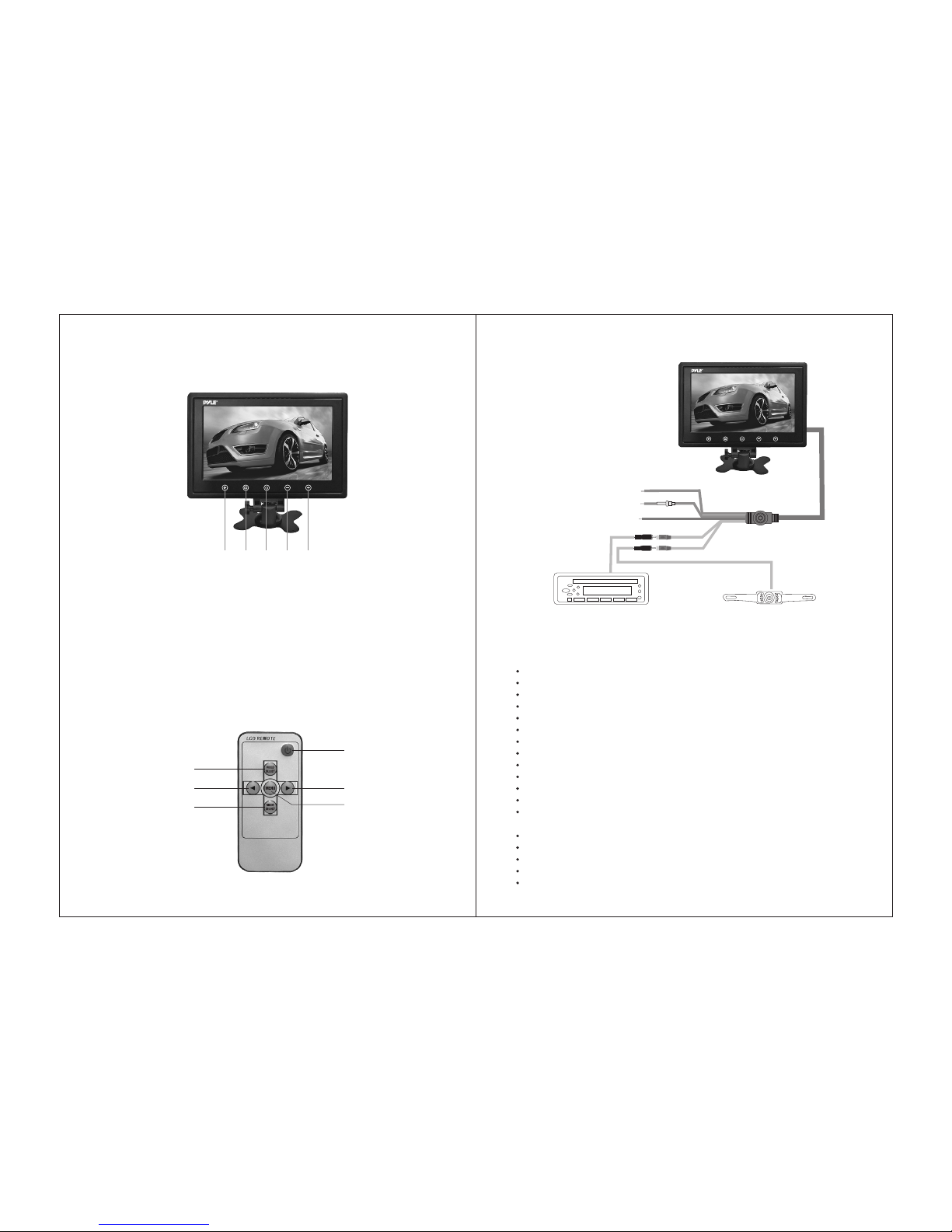

Function keys panel
1 2 3 4 5
1. Video input selection
2. Menu
3. Power on/off
4. Analog variable decrease
5. Analog variable increase
Methods of remote using
Wire diagram
Features:
Power ON/OFF
Analog variable increase
Menu button
V1/V2 conversion
Analog variable decrease
Switch for mode
(Gre en) reve rse car
PLAYER
CAM ERA
(Red ) batte ry+12 V
(Bla ck) gro undin g
(Yello w) vide o 1 input
(Yello w) vide o 2 input
10" TFT/LCD Digital Display Screen
High Resolution 1024 x 600 Pixel Display
16:9 Wide Screen Format
RCA Connectors: Audio & Video Connector Input Jacks
Input Modes: AV1, AV2
Easy Touch Button Panel Controls
Built-in IR Transmitter for Wireless Headphones
Built-in Dual Speakers
NTSC/PAL System Compatible
Brightness, Contrast, Color & Tint Adjustments
Power Requirement: DC 12V +/- 10%
Power Consumption: 5W Max
Includes Power and Video Wiring Harness, Remote Control, Universal Stand
Mount & Shroud Headrest Housing Bracket
Monitor Dimensions (W x H x D): 9.7" x 6.3" x 0.8" inches
Housing/Shroud Dimensions (W x H x D): 10.5" x 7.5" x 1.1" inches
Cut-Out Dimensions (W x H x D): 10.15" x 6.3" x 0.8" inches
Sold as: Uint
Weight: 3.15 lbs.
PHR105B
