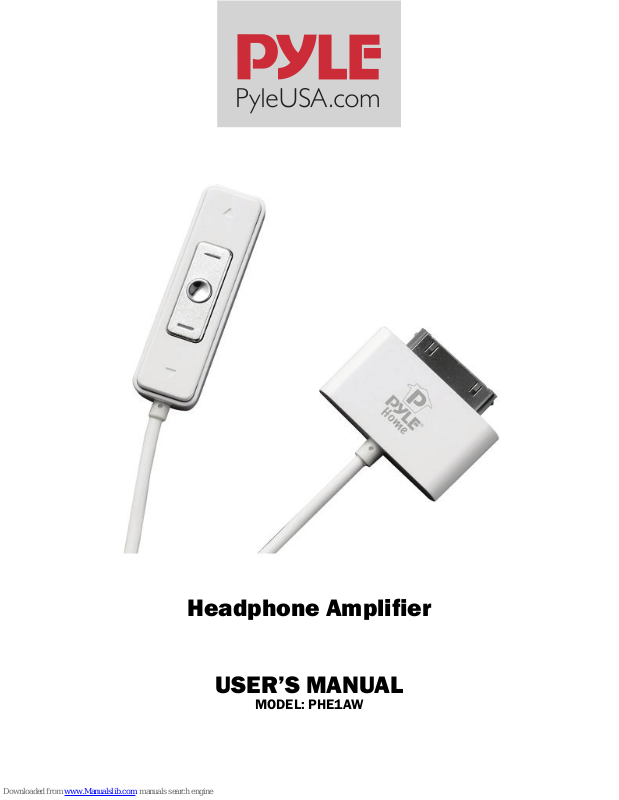

Pyle PHE1AW User Manual

USER’S MANUAL

Headphone Amplier

MODEL: PHE1AW

2

Functions:

TO: DO THIS:

Turn on PHE1AB Connect PHE1AB to the dock of the iPod/iPhone
Connect the headphone Insert the headphone socket into the port
Increase the Volume Press the volume UP button
Decrease the Volume Press the volume DOWN button
Play the Next Track Press the Next button
Play the Previous Track Press the Previous button
Play/Pause Press the play/pause button

1

2

4

6

3

7

5

Important Notice

Avoiding Hearing Damage:

• Permanent hearing loss may occur if earphones or headphones are used at high volume for extended

time periods

• High volume for extended time periods

• Set the volume to a safe level

• Your hearing can adapt over time to a higher volume of sound

• This level may sound normal but can damage your hearing

• If you experience ringing in your ears or speech seems muffed, stop listening and have your hearing

checked by a doctor

• The louder the volume, the less time is required before your hearing could be affected

Hearing experts suggest that to protect your hearing:

1. Limit the amount of time you use earphones or headphones at high volume.

2. Avoid turning up the volume to block out noisy surroundings.

3. Turn the volume down if you cannot hear people speaking near you,

3

Features:

• Designed for iPod/iPhone,

• Improves the sound quality with the line out from the dock

• Build in high quality Texas Instruments’s headphone amplier Intergrated Circuit

• High power output to drive high impedance or low sensitivity headphones or earphones

• Easy control of the playback of the iPod/iPhone while the player stays securely in your pocket

• Compatible with iPod Nano, iPod Video, iPod Touch, iPhone, all generations & all versions

• Easy & simple to use, plug and play

• Powered by the iPod/iPhone (no charging or battery needed)

• With a built-in clip, you can clip it onto anything

• Output Power: 100mW (16 ohms Loaded), 12mW (300 ohms Loaded)

• Signal to Noise Ratio: =98dB (A weight)

• Distortion: <0.009% (10mW)

• Frequency Response: 10Hz ~ 80KHz

• Suitable Headphone Impedance: 16 ohms ~ 300 ohms

• Power Supply: Use iPod/iPhone power 3.3V

• Line control dimesions: 48mmx14mmx10.7mm

• AMP dock: 33.8mmx30.8mmx7.8mm

• Length: 800mm(Line Exposed)

• Weight: 20g

• Weight: 0.12 lbs.
