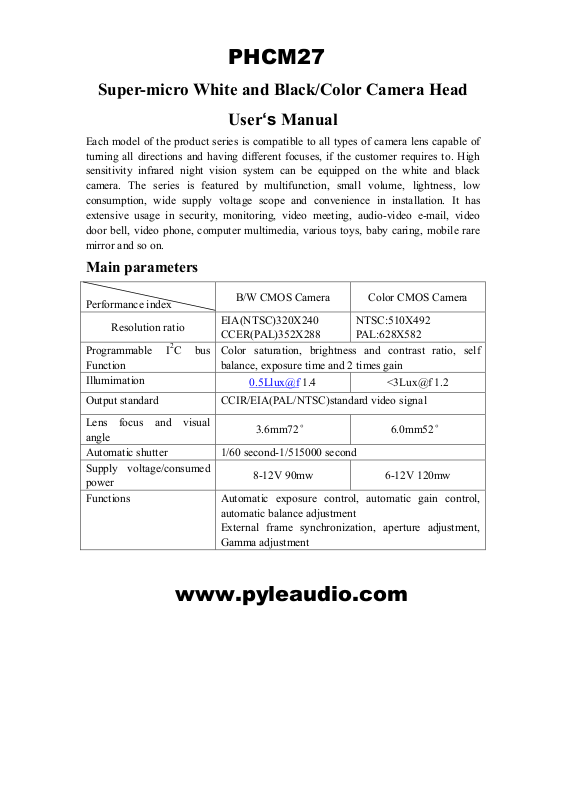

Super-micro White and Black/Color Camera Head
PHCM27
www.pyleaudio.com
User
Each model of the product series is compatible to all types of camera lens capable of
turning all directions and having different focuses, if the customer requires to. High
sensitivity infrared night vision system can be equipped on the white and black
camera. The series is featured by multifunction, small volume, lightness, low
consumption, wide supply voltage scope and convenience in installation. It has
extensive usage in security, monitoring, video meeting, audio-video e-mail, video
door bell, video phone, computer multimedia, various toys, baby caring, mobile rare
mirror and so on.
‘s Manual
Main parameters
Performance index
Resolution ratio
Programmable I2C bus
Function
Illumimation
B/W CMOS Camera Color CMOS Camera
EIA(NTSC)320X240
CCER(PAL)352X288
Color saturation, brightness and contrast ratio, self
balance, exposure time and 2 times gain
0.5Llux@f 1.4 <3Lux@f 1.2
NTSC:510X492
PAL:628X582
Output standard CCIR/EIA(PAL/NTSC)standard video signal
Lens focus and visual
angle
Automatic shutter 1/60 second-1/515000 second
Supply voltage/consumed
power
Functions Automatic exposure control, automatic gain control,
automatic balance adjustment
External frame synchronization, aperture adjustment,
Gamma adjustment
3.6mm72° 6.0mm52°
8-12V 90mw 6-12V 120mw
