Portable Electronic Guitar Amplifier
Controls and functions
5'' High-Definition Speaker with Volume,
Bass and Treble Controls
CAUTION: READ THIS BEFORE OPERATING YOUR UNIT.
Precautions
To assure the nest performance, please read this manual carefully.
Keep it in a safe place for future reference.
• Install this unit in a well ventilated, cool, dry,
clean place - away from direct sunlight, heat
sources, vibration, dust, moisture, and/or cold.
(Do not use/keep this unit in a car etc.)
• Locate this unit away from other electrical
appliances, motors, or transformers to avoid
humming sounds.
Power Supply
Be sure to turn the power OFF when the unit is not in use. Remove the batteries
from the instrument to prevent possible leakage of the battery uid if the
instrument is not to be used for a long time. If using a power adapter, please
connect the designated AC adapter to an AC outlet of the correct voltage.
Do not connect it to an AC outlet of voltage other than that for which your
unit is intended.
Interference with other Electrical Devices
Radios and televisions placed nearby may experience reception interference.
Operate this unit at a suitable distance from radios and televisions.
Handling
Do not use force on switches, knobs, and/or cords.
Care
Do not clean this unit with chemical solvents; this might damage the nish.
Use a clean, dry cloth.
PGTAMPL128B
PGTAMPL128B

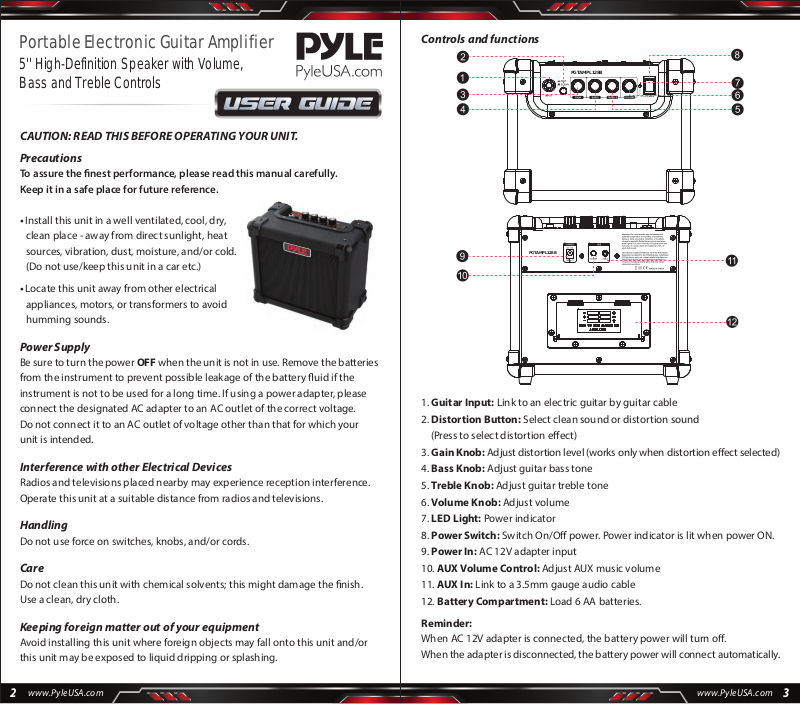

1. Guitar Input: Link to an electric guitar by guitar cable
2. Distortion Button: Select clean sound or distortion sound
(Press to select distortion eect)
3. Gain Knob: Adjust distortion level (works only when distortion eect selected)
4. Bass Knob: Adjust guitar bass tone
5. Treble Knob: Adjust guitar treble tone
6. Volume Knob: Adjust volume
7. LED Light: Power indicator
8. Power Switch: Switch On/O power. Power indicator is lit when power ON.
9. Power In: AC 12V adapter input
10. AUX Volume Control: Adjust AUX music volume
11. AUX In: Link to a 3.5mm gauge audio cable
12. Battery Compartment: Load 6 AA batteries.
Keeping foreign matter out of your equipment
Avoid installing this unit where foreign objects may fall onto this unit and/or
this unit may be exposed to liquid dripping or splashing.
www.PyleUSA.com
2 3
Reminder:
When AC 12V adapter is connected, the battery power will turn o.
When the adapter is disconnected, the battery power will connect automatically.
www.PyleUSA.com
Page 2
Battery Load
1
3
Please follow the steps below to implement battery connection:
1. Press the buckle and pull out to open the battery compartment lid as shown
by diagram 1 and 2.
2. Insert two batteries according to the polarity direction marked as shown by
diagram 3 And then press the joint area as shown by diagram 4 to load
batteries successfully.
3. Load all the other four batteries following step 2 and cover the battery
compartment lid.
2
4
Features:
• Heavy Duty Wood Construction
• 5'' High-Denition Speaker
• Volume, Bass, and Treble Controls
• 3. 55mm Aux Input
• Carry Handle
• Power On/O Switch w/ LED Indicator
• Functions: Input, Drive Switch, Volume, Treble, Bass
• Portable and Lightweight for Easy Transport
What's in the Box:
• Electronic Guitar Amplier
Technical Specs:
• Power Supply: 10 Watts
• Power Output: AC110V/220V Switchable
• Construction Materials: Lightweight Plywood, Coated by High-Quality Leather
• Product Dimensions (L x W x H): 9.37'' x 7.04'' x 8.82'' –inches
FCC Warning:
This equipment has been tested and found to comply with the requirements
for a Class B digital device under Part 15 of the Federal Communications
Commission (FCC) rules. These requirements are intended to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution:
Any changes or modications to this device not explicitly approved by
manufacturer could void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator & your body.
Questions? Issues?
We are here to help!
Phone: (1) 718-535-1800
Email: support@pyleusa.com
www.PyleUSA.com
