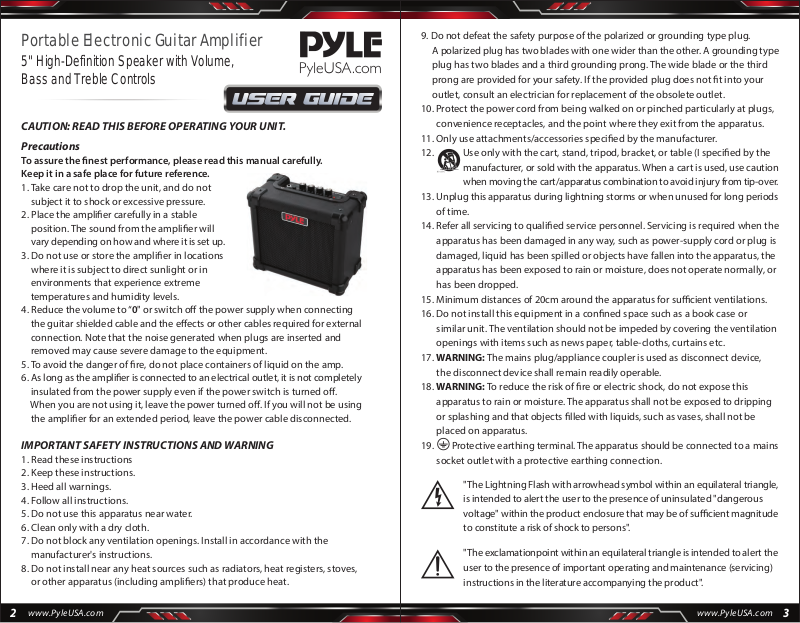

Portable Electronic Guitar Amplifier
5'' High-Definition Speaker with Volume,
Bass and Treble Controls
CAUTION: READ THIS BEFORE OPERATING YOUR UNIT.
Precautions
To assure the nest performance, please read this manual carefully.
Keep it in a safe place for future reference.
1. Take care not to drop the unit, and do not
subject it to shock or excessive pressure.
2. Place the amplier carefully in a stable
position. The sound from the amplier will
vary depending on how and where it is set up.
3. Do not use or store the amplier in locations
where it is subject to direct sunlight or in
environments that experience extreme
temperatures and humidity levels.
4. Reduce the volume to “0" or switch o the power supply when connecting
the guitar shielded cable and the eects or other cables required for external
connection. Note that the noise generated when plugs are inserted and
removed may cause severe damage to the equipment.
5. To avoid the danger of re, do not place containers of liquid on the amp.
6. As long as the amplier is connected to an electrical outlet, it is not completely
insulated from the power supply even if the power switch is turned o.
When you are not using it, leave the power turned o. If you will not be using
the amplier for an extended period, leave the power cable disconnected.
IMPORTANT SAFETY INSTRUCTIONS AND WARNING
1. Read these instructions
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves,
or other apparatus (including ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding type plug.
A polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third
prong are provided for your safety. If the provided plug does not t into your
outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specied by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table (I specied by the
manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods
of time.
14. Refer all servicing to qualied service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
15. Minimum distances of 20cm around the apparatus for sucient ventilations.
16. Do not install this equipment in a conned space such as a book case or
similar unit. The ventilation should not be impeded by covering the ventilation
openings with items such as news paper, table-cloths, curtains etc.
17. WARNING: The mains plug/appliance coupler is used as disconnect device,
the disconnect device shall remain readily operable.
18. WARNING: To reduce the risk of re or electric shock, do not expose this
apparatus to rain or moisture. The apparatus shall not be exposed to dripping
or splashing and that objects lled with liquids, such as vases, shall not be
placed on apparatus.
19. Protective earthing terminal. The apparatus should be connected to a mains
socket outlet with a protective earthing connection.
"The Lightning Flash with arrowhead symbol within an equilateral triangle,
is intended to alert the user to the presence of uninsulated "dangerous
voltage" within the product enclosure that may be of sucient magnitude
to constitute a risk of shock to persons".
"The exclamationpoint within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the product".
www.PyleUSA.com
2 3
www.PyleUSA.com
Page 2
1. INPUT: 1/4” phone jack input.
2. DIST. sw: Engaging this switch will activate the onboard distortion circuit for
Guitar input signal.
3. DISTORTION - GAIN: This adjusts the gain (level of overdrive distortion.) when
using the distortion channel.
4. BASS: This controls the low register.
5. TREBLE: This controls the high register.
6. VOLUME: This controls the output level.
7. POWER: This is the ON/OFF switch for the power supply.
The LED lights when the power supply is turned on.
Warning: Before you turn on the power of the amp, make sure that volume
control is set to "0”. If you turn on the power when the volume controls are
already raised, a sudden loud noise may be produced, possibly damaging your
bearing. Please use caution.
8. DC IN JACK: This is the jack to which the AC adaptor is connected.
9. VOLUME (HEAD PHONES): This controls the output level.
10. OUTPUT (HEAD PHONES): This is a 3.5mm stereo headphones. The sound is
not reproduced through the built-in speaker when headphones are in use.
WARNING
This phones output produces a large volume of sound. Ensure that the volume has
been turned down before beginning to play using the headphones, and then slowly
increase the volume until it has reached the desired level. Note that the noise and
distorted sound signals produced when inserting or removing the headphone
plug at heigh volume levels will result in damage to the headphones and to the
user's hearing.
TROUBLESHOOTING
1. The power supply cannot be switched on.
• Check that the power cable has been connected correctly.
• Try plugging it into a different socket and see if the same problem occurs.
2. The power supply can be switched on, but no sound is produced.
• Check that the guitar has been connected correctly.
• Remove the effects between the guitar and the amplier and check to see if no
sound is produced.
• Replace the shielded cable and check to see if no sound is produced.
• Check to see if the volume on the guitar is set to ’O’.
• Use a different guitar and see if no sound is produced.
• Check to see if the volume on the amplier is set to ’O’.
• Check to see if the headphones are connected.
3. Noise is heard.
• Check to see if anything in the immediate vicinity is resonating or banging
against the amplier to produce the noise.
• Check to see if the plug cover on the shielded cable is loose.
• Check that the string action (distance between strings and frets) is correctly
adjusted (not too low).
• Use another guitar, effects and cable to see if the same noise is produced.
4. No sound is produced in the headphones.
• Check that the headphone jack is connected correctly.
• Connect another set of headphones and see if sound is produced.
In the case of defects
This product has passed exhaustive inspections before being shipped from the
factory, ensure that the above procedures are carried out when a problem is thought
to exist. Contact your dealer in the unlikely event that an abnormality occurs during
use. Also, ensure that the symptoms of the problem are explained in detail when
requesting repair in order to facilitate swift handling.
Features:
• Heavy Duty Wood Construction
• 5'' High-Denition Speaker
• Volume, Bass, and Treble Controls
• 3. 55mm Headphone Jack
• Power On/O Switch w/ LED Indicator
• Specially Designed for Enhanced High-Frequency Response
• Functions: Input, Drive Switch, Volume, Treble, Bass, Headphone Output
• Portable and Lightweight for Easy Transport
• Includes Headphone Output for Silent Practice
Technical Specs:
• Power Supply: 10 Watts
• Power Output: AC110V/220V Switchable
• Construction Materials: Lightweight Plywood, Coated by High-Quality Leather
• Product Dimensions (L x W x H): 9.25'' x 5.07'' x 8.46'' –inches
Questions? Issues?
We are here to help!
Phone: (1) 718-535-1800
Email: support@pyleusa.com
www.PyleUSA.com
