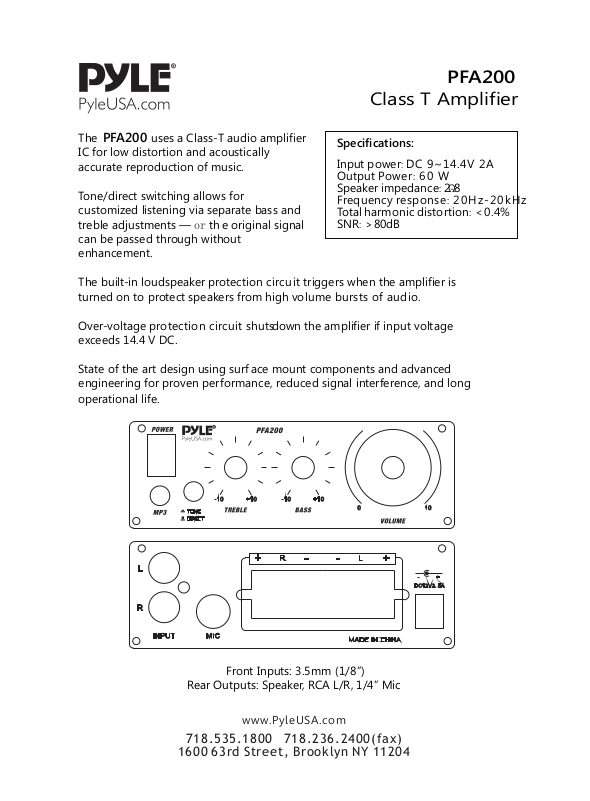

PFA200
Class T Amplifier
PFA200
The
IC for low distortion and acoustically
accurate reproduction of music.
Tone/direct switching allows for
customized listening via separate bass and
treble adjustments — or the original signal
can be passed through without
enhancement.
The built-in loudspeaker protection circu it triggers when the amplifier is
turned on to protect speakers from high volume bursts of audio.
Over-voltage protection circuit shuts down the amplifier if input voltage
exceeds 14.4 V DC.
State of the art design using surf ace mount components and advanced
engineering for proven performance, reduced signal interference, and long
operational life.
uses a Class-T audio amplifier
Specifications:
Input
power: DC 9~14.4V 2A
Output Power
Speaker
Frequency
Total
harmonic distortion: ＜0.4%
SNR
: ＞80dB
: 60 W
impedance: 2-8Ω
response: 20Hz-20kHz
Front Inputs: 3.5mm (1/8”)
Rear Outputs: Speaker, RCA L/R, 1/4” Mic
