FUNCTION INTRODUCTION
Please read this manual carefully before using this instrument.
This product is subject to change without notice
•
With 6 levels of strength that makes it closer to the original drum playing
•
Bass drum kick, snare drum, tom drum1-3, crash cymbal, ride cymbal,
Hi-hat cymbal, Hi-hat control pedal
•
15 drum sets, 150 timbres
•
10 songs, 1 recording
•
Supports the sensitivity parameter adjustment of each drum
•
Speed control: 30 ~ 250 beats/minute
•
Metronome: 1 ~ 9 kinds
•
Other functions: parameter storage, reset and recording
•
Three digit LED display
•
Interface: power DC, usb midi, headset, audio input, audio output
Note:
This product is an electronic electro-acoustic musical instrument. It is normal that
the speakers or earphones to have a little current sound after power ON.
During using, please stay away from "radio, TV, antenna receiver, router, refrigerator,
TV, electrical appliances with motors and other sources of radio frequency electrical
interference".
www.PyleUSA.com
2
Page 3
CONTENTS
INSTALLATION GUIDE
Check the enclosed items
Tom1 and tom2 installation
Mounting stand
Cymbals installation
Install the sound module, snare drum and tom3 drum
Insert connection cable
SOUND MODULE PORT DIAGRAM
Power adapter connection
USB MIDI port
Audio output port
Sound module control switch
Earphone jack
OPERATION GUIDE
Power
Volume
Drum kit selection
MENU
CLICK setting
KIT setting
EQ setting
EFX setting
Recording and playing function
CLICK function
DEMO song function
Drum parameter setting
Parameter saving and resetting
APPENDIX
Drum timbre
Preset drum kit
Demo song
PRODUCT MAINTENANCE
SAFETY PRECAUTIONS
Features and Technical Specs
4
4
5
5
6
6
7
7
8
8
8
8
8
9
9
9
9
9
10
10
10
10
11
11
11
11
12
12
12
13
13
13
14
19
www.PyleUSA.com
3
Page 4
INSTALLATION GUIDE

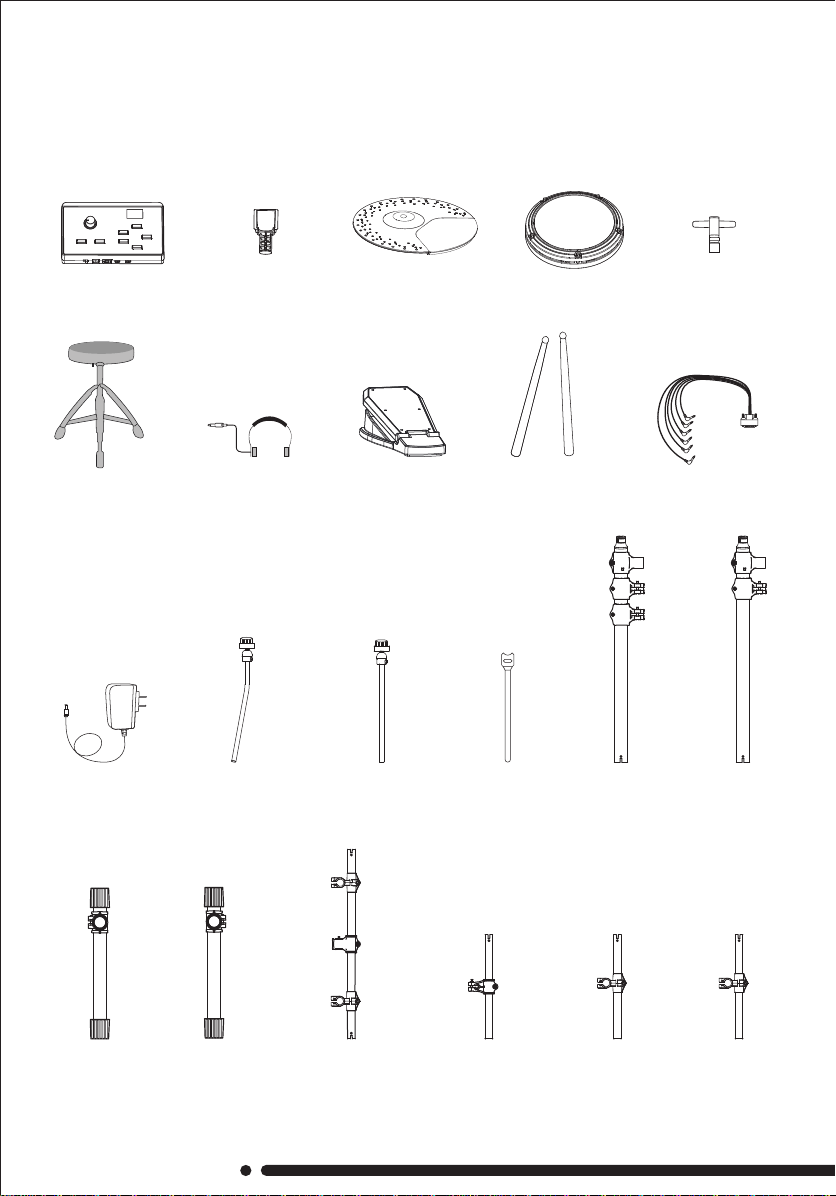

1. Check the enclosed items
After opening the package, please check immediately whether it contains all
the parts or not. If there is anything missing, please contact with the dealer.
Module bracket
HeadphoneDrum stool
Power adapter Hi-hat cymbal
Crash/Ride
cymbal arm
(2pcs)
Cymbal (3pcs)Sound module drums pad (4pcs)
Pedal (2pcs)
arm
Drum key
Drumstick Connection cable
Velcro X5
Left riser Right riser
Left foot
tube
www.PyleUSA.com
4
Right foot
tube
Middle
support bar
Hi-hat
support bar
Side cross
tube
Snare
support bar
Page 5
SAFETY PRECAUTION

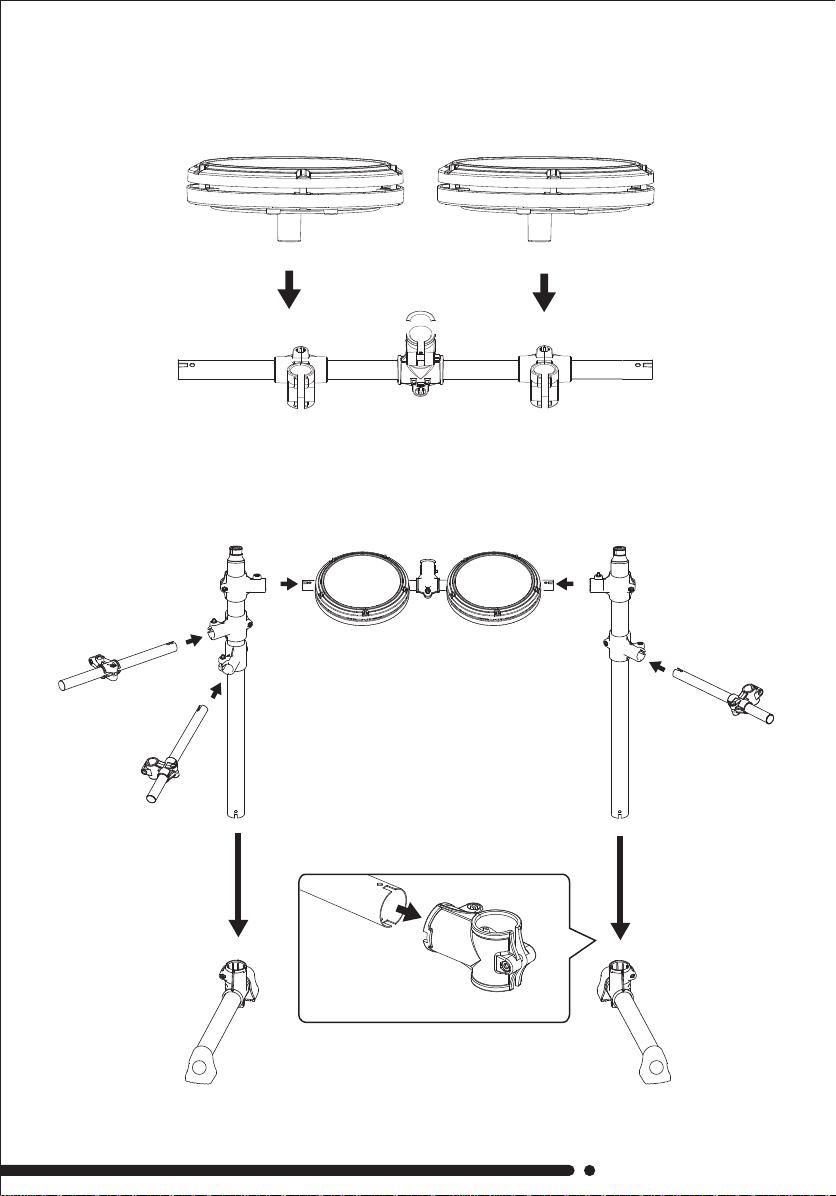

2. Tom1 and tom2 installation
Install the tom1and tom2 on the middle support bar.
3. Mounting stand
The stand must to be installed in place, and screw down the screws by the drum
key.
With anti rotation function
www.PyleUSA.com
5
Page 6

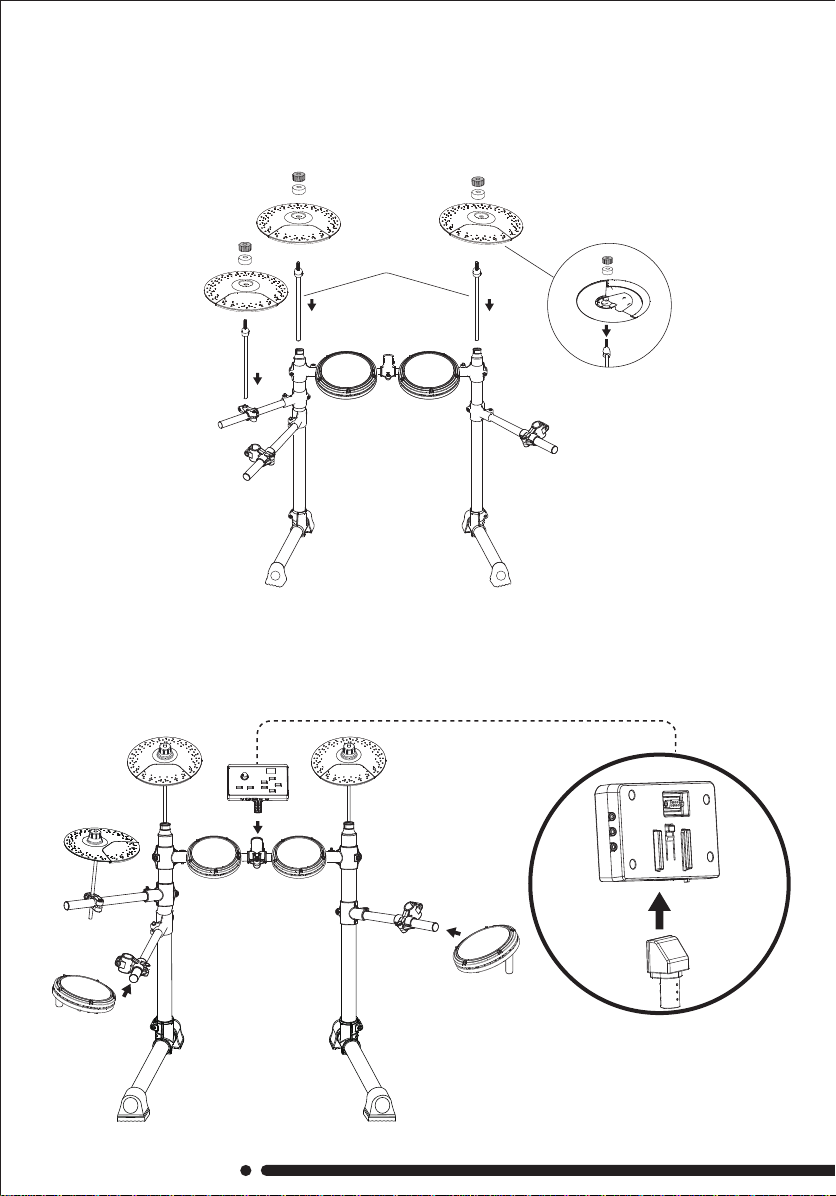

4. Cymbal installation
Attach the three cymbals to the cymbal arms as shown using the felt washers
and cymbals nuts. Be sure not to tighten the cymbals too tightly and leave some
space for them to shaking.
Cymbal support arm
5. Install the sound module snare drum and tom3 drum
Attach the sound module to the module bracket as following shown and clip in
to place. Slide the snare and tom drums on to the drum support bar and tighten
into place.
www.PyleUSA.com
6
Page 7

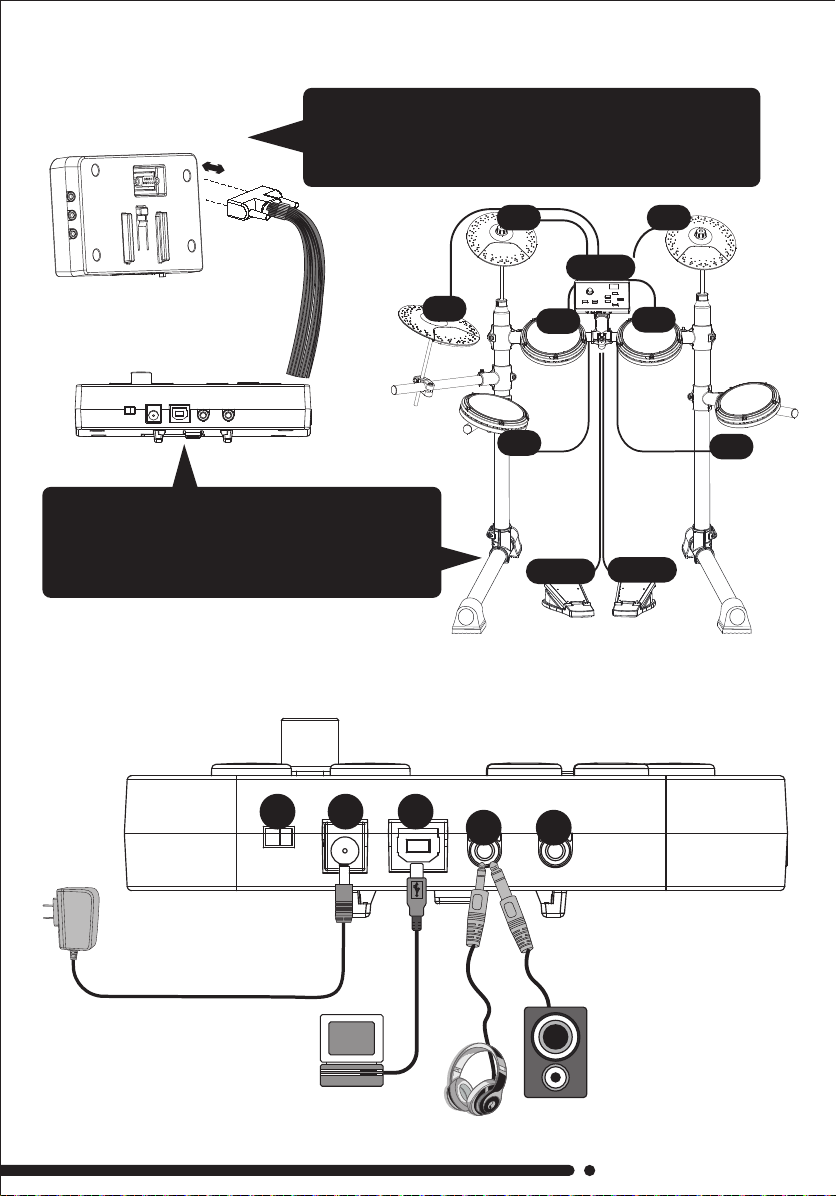

6. Insert connection cable
Place the connector into the back of the sound
module and secure into place by turning the
screws clockwise.
RideCrash
Drun Module
Place the connector into the corresponding
socket (Note: Please make sure insert the
connector in place to avoid the poor contact;
Please insert it correctly as the shown gure)
SOUND MODULE PORT DIAGRAM
14 2
Hi-hat
Snare
Hi-hat Control
5 3
Tom1
Tom2
Tom3
KICK
www.PyleUSA.com
7
Page 8

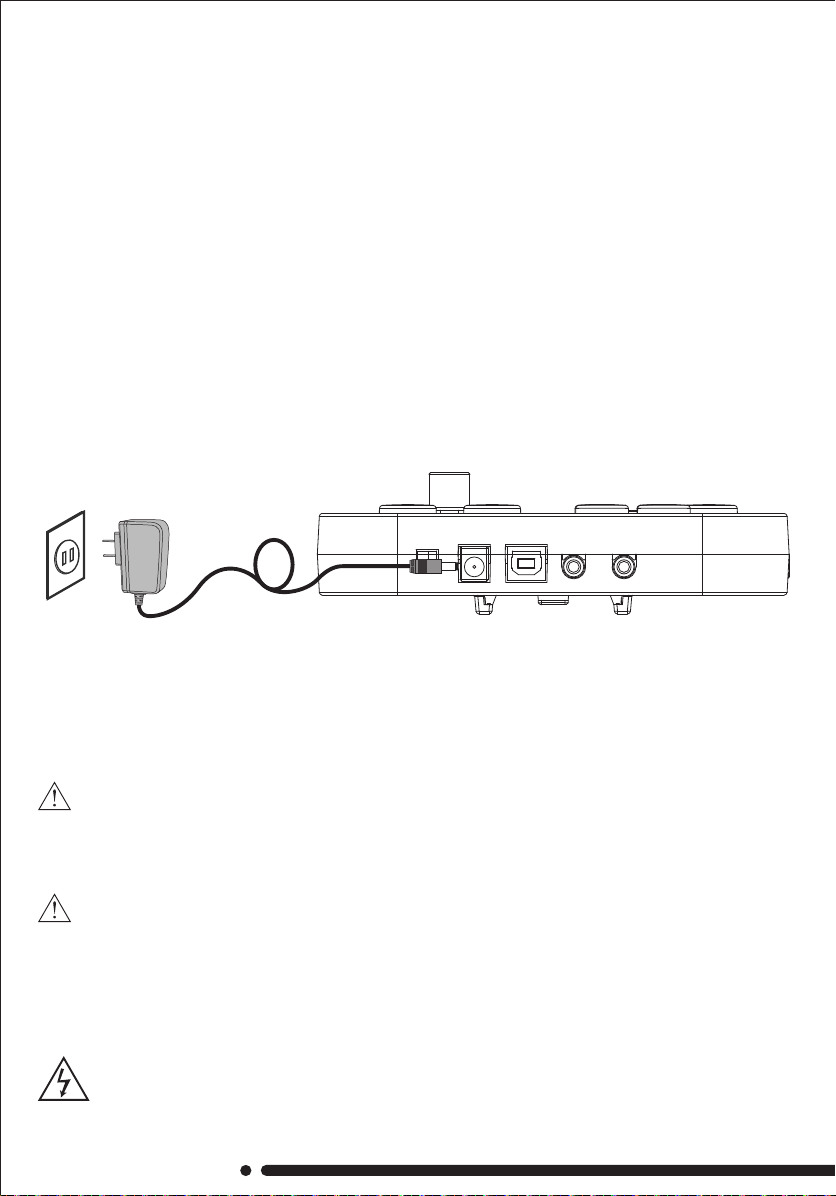

1 Power Adapter Connection
1. Connect the power adapter as the shown gure, insert one end into the power
port of the sound module, and insert the other end into a 100-240V household
power port.
2. Remove the electric plug from the outlet when the instrument is not to be used
for extended periods of time, or during electrical storms.
2 USB MIDI port
1. This product has MIDI audio output / input function of USB port.
2. The drum device can be connected with MIDI in/out function through USB cable.
It can also be used as a hard sound source.
3. It can be used as MIDI device on any DAW software though the USB cable connect
with the USB interface of PC or Mac. Or connect with the drum set game and
electronic drum software which can supply the MIDI device.
Warm Tips: This product is a standard GM MIDI communication format, and the
channel selected for MIDI signals is the default MIDI Channel 10 percussion
channel. MIDI stands for Digital Musical Instrument Interface and is the most
widely used music standard format in the arranger world. It uses digital control
signals of musical notes to record music. Therefore, MIDI transmits not sound
signals but instructions such as notes, control parameters, etc., through instructions
to tell the MIDI device which note to play, the duration of the performance, the
volume, etc.
3 Audio output socket
The audio output socket can be externally connected with active speakers
(special drum speakers are required) and large audio equipment.
4 Sound module control switch
The sound module OFF/ON switch controls the opening and closing of the sound
module.
5 Earphone jack
Connecting earphone can monitor the details of performance changes, and will
not disturb others when the speaker is not connected.
Note:
•
In order to prevent failure or damage the equipment, please make sure the
volume is low and turn o all the equipment before connecting.
•
External device is not the standard accessories, you should play for it if you want.
www.PyleUSA.com
8
Page 9

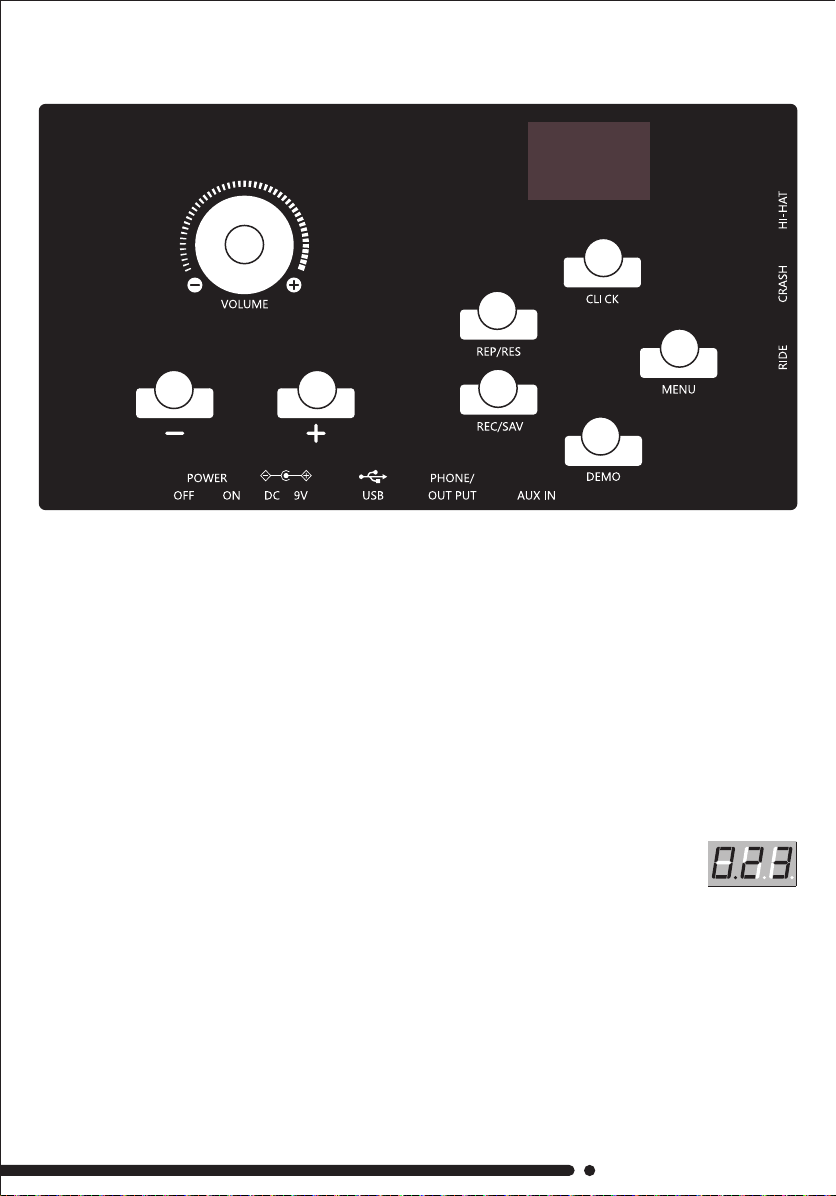

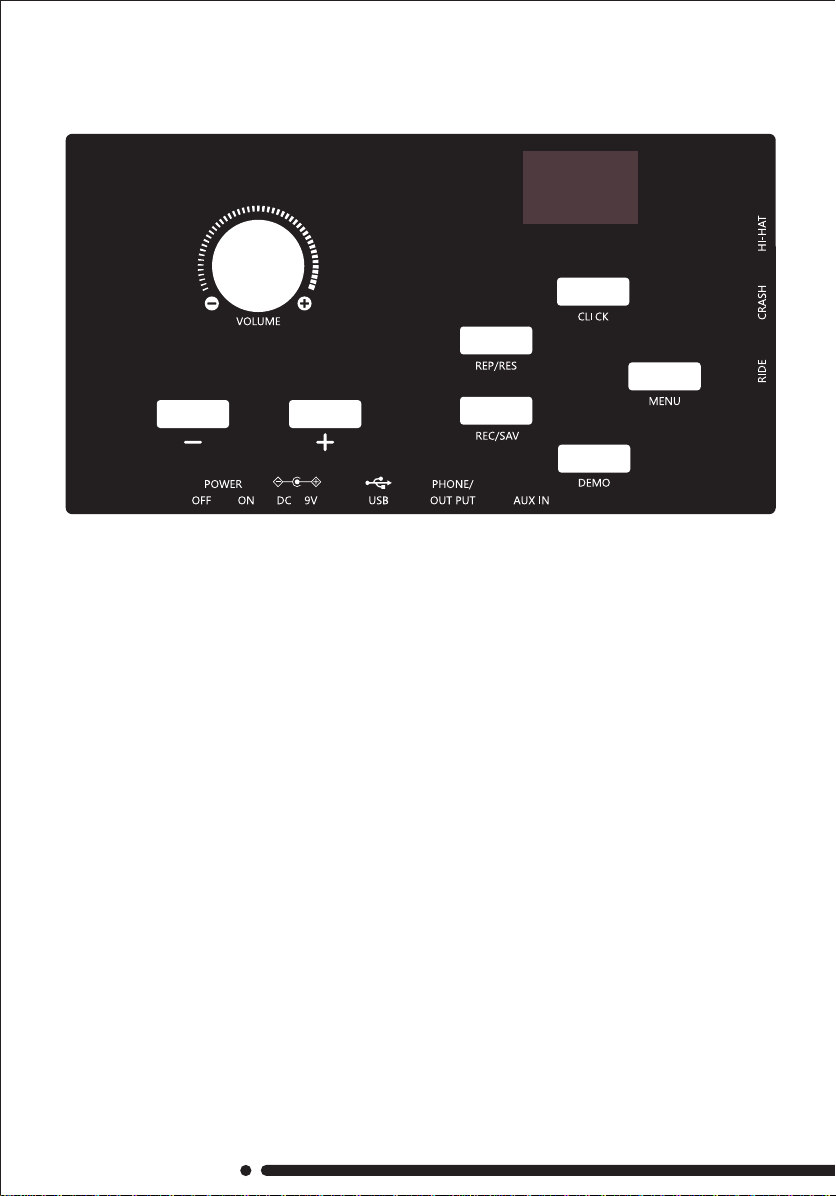

OPERATION GUIDE
1
8
4
7
2
3
5
6
1 Power
1. Slide the switch <on>, the display will light up, and sound module is on
2. Slide the switch <o>, the display goes out and sound module is turned o
2 Volume
Press the volume potentiometer to adjust the volume.
3 Drum kit selection
After startup, the default drum kit is displayed. You can directly press
the "+" "-"key to switch your favorite drum kit (the position of the point
below the number represents this mode).
4 Menu
Menu is used as the selection key to switch the kit/click/eq/efx parameter items.
www.PyleUSA.com
9
Page 10

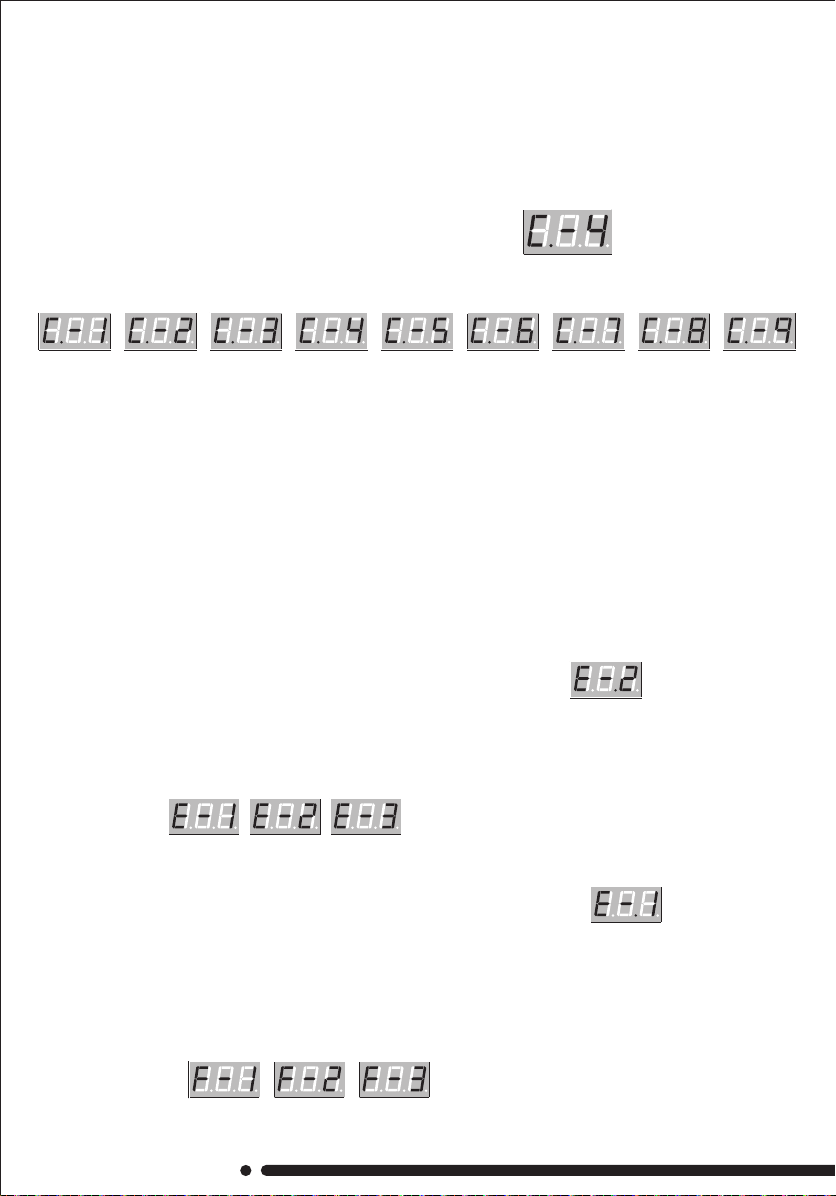

5 Click setting
1. Press the menu key several times until the screen displays c.-4. At this
time, the display position of the screen point is above the click,
indicating that the metronome parameter adjustment mode is entered.
Press the "+" "-" key to switch the number of metronome beats.
Press to save the value and save it after power o.
Click is set with C-1/C-2/C-3/C-4/C-5/C-6/C-7/C-8/C-9
2. C stands for click metronome, 9 groups of metronome types
3. C-1 is 1/4 beat, C-2 is 2/4 beat, and so on (the default is C-4, 4/4 beat)
6 Kit settings
The boot defaults to kit setting. Directly press the "+" "-" key to switch the drum kit,
or press the menu key several times to display the display number (drum kit serial
number) and press the "+" "-" key to switch the drum kit
7 EQ setting
Press the menu key several times until the screen displays at this time, the
display position of the screen point is above EQ, indicating that it enters the
reverberation parameter adjustment mode. Press the "+" "-" key to choose EQ
settings, and the EQ parameters are set to (EQ low, EQ middle, EQ high)
The display is respectively, and the default is E-2.
8 EFX settings
1. Press the menu key several times until the screen displays .
At this time, the display position of the screen point is above the EFX, indicating
that the reverberation parameter adjustment mode is entered.
Press the "+" "-" key to switch the EFX setting
2. EFX parameters are set to reverse (room, plate, Hall) respectively.
The display is f-1/f-2/f-3 (the default is F-1), and the
three eects are xed parameters.
www.PyleUSA.com
10
Page 11
9 Recording and playing function
1. Press rec to start recording, and the screen displays ashing.
In order to wait for the recording process, wait for the drum to trigger.
The rst time is to start recording, the metronome sounds, and the screen
displays . At this time, recording begins
2. Press rec key again to stop recording.
10 Click function
1. Press the click button, the light will light up, and the metronome will sound at
the same time. Press the second time to turn o the metronome sound.
2. In click mode, press / to adjust the metronome speed.
The parameter is 30-250, and the default is 120.
11 Demo song function
1. Press the demo button, the light will light up, and the demo song will sound at
the same time. Press the second time to turn o the demo function.
2. In demo mode, press the "+" "-" key to select demo songs. There are 10 kits of
demo songs, which can be played at the same time when selected.
12 Drum parameter setting
1. Press and hold menu to enter the drum parameter setting interface
2. Press the < + > < - > key to select the parameters to be set:
S (drum sensitivity), T (drum threshold), C (crosstalk value),
R (repeated trigger value), U (force curve), l (drum volume).
3. Briey press menu to enter the parameter adjustment. At this time, the interface
ashes (you can tap the drum and select the drum to be adjusted).
Press the < + > < - > key to adjust the parameters.
4. After adjusting the parameters, briey press menu to exit the parameter
adjustment, return to the drum setting interface, and select other parameters to
be adjusted. At this time, the interface stops ashing
5. Press and hold menu to exit the drum parameter setting interface.
www.PyleUSA.com
11
Page 12

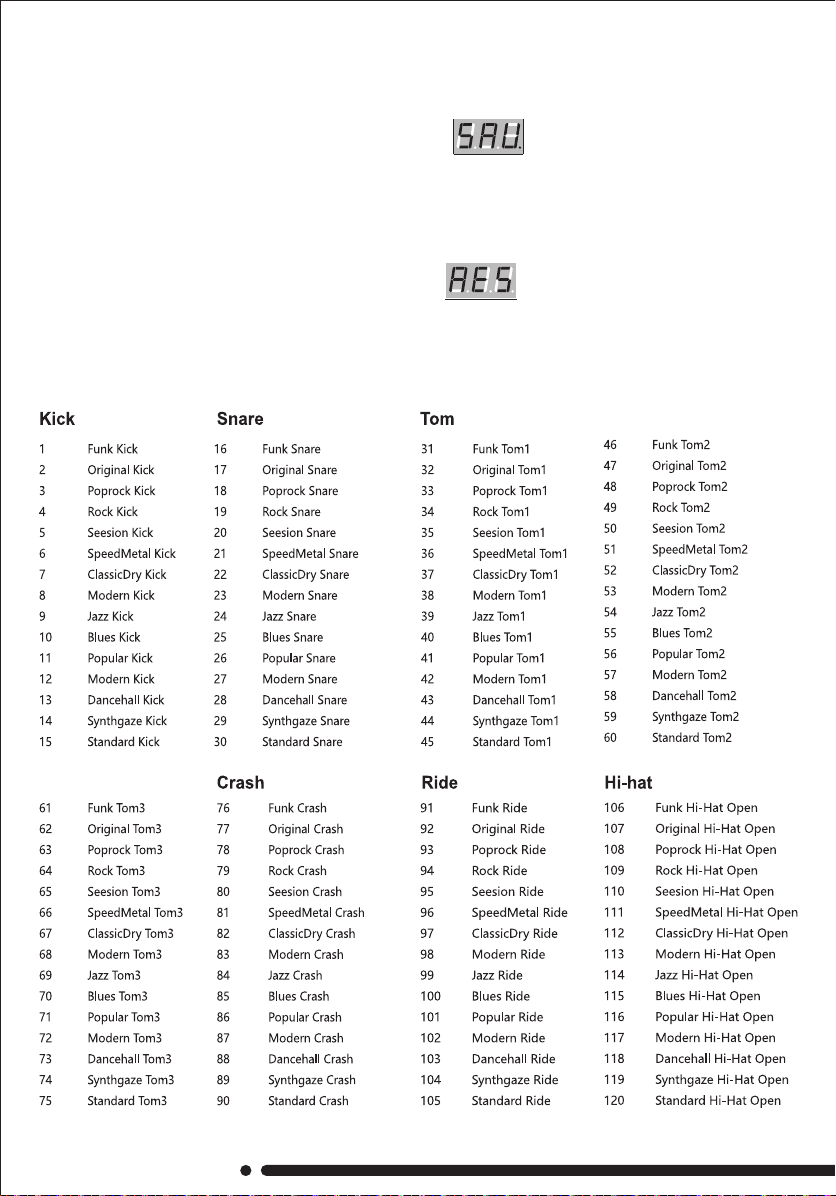

13 Parameter saving and resetting
1. Press and hold the rec button for 2 seconds to save the current setting, and SAV
will be displayed after saving successfully.
2. Press and hold the replace button for 2 seconds to restore the factory settings,
and successfully display the res MIDI function.
The USB interface outputs standard MIDI signals, supporting Android, apple,
Microsoft system tablets and computers.
APPENDIX

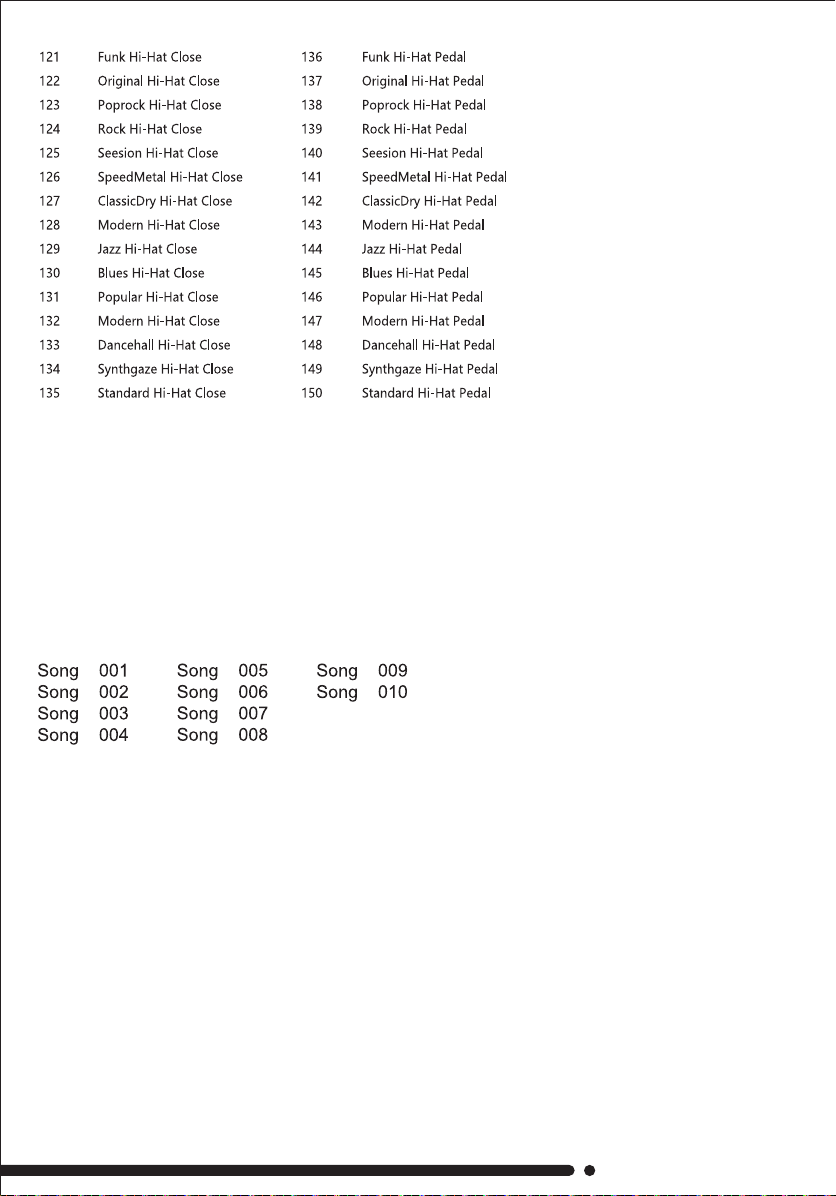

Drum timbre
www.PyleUSA.com
12
Page 13
Preset drum kit User dened drum kit
01 Funk
02 Original
03 Poprock
04 Rock
05 Seesion
06 SpeedMetal
07 ClassicDry
08 Modern
09 Jazz
10 Blues
11 Popular
12 Modern
13 Dancehall
14 Synthgaze
15 Standard
Demo song
PRODUCT MAINTENANCE
Careful maintenance and protection of this product plays an important role in
prolonging the service life of the product and reducing the failure.
1 AVOID HEATING, DAMPNESS OR DIRECT SUNLIGHT
Do not over expose the product to direct sunlight, or place it near air conditioning
or extremely hot place.
2 DO NOT USE NEAR THE TV OR RADIO
This product may cause video or audio interference to the reception of TV and
radio. If this happens, the product should be removed from the TV or radio.
www.PyleUSA.com
13
Page 14
3 NO DILUENTS OR SIMILAR CHEMICALS SHOULD BE USED FOR CLEANING
Clean the product with a soft cloth wetted with weak water solution and neutral
detergent. Soak the cloth in a solution and wring it dry until it approaches drying.
4 DO NOT SHAKE, AVOID COLLISION
When moving, the product should be handled carefully and lightly. Violent vibration and collision are strictly prohibited in order to avoid damage to the shell or
internal electronic components.
SAFETY PRECAUTIONS
POWER SUPPLY
This product can be powered by standard indoor wall sockets. Only use the power
cord specied in this product. When not in use, please turn o the power supply.
When not in use for a long time, pull out the power cord and keep it properly.
SIGN
To ensure that you use this product safely and correctly, to prevent harm to
users and others and nancial damage, this manual and products are marked
with a series of safety signs. The various signs and their meanings are as follows:
WARNING
This sign indicates that there is a potential risk of death or serious injury if this mark
is ignored and the product is mishandled.
BE CAREFUL
This sign indicates that there is a potential danger of injury to personnel or other
nancial damage if this sign is ignored and the product is operated incorrectly.
EXAMPLE OF LOGO
This triangle sign indicates what users should pay attention to. Always follow
the basic precautions listed below to avoid the possibility of serious injury or
even death from electrical shock, short-circuiting, damages, re or other hazards.
www.PyleUSA.com
14
Page 15
A circular sign with an oblique line indicates prohibitions.
The icons in or beside the logo indicate the contents specically prohibited.
(The example on the left is no disassembly)
The round black bottom sign indicates what must be observed.
The diagrams in this sign indicate the contents of the specic matters that
must be observed. (The example on the left is that the power plug must be
pulled out of the socket)
WARNING
Smoke, odor, overheating
When the product smokes, smells or overheats, there is a danger of re and electric
shock when it is used continually. In case of the above situation, the following
operations should be performed immediately:
1. Turn o the power supply.
2. Pull the plug out of the power outlet.
3. Contact your dealer.
Power cord
1. The improper use of power cord may cause re and electric shock.
The following precautions must be observed:
•
The special power cord designated for this product must be used.
•
The AC power supply with output voltage within the rated voltage range for
household use must be used.
•
Do not overload power sockets and extension lines.
2. The improper treatment of power line will lead to its damage or breakage, which will
cause re and electric shock hazards. The following precautions must be observed:
•
Do not place or heat heavy objects on power lines.
•
Do not attempt to alter or bend the power cord too much.
•
Do not twist or pull the power cord.
•
If the power cord or plug is damaged, please replace the same type of power
cord.
Do not touch the power cord and plug with wet hands, otherwise there is a
3.
danger of electric shock.
www.PyleUSA.com
15
Page 16
4.
Please use the power cord where the water will not splash.
Water is in danger of causing re and electric shock.
5.
Never place vases or any other container containing water on this product.
Water is dangerous of causing re and electric shock.
6.
Do not allow minors to unplug and touch power lines or connection boards.
Minors have no common sense of electricity safety, which may cause electric
shock.
BE CAREFUL
The improper use of power cord may cause re and electric shock.
The following precautions must be observed:
•
Never put the power cord near the oven or other heat source.
•
Do not pull the cable when pulling out of the power socket.
The main body of the plug must be grasped.
•
The power cord plug must be inserted in the socket to the end.
•
Make sure the power supply is o before connecting or disconnecting it.
•
When thunderstorms occur or before traveling or other long-term departure,
disconnect the power cord from the wall outlet.
•
At least once a year, remove the power cord from the wall outlet and clean the
dust accumulated around the plug.
Do not burn this product
Do not put this product in the re, otherwise it will lead to product combustion
and explosion of internal electronic components, which will cause re and personnel injury.
Water and foreign bodies
Water, other liquids and (metal sheets, etc.) entering this product are in danger
of causing re and electric shock. In case of the above situation, the following
operations shall be performed immediately:
1. Turn o the power supply.
2. If you are using a power cord for power supply, unplug it from the wall outlet.
3. Contact your distributor.
www.PyleUSA.com
16
Page 17
Disassembly and transformation
Do not disassemble or transform the product in any way, otherwise there is a
risk of electric shock, scald or other personal injury. All internal inspection, adjustment
and maintenance operations should be entrusted to your distributor.
Falling or colliding
If the product falls or is damaged by strong impact, it will be in danger of causing
re and electric shock. In case of the above situation, the following operations shall
be performed immediately:
1. Turn o the power supply.
2. If you are using a power cord for power supply, you need to unplug it from the
wall outlet.
3. Contact your distributor.
Plastic bag
Do not let anyone put plastic bags for this product on his head or in his mouth.
Otherwise, there is a risk of asphyxia. Families with young children should pay
special attention to it.
Keep your distance from the product and the bracket
Climbing the bracket is dangerous of overturning or damage.
Families with young children should pay special attention to it.
Set Up
DO NOT set up the product on an uneven surface or any other unstable place.
Otherwise, it will cause the product to fall down, which will lead to risk of injury.
Product Mobility
Before moving this product, you must unplug the power cord plug from the
wall outlet and pull out all other cables and connecting wires. Otherwise, it will
lead to damage of power or connection wires, resulting in re and electric shock.
Cleaning
Before cleaning this product, you must unplug the power cord plug from the
wall outlet, otherwise there is a risk of re and electric shock.
www.PyleUSA.com
17
Page 18
Jack
The socket of this product can only be connected to the designated equipment
and devices. Connecting non-designated equipment or devices is dangerous of
causing re and electric shock.
Location selection
It should be avoided to place the product in the following places, otherwise
there is a risk of re and electric shock.
•
High temperature or dusty places.
•
Kitchen or other places with lampblack.
•
Where the product is exposed to direct sunlight, or any other place where the
product will produce high temperature.
Volume
Don't play music long and loud. Pay special attention when using headphones.
Excessive volume can damage your hearing.
Heavy
Do not place heavy objects on this product. Otherwise, the top of the product
will be overweight, causing the product to overturn or drop objects on it, which
will lead to the risk of injury.
Correct assembly of scaffolds
The incorrect assembly of the bracket may overturn, causing the product to fall
o and posing a risk of injury to personnel.
Therefore, it must be assembled according to the instructions in the attached
installation guide to ensure that the product is properly mounted on its bracket.
What's in the Box:
•
Electric Drum Set
•
Headphone,
•
Pair of Drumstick
•
Throne
www.PyleUSA.com
18
Page 19
Features
•
Pre-Loaded with Selectable Drum Kits & Songs
•
MIDI Support: Connect to Computer & Unlock More
•
Record Mode: Playback Your Drum Sessions
•
Hand Percussion Mode: Drop the Drumsticks & Use Your Hands
•
Eectively Reproduces Complete 'Drum Set' Sounds
•
Use Intelligent Dynamic Technology that Provides Realistic Sounds
•
Tom-Toms, Hi-Hat, Snare & Bass Drums, Crash & Ride Cymbals
•
Super Easy & Simple USB Plug-in Operation
•
Include a Pair of Drum Stick with a Throne
•
Front Panel Button Control Center
•
Built-in Full Range Stereo Speakers
•
Aux (3.5mm) Input Jack
•
Drum-Along to Music via Connected Device
•
Headphone Jack
•
Tempo & Volume Adjustable
•
Compatible with Mac & PC
•
Includes (2) Digital Foot Pedal Controllers
Technical Specs:
•
Construction Material: Alloy Steel, Plastic, and Silica Gel
•
Drum Kits: (180) Sound Styles
•
Power Connection: DC 12V
•
Snare Drum - 7" inches Single Triggers
•
Tom Drums - 7" inches Single Triggers
•
Hi-Hat - 9" inches, Single Triggers
•
Crash - 9" inches, Single Triggers
•
Ride - 9" inches, Single Triggers
•
Drum Sticks Dimensions: 0.6’’ x 16’’ –inches
Register Product
Thank you for choosing PyleUSA. By registering your product,
you ensure that you receive the full benets of our exclusive
warranty and personalized customer support.
Complete the form to access expert support and to keep
your PyleUSA purchase in perfect condition.
PyleUSA.com/register
www.PyleUSA.com
19
Page 20
Questions? Comments?
We are here to help!
Phone: (1) 718-535-1800
PyleUSA.com/ContactUs
Loading...
