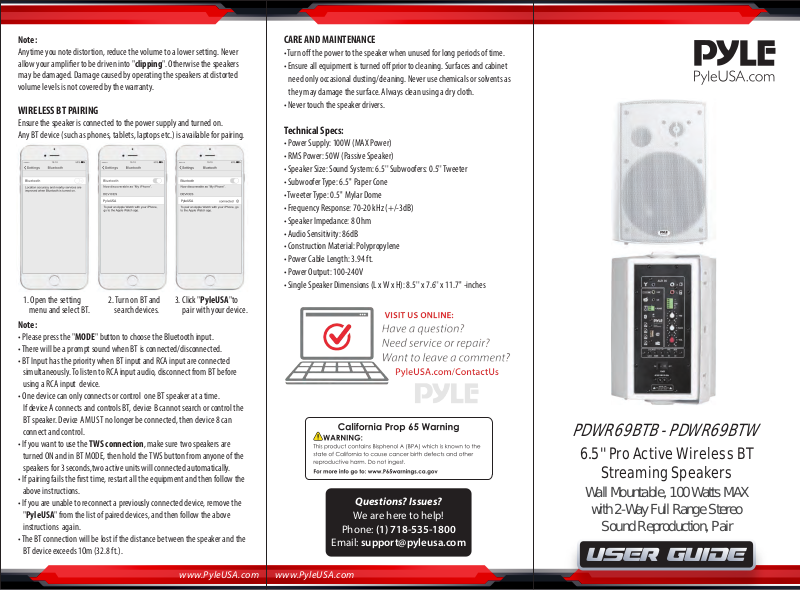

Pyle PDWR69BTW User guide

Note:

Anytime you note distortion, reduce the volume to a lower setting. Never
allow your amplier to be driven into "clipping". Otherwise the speakers
may be damaged. Damage caused by operating the speakers at distorted
volume levels is not covered by the warranty.

WIRELESS BT PAIRING

Ensure the speaker is connected to the power supply and turned on.
Any BT device (such as phones, tablets, laptops etc.) is available for pairing.

PyleUSAPyleUSA

1. Open the setting
menu and select BT.

Note:

• Please press the "MODE" button to choose the Bluetooth input.

• There will be a prompt sound when BT is connected/disconnected.

• BT Input has the priority when BT input and RCA input are connected
simultaneously. To listen to RCA input audio, disconnect from BT before
using a RCA input device.

• One device can only connects or control one BT speaker at a time.
If device A connects and controls BT, device B cannot search or control the

BT speaker. Device A MUST no longer be connected, then device 8 can
connect and control.

• If you want to use the TWS connection, make sure two speakers are
turned ON and in BT MODE, then hold the TWS button from anyone of the
speakers for 3 seconds,two active units will connected automatically.

• If pairing fails the rst time, restart all the equipment and then follow the

above instructions.

• If you are unable to reconnect a previously connected device, remove the

"PyleUSA" from the list of paired devices, and then follow the above
instructions again.

• The BT connection will be lost if the distance between the speaker and the

BT device exceeds 1Om (32.8 ft.).

2. Turn on BT and
search devices.

3. Click "PyleUSA"to
pair with your device.

CARE AND MAINTENANCE

• Turn off the power to the speaker when unused for long periods of time.

• Ensure all equipment is turned off prior to cleaning. Surfaces and cabinet
need only occasional dusting/cleaning. Never use chemicals or solvents as

they may damage the surface. Always clean using a dry cloth.

• Never touch the speaker drivers.

Technical Specs:

• Power Supply: 100W (MAX Power)

• RMS Power: 50W (Passive Speaker)

• Speaker Size: Sound System: 6.5'' Subwoofers: 0.5'' Tweeter

• Subwoofer Type: 6.5'' Paper Cone

• Tweeter Type: 0.5'' Mylar Dome

• Frequency Response: 70-20 kHz (+/-3dB)

• Speaker Impedance: 8 Ohm

• Audio Sensitivity: 86dB

• Construction Material: Polypropylene

• Power Cable Length: 3.94 ft.

• Power Output: 100-240V

• Single Speaker Dimensions (L x W x H): 8.5'' x 7.6'' x 11.7'' -inches

Questions? Issues?

We are here to help!

Phone: [phone]

Email: [e-mail]

PDWR69BTB - PDWR69BTW

6.5'' Pro Active Wireless BT
Streaming Speakers

Wall Mountable, 100 Watts MAX

with 2-Way Full Range Stereo

Sound Reproduction, Pair

www.PyleUSA.comwww.PyleUSA.com

SAFETY INSTRUCTIONS

• Please read the instructions carefully before installation and use.
Keep the manual safe for future reference.

• Prior to installing the speakers into any wall, check the structure for weight

bearing ability and avoid contact with any wiring or plumbing that might
be behind the surface area. Installing on soft materials or in areas incapable

of supporting the speakers' weight may cause personal injury or damage

to the speaker.

• Make sure the speaker is properly secured to the wall. Please use the proper
screws, bolts, or anchors. Failure to do so may cause the speaker to became
unsecured and cause potential damages/injuries.

• When installing the speakers outside, choose areas such as the underside of
eaves to avoid strong direct sunlight that may affect the color and life of

the speaker enclosure.

• Use only approved and certied wiring in your installation.
Do not stretch or place the wire in contact with sharp objects.

• Prior to removing cables, ensure all power to your amplier and other
components is turned off.

• Damage to the woofer and tweeter may occur if the speaker is dropped or
hit-resulting in no sound or distorted sound.

• Never overdrive your speakers to the point of distortion and always reduce

volume prior to switching input sources.

PREPARATION

The hardware equipment listed below is needed to install the speaker.

SPEAKER OVERVIEW

1. Aux Input

2. Loop: A signal output for connecting to the other active speaker or amplier.

3. SUB: Bass output for connecting to subwoofer.

4. Speaker Output: 2-Pin terminal block for connecting to the passive

speaker.

5. LED Indicator

6. RCA Input

7. 5-Pin European-Style Terminal Block: Connects to a balanced stereo

audio input.

8. Treble: Increase or decrease the high frequency response. The O position
produces a at response. Control range: -12 dB to +12 dB.

9. Bass: Increase or decrease the low frequency response. The 0 position
produces a at response. Control range: -12 dB to +12 dB

10. Volume Control

11. USB Input

12. Replay

13. Mode: Switches audio sources.

14. Previous (Short Press)
Rewind (Press and hold)

15. Next (Short Press)
Forward (Press and hold)

16. Play/Pause (Short Press)
TWS Pairing (Press and hold)

17. Power Switch: When this switch is on Auto position, the amplier will

automatically turn on when a signal is present and it will go standby

when there is no signal input in about 15 seconds.

18. AC Power Input

PACKING LIST

Ensure that you have received all parts according to the component checklist

prior to installation. If any parts are missing or faulty, contact your place of

purchase for a replacement.

www.PyleUSA.com www.PyleUSA.com

CONNECTION

• Ensure that the speaker is unplugged from the mains before making any

connections.

• Connect active and passive speakers as shown. Always check to ensure
polarity is correct: "+" to "+", and "-" to "-".
