Page 1
PDWR54BTB - PDWR54BTW
Waterproof Wireless BT Streaming
5.25'' Indoor/Outdoor Speaker System, 600 Watt
PDWR65BTRFB - PDWR65BTRFW
Waterproof Wireless BT Streaming
6.5'' Indoor/Outdoor Speaker System, 800 Watt
Page 2
WALL MOUNT SPEAKER MODELS:
Model
Color
Speaker
Size
Built-in
PDWR54BTB Black 5.25”
PDWR54BTW
PDWR64BTB
PDWR64BTW
PDWR54BTB-Black
● System Includes (2) Speakers
● Active & Passive Speaker System
● Built-in 2 Channel Amplifier
● Bluetooth Wireless Music Streaming
● Marine Grade waterproof Construction
● 2-Way Full Range Stereo Sound
● Custom Tooled Design for High Power and Deep Bass Response
● Removable & Rust Proof Aluminum Speaker Grills
● Gold Plated Speaker Plug Terminals
● RCA(L/R) Audio Input Connector Jacks
● Single RCA Speaker Output Connector Jack
● Rotary Volume Control
● Spring Loaded Mounting Bracket Included
● Heavy Duty Engineered Plastic Cabinet
● Built-in Capacitor Speaker Protection
● Ability to Daisy-Chain Active Speaker to Passive Speaker as
Stereo System
● Excellent for Monitor or Surround Sound Applications
● Great by the Pool, on the Patio or in the Boat
● For Indoor / Outdoor Use
Technical Specs:
● Marine Grade IP44 Rating
● 5.25”' Long Throw Woofers
● 1.0'' Polymer Dome Tweeters
● Magnet Size: 10oz.
● Cone Material: PP Mica + Rubber Surround
● 600 Watt Rated Peak Power
● 300 Watt Rates RMS Power
● Frequency Response: 90Hz-20kHz
● 8 Ohm Impedance
● Dimensions (L x W x H): 5.75'' x 7.09'' x 9.88''
PDWR64BTB-Black
● System Includes (2) Speakers
● Active & Passive Speaker System
● Built-in 2 Channel Amplifier
● Bluetooth Wireless Music Streaming
● Marine Grade waterproof Construction
● 2-Way Full Range Stereo Sound
● Custom Tooled Design for High Power and Deep Bass Response
● Removable & Rust Proof Aluminum Speaker Grills
● Gold Plated Speaker Plug Terminals
● RCA(L/R) Audio Input Connector Jacks
● Single RCA Speaker Output Connector Jack
● Rotary Volume Control
● Spring Loaded Mounting Bracket Included
● Heavy Duty Engineered Plastic Cabinet
● Built-in Capacitor Speaker Protection
● Ability to Daisy-Chain Active Speaker to Passive Speaker as
Stereo System
● Excellent for Monitor or Surround Sound Applications
● Great by the Pool, on the Patio or in the Boat
● For Indoor / Outdoor Use
Technical Specs:
● Marine Grade IP44 Rating
● 6.5”' Long Throw Woofers
● 1.0'' Polymer Dome Tweeters
● Magnet Size: 13 oz.
● Cone Material: PP Mica + Rubber Surround
● 800 Watt Rated Peak Power
● 400 Watt Rates RMS Power
● Frequency Response: 70Hz-22kHz
● 8 Ohm Impedance
● Dimensions (L x W x H): 7.28'' x 9.25'' x 13.0''
White
Black
White
5.25”
6.5”
6.5”
BT
Marine
Grade
MAX
Power
RMS
Power
600
600
800
800
PDWR54BTW-White
● System Includes (2) Speakers
● Active & Passive Speaker System
● Built-in 2 Channel Amplifier
● Bluetooth Wireless Music Streaming
● Marine Grade waterproof Construction
● 2-Way Full Range Stereo Sound
● Custom Tooled Design for High Power and Deep Bass Response
● Removable & Rust Proof Aluminum Speaker Grills
● Gold Plated Speaker Plug Terminals
● RCA(L/R) Audio Input Connector Jacks
● Single RCA Speaker Output Connector Jack
● Rotary Volume Control
● Spring Loaded Mounting Bracket Included
● Heavy Duty Engineered Plastic Cabinet
● Built-in Capacitor Speaker Protection
● Ability to Daisy-Chain Active Speaker to Passive Speaker as
Stereo System
● Excellent for Monitor or Surround Sound Applications
● Great by the Pool, on the Patio or in the Boat
● For Indoor / Outdoor Use
Technical Specs:
● Marine Grade IP44 Rating
● 5.25”' Long Throw Woofers
● 1.0'' Polymer Dome Tweeters
● Magnet Size: 10oz.
● Cone Material: PP Mica + Rubber Surround
● 600 Watt Rated Peak Power
● 300 Watt Rates RMS Power
● Frequency Response: 90Hz-20kHz
● 8 Ohm Impedance
● Dimensions (L x W x H): 5.75'' x 7.09'' x 9.88''
PDWR64BTW-White
● System Includes (2) Speakers
● Active & Passive Speaker System
● Built-in 2 Channel Amplifier
● Bluetooth Wireless Music Streaming
● Marine Grade waterproof Construction
● 2-Way Full Range Stereo Sound
● Custom Tooled Design for High Power and Deep Bass Response
● Removable & Rust Proof Aluminum Speaker Grills
● Gold Plated Speaker Plug Terminals
● RCA(L/R) Audio Input Connector Jacks
● Single RCA Speaker Output Connector Jack
● Rotary Volume Control
● Spring Loaded Mounting Bracket Included
● Heavy Duty Engineered Plastic Cabinet
● Built-in Capacitor Speaker Protection
● Ability to Daisy-Chain Active Speaker to Passive Speaker as
Stereo System
● Excellent for Monitor or Surround Sound Applications
● Great by the Pool, on the Patio or in the Boat
● For Indoor / Outdoor Use
Technical Specs:
● Marine Grade IP44 Rating
● 6.5”' Long Throw Woofers
● 1.0'' Polymer Dome Tweeters
● Magnet Size: 13 oz.
● Cone Material: PP Mica + Rubber Surround
● 800 Watt Rated Peak Power
● 400 Watt Rates RMS Power
● Frequency Response: 70Hz-22kHz
● 8 Ohm Impedance
● Dimensions (L x W x H): 7.28'' x 9.25'' x 13.0''
300
300
400
400
www.PyleUSA.com
2
Page 3

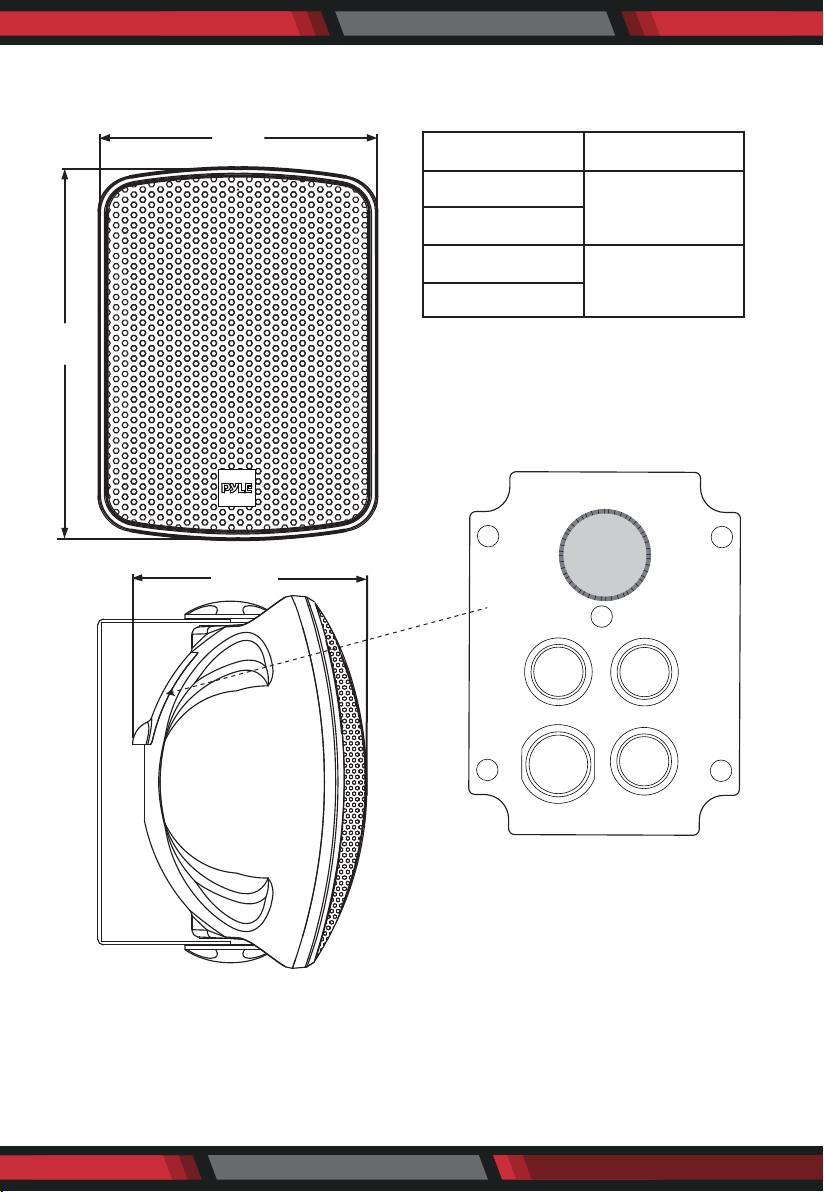

OVERALL DIMENSIONS
7.09''
180mm
MODEL
PDWR54BTB
PDWR54BTW
DIMENSIONS
(L x W x H)
5.75'' x 7.09'' x 9.88''
146 x 180 x 251mm
9.88''
251mm
5.75''
146mm
PDWR64BTB
PDWR64BTW
OFF MAX
LEFT
INPUT
AC: 90-240V
60/50Hz
7.28'' x 9.25'' x 13.0''
185 x 235 x 330mm
VOLUME
SPEAKER
RIGHT
INPUT
OUT
Controller
WIRELESS BT STREAMING CONNECTION
Please be sure the Wireless BT Streaming is turned on at your device.
When the device is in BT range, it will connect BT automatically and will be
diconectted automatically when it is out of BT range.
www.PyleUSA.com
3
Page 4
PACKAGING CONTENTS
1. 2 LOUDSPEAKERS
2. 2 BRACKETS
3. 4 BRACKET BOLTS
4. 4 SCREWS
5. 1 CONNETION WIRE
6. 1 RCA WIRE
1
3
4
5
2
6
Screw for the bracket
www.PyleUSA.com
4
Screw on the back
Page 5
MOUNTING
MOUNTING THE BRACKET:
1. Remove the bracket knobs and the bracket from the speaker.
2. Hold the bracket up to the mounting surface. The speaker can be mounted either horizontally
or vertically. Hold the bracket so that the speaker wire fits through the large, circular wire
hole in the bracket. Align the bracket to be square with the surroundings (use a level for
accuracy).
3. Mark the locations of the three shaped screw holes. Use all of the holes.
4. Drill pilot holes into the mounting surface.
5. Gently pull the speaker wire through the wire hole in the center of the mounting bracket.
Align the bracket so that the holes all line up.
6. Use your hardware to attach the bracket to the mounting surface.
FINAL ADJUSTMENTS:
1. After checking that the speaker is in-phase and works correctly, angle the speaker for the
best sound.
2. Hand tighten the bracket knobs only. Power tools may over-tighten the knob, and strip the
threads of the insert.
3. Check that the entire installation is safe and secure.
www.PyleUSA.com
5
Page 6
