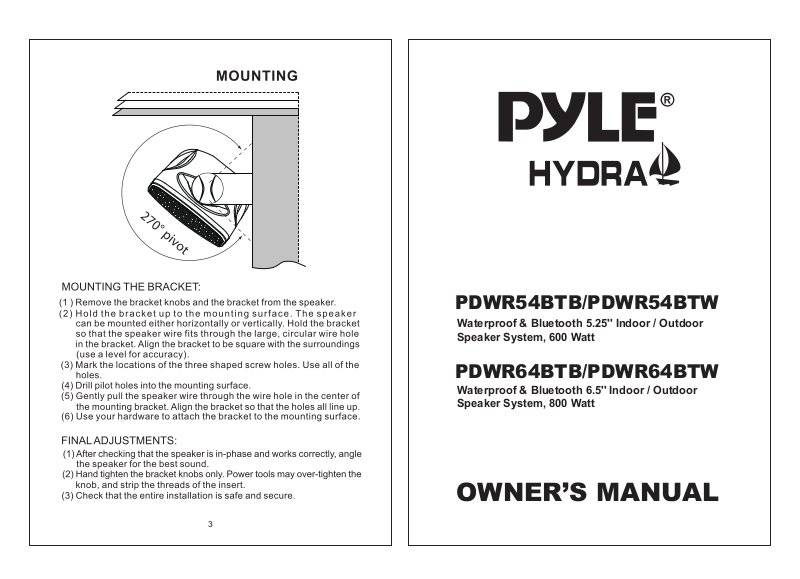

Page 1
PDWR54BTB/PDWR54BTW
Waterproof & Bluetooth 5.25'' Indoor / Outdoor
Speaker System, 600 Watt
PDWR64BTB/PDWR64BTW
Waterproof & Bluetooth 6.5'' Indoor / Outdoor
Speaker System, 800 Watt
OWNER’S MANUAL
3
Page 2
Wall Mount Speaker Models:
Model
Color
Speaker
Size
PDWR54BTB Black 5.25”
PDWR54BTW
PDWR64BTB
PDWR64BTW
PDWR54BTB-Black
● System Includes (2) Speakers
● Active & Passive Speaker System
● Built-in 2 Channel Amplifier
● Bluetooth Wireless Music Streaming
● Marine Grade waterproof Construction
● 2-Way Full Range Stereo Sound
● Custom Tooled Design for High Power and Deep Bass Response
● Removable & Rust Proof Aluminum Speaker Grills
● Gold Plated Speaker Plug Terminals
● RCA(L/R) Audio Input Connector Jacks
● Single RCA Speaker Output Connector Jack
● Rotary Volume Control
● Spring Loaded Mounting Bracket Included
● Heavy Duty Engineered Plastic Cabinet
● Built-in Capacitor Speaker Protection
● Ability to Daisy-Chain Active Speaker to Passive Speaker as
Stereo System
● Excellent for Monitor or Surround Sound Applications
● Great by the Pool, on the Patio or in the Boat
● For Indoor / Outdoor Use
Technical Specs:
● Marine Grade IP44 Rating
● 5.25”' Long Throw Woofers
● 1.0'' Polymer Dome Tweeters
● Magnet Size: 10oz.
● Cone Material: PP Mica + Rubber Surround
● 600 Watt Rated Peak Power
● 300 Watt Rates RMS Power
● Frequency Response: 90Hz-20kHz
● 8 Ohm Impedance
● Dimensions (L x W x H): 5.75'' x 7.09'' x 9.88''
● Weight : 9.5 lbs.
● Sold as: Pair
PDWR64BTB-Black
● System Includes (2) Speakers
● Active & Passive Speaker System
● Built-in 2 Channel Amplifier
● Bluetooth Wireless Music Streaming
● Marine Grade waterproof Construction
● 2-Way Full Range Stereo Sound
● Custom Tooled Design for High Power and Deep Bass Response
● Removable & Rust Proof Aluminum Speaker Grills
● Gold Plated Speaker Plug Terminals
● RCA(L/R) Audio Input Connector Jacks
● Single RCA Speaker Output Connector Jack
● Rotary Volume Control
● Spring Loaded Mounting Bracket Included
● Heavy Duty Engineered Plastic Cabinet
● Built-in Capacitor Speaker Protection
● Ability to Daisy-Chain Active Speaker to Passive Speaker as
Stereo System
● Excellent for Monitor or Surround Sound Applications
● Great by the Pool, on the Patio or in the Boat
● For Indoor / Outdoor Use
Technical Specs:
● Marine Grade IP44 Rating
● 6.5”' Long Throw Woofers
● 1.0'' Polymer Dome Tweeters
● Magnet Size: 13 oz.
● Cone Material: PP Mica + Rubber Surround
● 800 Watt Rated Peak Power
● 400 Watt Rates RMS Power
● Frequency Response: 70Hz-22kHz
● 8 Ohm Impedance
● Dimensions (L x W x H): 7.28'' x 9.25'' x 13.0''
● Weight : 13.5 lbs.
● Sold as: Pair
White
Black
White
5.25”
6.5”
6.5”
Built-in
Bluetooth
Overall Dimensions
Marine
Grade
PDWR54BTW-White
● System Includes (2) Speakers
● Active & Passive Speaker System
● Built-in 2 Channel Amplifier
● Bluetooth Wireless Music Streaming
● Marine Grade waterproof Construction
● 2-Way Full Range Stereo Sound
● Custom Tooled Design for High Power and Deep Bass Response
● Removable & Rust Proof Aluminum Speaker Grills
● Gold Plated Speaker Plug Terminals
● RCA(L/R) Audio Input Connector Jacks
● Single RCA Speaker Output Connector Jack
● Rotary Volume Control
● Spring Loaded Mounting Bracket Included
● Heavy Duty Engineered Plastic Cabinet
● Built-in Capacitor Speaker Protection
● Ability to Daisy-Chain Active Speaker to Passive Speaker as
Stereo System
● Excellent for Monitor or Surround Sound Applications
● Great by the Pool, on the Patio or in the Boat
● For Indoor / Outdoor Use
Technical Specs:
● Marine Grade IP44 Rating
● 5.25”' Long Throw Woofers
● 1.0'' Polymer Dome Tweeters
● Magnet Size: 10oz.
● Cone Material: PP Mica + Rubber Surround
● 600 Watt Rated Peak Power
● 300 Watt Rates RMS Power
● Frequency Response: 90Hz-20kHz
● 8 Ohm Impedance
● Dimensions (L x W x H): 5.75'' x 7.09'' x 9.88''
● Weight : 9.5 lbs.
● Sold as: Pair
PDWR64BTW-White
● System Includes (2) Speakers
● Active & Passive Speaker System
● Built-in 2 Channel Amplifier
● Bluetooth Wireless Music Streaming
● Marine Grade waterproof Construction
● 2-Way Full Range Stereo Sound
● Custom Tooled Design for High Power and Deep Bass Response
● Removable & Rust Proof Aluminum Speaker Grills
● Gold Plated Speaker Plug Terminals
● RCA(L/R) Audio Input Connector Jacks
● Single RCA Speaker Output Connector Jack
● Rotary Volume Control
● Spring Loaded Mounting Bracket Included
● Heavy Duty Engineered Plastic Cabinet
● Built-in Capacitor Speaker Protection
● Ability to Daisy-Chain Active Speaker to Passive Speaker as
Stereo System
● Excellent for Monitor or Surround Sound Applications
● Great by the Pool, on the Patio or in the Boat
● For Indoor / Outdoor Use
Technical Specs:
● Marine Grade IP44 Rating
● 6.5”' Long Throw Woofers
● 1.0'' Polymer Dome Tweeters
● Magnet Size: 13 oz.
● Cone Material: PP Mica + Rubber Surround
● 800 Watt Rated Peak Power
● 400 Watt Rates RMS Power
● Frequency Response: 70Hz-22kHz
● 8 Ohm Impedance
● Dimensions (L x W x H): 7.28'' x 9.25'' x 13.0''
● Weight : 13.5 lbs.
● Sold as: Pair
1 2
MAX
Power
600
600
800
800
RMS
Power
300
300
400
400
7.09''
180mm
9.88''
251mm
Packaging contents
1. 2 Loudspeakers 2. 2 Brackets 3. 4 Bracket Bolts
4. 4 Screws
1
5. 1 Connetion Wire 6. 1 RCA Wire
Bluetooth connection:
Please be sure the Bluetooth is turned on at your device. When the device is in
Bluetooth range, it will connect Bluetooth automatically and will be diconectted
automatically when it is out of Bluetooth range.
5.75''
146mm
3
4
VOLUME
OFF MAX
LEFT
INPUT
AC: 90-240V
60/50Hz
RIGHT
INPUT
SPEAKER
OUT
Controller
MODEL
PDWR54BTB
PDWR54BTW
PDWR64BTB
PDWR64BTW
DIMENSIONS
(L x W x H)
5.75'' x 7.09'' x 9.88''
146 x 180 x 251mm
7.28'' x 9.25'' x 13.0''
185 x 235 x 330mm
5
2
6
