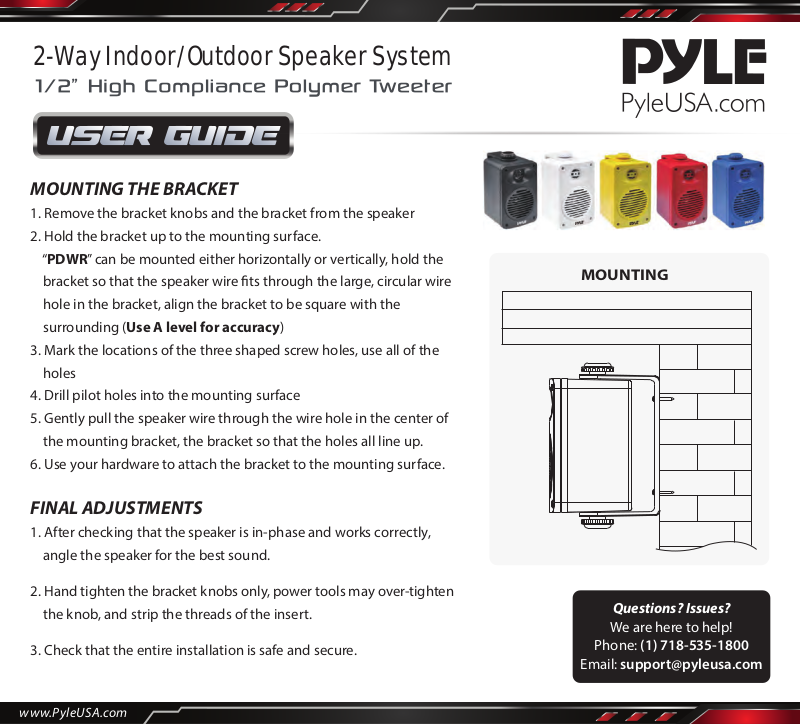

Pyle PDWR55WT User guide

2-Way Indoor/Outdoor Speaker System

MOUNTING THE BRACKET

1. Remove the bracket knobs and the bracket from the speaker

2. Hold the bracket up to the mounting surface.

“PDWR” can be mounted either horizontally or vertically, hold the

bracket so that the speaker wire ts through the large, circular wire

hole in the bracket, align the bracket to be square with the

surrounding (Use A level for accuracy)

3. Mark the locations of the three shaped screw holes, use all of the

holes

4. Drill pilot holes into the mounting surface

5. Gently pull the speaker wire through the wire hole in the center of

the mounting bracket, the bracket so that the holes all line up.

6. Use your hardware to attach the bracket to the mounting surface.

MOUNTING

FINAL ADJUSTMENTS

1. After checking that the speaker is in-phase and works correctly,

angle the speaker for the best sound.

2. Hand tighten the bracket knobs only, power tools may over-tighten

the knob, and strip the threads of the insert.

3. Check that the entire installation is safe and secure.

www.PyleUSA.com

Questions? Issues?

We are here to help!

Phone: [phone]

Email: [e-mail]

Technical Specs:

Model
Number

PDWR35WT 3.5''200 Watt 24 Oz White
PDWR35BK
PDWR35YL
PDWR35RD
PDWR35BL

Model
Number

PDWR45WT 4''300 Watt 30 Oz White
PDWR45BK
PDWR45YL
PDWR45RD
PDWR45BL

Model
Number

PDWR55WT 5.25''500 Watt 40 Oz White
PDWR55BK
PDWR55YL
PDWR55RD
PDWR55BL

Peak

Power

Peak

Power

Peak

Power

RMS

Power

100 Watt
100 Watt 24 Oz Black

RMS

Power

150 Watt
150 Watt 30 Oz Black

RMS

Power

250 Watt
250 Watt 40 Oz Black

Subwoofers

Size

3.5''

3.5'' 0.5''1.75''200 Watt 100 Watt 24 Oz 8 Ohm70-21 kHz

3.5'' 0.5''1.75''200 Watt 100 Watt 24 Oz 8 Ohm70-21 kHz

3.5'' 0.5''1.75''200 Watt 100 Watt 24 Oz 8 Ohm70-21 kHz

Subwoofers

Size

4''
4'' 0.5''1.75''300 Watt 150 Watt 30 Oz 8 Ohm60-21 kHz
4'' 0.5''1.75''300 Watt 150 Watt 30 Oz 8 Ohm60-21 kHz
4'' 0.5''1.75''300 Watt 150 Watt 30 Oz 8 Ohm60-21 kHz

Subwoofers

Size

5.25''

5.25'' 0.5''1.75''500 Watt 250 Watt 40 Oz 8 Ohm50-21 kHz

5.25'' 0.5''1.75''500 Watt 250 Watt 40 Oz 8 Ohm50-21 kHz

5.25'' 0.5''1.75''500 Watt 250 Watt 40 Oz 8 Ohm50-21 kHz

Midranges

1.75''

1.75''200 Watt

Midranges

1.75''

1.75''300 Watt

Midranges

1.75''

1.75''500 Watt

Tweeter Magnet Colour

0.5''

0.5''

Tweeter Magnet Colour

0.5''

0.5''

Tweeter Magnet Colour

0.5''

0.5''

Frequency

Response

70-21 kHz
70-21 kHz

Frequency

Response

60-21 kHz
60-21 kHz

Frequency

Response

50-21 kHz
50-21 kHz

Impedance

8 Ohm
8 Ohm

Yellow

Red

Blue

Impedance

8 Ohm
8 Ohm

Yellow

Red

Blue

Impedance

8 Ohm
8 Ohm

Yellow

Red

Blue
