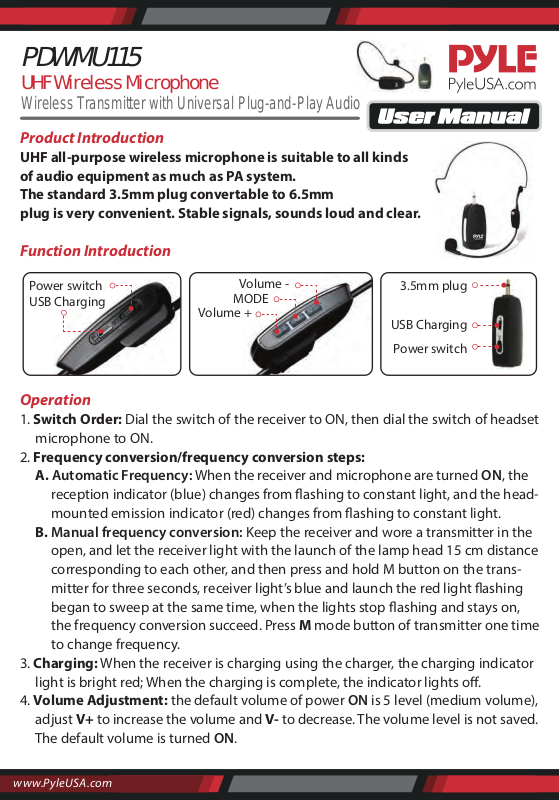

Pyle PDWMU115 User guide

PDWMU115

Power switch
USB Charging

Volume -

Volume +

MODE

UHF Wireless Microphone

Wireless Transmitter with Universal Plug-and-Play Audio

Product Introduction

UHF all-purpose wireless microphone is suitable to all kinds
of audio equipment as much as PA system.
The standard 3.5mm plug convertable to 6.5mm
plug is very convenient. Stable signals, sounds loud and clear.

Function Introduction

3.5mm plug

USB Charging

Power switch

Operation

1. Switch Order: Dial the switch of the receiver to ON, then dial the switch of headset
microphone to ON.

2. Frequency conversion/frequency conversion steps:
A. Automatic Frequency: When the receiver and microphone are turned ON, the
reception indicator (blue) changes from ashing to constant light, and the head­ mounted emission indicator (red) changes from ashing to constant light.
B. Manual frequency conversion: Keep the receiver and wore a transmitter in the
open, and let the receiver light with the launch of the lamp head 15 cm distance
corresponding to each other, and then press and hold M button on the trans­ mitter for three seconds, receiver light’s blue and launch the red light ashing
began to sweep at the same time, when the lights stop ashing and stays on,
the frequency conversion succeed. Press M mode button of transmitter one time
to change frequency.

3. Charging: When the receiver is charging using the charger, the charging indicator
light is bright red; When the charging is complete, the indicator lights o.

4. Volume Adjustment: the default volume of power ON is 5 level (medium volume),
adjust V+ to increase the volume and V- to decrease. The volume level is not saved.
The default volume is turned ON.

www.PyleUSA.com

Features:

• Convenient Microphone Voice-Over

• Already Paired Device before Using

• Simple Plug-and-Play Operation

• Integrated Low Noise Circuitry

• Noise-Eliminating SMT Technology

• Crisp Audio Clarity for Vocals & Singing

• Connect & Stream Audio to External

Devices

• 1/4'' -inch (6.3mm) Wired Microphone
Input

• Rear Panel 1/4'' -inch (6.3mm)
Unbalanced Mixed Output

• Rear Panel Aux (3.5mm) Audio Input/
Output Jacks Perfect for Professional
Audio Stage & Studio Performances

What's in the Box:

• Headset Microphone

• USB Charging Cable

• Audio Connection Cable

• Receiver Unit

Receiver Specs:

• Receiving Frequency: U Band

• Frequency Stability: <0.002%;

• Sensitivity: 2mV

• Interference Frequency Ratio > 90dB;

• Image Interference Ratio: >88dB

• Signal to Noise Ratio: >95dB;

• Audio Output: 800mV-1.4V

• Working Range: Standard conditions

30 to 50 m

• Receive Channel: 2

• Supply Voltage: 5V

• Battery Type: 1000mAh, Polymer

• Open Circuit Sensitivity: >115 dB

• Frequency Response: 100Hz-10kHz

• Output Impedance: 600 Ohm, +/-3dB

(0dB=1V/Pa @ 1kHz)

• Power Consumption: 3W

• Antenna: Universal Antenna

• Product Dimension (L x W x H):

0.49'' x 0.49'' x 0.16'' -inches

Handheld Transmitter Specs:

• Carrier Frequency: U Band

• Frequency Stability: <0.002%

• Transmit Power: 10mV

• Current Consumption: <25mA

• Harmonic: Main wave 40dB

• Standard: Not Fixed Frequency

(Frequency Range:530一550MHz)

• Pickup: 6000 Single Directivity

• Battery Operated: 2*AA/MIC

(not included)

• Antenna: Built-in
