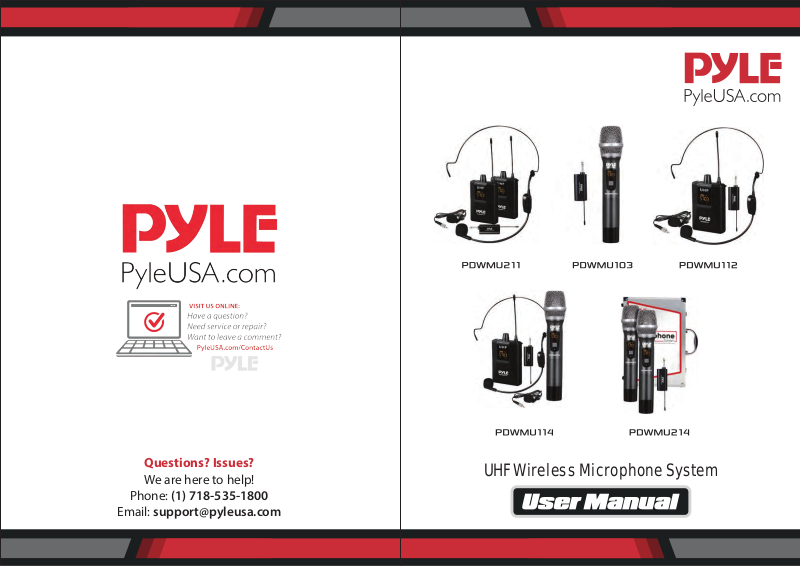

Pyle PDWMU103 User guide

Questions? Issues?

We are here to help!

Phone: [phone]

Email: [e-mail]

UHF Wireless Microphone System

Please read this manual carefully before using and strictly operate and store
in accordance with the instructions. Please save it for your future reference.

The wireless system is reliable in performance, portable and easy to operate,
and is suitable for use at home, school, training room and outdoor performance.
The wireless system adopts advanced intelIigent digital technology and high
integrated circuit design, which has the advantages of strong stabiIity, intelligence
and high eciency.

FEATURES

1. UHF frequency for stronger anti-interference abiIity and stable transmission
distance.

2. The transmitter has a frequency modulation function to meet the simultaneous
use of multiple frequencies.

3. The receiver adopts automatic frequency lock design, which makes operation
simpler and smarter.

4. Mini receiver design with 6.35mm standard audio plug, plug and play.

5. The receiver has a rechargeable function, circuit protection technology and a
detachable large-capacity Iithium battery. It can also be connected to a power
bank for Iong-term oIine use.

6. Easy to operate, easy to use and have a good sense of experience.

1. 6.35mm audio plug

2. Power switch

3. Power indicator, charging indicator

4. DC 5V charging port

5. RF signal indicator

6. Antenna

7. 18650 lithium battery negative electrode*

8. 18650 lithium battery compartment

9. 18650 lithium battery positive electrode*

Note: Be sure to conrm the positive/negative battery before installing it to avoid
damage to the receiver! Please fully charge the lithium battery before using it.

TRANSMITTER FUNCTION DESCRIPTION

1. Handheld Microphone

RECEIVER FUNCTION DESCRIPTION

2
3

4
5

6

www.PyleUSA.com

2

2

3

4

-

7

5

7

18650

6

8

+

9

1. Microphone head

2. LED display

3. Microphone switch

5. Battery compartment

6. Transmitter antenna

7. Tail cover

4. CH button

www.PyleUSA.com

3

BODYPACK TRANSMITTER

1. Antenna

2. Volume Adjust and ON/OFF button

3. Microphone Connector

4. CH Button DOWN

5. CH Button UP

6. LED Display

1. Press and hold the power button and CH button of the transmitter at the same

1

time until the LED display ashes then release the button.

2. Turn ON the receiver power button, please pay attention to the RF signal indicator
of receiver. Under normal circumstances, the receiver RF signal indicator ashes
continuously for 4 times and then goes out. (In this case, the receiver and the
transmitter are connected successfully.)

2

3

3. Short press the transmitter CH button to conrm the connection between the
transmitter and the receiver. At this time, the transmitter display stops ashing,
and the receiver RF signal indicator is always ON, indicating that the receiver and

6

the transmitter are connected successfully.

7. Battery compartment

4

5

Double AA batteries (AA 1.5VX2)

8. Headset microphone

7

8

(Lavalier microphone)

OPERATION

Tips:

Under normal circumstances, the product has been completed at the factory, and

can be used normally after opening the box, no need to adjust the frequency.

If you need to adjust the frequency, please follow the steps below.

Note: Before operating, make sure the transmitter and receiver are both o.

The operation sequence of handheld microphone:

1. Operate the transmitter

2. Open the receivers

3. Conrm at the transmitter

Note:

If it can’t be connected, please repeat the above operation.
(The transmitter must be operated before the receiver is turned ON.)
When the same frequency interference occurs, please short press the transmitter
CH button. At this time, the transmitter will change the frequency to avoid
frequency interference.

Bodypack Transmitter Operation Sequence

1. The transmitter and receiver are both o.

2. Press and hold " " CH button and turn ON the power switch button to "ON" at

the same time until the LED display ashes for 4 seconds, then release the " "

CH button.

3. Turn ON the receiver power button, pay attention to the RF signal indicator of

receiver. Under normal circumstances, the receiver RF signal indicator ashes

continuously for 4 times and then goes out.

(ln this case, the receiver and the transmitter are connected successfully)

4. Short press the transmitter " " CH button to conrm the connection between

the transmitter and the receiver. At this time, the transmitter display stops

ashing, and the receiver RF signal indicator is always ON, indicating that the

receiver and the transmitter are connected successfully.

www.PyleUSA.com

4

www.PyleUSA.com

5

PDWMU211

UHF Wireless Microphone System Kit

Includes Headset Mic, Lavalier Mic & Beltpack Transmitter

PDWMU103

UHF Wireless Microphone System

Handheld Mic & Wireless Transmitter with Universal Plug-and-Play Audio

System Features:

• UHF Band Microphone System

• Operation Range: Up to 160'+ ft.

• LED Digital Display Readout Screens

• Simple Setup & Hassle-Free Operation

• AF & RF Audio Transmission Signal Strength Indicators

• Independent & Adjustable Channel Volume Controls

• Selectable Frequency Range: Up to (8) Channels

• 1/4" Audio Output Jack

• XLR Balanced Output Jack

What’s in the Box:

• Receiver Base

• Beltpack Transmitter

• Headset Microphone

• Lavalier Microphone

• Power Cable

Transmitter Specs:

• RF Output: >10 dBm

• Modulation Type: FM

• Max Deviation: ± 40 KHz

• Spurious Emission: > 55 dBc

• Nominal Current Drain: < 40mA

• Battery Powered, Requires (2) x 'AA' Batteries -Each

Receiver Specs:

• Signal/Noise Ratio: -105dB

• Border Upon Channel Rejection: >70dB

• T.H.D.: < 1%

• Audio Output Level: 0-300 mV

• Dimensions 6.8 x 5.3 x 1.7 in

• Power Supply: 110/220V (12-15V Power Adapter)

Features:

• Wireless Handheld Microphone System

• UHF (Ultra-High Frequency) Mic Design

• Easy Plug-and-Play Audio

• Simple & Hassle-Free Operation

• Reliable, Distortion-Free Performance

• Battery-Operated for Wireless Mobility

• Receiver Features 1/4’’ Jack for Additional Connection

• Auto-Search Mic Adapter Syncing with Microphone

• LCD Digital Display Screen for Frequency Read-Out

• LED Indicator Lights

• Power ON/OFF Switch

• Single Channel Selectable Frequency Design (Only 1 Mic Per Receiver)

• Used for Home Theater Party Karaoke or Stage & Studio DJ Recording

• Connects to PA Speaker Systems, Ampliers, Audio Receivers, Mixers

What's in the Box:

• Handheld Microphone

• Receiver Unit

• USB Connection Cable

Technical Specs:

• Microphone System: UHF, PLL 32-Channel Selectable Frequencies

• Wireless Operation Range: Up to 165’+ ft.

• Pickup Pattern: Uni-Directional, Cardioid

• Receiver Interface: 1/4’’ Audio Connector Jack

• T.H.D: <0.5%

• Spurious Emission: >40dB

• Audio Dynamic Range: >100dB

• S/N Ratio: >96dB @ 1kHz, A-Weighted

• Battery Operated Microphone, Requires (2) 'AA' Batteries

• Battery Operated Receiver, Requires (2) 'AAA' Batteries

• *Receiver Can Also be Powered via USB Cable

• Microphone Dimensions (L x D): 9.8’’ x 1.5’’ -inches

• Receiver Dimensions (L x W x H): 3.4’’ x 2.4’’ x 0.8’’ –inches

• (2) x ‘AA’ Batteries

• (2) x ‘AAA’ Batteries

www.PyleUSA.com

6

www.PyleUSA.com

7

PDWMU112

UHF Wireless Microphone System Kit

Includes Headset Mic, Lavalier Mic & Beltpack Transmitter

PDWMU114

UHF Wireless Microphone System Kit

Includes Handheld Mic, Headset Mic, Lavalier Mic & Beltpack Transmitter

System Features:

• UHF Band Microphone System

• Operation Range: Up to 160'+ ft.

• LED Digital Display Readout Screens

• Simple Setup & Hassle-Free Operation

• AF & RF Audio Transmission Signal Strength Indicators

• Independent & Adjustable Channel Volume Controls

• Selectable Frequency Range: Up to (8) Channels

• 1/4" Audio Output Jack

• XLR Balanced Output Jack

What’s in the Box:

• Receiver Base

• Beltpack Transmitter

• Headset Microphone

• Lavalier Microphone

• Power Cable

Transmitter Specs:

• RF Output: >10 dBm

• Modulation Type: FM

• Max Deviation: ± 40 KHz

• Spurious Emission: > 55 dBc

• Nominal Current Drain: < 40mA

• Battery Powered, Requires (2) x 'AA' Batteries -Each

Receiver Specs:

• Signal/Noise Ratio: -105dB

• Border Upon Channel Rejection: >70dB

• T.H.D.: < 1%

• Audio Output Level: 0-300 mV

• Dimensions 6.8 x 5.3 x 1.7 in

• Power Supply: 110/220V (12-15V Power Adapter)

System Features:

• UHF Band Microphone System

• Operation Range: Up to 160'+ ft.

• LED Digital Display Readout Screens

• Simple Setup & Hassle-Free Operation

• AF & RF Audio Transmission Signal Strength Indicators

• Independent & Adjustable Channel Volume Controls

• Selectable Frequency Range: Up to (8) Channels

• 1/4" Audio Output Jack

• XLR Balanced Output Jack

What’s in the Box:

• Receiver Base

• Beltpack Transmitter

• Headset Microphone

• Lavalier Microphone

• Power Cable

Transmitter Specs:

• RF Output: >10 dBm

• Modulation Type: FM

• Max Deviation: ± 40 KHz

• Spurious Emission: > 55 dBc

• Nominal Current Drain: < 40mA

• Battery Powered, Requires (2) x 'AA' Batteries -Each

Receiver Specs:

• Signal/Noise Ratio: -105dB

• Border Upon Channel Rejection: >70dB

• T.H.D.: < 1%

• Audio Output Level: 0-300 mV

• Dimensions 6.8 x 5.3 x 1.7 in

• Power Supply: 110/220V (12-15V Power Adapter)

www.PyleUSA.com

8

www.PyleUSA.com

9

PDWMU214

UHF Wireless Microphone System

Handheld Mic & Wireless Transmitter with Universal Plug-and-Play Audio

Features:

• Wireless Handheld Microphone System

• UHF (Ultra-High Frequency) Mic Design

• Easy Plug-and-Play Audio

• Simple & Hassle-Free Operation

• Reliable, Distortion-Free Performance

• Battery-Operated for Wireless Mobility

• Receiver Features 1/4’’ Jack for Additional Connection

• Auto-Search Mic Adapter Syncing with Microphone

• LCD Digital Display Screen for Frequency Read-Out

• LED Indicator Lights

• Power ON / OFF Switch

• Single Channel Selectable Frequency Design (Only 1 Mic Per Receiver)

• Used for Home Theater Party Karaoke or Stage & Studio DJ Recording

• Connects to PA Speaker Systems, Ampliers, Audio Receivers, Mixers

What’s in the Box:

• (2) Handheld Microphone

• Receiver Unit

• USB Connection Cable

• (2) x ‘AA’ Batteries

• (2) x ‘AAA’ Batteries

Technical Specs:

• Microphone System: UHF, PLL 32-Channel Selectable Frequencies

• Wireless Operation Range: Up to 165’+ ft.

• Pickup Pattern: Uni-Directional, Cardioid

• Receiver Interface: 1/4’’ Audio Connector Jack

• T.H.D: <0.5%

• Spurious Emission: >40dB

• Audio Dynamic Range: >100dB

• S/N Ratio: >96dB @ 1kHz, A-Weighted

• Battery Operated Microphone, Requires (2) 'AA' Batteries

• Battery Operated Receiver, Requires (2) 'AAA' Batteries

• *Receiver Can Also be Powered via USB Cable

• Microphone Dimensions (L x D): 9.8’’ x 1.5’’ -inches

• Receiver Dimensions (L x W x H): 3.4’’ x 2.4’’ x 0.8’’ –inches
