Page 1

LED

PDWM 4520 PDWM 4540 PDWM 4560

Page 2

1.FOREWORD.................................................................................2

2.INTRODUCTION...........................................................................2

3.SYSTEM FEATURES.....................................................................2

4.SYSTEM TYPE..............................................................................2

5.FOUR CHANNEL RECEIVER FEATURES.........................................3

6.TRANSMITTER FUNCTION & FEATURES.....................................4-5

7.TRANSMITTER BATTERY INSTALLATION.......................................6

8.BODYPACK TRANSMITTER CONNECTION.....................................7

9.SYSTEM CONNECTIONS...............................................................8

10.BODYPACK TRANSMITTER AUDIO GAIN ADJUSTMENT.................9

11.TIPS FOR ACHIEVING MAXIMUM PERFORMANCE.........................9

12.TROUBLESHOOTING................................................................10

12.SPECIFICATIONS......................................................................11

SYSTEM COMPOSITION

1. Receiver

2. Wireless hand-held or body-pack microphone

3. Audio Cable

4. AC power adapter of special receiver

5. Battery 1.5V

6. User guide

CATALOG

Pyle PDWM4560 Wireless Microphone System, UHF Quad Channel Fixed Frequency, 4 Body-Pack Transmitters, 4 Headset & 4 Lavalier Mics, Rack Mountable

UHF Band Receiver System Quad Frequency Channel Design (Channel 1, 2, 3, 4) Broad Frequency Response Range & Low Distortion High Signal/Noise Ratio Performance RF Signal & AF Signal LED Indicators Radio Frequency and Audio Frequency Independent Channel Adjustable Volume Controls Detachable Dual Antennas Rack Mountable System Includes (4) Body-Pack Transmitters, (4) Headset & (4) Lavalier Mics 4 XLR Output Connector Jacks

System Receiver: Image & Spurious Rejection: >70dB Receiving Sensitivity: -105dBm Signal/Noise Ratio: >105dB Border Upon Channel Rejection: >70dB T.H.D.: <1% Audio Output Level: 0-300mV Power Requirements: 12-15V DC nominal 1000mA Dimensions (L x W x H): 15.51'' x 9.25'' x 2.16''

Transmitters: RF Power Output: >10dBm Modulation Type: FM Max. Deviation: +/- 40kHz Nominal Power Current: <40mA Spurious Emission: >53dBc Dimensions (H x L x W): 4.13'' x 2.55'' x 1.18'' Battery Powered: 2 x 'AA' Batteries (Included) Batteries Included Weight: 60g Bodypack transmitters require 2 'AA' batteries

Page 3

FOREWORD

Thanks for purchasing this product, please read this instruction carefully so that can understand how to operate the product of the style you bought correctly. Please store this instruction in a safe place after reading as a reference in the future. This professional series wireless micro phone system used an efficient American, Iow consumption discharging technique with a super sensitive UHF high broadband frequency receiver and controlled with 10ppm crystal, matched with an independent developed mobile frequency compression, expander circuit, image frequency limiting circuit, a multiple checked silent and noisy circuit, switch impact noise defect circuit, resist reverberation circuit and changed output controlled slowly...ect, And designed by a computer EDA system and finished on its item named pattern line .Every system is available to an excellent electric function by Q.C. strictly.

INTRODUCTION

Your new wireless Series system is designed to give you the best of both sound

reinforcement worlds: the freedom of a wireless system, and the excellent quality. This manual covers each of the Series system : The Vocal Artist-UHF , The PresenterUHF, The headset-UHF and The Guitarist-UHF.

The Vocal Artist-UHF is a hand-held system designed for singers who desire the high quality of microphones and the freedom of wireless performance. The Presenter-UHF is a body-pack system designed for public speakers who prefer an inconspicuous, hands-free lavalier microphone. The Headset-UHF is a body-pack system designed for users in physically active applications, who desire the freedom of hand-free microphone. The Guitarist-UHF is a body-pack system designed for use with electric guitars, basses, and other electric instruments.

SYSTEM FEATURES

All UHF Series systems offer a variety of exceptional features, including:

1. Simultaneous Output Use: Unbalanced 1/4' phone plug and balanced XLR output connectors may be used simultaneously to different external devices.

2. Range: UHFSeries transmitters will work at a distance of up to 50 meters(about 164 ft.) from the receiver.

3. Noise Squelch: Squelch circuit analyzes signal strength and quality so that can reduces the likelihood of noise burst due to environmental RF (radio frequency) noise.

4. Low Battery Waming Light: A red light on the body-pack and hand -held transmitters warns the user that there is less than one hour of battery life left.

SYSTEM TYPE

Pyle PDWM4540 Wireless Microphone System, UHF Quad Channel Fixed Frequency, 2 Handheld Microphones, 2 Body-Pack Transmitters, 2 Headset & 2 Lavalier Mics, Rack Mountable

UHF Band Receiver System Quad Frequency Channel Design (Channel 1, 2, 3, 4) Broad Frequency Response Range & Low Distortion High Signal/Noise Ratio Performance RF Signal & AF Signal LED Indicators Radio Frequency and Audio Frequency Independent Channel Adjustable Volume Controls Detachable Dual Antennas Rack Mountable System Includes (2) Handheld Microphones, (2) Body-Pack Transmitters, (2) Headset & (2) Lavalier Mics 4 XLR Output Connector Jacks

Microphones: RF Power Output: >10dBm Modulation Type: FM Max. Deviation: +/- 40kHz Nominal Power Current: <55mA Spurious Emission: >55dBc Battery Powered: 2 x 'AA' Batteries (Included) Batteries Included Weight: 180g

Transmitters: RF Power Output: >10dBm Modulation Type: FM Max. Deviation: +/- 40kHz Nominal Power Current: <40mA Spurious Emission: >53dBc Battery Powered: 2 x 'AA' Batteries (Included) Batteries Included Weight:60g Bodypack transmitters require 2 'AA' batteries

Page 4

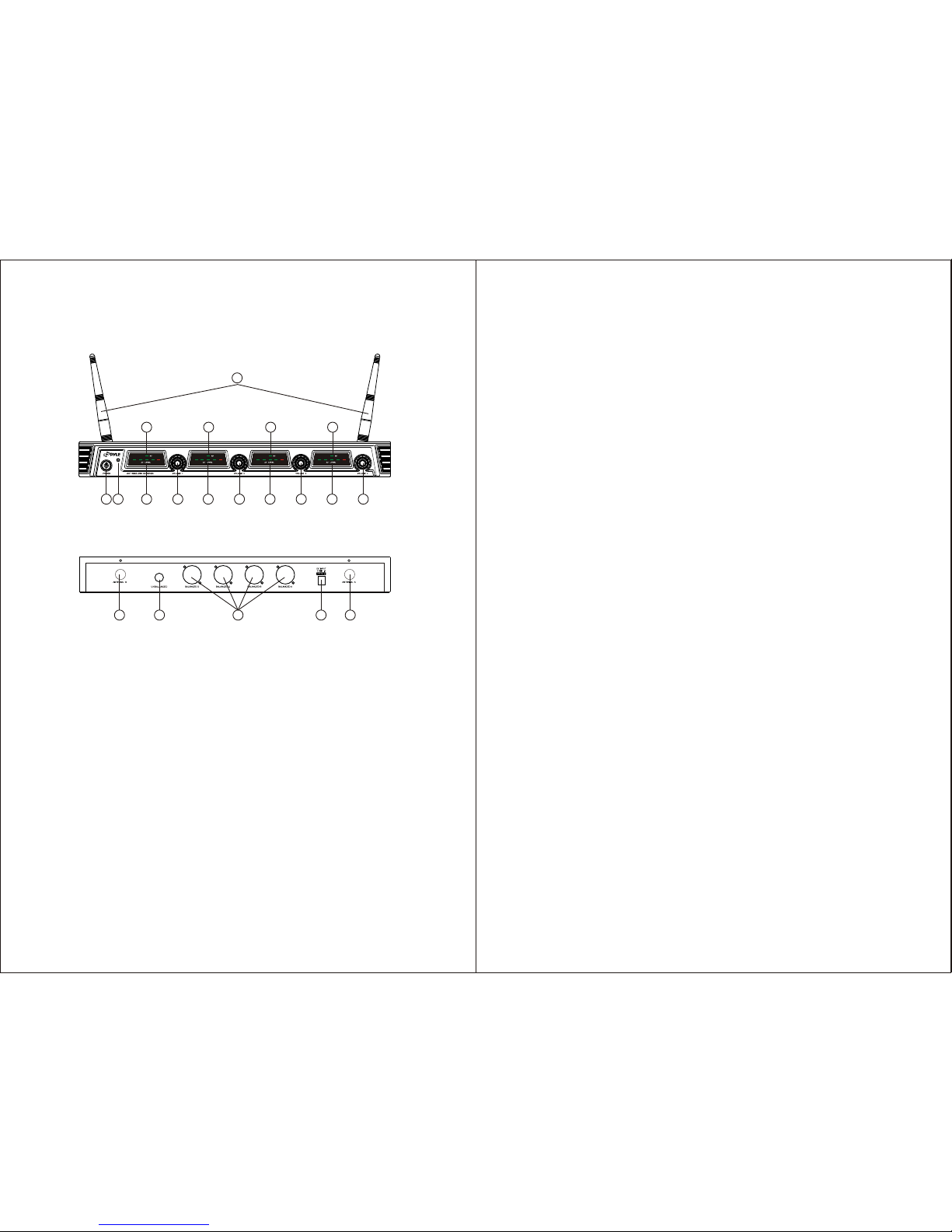

1.Power Button: Power ON/OFF the receiver.

2.Power Indicator: Indicate the power ON/OFF.

3."AF"Audio Level Indicator: Indicate the wireless system audio signal level.

4.Volume Knob: Adjust the volume output of receiver.

5."RF" signal Indicator:It glows when the Receiver receive RF signal from

Transmitter.

6.Antenna A/B.

7.1/4" Audio Output Jack: Connect the audio cable from this jack to the input

port of amplifier, mixer.

8.XLR Balanced Output Jack: Connect the audio cable from this jack to the input

port of amplifier, mixer.

9.Power Jack: Connect the DC adapter to receiver.

Front Panel

Rear Panel

1 2 3 4

5 5 5 5

3 4 3 4 3 4

FOUR CHANNEL RECEIVER FEATURES

69876

Pyle PDWM4520 Wireless Microphone System, UHF Quad Channel Fixed Frequency, 4 Handheld Microphones, Rack Mountable

System Receiver: RF Frequency Range: 673 - 697.8MHz Image & Spurious Rejection: >70dB Receiving Sensitivity: -105dBm Signal/Noise Ratio: >85dB Border Upon Channel Rejection: >70dB T.H.D.: <0.5% Audio Output Level: 0-300mV Power Requirements: 12-15V DC nominal 1000mA Dimensions (L x W x H): 15.51'' x 9.25'' x 2.16''

Microphones: RF Power Output: >10dBm Modulation Type: FM Max. Deviation: +/- 40kHz Nominal Power Current: <40mA Spurious Emission: >55dBc Battery Powered: 2 x 'AA' Batteries (Included) Batteries Included Weight: 180g

Page 5

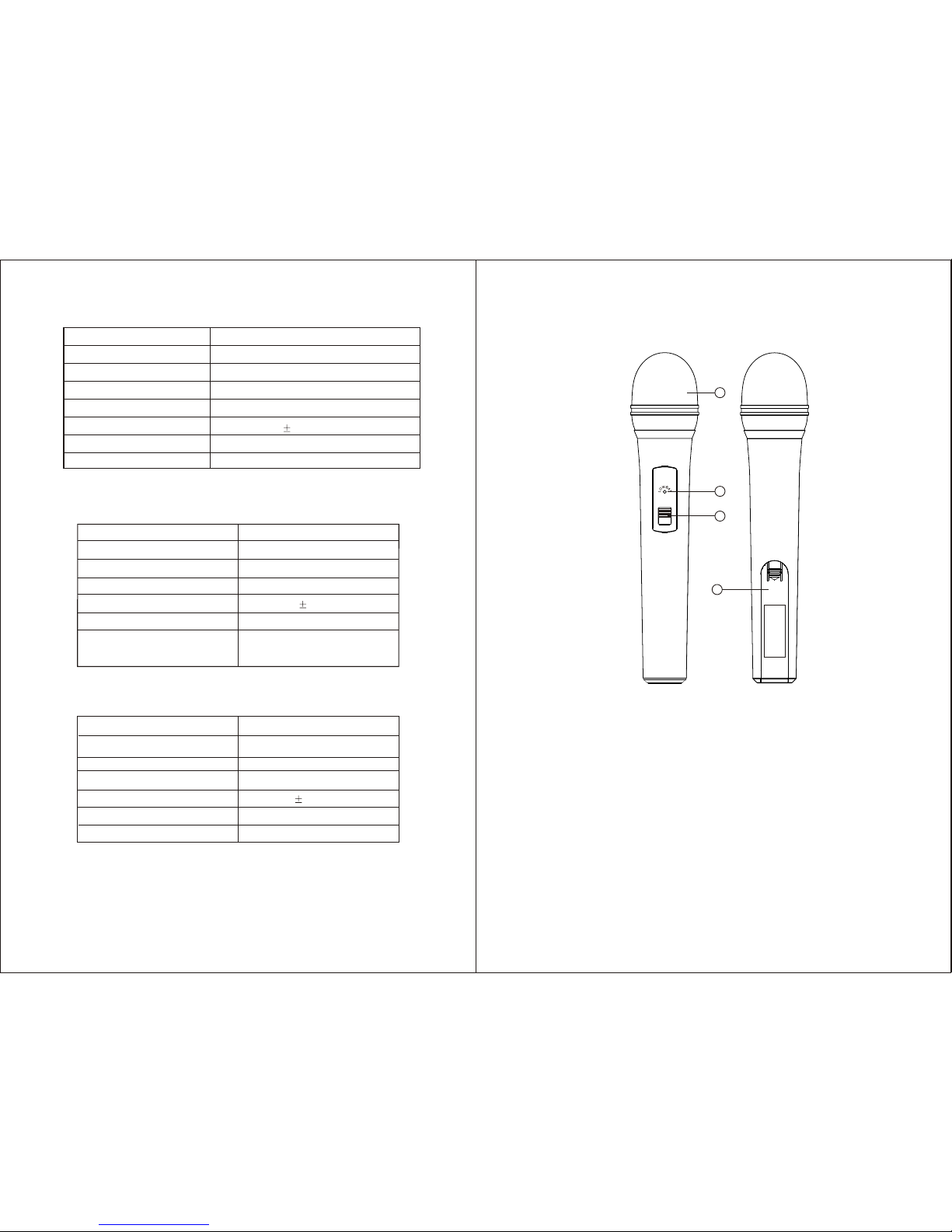

1. Grille: Protects the cartridge and help reducing the breath sounds and wind noise.

2. Battery Cover: Open it to install the battery.

3. Low Battery Indicator: Red light glows when it is lack of power and should renew the battery.

4.Power and Audio Mute Switch.

MICROPHONE-TRANSMITTER FEATURES

394MM X 235MM X 55MM

100MM X 65MM X 30MM

238MM X 50MM X 50MM 250MM X 51MM X 51MM

RECEIVER SPECIFICATION

Power Requirements

Signal/Noise Ratio

Border Upon Channel Rejection

Image & Spurious Rejection

Audio Output Level

Receiving Sensitivity

Dimensions

120V or 230V AC adaptor with 2.1 mm female plug

12-15 V DC nominal, 500mA+

MORE THAN 70dB

0- 300mV

-105dBm

MORE THAN 70dB

MORE THAN 85dB

HAND-HELD TRANSMITTER SPECIFICATIONS

Power Requirements

Nominal Currant Drain

Modulation Type

RF Output

Max Deviation

Spurious Emission

Dimensions

1.5V AA battery X 2

LESS THAN 100mA

MORE THAN 10dBm

70KHz

MORE THAN 55dB

BODY-PACK TRANSMITTER SPECIFICATIONS

Power Requirements

Nominal Current Drain

Modulation Type

RF Output

Max Devia tion

Spurious Emission

Dimensions

1.5V AA battery X 2

LESS THAN 100mA

MORE THAN 10dBm

70KHz

MORE THAN 55dB

1/4" to 1/4" Cable (The Guitarst -UHF only)

1/4" to Miniature Connector

1.8 Meter (6 ft.) Receiver-Mixer Cable

OPTIONAL ACCESSORIES

Page 6

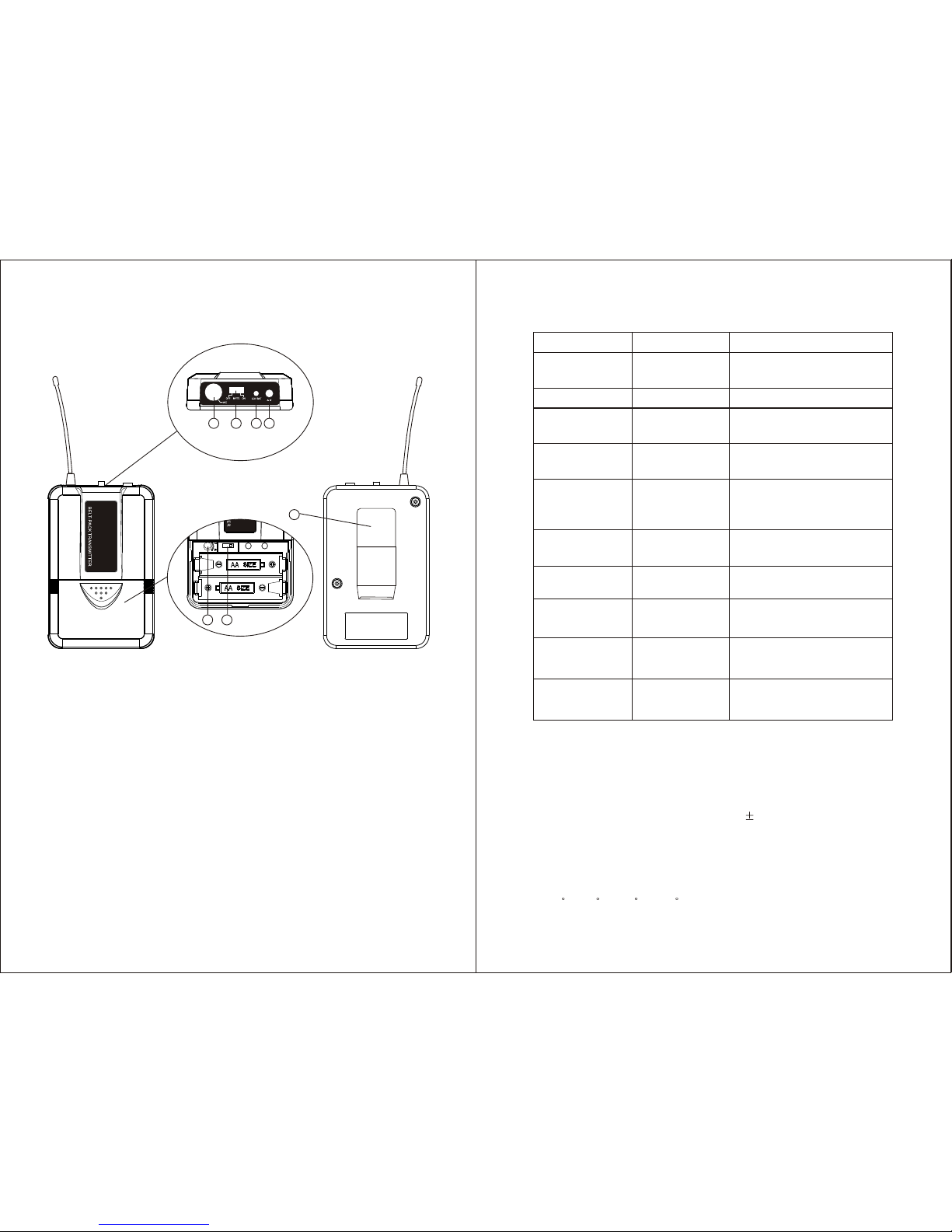

1. Power and Audio Mute Switch.

2. Antenna: Transmit the RF signal of transmitter.

3. Belt Clip: Attach the transmitter to the belt.

4. Audio Input Jack: it is suitable for lavalier system/headset system.

5. Low Battery Indicator: Red light glows when it is lack of power and should renew the battery.

6. State Setting Switch: Set the using state of lavalier system(L)/ headset system(H).

7. Gain Adjusting Volume: Adjust the transmitter audio input gain.

14 5 2

7 6

BODY-PACK TRANSMITTER FEATURES

TROUBLESHOOTING

PROBLEM

No sound.

NO sound.

No sound.

Sound level differs from level

of a cabled instrument.

Sound level differs with

different guitars.

Distortion level increases

gradually

Bursts of noise or other

audibleradio signals present.

Momentary loss of sound as

transmiitter is moved around

performing area.

INDICATOR STATUS

Red transmitter

indicetar is not flash

Red transmitter indicater is flash

Red receiver POWER light off.

Receiver signal Indicators

A/B lights glowing.

Receiver signal Indicators A/B

lights off. Transmitter and

receiver POWER lights

Receiver signal Indicators

A/B lights glowing.

Receiver signal Indicators A/B

lights glowing.

Receiver Signal Indicators

A/B lights and transmitter

LOW BATTERY light glowing

Signal Indicators NB lights on

Receiver signal Indicators A/B

lights off when sound is lost

Slide transmitter POWER ON/OFF switch to ON position. Make sure battery is inserted properly,

observing battery ("+/-"). If battery is inserted

Slide transmitter MUTE/ON switch to ON position

Make sure ac adapter is securely plugged into electrical outlet and into dc input connector. Make sure ac electrical outlet works and supplies proper voltage.

Turn up receiver volume control.

Confirm that the output connections from the

receiver to the external equipment are secure

Confirn transmitter's and receiver'sfrequencies

match.

Move transmitter closer to receiver

Adjust transmitter gain level to cempessary.

Adjust receiver volume as necessary.

Readjust transmitter gain level to compensate for

differences in guitar outputs

Replace transmitter battery

Identify potential sources of interference (other RF-

sources) and turn off, remove or use a wireless

system operating on a different frequency.

Repositeon receiver and perform walk-through test

again. If audio dropouts persist, mark "dead" spots

and avoid them during performance

RF Carrier Frequency Range: Approximately 673 to 697.8 MHZ (Available frequencies depend on applicable regulations in country where system is used). Operating Range: 50 m(approximately 164ft)under typical conditions Audio Frequency Response: 100to 18,000Hz, 3dB THD: <1% Mobile stste Range:> 100dB

SYSTEM SPECIFICATIONS

Operating Temperature Range

-29 to 74 C(-20 to 165 F)NOTE:Battery characteristics may limit this

range.

Page 7

TRANSMITTER BATTERY INSTALLATION

1. Battery Installation of Handheld Microphone: Open the battery cover, Insert the supplied batteries into battery jar in polarity and cover the battery cover.

2. Battery Installation of Bodypack Transmitter:Push open the battery cover, Insert the supplied batteries into battery jar in polarity and close the battery cover.

Push down to open.

The audio gain control on transmitter has been factory-at the mid-range position for best performance in most applications.This may be necessary for soft singers or talkers, or guitar or basses with Iow outputs. To Increase Gain: Rotate the transmitter gain control clockwise with the screwdriver to increase audio gain. To Reduce Gain: Rotate the transmitter gain control counterclockwise with the screwdriver to reduce audio gain. To return audio gain to the factory setting, rotate the transmitter audio gain control to the mid position.

Make sure you can always see a receiver antenna from the transmitter position.

Keep the distance from transmitter to receiver antenna as short as possible.

Point receiver antennas away from each other at a 45 angle from vertical.

Avoid placing the receiver antennas near metal surfaces and obstruction.

Monitor battery fuel gauge and replace battery as soon as red light is on.

If stacking or rack mounting receivers in a multiple-system use situation,do not

allow antennas to touch or cross.

Perform a walk-through before Performance or Presentation .If dead spots are

found, adjust location of receiver .If dead sports remain ,mark spots and avoid.

TIPS FOR ACHIEVING MAXIMUM PERFORMANCE

Page 8

SYSTEM CONNECTION

1. Receiver Power Connection: Connect the DC connector of supplied AC/DC adapter into the DC power input of receiver. Plug the AC input connecter into an AC120/60Hz or AC220V/50Hz outlet. (Shown as below)

3. Audio Connection: Connect the corresponding output of receiver by supplied

1/4" phone jack audio cable or your XLR cable to the input of power amplifier,

mixer.

2. Antenna: Keep the position of antenna at a 45 angle from vertical, .(Shown as below)

BODYPACK TRANSMITTER CONNECTION

1. Lavalier Microphone Connection: Connect the connecter of supplied lavalier microphone to the connecting jack of transmitter (shown as below) Set the transmitter work state in wireless lavalier system(L).

2. Headset Microphone Connection: Connect the connecter of supplied

headset microphone to the connecting jack of transmitter(shown as below)

Set the transmitter work state in wireless headset system(H).
