FOREWORD

This professional wireless set provides a high quality microphone with UHF
radio system for freedom of movement without loss of audio quality. Please
read this manual before using this equipment in order to avoid damage
through incorrect operation and to get the best performance from your
purchase. This professional series wireless microphone system used an ecient
American, low consumption discharging technique with a super sensitive UHF
high broadband frequency receiver and controlled with 10ppm crystal,
matched with an independent developed mobile frequency compression,
expander circuit, image frequency limiting circuit, a multiple checked silent
and noisy circuit, switch impact noise defect circuit, resist reverberation circuit
and changed output controlled slowly etc. Designed by a computer EDA
system and nished on its item named pattern line. Every system is available to
an excellent electric function by Q.C. strictly.

8. BODYPACK TRANSMITTER CONNECTION

9. SYSTEM CONNECTIONS

--------------------------------------------------------------------------- 8

--------------------------------------------------- 7

10. BODYPACK TRANSMITTER AUDIO GAIN ADJUSTMENT

11. TIPS FOR ACHIEVING MAXIMUM PERFORMANCE

12. TROUBLESHOOTING

12. SPECIFICATIONS

----------------------------------------------------------------------------- 10

----------------------------------------------------------------------------------- 11

------------------------------------- 9

SYSTEM COMPOSITION

1. Receiver

2. Wireless hand-held or body-pack microphone

3. Audio Cable

4. AC power adapter of special receiver

5. Battery 1.5V

6. User guide

------------------------------------------------------------------------------------------------ X1

---------------------------------------- X4

------------------------------------------------------------------------------------------ X1

------------------------------------------------------ X1

------------------------------------------------------------------------------------------ X8

-------------------------------------------------------------------------------------------- X1

----------------------------- 9

INTRODUCTION

Your new wireless Series system is designed to give you the best of both sound
reinforcement worlds: the freedom of a wireless system, and the excellent
quality. This manual covers each of the Series system: The VocalArtist-UHF, The
Presenter UHF, The headset-UHF and The Guitarist-UHF.

SYSTEM FEATURES

All UHF Series systems oer a variety of exceptional features, including:

1. Simultaneous Output Use: Unbalanced 1/4' phone plug and balanced XLR

output connectors may be used simultaneously to dierent externaldevices.

2. Range: UHF Series transmitters will work at a distance of up to 50 meters
(about 164 ft.) from the receiver.

3. Noise Squelch: Squelch circuit analyzes signal strength and quality so that
can reduce the likelihood of noise burst due to environmental RF (radio
frequency) noise.

4. Low Battery Warning Light: A red light on the body-pack and hand-held
transmitters warns the user that there is less than one hour of battery Iife left.

SYSTEM TYPE

The Vocal Artist-UHF is a hand-held system designed for singers who desire
the high quality of microphones and the freedom of wireless performance.
The Presenter-UHF is a body-pack system designed for public speakers who
prefer an inconspicuous, hands-free lavalier microphone.
The Headset-UHF is a body-pack system designed for users in physically
active applications, who desire the freedom of hand-free microphone.
The Guitarist-UHF is a body-pack system designed for use with electric
guitars, basses, and other electric instruments.

www.PyleUSA.com www.PyleUSA.com

1 2

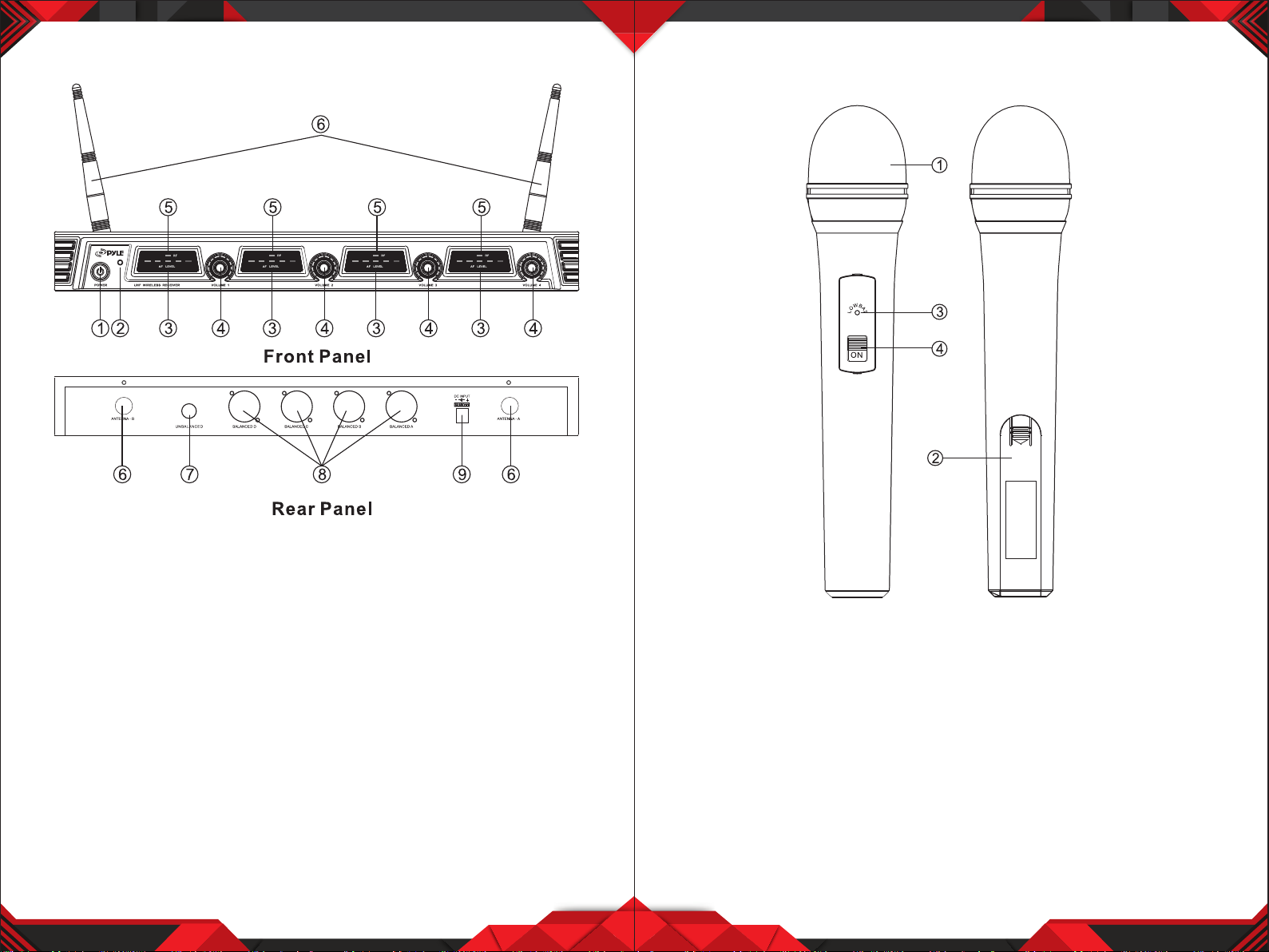

FOUR CHANNEL RECEIVER FEATURES

MICROPHONE-TRANSMITTER FEATURES

1. Power Button: Power ON/OFF the receiver.

2. Power Indicator: Indicates the power ON/OFF.

3. "AF"Audio Level lndicator: Indicates the wireless system audio signal level.

4. Volume Knob: Adjust the volume output of receiver.

5. "RF" Signal Indicator: It glows when the Receiver receive RF signal from

Transmitter.

6. Antenna A/B.

7. "1/4" Audio Output Jack: Connects the audio cable from this jack to the

input port of amplier, mixer.

1. Grille: Protects the cartridge and helps reducing the breath sounds and

wind noise.

2. Battery Cover: Open it to install the battery.

3. Low Battery Indicator: Red light glows when it is lack of power and should

renew the battery.

4. Power and Audio Mute Switch.

8. XLR Balanced Output Jack: Connects the audio cable from this jack to the

input port of amplier, mixer.

9. Power Jack: Connects the DC adapter to receiver.

www.PyleUSA.com www.PyleUSA.com

3 4

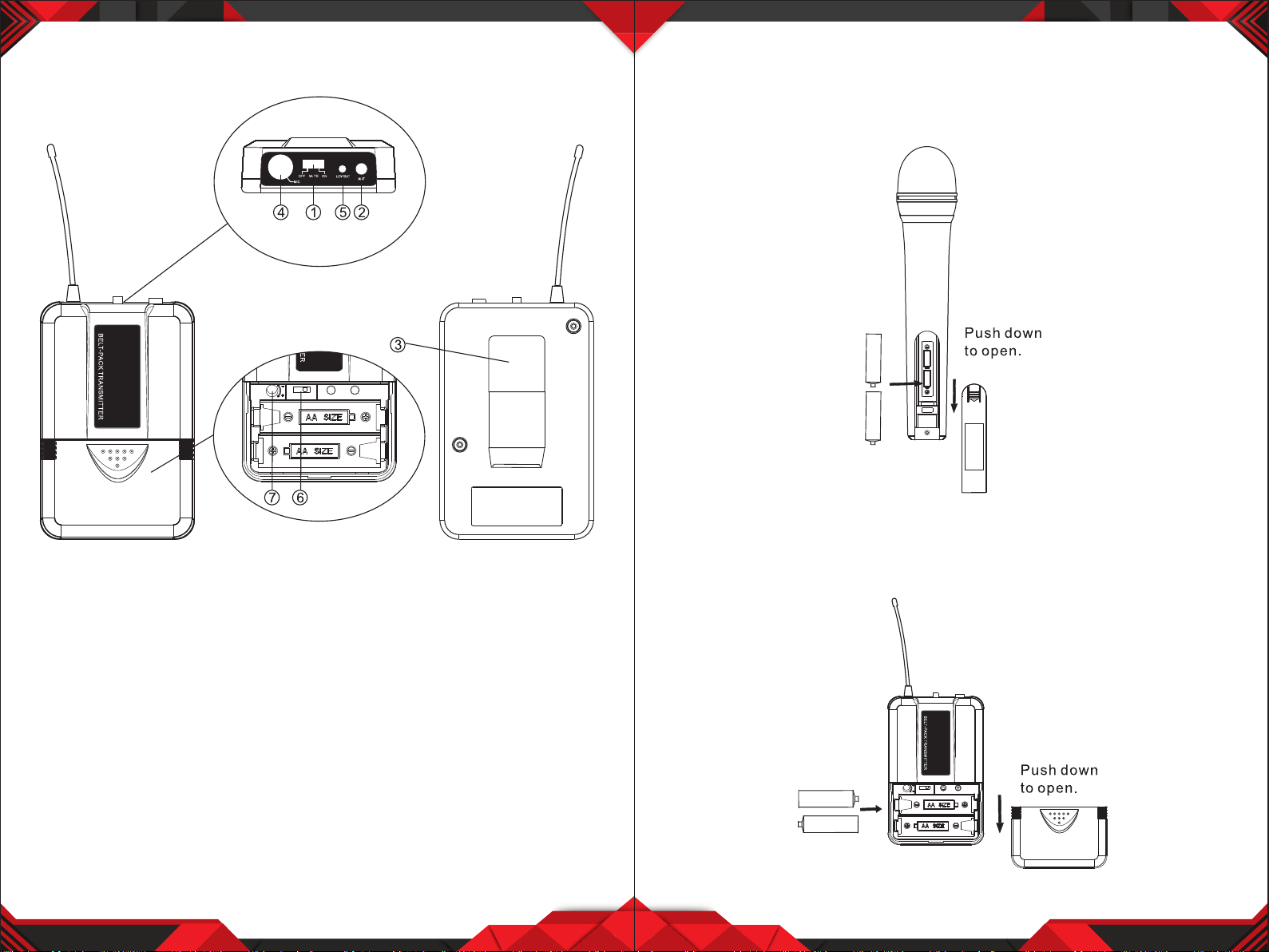

BODY-PACK TRANSMITTER FEATURES

TRANSMITTER BATTERY INSTALLATION

1. Battery Installation of Handheld Microphone: Open the battery cover.

Insert the supplied batteries into battery jar in polarity and cover the

battery cover.

2. Battery Installation of Bodypack Transmitter: Push open the battery

cover. Insert the supplied batteries into battery jar in polarity and close the

battery cover.

1. Power and Audio Mute Switch.

2. Antenna: Transmit the RF signal of transmitter.

3. Belt Clip: Attach the transmitter to the belt.

4. Audio Input Jack: Suitable for lavalier system/headset system.

5. Low Battery Indicator: Red light glows when it is lack of power and should

renew the battery.

6. State Setting Switch: Set the using state of lavalier system (L) / headset

system (H).

7. Gain Adjusting Volume: Adjust the transmitter audio input gain.

www.PyleUSA.com www.PyleUSA.com

5 6

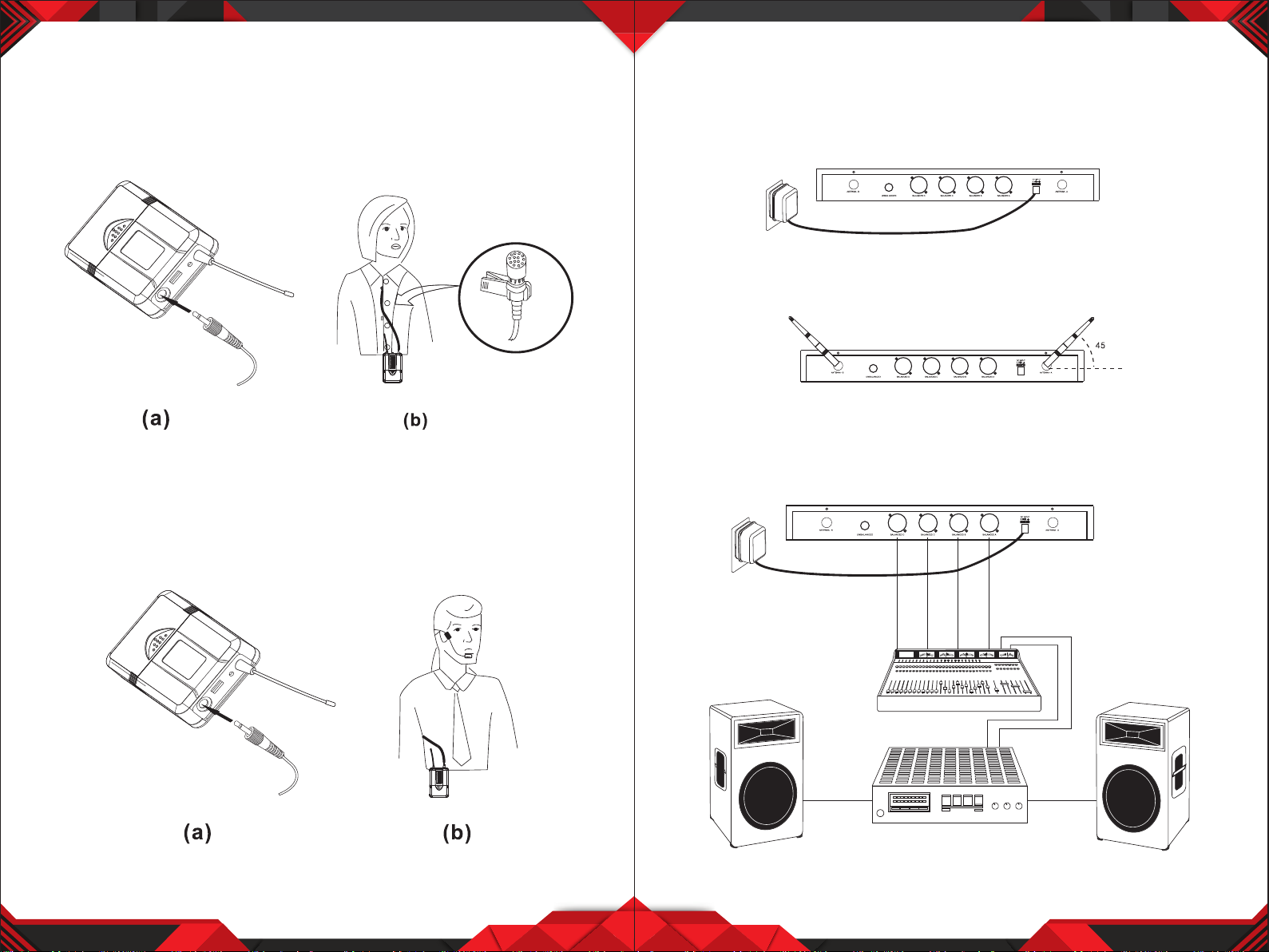

BODYPACK TRANSMITTER CONNECTION

1. Lavalier Microphone Connection: Connect the connector of supplied

lavalier microphone to the connecting jack of transmitter (shown as below)

Set the transmitter work state in wireless lavalier system (L).

2. Headset Microphone Connection: Connect the connector of supplied

headset microphone to the connecting jack of transmitter (shown as below)

Set the transmitter work state in wireless headset system (H).

SYSTEM CONNECTION

1. Receiver Power Connection: Connect the DC connector of supplied AC/DC

adapter Into the DC power input of receiver. Plug the AC Input connecter

into an AC120/60Hz or AC220V/50Hz outlet. (Shown as below)

2. Antenna: Keep the position of antenna at a 45 angle from vertical.

(Shown as below)

3. Audio Connection: Connect the corresponding output of receiver by

supplied 1/4w phone jack audio cable or your XLR cable to the Input of

power amplier, mixer.

www.PyleUSA.com www.PyleUSA.com

7 8

The audio gain control on transmitter has been factory-at the mid-range

TROUBLESHOOTING

position for best performance in most applications. This may be necessary

for soft singers or talkers, or guitar or basses with low outputs.

• To Increase Gain: Rotate the transmitter gain control clockwise using a

screwdriver to increase audio gain.

• To Reduce Gain: Rotate the transmitter gain control counterclockwise with

the screwdriver to reduce audio gain.

• To return audio gain to the factory setting, rotate the transmitter audio

gain control to the mid position.

TIPS FOR ACHIEVING MAXIMUM PERFORMANCE

• Make sure you can always see a receiver antenna from the transmitter

position.

• Keep the distance from transmitter to receiver antenna as short as possible.

• Point receiver antennas away from each other at a 45 angle from vertical.

• Avoid placing the receiver antennas near metal surfaces and obstruction.

• If stacking or rack mounting receivers in a multiple-system use situation, do

not allow antennas to touch or cross.

• Perform a walk-through before Performance or Presentation. If dead spots are

found, adjust location of receiver. If dead spots remain, mark spots and avoid.

PROBLEM INDICATOR STATUS SOLUTION

No Sound

No Sound

No Sound

No Sound

No Sound

Sound level diers from
the level of a cabled
Instrument.

Sound level diers from
the level of dierent
guitars

Distortion level increases
gradually

Bursts of noise or other

audible radio signals

present

Momentary loss of

sound as transmitter is

moved around

performing area.

Red transmitter

indicator is not

ashing

Red transmitter

indicator is ashing

Red receiver POWER

light o

Receiver signal

indicators A/B lights

glowing

Receiver signal
indicators A/B lights
o. Transmitter and

receiver POWER lights

glowing

Receiver signal indicators

A/B lights glowing

Receiver signal indicators

A/E lights glowing

Receiver signal indicators

A/B lights and

transmitter LOW

BATTERY light glowing

Signal indicators A/B

lights ON

Receiver signal

indicator A/B lights OFF

when sound is lost

Slide transmitter POWER ON/OFF switch
to ON position. Make sure battery is
inserted properly, observing battery (+/-).
If the battery is inserted properly, replace
with fresh battery.

Slide transmitter MUTE/ON switch to ON
position

Make sure AC adapter is securely
plugged into electrical outlet and into DC
input connector. Make sure AC electrical
outlet works and supplies proper voltage

Trun up receiver volume control. Conrm
that the output connections from the
receiver to the external equipment are
secure

Conrm transmitter and receiver~

frequency match. Move transmitter

Adjust transmitter gain level to

Adjust receiver volume as necessary

Readjust transmittergain level to

compensate dierences in guitar outputs

Replace transmitter battery

Identify potential sources of interference

(other RF sources) and turn OFF, remove

or use a wireless system operating on a

Reposition receiver and perform
walk-through again. If audio dropouts
persist, mark “dead” spot-and avoid them
during performance.

closer to receiver.

compensate.

dierent frequency

www.PyleUSA.com www.PyleUSA.com

9 10

SYSTEM SPECIFICATIONS

Power

Requirements

1.5VAA battery

X2

Modulation

Type

FM

Signal/Noise

Ratio

MORE THAN

85dB

Border Upon Channel

Rejection

MORE THAN

70dB


& Spurious Rejection

MORE THAN

70dB

Dimensions

HAND-HELD TRANSMITTER SPECIFICATIONS

• Wireless Operating Frequency Range:

Approximately 573.0 - 597.8 MHz (Available frequencies depend on

applicable regulations in country where system is used).

• Operating Range: 50m (approximately 164ft) under typical conditions

• Audio Frequency Response: 100 to 18,000Hz, ±3dB

• THD: <1%

• Mobile state Range: > 100dB

Operating Temperature Range

-20.2°F to 165.2°F (-29°C to 74°C)

NOTE: Battery characteristics may limit this range.

OPTIONAL ACCESSORIES

1/4" to 1/4" Cable (The Guitarist -UHF only)

1/4" to Miniature Connector

1.8 Meter (6ft.) Receiver-Mixer Cable

Power

Nominal Current

Requirements

Modulation Type

RF

Output

Max

Deviation

Spurious

Emission

Dimensions

1.5VAA battery X 2
LESS THAN 100mA

Drain

MORE THAN

MORE THAN

238mm x 50mm x 50mm
250mm x 51mm x 51mm

BODY-PACK TRANSMITTER SPECIFICATIONS

Nominal Current

RF

Output

LESS THAN 100mA

Drain

MORE THAN 10dBm

FM

±70KHz

1

0dBm

55dB

Max

Deviation

RECEIVER SPECIFICATION

Power Requirements
Power Requirements 12-15 V DC nominal,500mA+

Audio Output

Receiving Sensitivity

Level

120V or

230V AC adaptor

0-

±300mV

-105dBm

394MM X 235MM X

www.PyleUSA.com www.PyleUSA.com

11 12

with

2.1 mm

55MM

femal

e

plug

Spurious

Dimensions

Emission

MORE THAN

100MM X 65MM X 30MM

±70KHz

55dB

Pyle PDWM4520 Wireless Microphone System, UHF Quad Channel Fixed

Frequency, 4 Handheld Microphones, Rack Mountable

UHF Band Receiver System

• Quad Frequency Channel Design (Channel1, 2, 3, 4)

• Broad Frequency Response Range & Low Distortion

• High Signal/Noise Ratio Performance

• RF Signal &AF Signal LED Indicators

• Radio Frequency and Audio Frequency

• Independent Channel Adjustable Volume Controls

• Detachable Dual Antennas

• Rack Mountable System

• Includes (4) Handheld Microphones

• 4 XLR Output Connector Jacks

System Receiver:

• Wireless Operating Frequency Range: 573.0 - 597.8 MHz

• Image & Spurious Rejection: >70dB

• Receiving Sensitivity: -105dBm

• Signal/Noise Ratio: >85dB

• Border Upon Channel Rejection: >70dB

• T.H.D.: <0.5%

• Audio Output Level: 0-300mV

• Power Requirements: 12-15V DC nominal 1000mA

• Dimensions (L x W x H): 15.51" x 9.25" x 2.16"

Microphones:

• RF Power Output: >10dBm

• Modulation Type: FM

• Max. Deviation: +/- 40kHz

• Nominal Power Current: <40mA

• Spurious Emission: >55dBc

• Battery Powered: 2 x 'AA' Batteries (Included)

• Batteries Included

• Weight: 180g

Pyle PDWM4540 Wireless Microphone System, UHF Quad Channel

Fixed Frequency, 2 Handheld Microphones, 2 Body-Pack Transmitters,

2 Headset & 2 Lavalier Mics, Rack Mountable

UHF Band Receiver System

• Quad Frequency Channel Design (Channel1, 2, 3, 4)

• Broad Frequency Response Range & Low Distortion

• High Signal/Noise Ratio Performance

• RF Signal & AF Signal LED Indicators

• Radio Frequency and Audio Frequency

• Independent Channel Adjustable Volume Controls

• Detachable Dual Antennas

• Rack Mountable System

• Includes (2) Handheld Microphones, (2) Body - Pack Transmitters,

• (2) Headset & (2) Lavalier Mics

• 4 XLR Output Connector Jacks

System Receiver:

• Image & Spurious Rejection: >70dB

• Receiving Sensitivity: -105dBm

• Signal/Noise Ratio: >105dB

• Border Upon Channel Rejection: >70dB

• T.H.D.: <1%

• Audio Output Level: 0-300mV

• Power Requirements: 12-15V DC nominal 1000mA

• Dimensions (L x W x H): 15.51" x 9.25" x 2.16"

Microphones:

• RF Power Output: >1OdBm

• Modulation Type: FM

• Max. Deviation: +/- 40kHz

• Nominal Power Current: <55mA

• Spurious Emission: >55dBc

www.PyleUSA.com www.PyleUSA.com

13 14

• Battery Powered: 2 x 'AA' Batteries (Included)

System Receiver:

• Batteries Included

• Weight: 180g

Transmitters:

• RF Power Output: >10dBm

• Modulation Type: FM

• Max. Deviation:+/- 40kHz

• Nominal Power Current: <40mA

• Spurious Emission: >53dBc

• Battery Powered: 2 x 'AA' Batteries (Included) Batteries Included

• Weight: 60g

• Bodypack transmitters require 2 'AA' batteries

Pyle PDWM4560 Wireless Microphone System, UHF Quad Channel Fixed

Frequency, 4 Body-Pack Transmitters, 4 Headset & 4 Lavalier Mics,

Rack Mountable

• Image & Spurious Rejection: >70dB

• Receiving Sensitivity: -105dBm

• Signal/Noise Ratio: >105dB

• Border Upon Channel Rejection: >70dB

• T.H.D.: <1%

• Audio Output Level: 0-300mV

• Power Requirements: 12-15V DC nominal1000mA

• Dimensions (L x W x H): 15.51" x 9.25" x 2.16"

Transmitters:

• RF Power Output: >10dBm

• Modulation Type: FM

• Max. Deviation:+/- 40kHz

• Nominal Power Current: <40mA

• Spurious Emission: >53dBc

• Dimensions (H XL X W): 4.13" X 2.55" X 1.18"

• Battery Powered: 2 x 'AA' Batteries (Included) Batteries Included

UHF Band Receiver System

• Quad Frequency Channel Design (Channel1, 2, 3, 4)

• Weight: 60g

• Bodypack transmitters require 2 'AA' batteries

• Broad Frequency Response Range & Low Distortion

• High Signal/Noise Ratio Performance

• RF Signal &AF Signal LED Indicators

• Radio Frequency and Audio Frequency

• Independent Channel Adjustable Volume Controls

• Detachable Dual Antennas

• Rack Mountable System

• Includes (4) Body-Pack Transmitters, (4) Headset & (4) Lavalier Mics

• 4 XLR Output Connector Jacks

www.PyleUSA.com www.PyleUSA.com

15 16
