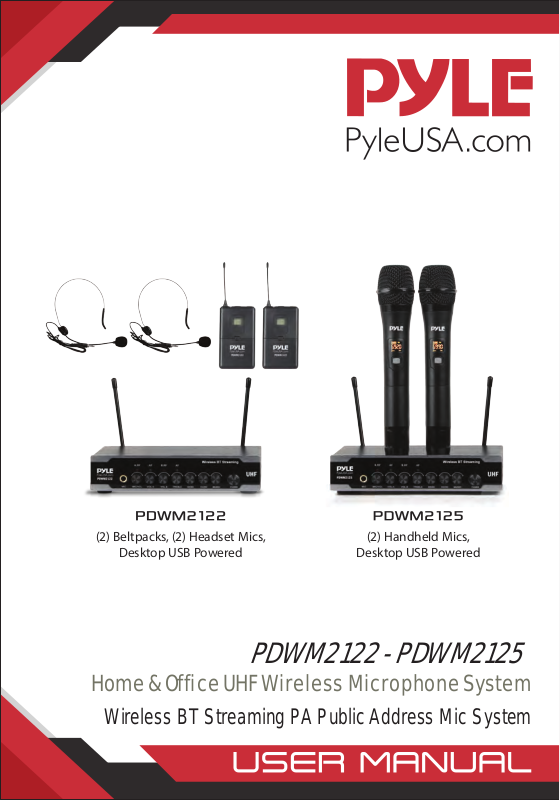

Pyle PDWM2125 User guide

(2) Beltpacks, (2) Headset Mics,

Desktop USB Powered

(2) Handheld Mics,

Desktop USB Powered

PDWM2122 - PDWM2125

Home & Office UHF Wireless Microphone System

Wireless BT Streaming PA Public Address Mic System

Please read this operation manual in detail in order to understand how to

operate this product properly. This is a wireless microphone, which is suitable

for the TV network K songs, singing, karaoke room, home entertainment and

other occasions.

Receiver Front Panel

10 11 12 13

1 2 3 4 5 6 7 8 9

1. MIC: Wired Microphone input

2. MIC/VOL: Wired Mic Volume Control

3. VOL. A: Wireless Mic A Volume Control

4. VOL. B: Wireless Mic B Volume Control

5. TREBLE knob

6. BASS knob

7. ECHO knob

8. MUSIC: Audio input music volume control

9. POWER: ON/OFF Switch

10. Wireless Mic A RF indicator

11. Wireless Mic A AF indicator

12. Wireless Mic B RF indicator

13. Wireless Mic B AF indicator

www.PyleUSA.com

2

Receiver Back Panel

1 2 3 4 5 6

1. DC 5V Input: Can use power adaptor for power supply, can connect to power
bank for power supply. (Could use it outdoor easily.)

2. R+L RCA input

3. 3.5mm audio input

4. L+R 6.3mm Output

5. 3.5mm audio output

6. R+L RCA output

Handheld Transmitter

1

2
3

1. Metal Grill & Cartridge

2. Digital Display:

Frequency, Battery Volume, Channel

3. ON/OFF Switch:

Press and hold for 3 seconds

4. Frequency Selectable button

4

www.PyleUSA.com

3

Belt-PackTransmitter

Grill

ON/OFF
MIC Input

Frequency Display

Battery Cover

Headset Microphone

Product features

1. Super noise reduction function, high signal-to-noise ratio.

2. Strong anti-interference ability, high eciency noise suppression output.

3. The corresponding range of frequency is wide, ultra low distortion.

4. Perfect working condition indication and battery indicator.

5. Dual channel design with two microphone can be used at the same time
without interference with each other.

Use connection instructions

1. The receiver is placed near a computer or multimedia speakers, connected
power supply with the power adaptor and USB cable, plug the one side of the
provided audio cable into the mixed output port. The other end is connected to
the computer microphone input (MIC IN) or multimedia audio input port. The
receiver’s two antennas are pulled out and adjusted with the ground vertical,
then turn on the receiver. When the power indicator light is bright, the system is
in standby mode. (Notice: Receiver will not to work at the dead angle position,
nd a good signal environment.)

2. Open transmitter battery cover, properly put battery into the battery
compartment, then close the battery compartment.
(Please pay attention, do not install the battery oppositely.)

www.PyleUSA.com

4

3. Turn transmitter power switch to ON, the frequency display will be bright.

Then the RF indicator of thereceiver will be bright, which means the receiver

has received the transmitter signal, then adjust the volume knob, there will be

sound when speaking to the microphone.

4. If the battery shows low voltage, please replace with a new battery in time.

5. Receiver is designed with dierent output and input sockets. For dierent

broadcasting, recording equipment and occasions to use.

TV Connection

www.PyleUSA.com

5

Computer Connection

Smart Phone Connection

www.PyleUSA.com

6

DVD Connection

Wireless BT Streaming Connection

1.Turn on Wireless BT of audio sources devices (e.g.Smart phone).

2. Search the Wireless BT name of receiver, named “PYLE”.

3. Comple the pairing of audio sources devices (e.g.Smart phone) and receiver.

4. Play music from the source device. You will hear the music come out from the

speaker.

Adjusting suggestions

1. Wired microphone volume (MIC.VOL): 60%

2. Wireless microphone volume (VOL.A,VOL.B): 60%

3. BASS: 30%

4. TREBLE: 60%

5. ECHO: 60%

www.PyleUSA.com

7

Features:

• Desktop Wireless Microphone System

• PA Public Address Mic Audio Control Receiver

• Home Theater & Oce Karaoke-Style Vocals

• UHF Narrow Band Audio Transmitter

• Wireless BT Music Streaming Ability

• Convenient Microphone Voice-Over

• Talk-Over Ability via Wireless BT Streaming Music with Microphones

• Digital Display with Mic Frequency

• Dual Antennas for Extended Wireless Range

• Powered via Included USB Power Cable

• Simple Plug-and-Play Operation

• Built-in Acoustic Pop Filter (for PDWM2125 model only)

• Integrated Low Noise Circuitry

• Ultra-Wide Frequency Response

• Noise-Eliminating SMT Technology

• Crisp Audio Clarity for Vocals & Singing

• Connect & Stream Audio to External Devices

• 1/4'' -inch (6.3mm) Wired Microphone Input

• Rear Panel 1/4'' -inch (6.3mm) Unbalanced Mixed Output

• Rear Panel Aux (3.5mm) Audio Input/Output Jacks

• Rear Panel RCA (L/R) Audio Input/Output Jacks

• Audio Conguration Echo / Treble / Bass / Music / Master Vol Adjustment

• Independent Channel Volume Control

• Power ON/OFF Switch

• AF / RF Audio Signal LED Indicator Lights

• Perfect for Professional Audio Stage & Studio Performances

• Directly Connects to Home Theater Systems, Stereo Receivers, PA Speakers, Mixers

• Used for Home Karaoke, Classroom, Oce & Business Applications

Wireless BT Streaming Connectivity:

• Simple & Hassle-Free Pairing

• Instant Wireless Audio Streaming Ability

• Play Music Directly from Your External Device

• Works with Smartphones, Tablets, Laptops, Computers

• Wireless BT Network Name: ‘Pyle’

• Wireless BT Version: 4.1

• Wireless Range: Up to 32’+ ft.

www.PyleUSA.com

8

PDWM2122

What's in the Box:

• Microphone Receiver Base

• (2) Wireless Beltpack Transmitters

Beltpack Transmitter Size (L x W x H):

2.5’’ x 0.8’’ x 4.1’’ -inches (Each)

• (2) Headset Microphones

• RCA-to-Aux (3.5mm) Cable, 4.6’ ft.

• Aux (3.5mm) Audio Cable, 3.3’ ft.

• 1/4'' -inch (6.5mm) Audio Cable, 3.3’ ft.

• USB Charge Cable

PDWM2125

What's in the Box:

• Microphone Receiver Base

• (2) Wireless Handheld Microphones

Handheld Mic Size (L x W x H):

10.1’’ x 2.0’’ x 2.0’’ -inches (Each)

• RCA-to-Aux (3.5mm) Cable, 4.6’ ft.

• Aux (3.5mm) Audio Cable, 3.3’ ft.

• 1/4'' -inch (6.5mm) Audio Cable, 3.3’ ft.

• USB Charge Cable

• USB Wall Power Adapter

• USB Wall Power Adapter

Technical Specs:

• Wireless Operation: UHF Band Transmitter

• Microphone Element/Type: Dynamic

• Pickup/Polar Pattern: Uni-Directional

• Wireless Operating Range: Up to 165'+ ft.

• Frequency Stability: <0.002%

• Sensitivity: 2/MV

• S/N Ratio: >95dB

• Transmitted Power: 10mW

• Dynamic Range: >95DB

• Distortion: <1%, 1kHz Modulation

• Frequency Response:50Hz-18kHz (3±dB)

• Construction Material: Metal Alloy Receiver Base, Engineered ABS Mics

• Battery Operated Betlpack, Requires (2) x ‘AA’ Batteries, Not Included (Each)

• Power Supply: 120/240V (USB Power, DC 5V)

• Mic Receiver Base Size (L x W x H): 8.3’’ x 4.9’’ x 2.0’’ -inches
