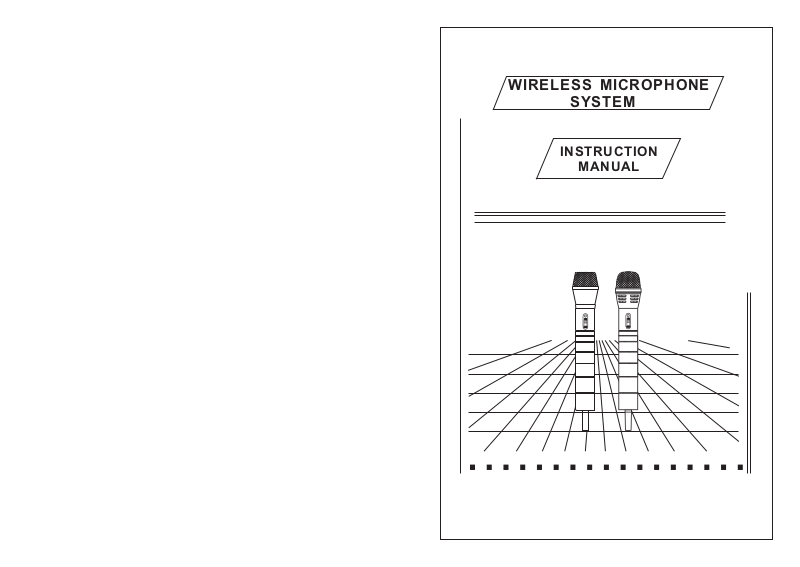

Pyle PDMW400HD User Manual

WIRELESS MICROPHONE
SYSTEM

INSTRUCTION

MANUAL

ONON

OFFOFF

ONON

OFFOFF

INSTRUTION:

1. After operation the microphone must be switched off as well. Otherwise the batteries will soon be
exhausted. in order to avoid untune consumption of the inner battery: if pilot lamp of the wireless
microphone (1)remains lighted, it means that the battery has no more power: (2)the lamp must
flash only for the time of the switching -on; this indicates that the microphone works well.
When switches the power switch to "on" position, then the power indicator lights, indicate the
apparatus is on.
When switches the power switch to "off"position, then the power indicator lights, indicate the
apparatus is off.

GRILLE HOLDER

SWITCH COVER

SWITCH

ON

OFF

TUBE

ANTENNA

2. INSTALL BATTERY:
PLS. make sure the positive/negative before you replacement batteries.

3. We congratulate you for the choice of this excellent professional apparatus microphone which
will give you outstanding results at the high fidelity. the microphone suit for school speech,
meeting speech, teachers and performer on the stage. to avoid of problem like wireless
microphone.

4. If you want to have a different frequency, set the receiver and transmitter power sw to off before
you do.

SPECIFICATION

TRANSMITTER PERFORMANCE SPECIFICATION:

NO.

1

2

3

4

5

6

7

8

9

ELECTRIC PARAMETER

Carrier Frequency Range

RF Power Output

Spurious Emission

Tatol Harmonic Distortion

Power Source

Current

Tone Osc.Frequency

Dimensions

Weight

DATE: 30,07,2002

SPECIFICATION

UHF 790-865 Mhz

10mW (TYPE)

45dBc

1%

DC 9V

30mA

32.768KHz

290mm/11.4"

350g(0.77 lb)

TESTER: J.H.LIN

POWER LED LIGHT

BATTERY INGORMATION:
NOTE: Make sure the power switch is in the "OFF" position when changing or installing new bat-

tery. Average life on an alkaline battery is 6-8 hours. Be sure to use good quality long life
9V alkaline battery only.

H

HC

C

FEATURES:

"STAND-BY" funciton.
Steel net based to prevent from rolling.

SWITCH COVER

GRILLE HOLDER

ON

POWER LED LIGHT

SWITCH

OFF

11

TUBE

ANTENNA

1. This microphone has a 3-level power switch design.

2. In using first turn on the receiver and then the transmitter.

3. New battery the power light is in "OFF".
The light is "ON". It indicates the ba needs to be replaced.

ttery

4. Remember to turn the switch "OFF".
When the microphone is not in use in order to save power. In "STAND

set the switch to the center.

-BY"

Caution:

Any changes or modifications not expressly approved by the party responsible for compliance
could void the use's authority to operate the equipment.
