Pyle PDMIUSBMT300 User guide

PDMIUSBMT300

Computer Desktop Microphone

4 Polar Patterns Streaming & Pro Audio Recording Mic

Questions? Issues?

We are here to help!

Phone: [phone]

Email: [e-mail]

with Tripod Stand, Easy USB Plug-and-Play

(for Podcast Recording, Streaming, Gaming)

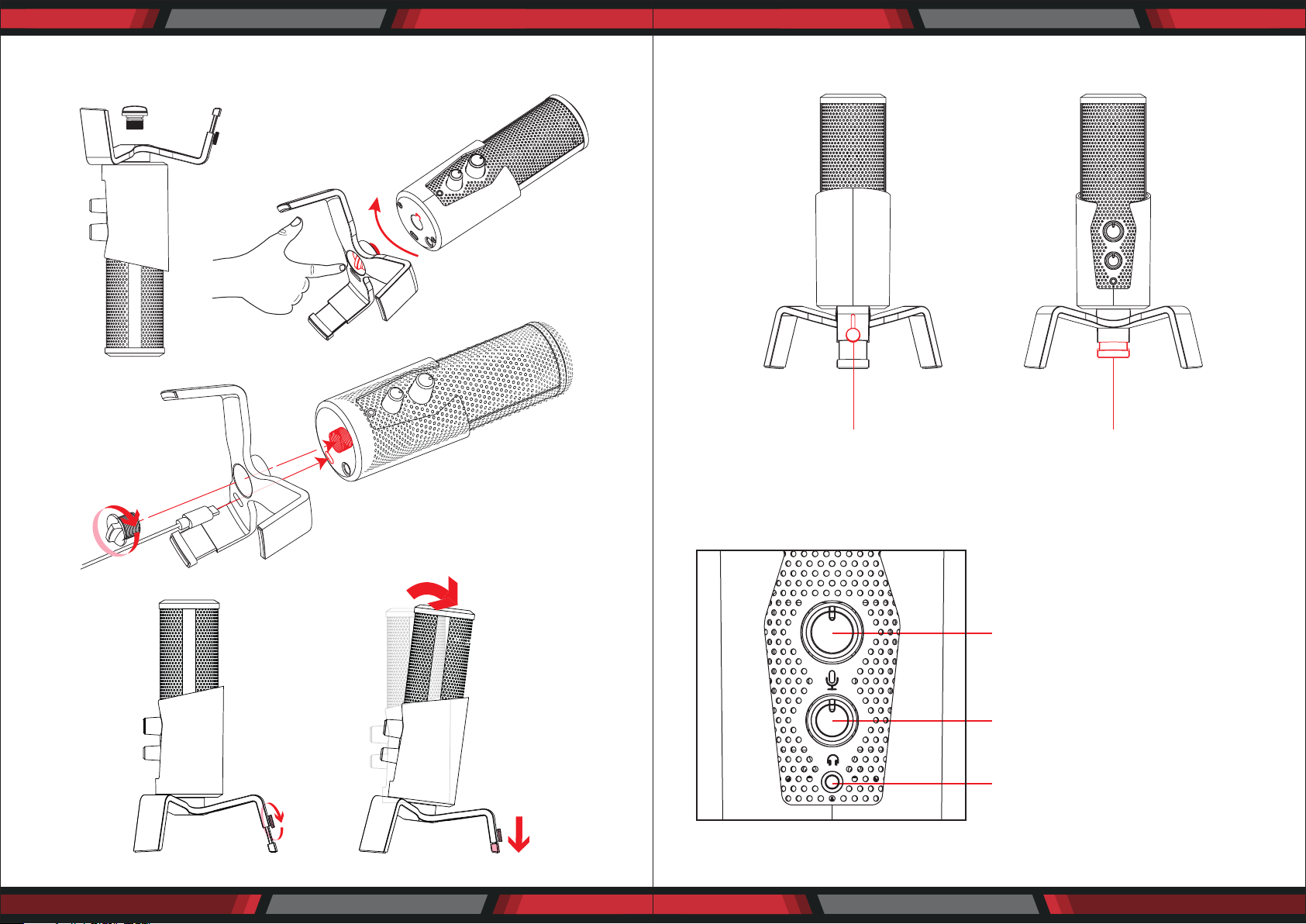

ASSEMBLY - ATTACHING THE STAND STAND ANGLE ADJUSTMENT

1. Twist knob counter-clockwise to loosen.
Adjust leg height and twist clockwise to lock position

www.PyleUSA.com

2

MICROPHONE FUNCTIONS

Dual Function Button

A. Turn left to right to increase gain
B. Press in to mute

(LED glows RED)

Headphone volume controller

Headphone (3.5mm input)

www.PyleUSA.com

3

MICROPHONE FUNCTIONS

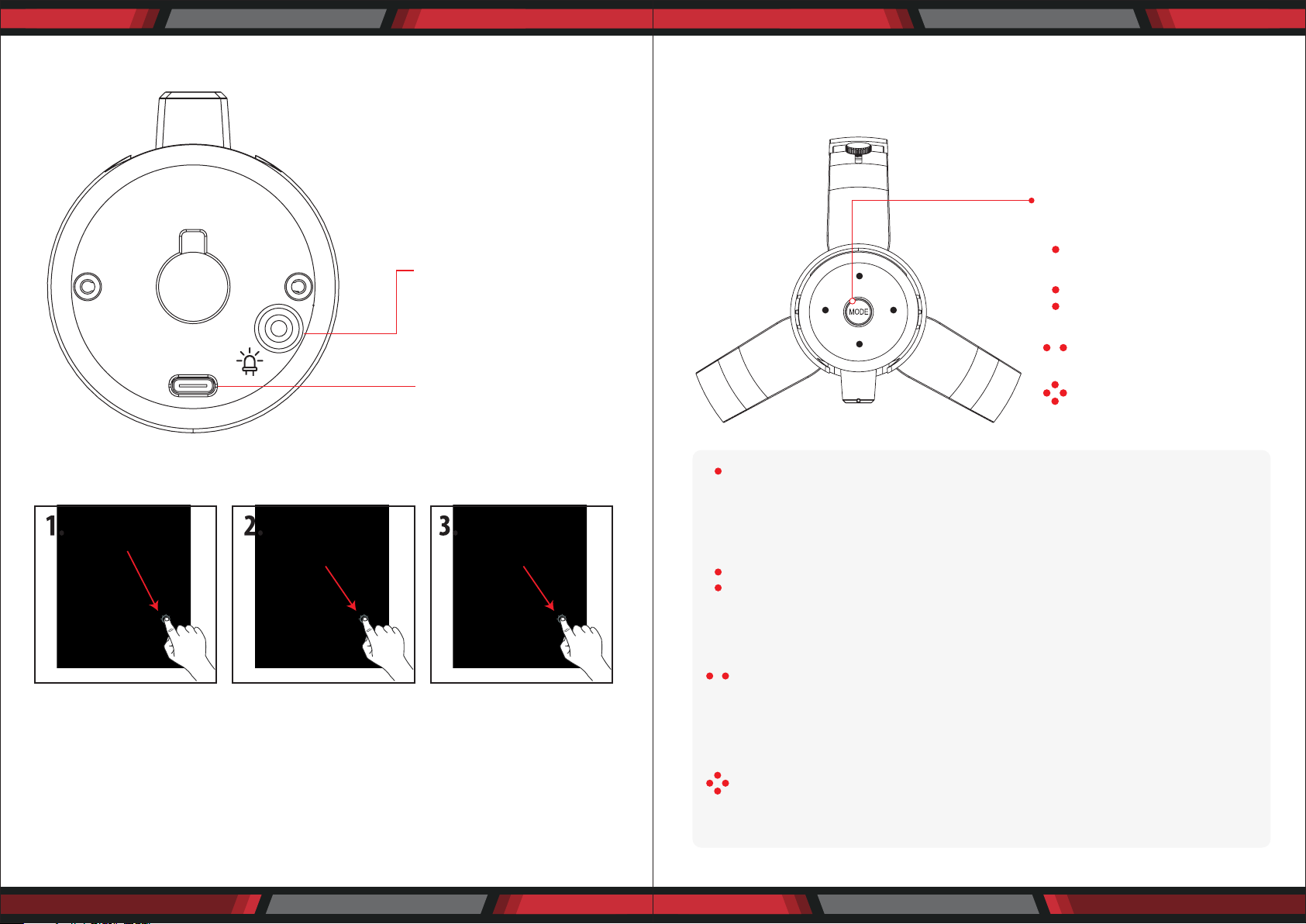

SELECT POLAR PATTERN

Press the Mode button to select dierent polar pattern settings.

LED lights will illuminate to show each pattern.

POLAR PATTERN SELECTION

LED CONTROLS

NORMAL MODE

Press this button to

change LED colors.

The LED will stay

illuminated.

ECO MODE

Hold this button

(for 3 sec) to turn the

LED function o.

Multi-color Ambient
LED switch

Type C
(Connect to computer)

RESET

Hold this button again
(3 sec.) to turn the LED

function back on.

(Normal mode)

CARDIOID (FRONT LED)

BIDIRECTIONAL

STEREO

OMNIDIRECTIONAL

CARDIOID MODE: is perfect for recording sounds directly in front of the
microphone. This is the most used polar pattern. It is the most benecial
and best pattern for streaming and gaming.

BIDIRECTIONAL MODE: records sound from the front and rear of the
microphone. It's typically used for interviews but can be used by anyone
sitting on opposite sides of the mic.

STEREO MODE: uses both left and right channels to capture a realistic
general sound image. It's great for recording musical instruments or
acoustics.

OMNIDIRECTIONAL MODE: picks up sound equally from all directions.
This mode is best for multi-person broadcasts so you can capture
sound from around the room.

www.PyleUSA.com

4

www.PyleUSA.com

5

You have many choices in recording software.

Select the program that will best suit your audio needs and budget.

SETTING YOUR SOFTWARE LEVELS

The correct adjustment of microphone level is Important for optimum performance.

Ideally, the microphone level should be as high as possible without overloading

the input of your computer.

If you hear distortion or if your recording program shows levels that are consist-

ently overloaded (at peak levels), turn the microphone volume or level) down. Do

this using the control panel (or system preferences) settings or through your

recording software.

If your recording program shows insucient level, you can increase the micro-

phone gain either from the control panel (or system preferences) settings or

through your recording program.

POSITIONING YOUR MICROPHONE

It is important to position the microphone directly in line (on axis) with the person

speaking/singing or instrument (or other sound source) to achieve the best

frequency response of the microphone.

FREQUENCY RESPONSE DIAGRAMSELECTING SOFTWARE

This requires the user to speak into the microphone from the Stadium symbol side

positioned towards the mouth. The distance from the mouth should be about 1

inch. or 10 - 40mm for optimal recording.

For use in speaking/singing applications, the ideal placement for the microphone is

directly in front of the person speaking/singing.

The same placement is optimal when you mic an instrument such as an acoustic

guitar, drums or piano. Experiment with dierent mic placements to nd the best

sound for your particular setup based on the Polar pattern selected.

www.PyleUSA.com

6

www.PyleUSA.com

7

PRELIMINARY SETUP WITH MAC OS X

1. Plug the free end of the provided USB cable into the USB port on your computer.

Your computer will automatically recognize the USB device.

2. To select the PDMIUSBMT300 as your audio input, rst open your System Preferences.

3. Next, click Sound to display the Sound Preference panel.

4. Click the input tab and select the PDMIUSBMT300 USB as the device for sound

input.

NOTE: Many recording software programs are available online.

www.PyleUSA.com

8

PDMIUSBMT300 USB

Your preferences are now set to use the PDMIUSBMT300 on your Mac with

GarageBand or another recording program of your choice.

www.PyleUSA.com

9

PRELIMINARY SETUP WITH WINDOWS XP

1. Plug the free end of the provided USB cable into the USB port on your computer.

Your computer will automatically recognize the USB device.

2. To select the PDMIUSBMT300 as your default recording device, select START

MENU> Control Panel.

4. Select Sounds and Audio Devices.

www.PyleUSA.com

10

5. Select the Audio tab, and choose PDMIUSBMT300 as the default device.

6. Adjust computer volume by clicking on the Volume button beneath Sound

recording Default device.

www.PyleUSA.com

11

7. Through the Wave In window, you can set the computer volume or mute the

microphone.

PDMIUSBMT300

PRELIMINARY SETUP WITH WINDOWS VISTA

1. Plug the free end of the USB cable into the USB port on your computer.

Your computer will automatically recognize the USB device.

2. To select the PDMIUSBMT300 as your default recording device, begin at

START MENU > Control Panel > Sound

8. Your preferences are now set to use the PDMIUSBMT300 with Windows XP with

the recording program of your choice.

www.PyleUSA.com

12

PDMIUSBMT300

3. Select the Recording tab. Make sure that the PDMIUSBMT300 microphone is set

as the default recording device.

(You should see a green check mark beside the USB microphone icon.)

Your preferences are now set to use the PDMIUSBMT300 with Windows Vista with

the recording program of your choice.

www.PyleUSA.com

13

PRELIMINARY SETUP WITH WINDOWS 7/10

1. Plug the free end of the USB cable into the USB port on your computer.

Your computer will automatically recognize the USB device.

2. START menu > Control Panel > Sound

To select the PDMIUSBMT300 USB as your default recording device, begin at

your START menu. Select Control Panel.

4. Select Sound

5. The following screen will pop up

www.PyleUSA.com

14

www.PyleUSA.com

15

6. Select the Recording tab & choose PDMIUSBMT300 USB as the default device.

7. Double click on the PDMIUSBMT300 USB icon to open the Microphone Properties
window. Select the levels tab to adjust microphone level (loudness). You may
need to come back to this window to readjust the level after you begin recording.

PDMIUSBMT300

SYSTEM REQUIREMENTS

Macintosh

Mac OS X: USB 1.0 or 2.0; 64 MB RAM (minimum)

Windows

XP/Vista/Windows 7: USB 1.0 or 2.0; 64 MB RAM (minimum)

Specications are subject to change without notice.

• 1 x USB Microphone

• 1 x Adjustable trifold stand

• 1 x USB cable length:1.8M

This manual is considered correct at time of printing but is subject to change.
For latest manuals and updates refer to the website.

Features:

• Pro Audio Broadcasting Desktop Microphone

• Adjustable 4-in-1 Selector - Cardioid/Bidirectional/Stereo/Omnidirectional

Polar Patterns

• Simple USB ‘Plug-and-Play’ Operation

• Headphone Jack, 3.5mm

• Adjustable Mic Volume/Gain & Headphone Volume Control

• RGB Solid Colors Eect with Eco-mode and Normal-mode

• LED Controls or Functions

• Connects to Your Computer for Hassle-Free Sound Control

• Used for Podcasts, Gaming, Streaming, Recording, Audio Editing

• Lab Tested for Stage & Studio-Quality Performance

• Crisp Vocal Pickup, High-Precision Audio Clarity

• Freestanding Mic Placement on Any Desktop, Counter, Table

• 5.9’ Detachable USB Cable

• Detachable Metal Tripod Mic Stand Mount with angle adjustment

• Universal Computer Compatibility: Works with PC, Mac, Linux

• For Home, Oce & Business Use

What’s in the Box:

• USB Microphone • Solid Spider Stand • USB Cable

Technical Specs:

• Pickup/Polar Pattern: Cardioid/Bidirectional/Stereo/Omnidirectional Selectable

• Microphone Type: Back Electret Condenser

• Connection Interface: USB 2.0, Powered

• Sensitivity: -36dB +/- 2dB (0dB=1V/Pa at 1KHz)

• Max SPL: 130dB

• Frequency Response: 30-18kHz

• Output Impedance: 32 Ohm

• Bit Depth: 24 bit

• Sampling Rate: Up to 96kHz

• Computer Operating System Support: Windows XP, Vista, 7, 8, 10, Mac OS X, Linux

• Mic Stand Construction Material: Engineered Metal Alloy

• USB Cable Length: 5.9’ ft.

• Power Output: USB-Powered, 100 mA

• Microphone Dimension: 7.1’’ x 2.9’’ x 2.9’’ – inches

• Total Assembled Dimensions (L x W x H): 9.25‘‘ x 5.1‘‘ x 5.1‘‘ -inches
