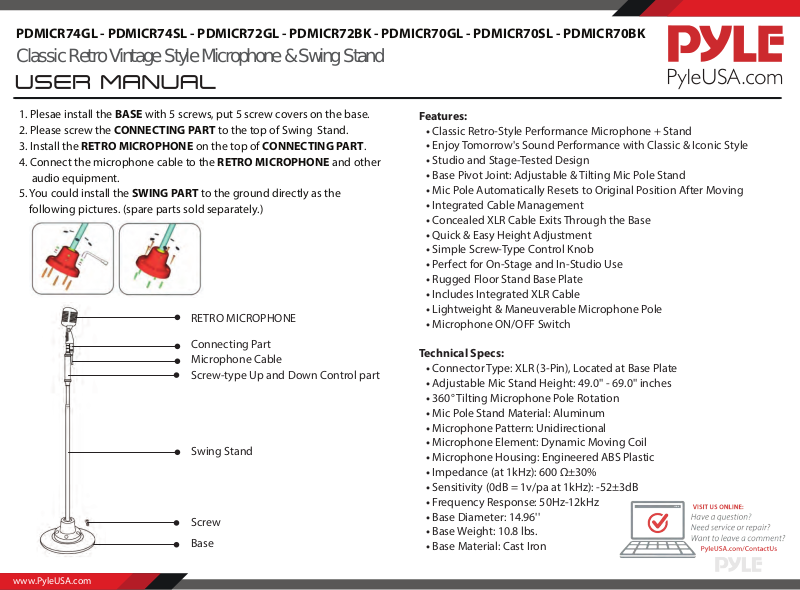

PDMICR74GL - PDMICR74SL - PDMICR72GL - PDMICR72BK - PDMICR70GL - PDMICR70SL - PDMICR70BK
Classic Retro Vintage Style Microphone & Swing Stand
1. Plesae install the BASE with 5 screws, put 5 screw covers on the base.
2. Please screw the CONNECTING PART to the top of Swing Stand.
3. Install the RETRO MICROPHONE on the top of CONNECTING PART.
4. Connect the microphone cable to the RETRO MICROPHONE and other
audio equipment.
5. You could install the SWING PART to the ground directly as the
following pictures. (spare parts sold separately.)
RETRO MICROPHONE
Connecting Part
Microphone Cable
Screw-type Up and Down Control part
Swing Stand
Screw
Base
Features:
• Classic Retro-Style Performance Microphone + Stand
• Enjoy Tomorrow's Sound Performance with Classic & Iconic Style
• Studio and Stage-Tested Design
• Base Pivot Joint: Adjustable & Tilting Mic Pole Stand
• Mic Pole Automatically Resets to Original Position After Moving
• Integrated Cable Management
• Concealed XLR Cable Exits Through the Base
• Quick & Easy Height Adjustment
• Simple Screw-Type Control Knob
• Perfect for On-Stage and In-Studio Use
• Rugged Floor Stand Base Plate
• Includes Integrated XLR Cable
• Lightweight & Maneuverable Microphone Pole
• Microphone ON/OFF Switch
Technical Specs:
• Connector Type: XLR (3-Pin), Located at Base Plate
• Adjustable Mic Stand Height: 49.0'' - 69.0'' inches
• 360° Tilting Microphone Pole Rotation
• Mic Pole Stand Material: Aluminum
• Microphone Pattern: Unidirectional
• Microphone Element: Dynamic Moving Coil
• Microphone Housing: Engineered ABS Plastic
• Impedance (at 1kHz): 600 Ω±30%
• Sensitivity (0dB = 1v/pa at 1kHz): -52±3dB
• Frequency Response: 50Hz-12kHz
• Base Diameter: 14.96''
• Base Weight: 10.8 lbs.
• Base Material: Cast Iron
www.PyleUSA.com
