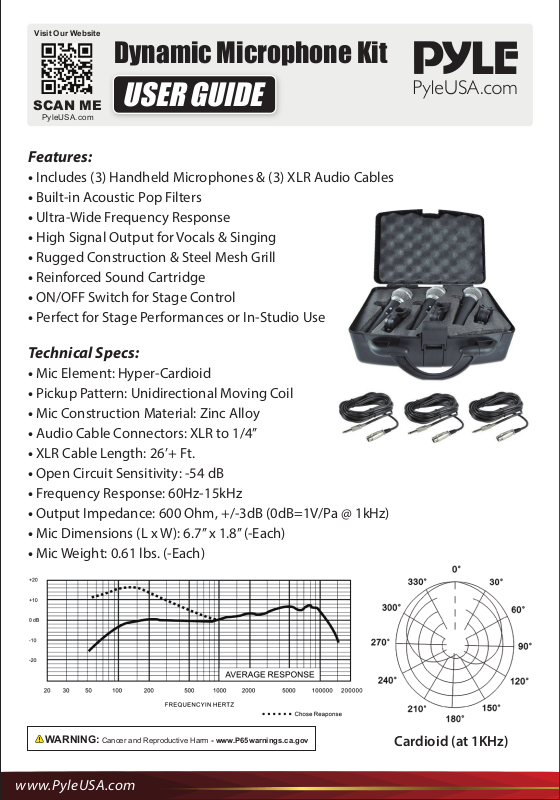

Pyle PDMICKT34 User guide

Visit Our Website

Dynamic Microphone Kit

SCAN ME

PyleUSA.com

USER GUIDE

Features:

• Includes (3) Handheld Microphones & (3) XLR Audio Cables

• Built-in Acoustic Pop Filters

• Ultra-Wide Frequency Response

• High Signal Output for Vocals & Singing

• Rugged Construction & Steel Mesh Grill

• Reinforced Sound Cartridge

• ON/OFF Switch for Stage Control

• Perfect for Stage Performances or In-Studio Use

Technical Specs:

• Mic Element: Hyper-Cardioid

• Pickup Pattern: Unidirectional Moving Coil

• Mic Construction Material: Zinc Alloy

• Audio Cable Connectors: XLR to 1/4’’

• XLR Cable Length: 26’+ Ft.

• Open Circuit Sensitivity: -54 dB

• Frequency Response: 60Hz-15kHz

• Output Impedance: 600 Ohm, +/-3dB (0dB=1V/Pa @ 1kHz)

• Mic Dimensions (L x W): 6.7’’ x 1.8’’ (-Each)

• Mic Weight: 0.61 lbs. (-Each)

WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov

www.PyleUSA.com

Cardioid (at 1KHz)

Connecting and Disconnecting the
Microphone Cable

1. Connecting the Cable: Insert the XLR
connector into the microphone.
If necessary, rotate the connector to
align the key on the connector with the
groove in the microphone. Push the
connector into the microphone until it
clicks, indicating a secure connection.

2. Disconnecting the Cable:
To disconnect the cable from the
microphone, grasp the connector while
depressing the tab. Gently pull the
connector away from the microphone
to release it.

Usage Guidelines

1. Optimal Placement: For the best gain­ before-feedback and isolation from
undesired background noise, aim the
microphone toward the sound source
and away from unwanted sound
sources.

Cautions

1. Feedback Prevention: If the head of
the microphone is covered by your
hand or brought close to the speaker,
a howling sound may be generated.
To prevent this, rst decrease the
volume, then position the microphone
so that it is not pointed towards the
speaker and there is sucient
distance between the microphone
and the speaker.

2. Maintenance of the Grille and
Windscreen: It is important to keep
foreign particles out of the grille and
the windscreen as they may alter the
frequency response of the microphone.
Clean the grille periodically using
warm, soapy water. Rinse with plain
water and let it dry completely before
replacing.

3. Handling the Microphone: Due to
the high sensitivity of the cartridge,
avoid dropping it from a height or
applying strong shocks to it.

4. Environmental Conditions:
To maintain the sensitivity and quality
of sound reproduction, avoid exposing
the microphone to moisture and
extreme temperatures.

2. Handling the Microphone: Do not cover any part of
the grille with your hand. Covering the grille alters the
sound and distorts the polar pattern, increasing the
chance of feedback.

Questions or Comments?

We are here to help!

Phone: [phone]

PyleUSA.com/ContactUs
