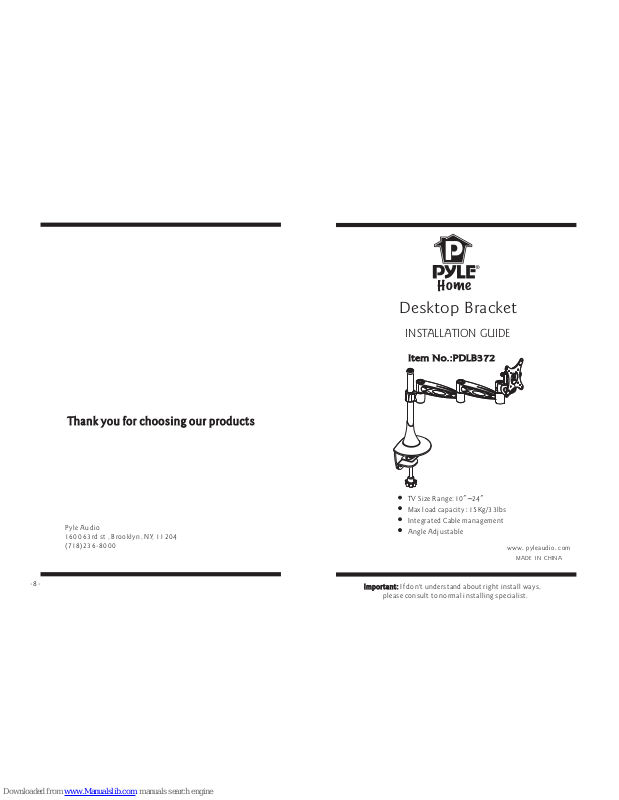

Pyle PDLB372 Installation Manual

-8­Important: If don't understand about right install ways,

please consult to normal installing specialist.

Important:

Thank you for choosing our productsThank you for choosing our products

INSTALLATION GUIDE

Item No.:PDLB372Item No.:PDLB372

TV Size Range:10 24""~

Max load capacity 15Kg/33lbs

Integrated Cable management

Angle Adjustable

:

Desktop Bracket

www pyleaudio com..

MADE IN CHINA

Pyle Audio
1600 63rd st, Brooklyn, NY, 11204
[phone]

-2-

-7-

Parts:

Caution The turning
angleisnottoolarge.
Or it mayresult in
personal injury or
product damage.

:

Caution:

2 Adjusted with the arms.
With circumvolve the arms, TV canturning to twosides of thebase
support until touchthe vertical tube.First joint adjustingangle is ±90°,
second is ±90°,third is ±135° .

.

Use to adjust the degree
of those joints.

Wrench

Display Adjustments

Roll Control
Function -Horizontal levelingof thedisplay.
Operation -Grasp the sides ofthe display, and roll it into thedesired
position. Then adjusting Roll Tension.

Display Adjustments

Roll

Control

Angle adjusting
1 Adjusted with the TV plate .
With circumvolve the wall Plate ,TV can adjust in the direction of left
right up and down Vertical Adjusting Angle is from 5° to 20°.
Level Adjusting Angle is 20°

.

,

,. -

.

Angle adjusting

Has correctional function: f the wall plate were
installed imbalance, you can adjust the TV plate

he assembly. Adjust angle is 10

I

to lever off t

°.

Fig 7

-520°~ °

20°

±°90

A

B

C

D

E

1

±135°

Vertical height adjustment
Y

0~110mm vertical height adjustment.

ou can adjust the arm assembly up without any other action, but before

you lower the arm assembly, you should push the plastic button first.

Vertical height adjustment

3

6

2

4

5

Hardware List:

ID Description

1

4

2

5

A

3

6

B

C

1

1

1

1

1

1

Base

TV Plate

Arm Assembly

Tube Cover

5x5mm Wrench

4x4mm Wrench

M4×8mm bolt
M ×12mm4 bolt
M ×8mm5 bolt
M5×12mm bolt
M5 washer

Qty

D

4
4
4
4
4

E

Choose the desired angle and turn clockwise the Tension Knob on the right
of the arm.

±°90

Plastic
button

Tension Knob

-6-

-3-

Choose fitting position on the desk.

The thinkness of the table should be smaller than 55mm

Base

.

Choose the position that the Base you want installed.
Important: Make sure there is enough space to spread display, considering
the show size.

Step1

Step2 Attach

Choose fitting position on the desk.Step1

Step2

Attach Base

.

Step 6 Using Cable Management

The mount include a cable management function, where cables can be
routed along the length of the arm assembly.
To install cables, you’ll first need to remove the cable covers and set all
parts aside.

Step 6 Using Cable Management

Cable cover

Fig 5

Route the cables along one side of the Inner Arm (nearest the wall plate).
With cables in place, loosely secure the Inner Arm cable covers back in place.
Next, route the cables along the opposite side of the Outer Arm. Be sure to
leave slack in the cable where it transitions between two sides of the Arm
Assembly. With cables in position, loosely secure the Outer Arm cable
covers back in place.

For best system performance, route the AC power cable separately
from the signal cables.
With all cables in place, pull the display in and out and check that the
arm assembly moves freely, without stretching or damaging the cables,
andthensecurethecablecovers.

DO NOT use a hex wrench on the cable covers, only apply

pressure with your finger.

Note:

Important:

Note:

Important:

WARNING

We are not responsible for any personal injury or
product damage due to mishandling, incorrect
mounting, incorrect assembly or incorrect use of
this product.

Fig 1

Fig 6

-4-

-5-

Caution : This Product LCD /Plasma

WallMount Bracket is intended for use only
with the maximum weights indicated .See
apparatus instructions .Use with products
heavier than the maximum weights indicated
instability causing possible injury .

Caution :

Fig 3

According LCD hole's size, deep, position to choose bolts. Using chose
bolts(A-D) and washers(E) to install the LCD on the panel. As shown
in Fig3.

Don't force the bolt to LCD hole,
avoiding damage to people and instrument.
Don't use electronics drill to fasten screw

Installing the LCD

Carefully:

Step4 Installing the LCD

Carefully:

A-D

E

TV Plate

Warning: Some TV require two people
to lift, aswe are notresponsible for any
personal injury or product damagedue
to mishandling.

Warning:

Step5 Hang the display

Firstly lift upthe TVplate installed the LCD,making the trough onthe
arm fit tothe trough onit ,according trough to embed theTV plate into
the wall plate.

Step5 Hang the display

Step 3

Remove the T

ube Cover. Pushthe Plastic Button down and assemble the Arm.
Adjust the arm assembly to the height then free the Plastic Button.
Recover the tube cover.

desired

Arm AssembleStep 3 Arm Assemble

Fig 4

Tighten bolt

Fig 2

Plastic Buttom

Arm

Once the TVis positioned inplace,
fasten the TightenBolts on Receiving
Joint clockwise tosecure the display
to the ArmAssembly.
