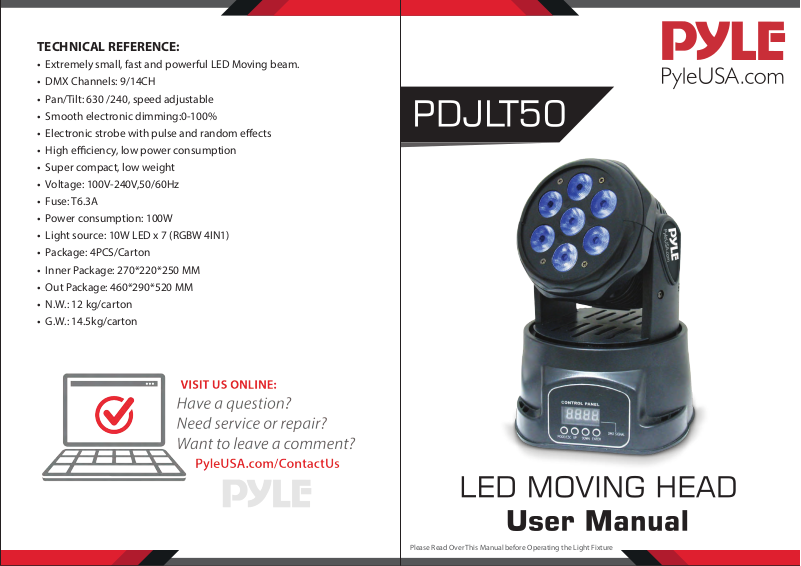

Pyle PDJLT50 User Manual

TECHNICAL REFERENCE:

• Extremely small, fast and powerful LED Moving beam.

• DMX Channels: 9/14CH

• Pan/Tilt: 630 /240, speed adjustable

• Smooth electronic dimming:0-100%

• Electronic strobe with pulse and random eects

• High eciency, low power consumption

• Super compact, low weight

• Voltage: 100V-240V,50/60Hz

• Fuse: T6.3A

• Power consumption: 100W

• Light source: 10W LED x 7 (RGBW 4IN1)

• Package: 4PCS/Carton

• Inner Package: 270*220*250 MM

• Out Package: 460*290*520 MM

• N.W.: 12 kg/carton

• G.W.: 14.5kg/carton

Please Read Over This Manual before Operating the Light Fixture

1. SAFETY INSTRUCTION

DMX

On

DMX input Present

MASTER

On

Master Mode

SLAVE

On

Slave Mode

SOUND

Flashing

Sound activation

MENU

To select the programming functions

DOWN

To go backward in the selected
functions

UP

To go forward in the selected
functions

ENTER

To conrm the selected functions

WARNING

Please read carefully the instruction, which includes important

information about the installation, usage and maintenance

3. CAUTION

There are no user serviceable parts inside the unit. Do not open the
housing or attempt any repairs by yourself. In the unlikely event your
unit may require service, please contact your nearest dealer.

• Please keep this User Manual for future consultation. If you sell the unit to
another user, be sure that they also receive this instruction booklet

• Unpack and check carefully if there is no transportation damage before
using the unit.

• Before operating,ensure that the voltage and frequency of power supply
match the power requirements of the unit

• It’s important to ground the yellow/green conductor to earth in order to
avoid electric shock.

• The unit is for indoor use only. Use only in a dry location

• The unit must be installed in a location with adequate ventilation, at least

50cm from adjacent surfaces. Be sure that no ventilation slots are blocked

• Disconnect main power before replacement or servicing.

• Make sure there is no ammable materials close to the unit while

operating as it is re hazard.

• Use safety cable when xing this unit. Don’t handle the unit by holding its
head only, always hold it by its base or body.

• Maximum ambient temperature is at:104°F. Don't operate where the
temperature is higher than 104°F.

• Unit surface temperature may reach up to 185°F. Dont touch the housing

bare-hand during its operation. Turn o the power and allow 15 minutes
for the unit to cool down before replacing or serving.

• In the event of serious operating problem, stop using the unit

immediately. Never try to repair the unit by yourself. Repairs carried out
by unskilled people can lead to damage or malfunction. Please contact
the nearest authorized technical assistance center. Always use the same
type of spare parts.

WARNING

• To prevent or reduce the risk of electrical shock or re, do not expose the
unit in the rain or moisture.

• Do not open the unit within ve minutes after switching o.

• The housing, the lenses, or the ultraviolet lter must be replaced if they

are visibly damaged.

4. INSTALLATION

The unit should be mounted via its screw holes on the bracket. Always
ensure that the unit is rmly xed to avoid vibration and slipping while
operating. Make sure that the structure to which you are attaching the
unit is secured and able to support a weight of 10 times of the unit’s
weight. Always use a safety cable that can hold 12 times of the weight of
the unit when installing the xture. The equipment must be xed by
professionals. The PDJLT50 must be xed at a place where it is out of
touch of people and no one can pass by or under it.

• DISPLAY

To show the various menus and the selected functions

• LED

• Button

• MAINS INPUT

Connect to power supply.

• MAINS OUTPUT

Connect to supply power to the next unit

• DMX INPUT / OUTPUT

For DMX512 link, use 3/5-pin XLR cable to link the unit together.

1 2

www.PyleUSA.com www.PyleUSA.com

8. CHANNEL MODEL FUNCTION

Reset

MAFA

FASt

Host rapid self-propelled

MStS

Host Voice mode

SlAu

Slave Set

MASL-SLOU

Host a slow self-

PAn

PAn

X Motor Forward

TiL

TiL

Y motor is transferred

rTiL

X motor is transferred

MStc

Stand-alone mode

rPAn

Y Motor Forward

diS

diS

Forward Show

rdiS

Reverse Display

14CH

14CH

14 CH mode

9CH

9 CH mode

PA54

PA54

X motor 540 degree turn

X motor 360 degree turn

X motor 180 degree turn

Y motor 270 degree turn

X motor 180 degree turn

Ti09

X

motor 180 degree turn

Initialization parameters

d001

001-512

Controller control

1

0-255

Level

2

0-255

Vertical

240-255

Dimming and stroboscopic

medallion

4

0-255

Red dimming

5

0-255

Green dimming

6

0-255

Blue dimmming

7

0-255

White dimming

8

0-255

Motor speed

9

150-200

Reset

1

0-255

level

2

0-255

Level dimming

3

0-255

vertical

4

0-255

Vertical dimming

5

0-255

speed

0-7

240-255

No eect

medallion

7

0-255

Red dimming RED

8

0-255

Green dimming GREEN

9

0-255

Blue dimming BLUE

10

0-255

White dimming WHITE

0-7

232-255

Color selection

Color jump

12

0-255

Color speed

0-142

143-255

Auto

Sound 1

150­200

Reset

9 CHANNEL MODE

Channel Function

PA36

3

0-7

8-134

135-239

No eect
Dimming

Strobe from low to fast

14 CHANNEL MODE

Channel Function

6

8-134

135-239

dimming

Strobe from low to fast

PA18

Ti27

REST

3 4

www.PyleUSA.com www.PyleUSA.com

LOAD

Ti27

Ti18

REST

LOAD

11

13

14

8-231

Color combination 1
